Ohlins Road & Track Coilovers - Mercedes-AMG A45 W176
Part Number: MES MV00S1 | Fitment: Mercedes-AMG A45 W176
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Ohlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability - thanks to Ohlins' proprietary Dual Flow Valve (DFV) technology. Features a lightweight aluminium construction reducing suspension weight by 10kg compared to standard. Corrosion-tested to ISO 9227 and backed by a 2-year worldwide limited warranty.
⚠️ Note: For vehicles equipped OE with electronically adjustable suspension, an Ohlins cancellation kit is also required (sold separately). See cancellation kit table below.
Technical Specifications
| Part Number | MES MV00S1 |
| Vehicle Fitment | Mercedes-AMG A45 W176 |
| Front Damper Type | McPherson strut |
| Rear Damper Type | Conventional shock absorber |
| Front Spring Rate | 80 N/mm - included |
| Rear Spring Rate | 110 N/mm - included |
| Damping Adjustment | Single bleed adjuster (front & rear) |
| Top Mounts | Use with original top mounts (front & rear) |
| Springs Included | Yes - front & rear springs included |
| Weight Reduction | -10kg vs standard suspension |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year worldwide limited warranty |
| Rebuildable | Yes |
Cancellation Kit (if required)
For vehicles equipped OE with electronically adjustable suspension, an Ohlins cancellation kit must also be used. Ordered separately.
| Part No | Description | Model |
|---|---|---|
| 35020-34 | Cancellation kit | A45 AMG, W176 |

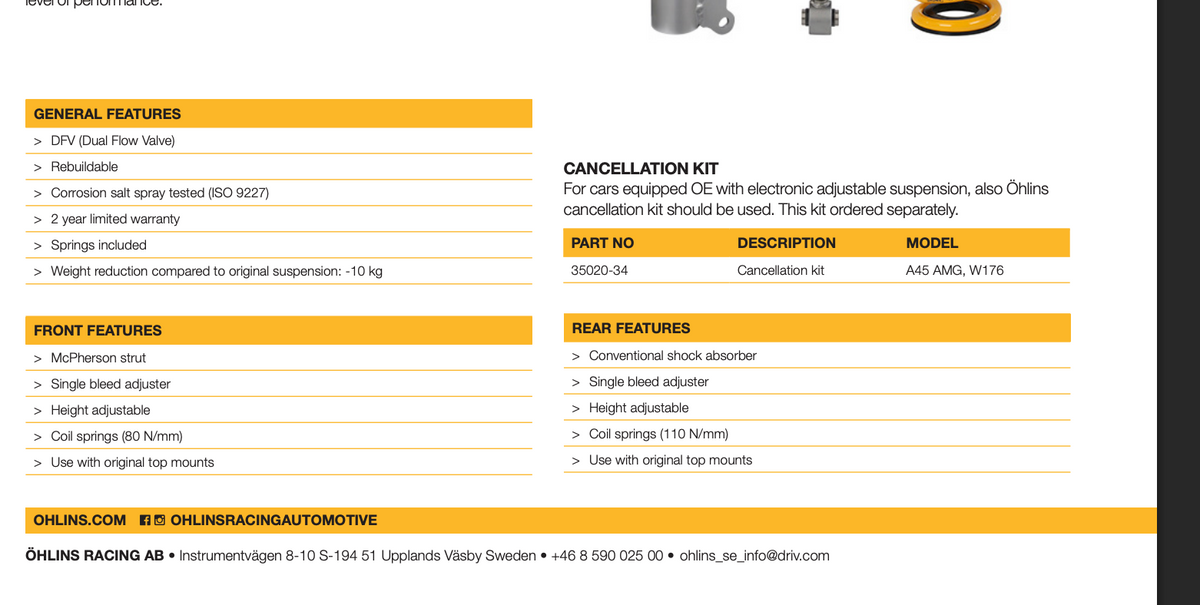

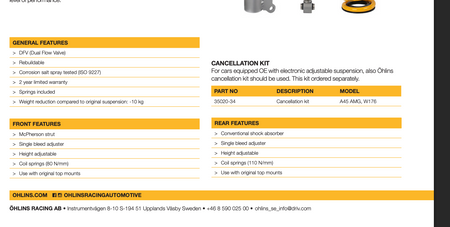

General Features
- DFV technology (Dual Flow Valve) - Ohlins' proprietary damping system
- Individual ride height adjustment via threaded lower flange (spring seat position maintained)
- Spring preload adjustment with included C-spanner
- Lightweight aluminium construction - -10kg vs standard suspension
- Rebuildable construction for long-term serviceability
- Corrosion salt spray tested to ISO 9227
- 2-year worldwide limited warranty
- Front & rear springs included

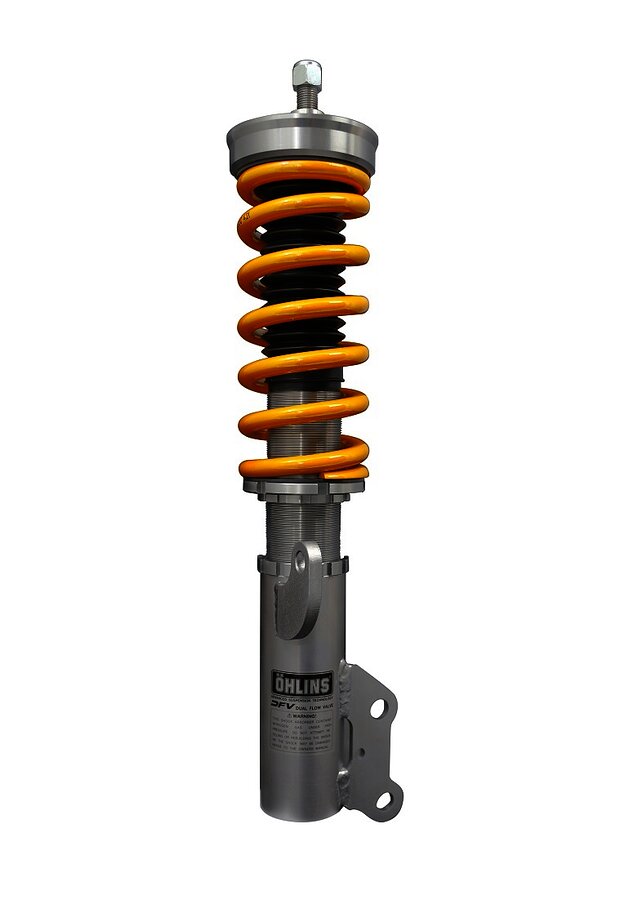

Front Features
- McPherson strut design
- Single bleed adjuster
- Height adjustable
- Coil springs included (80 N/mm)
- Use with original top mounts

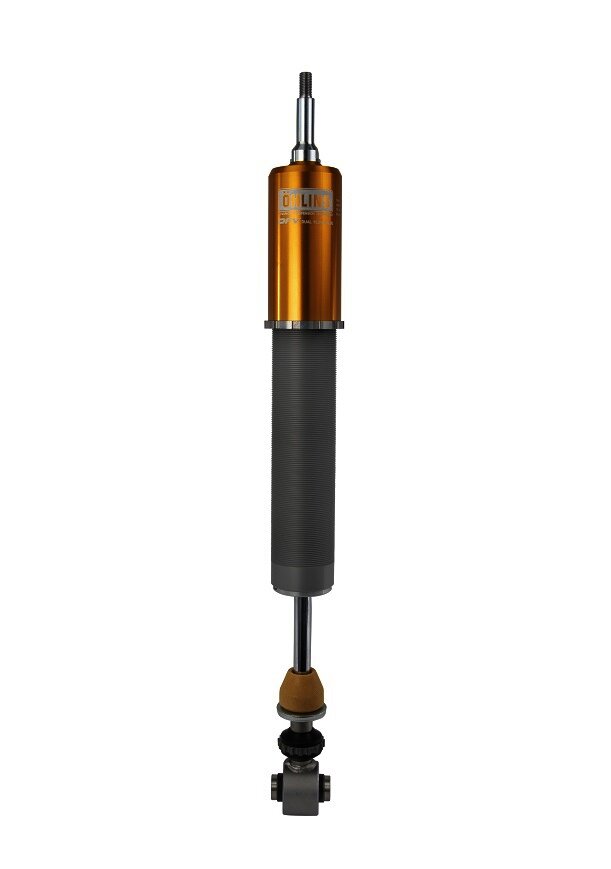

Rear Features
- Conventional shock absorber design
- Single bleed adjuster
- Height adjustable

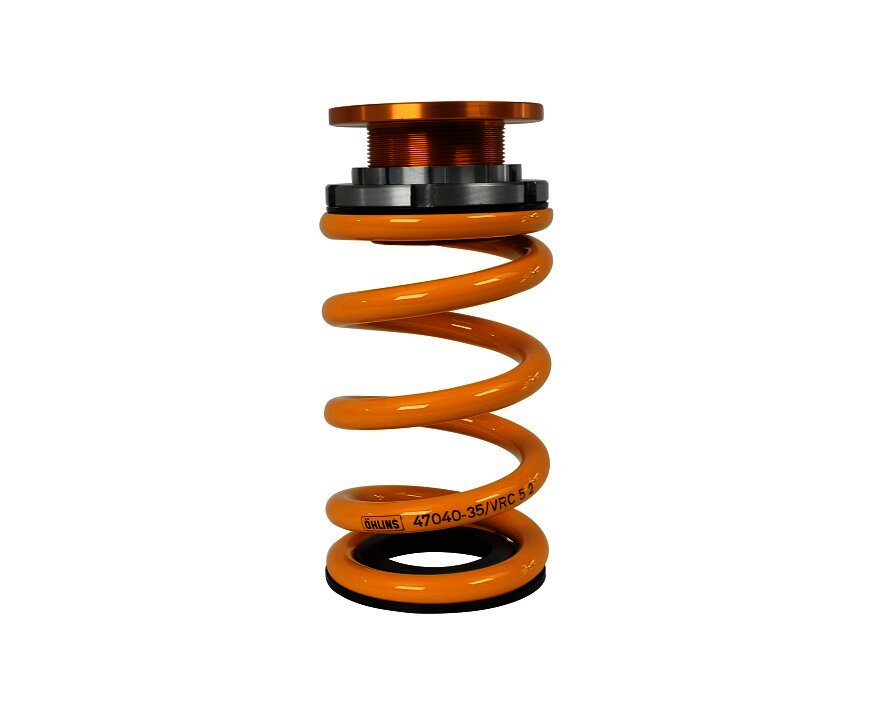

- Coil springs included (110 N/mm)
- Use with original top mounts

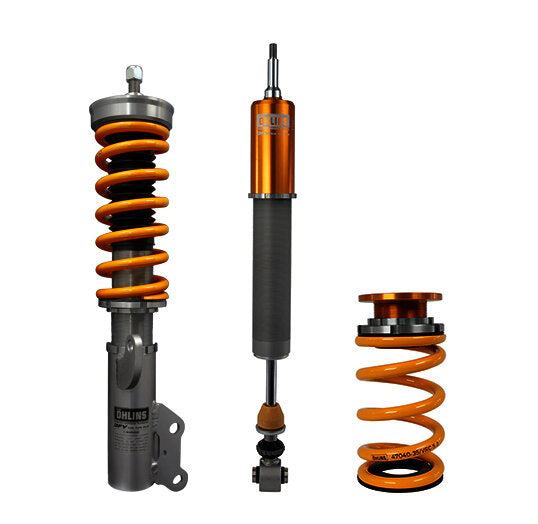

Kit Contents
- Complete coilover kit including springs and all mounting hardware
- C-spanner for spring preload adjustment
- Owner's manual and mounting instructions
- Ohlins sticker set
What is DFV (Dual Flow Valve)?
DFV is Ohlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes - the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple - more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.
Ohlins also incorporates a unique needle bleed valve that expands with temperature, compensating for changes in fluid viscosity as the damper heats up. The result: consistent damping performance lap after lap, regardless of operating temperature.
Why Ohlins Road & Track?
- Over 40 years of motorsport engineering heritage - trusted by factory race teams worldwide
- Proprietary DFV technology delivers genuine race-car response with OEM-level daily comfort
- Rebuildable and fully serviceable for long-term ownership and track use
- Precision ride height adjustment via threaded lower flange - spring geometry is never compromised
- ISO 9227 corrosion-tested and backed by a 2-year worldwide limited warranty
