Ohlins Road & Track Coilovers - Mercedes-AMG A45 W177 (2019+)
Part Number: MES MV10S1 | Fitment: Mercedes-AMG A45 - W177 - 2019+
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Ohlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability - thanks to Ohlins' proprietary Dual Flow Valve (DFV) technology. Featuring a McPherson front strut and conventional rear shock, springs included, and an approximate weight saving of 10kg over the original suspension. Corrosion-tested to ISO 9227 and backed by a 2-year limited warranty.
⚠️ Note: For vehicles equipped OE with electronic adjustable suspension, an Ohlins cancellation kit is also required (sold separately). See cancellation kit table below.
Vehicle Fitment
| Mercedes-AMG A45 | W177 - 2019+ |
Technical Specifications
| Part Number | MES MV10S1 |
| Technology | DFV - Dual Flow Valve |
| Front Damper Type | McPherson strut |
| Rear Damper Type | Conventional shock absorber |
| Damping Adjustment | Single bleed adjuster (front & rear) |
| Front Spring Rate | 80 N/mm - included |
| Rear Spring Rate | 110 N/mm - included |
| Front Lowering | Approx. 20mm below standard |
| Rear Lowering | Approx. 15mm below standard |
| Top Mounts | Use with original top mounts (front & rear) |
| Springs Included | Yes - front & rear springs included |
| Weight Saving | Approx. - 10kg vs original suspension |
| Rebuildable | Yes |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year limited warranty |
Included Springs
| Position | Spring Rate |
|---|---|
| Front | 80 N/mm |
| Rear | 110 N/mm |
Cancellation Kit (if required)
For vehicles equipped OE with electronic adjustable suspension, an Ohlins cancellation kit must also be used. Ordered separately.
| Part No | Description | Model |
|---|---|---|
| 35020-35 | Cancellation kit | A45 AMG, W177 |
General Features
- DFV technology (Dual Flow Valve) - Ohlins' proprietary damping system
- Individual height adjustment
- Single bleed adjuster - compression and rebound
- Springs included - front & rear
- Approx. - 10kg weight saving vs original suspension
- Rebuildable for custom tuning
- Corrosion salt spray tested (ISO 9227)
- 2-year limited warranty
Front Features
- McPherson strut
- Single bleed adjuster
- Height adjustable - approx. 20mm lower than standard
- Coil springs included (80 N/mm)
- Use with original top mounts

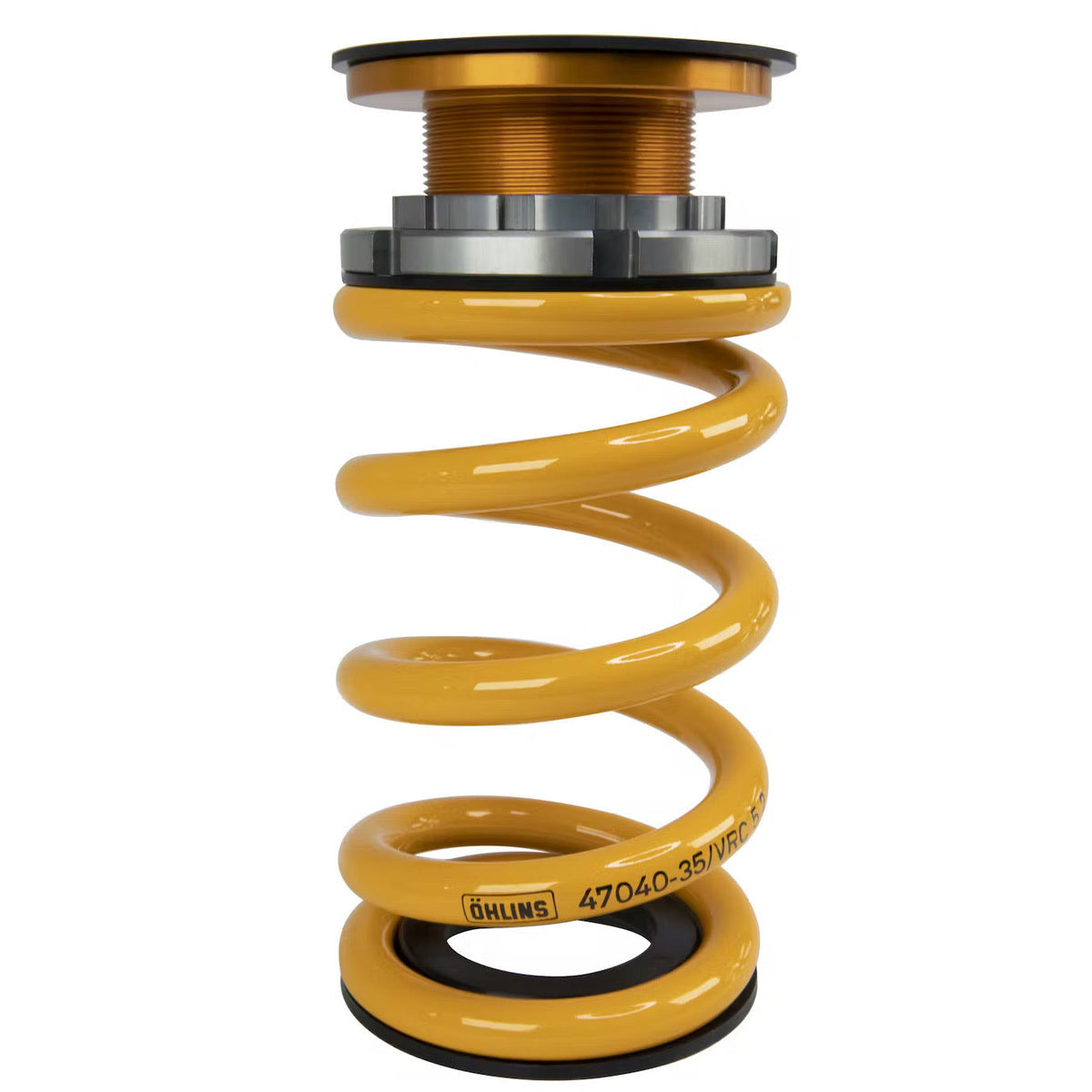

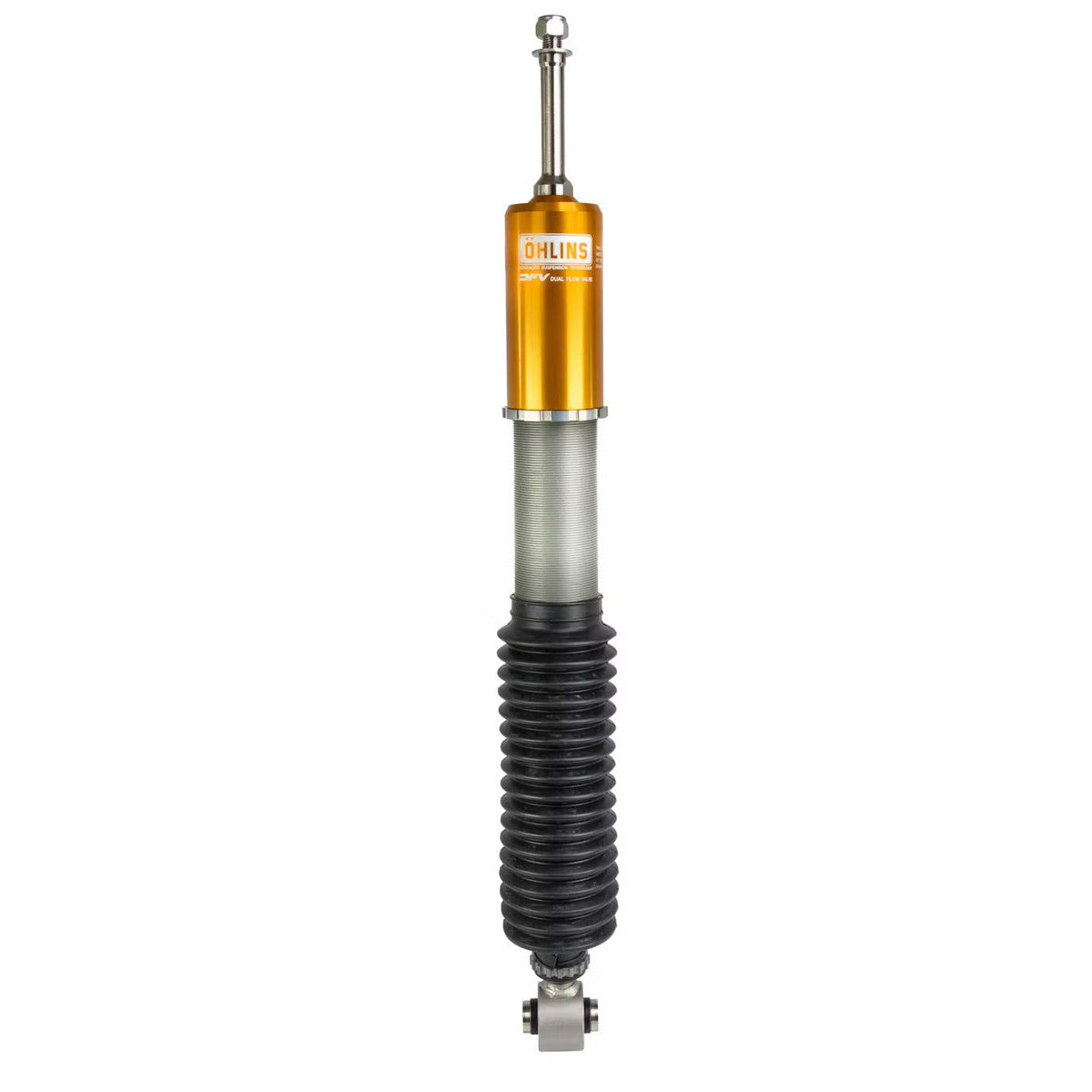

Rear Features
- Conventional shock absorber
- Single bleed adjuster
- Height adjustable - approx. 15mm lower than standard
- Coil springs included (110 N/mm)
- Use with original top mounts

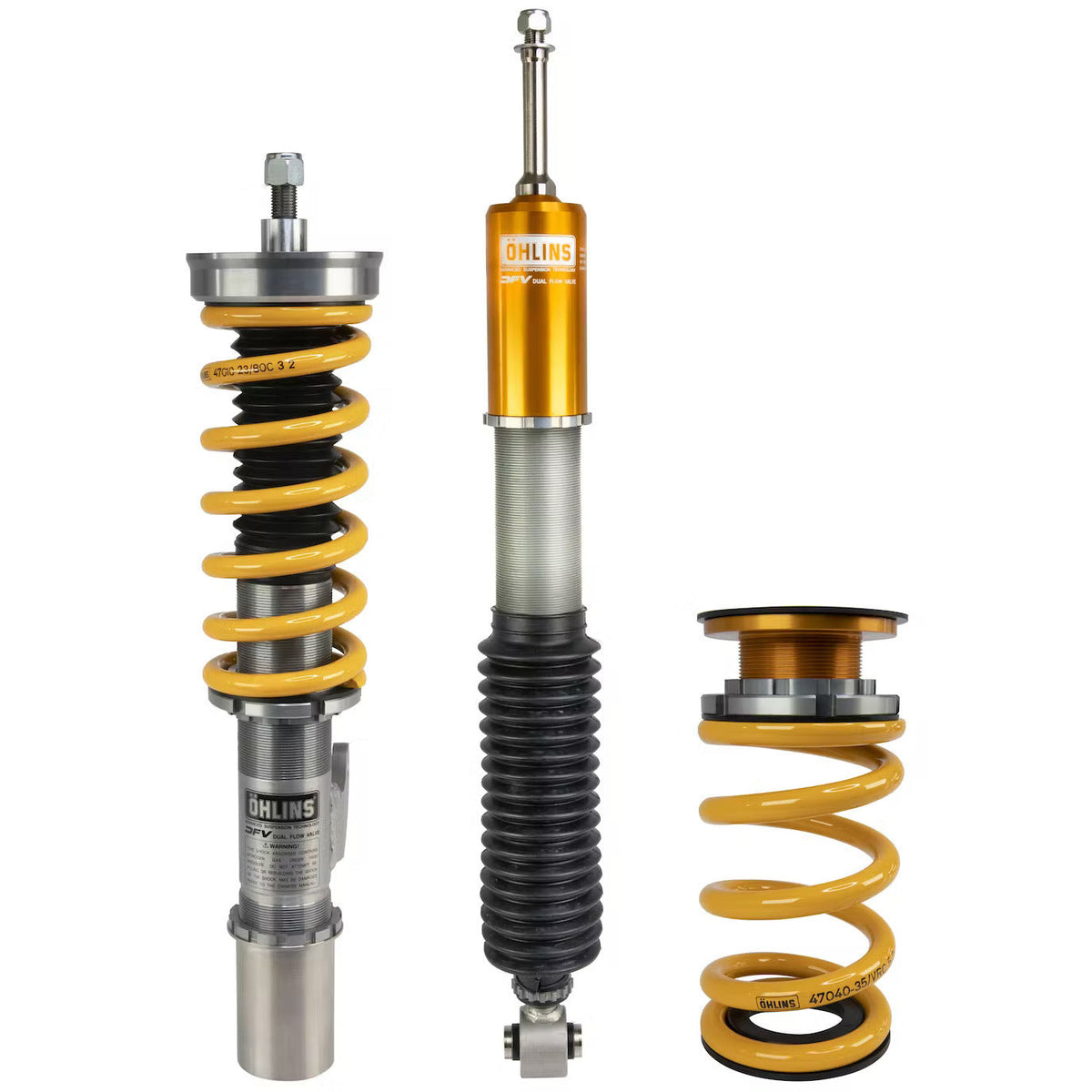

Kit Contents
- Complete coilover kit including springs and all mounting parts
- C-spanner for spring preload adjustment
- Owner's manual and mounting instructions
- Ohlins sticker set
What is DFV (Dual Flow Valve)?
DFV is Ohlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes - the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple - more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.
Why Ohlins Road & Track?
- Over 40 years of motorsport engineering heritage - trusted by factory race teams worldwide
- DFV technology - genuine race-car response with OEM-level daily comfort
- Approx. 10kg lighter than OEM suspension - improved handling response
- Springs included - 80/110 N/mm front & rear, ready to fit
- Rebuildable, ISO 9227 corrosion-tested, 2-year limited warranty
