This stock-location heat exchanger upgrade is built for the supercharged 3.0 TFSI in the B8 and B8.5 Audi S4 and the B8.5 S5. Its oversized core increases frontal area by 130% over the factory cooler, from 148 to 341 square inches, yet still fits behind the factory crash bar, and 034Motorsport says testing shows a significant drop in intake air temperatures. The CNC-machined 6061 billet aluminium end tanks can be set up for single-pass coolant flow on the B8 S4 or dual-pass on the B8.5, and both tanks carry bleeder plugs so trapped air can be purged without special tools. The 54-piece kit adds custom moulded multilayer silicone hoses and air duct sealing panels that stop air spilling around the radiator core, and 034Motorsport recommends it for Stage 1 and Stage 2 tunes and considers it a requirement beyond that.
Features
- Core frontal area up 130% over the factory cooler
- Core size increased from 148 sq. in. to 341 sq. in.

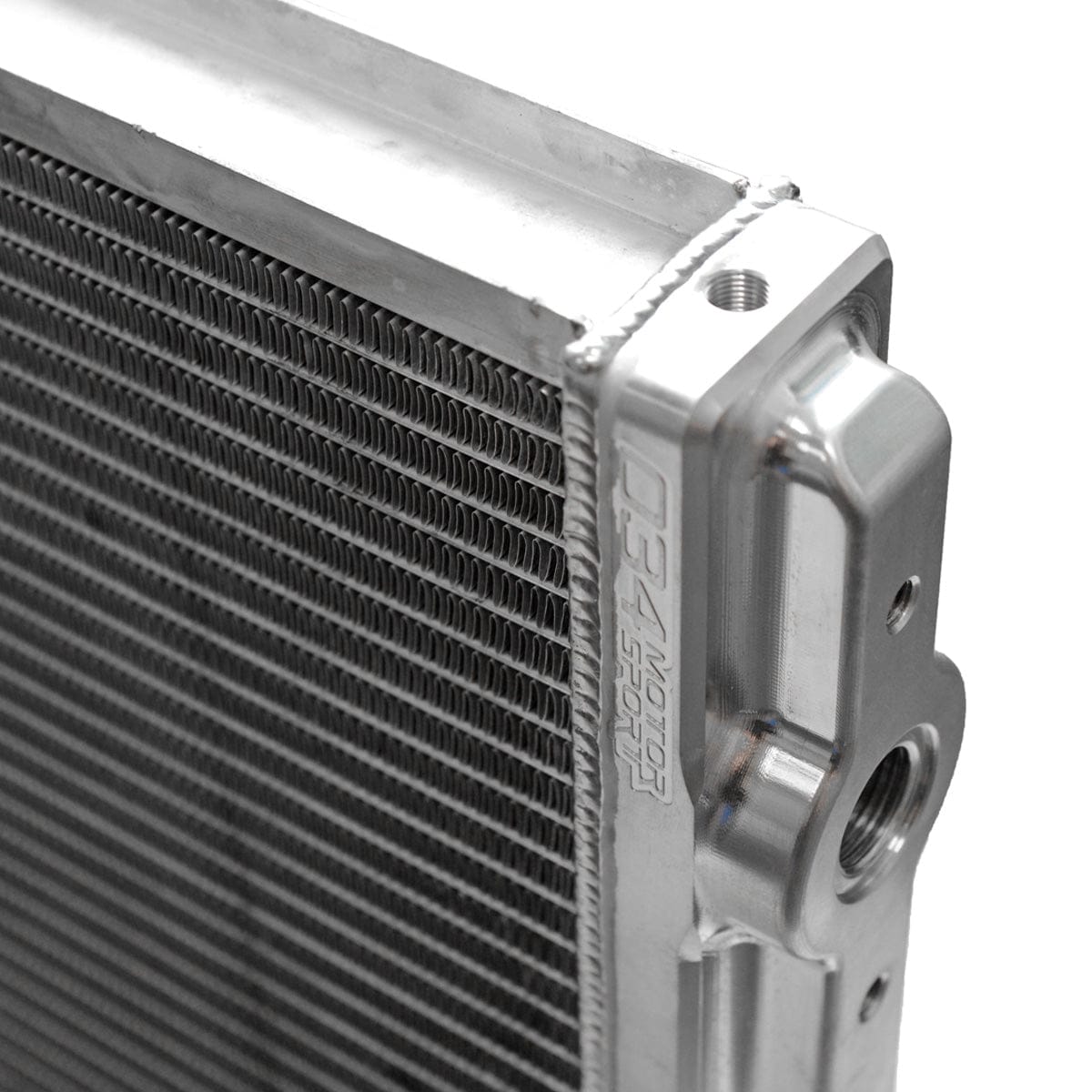

- CNC-machined 6061 billet aluminium end tanks
- Single-pass (B8) or dual-pass (B8.5) coolant configuration
- Bleeder plugs in both end tanks

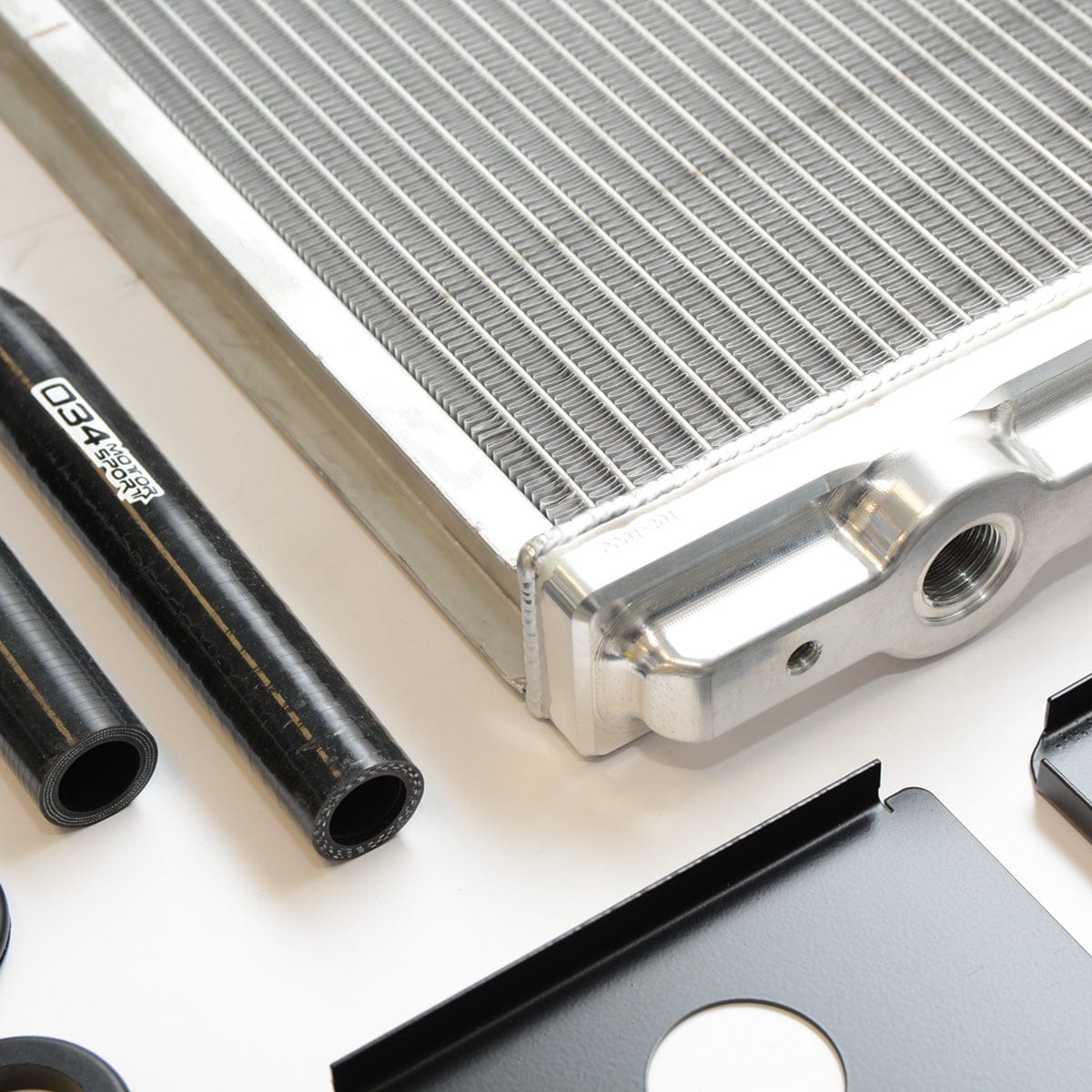

- Custom moulded silicone hoses and air duct sealing panels

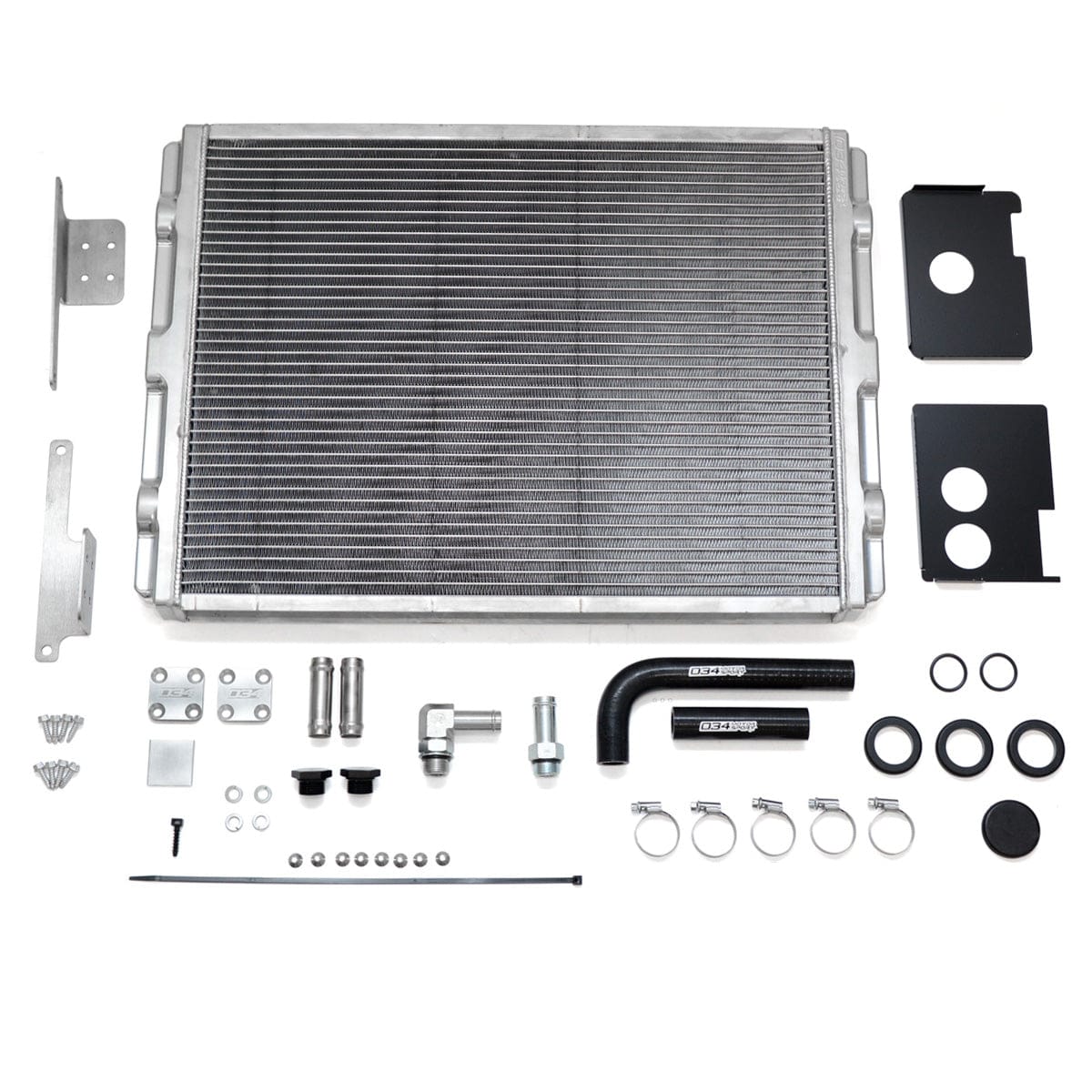

- 54-component kit, reversible installation
Specifications
- Brand: 034Motorsport
- Product Type: Supercharger Heat Exchanger
- Engine: 3.0 TFSI supercharged
- Core Frontal Area: 341 sq. in. (factory 148 sq. in.)
- End Tanks: CNC-machined 6061 billet aluminium, single or dual pass
- Hoses: Custom moulded multilayer silicone
- Kit Contents: 54 components, including silicone hoses and air duct sealing panels
- Location: Stock location, behind the factory crash bar
- Part Number: 034-102-1000
Vehicle Compatibility: 3 applications across 1 make. Select a make to view.
Audi (3)
| Model | Variant | Engine | Years |
|---|---|---|---|
| S4 | B8 | 3.0 TFSI supercharged | 2010-2012 |
| S4 | B8.5 | 3.0 TFSI supercharged | 2012-2017 |
| S5 | B8.5 | 3.0 TFSI supercharged | 2013-2017 |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
