034Motorsport Audi B8 S4/S5 3.0 TFSI S34 Super Duper Insuction Bundle - 034-108-1904

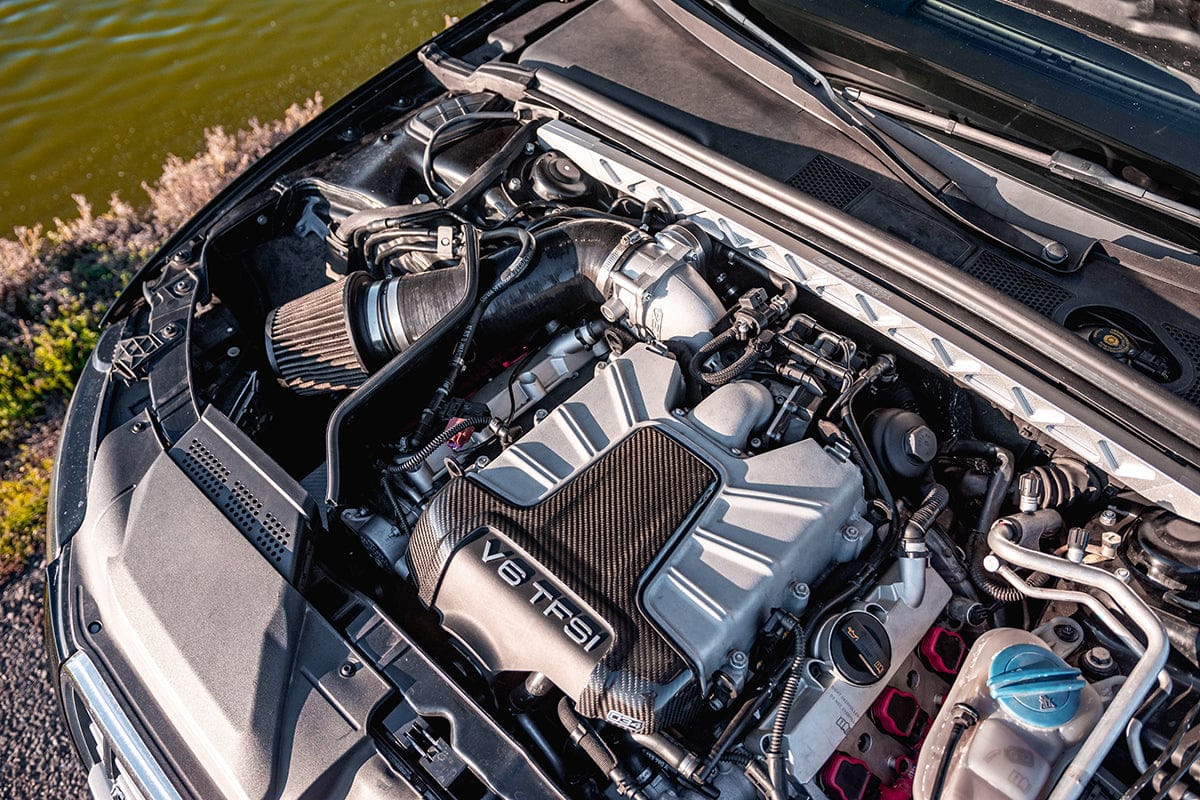

This bundle upgrades the intake system on the B8 and B8.5 Audi S4 and S5 with 3.0 TFSI engines, pairing the SüperDüper 84mm Throttle Body System with the S34 Carbon Fiber Intake. The throttle body package uses a VDO 84mm throttle body on a cast and machined aluminium adapter, which 034Motorsport says flows 20% more than the OE throttle body. The brand lists airflow of 452 CFM for the bundle against 293 CFM for the stock 70mm throttle body and intake. 034Motorsport says Dynamic+ Tuning is required to run the bundle safely, with matching files in its Stage 2+ tune options.
Features

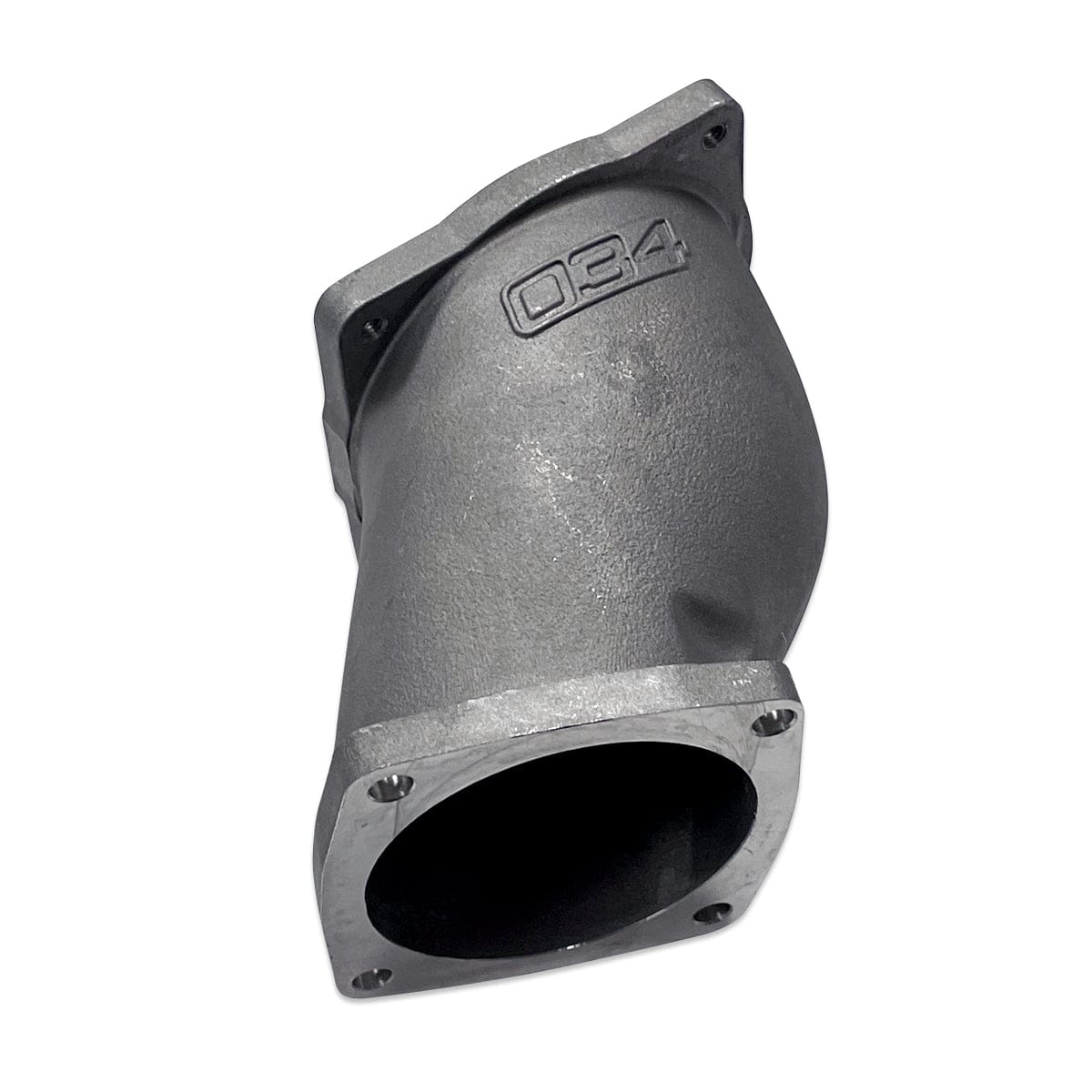

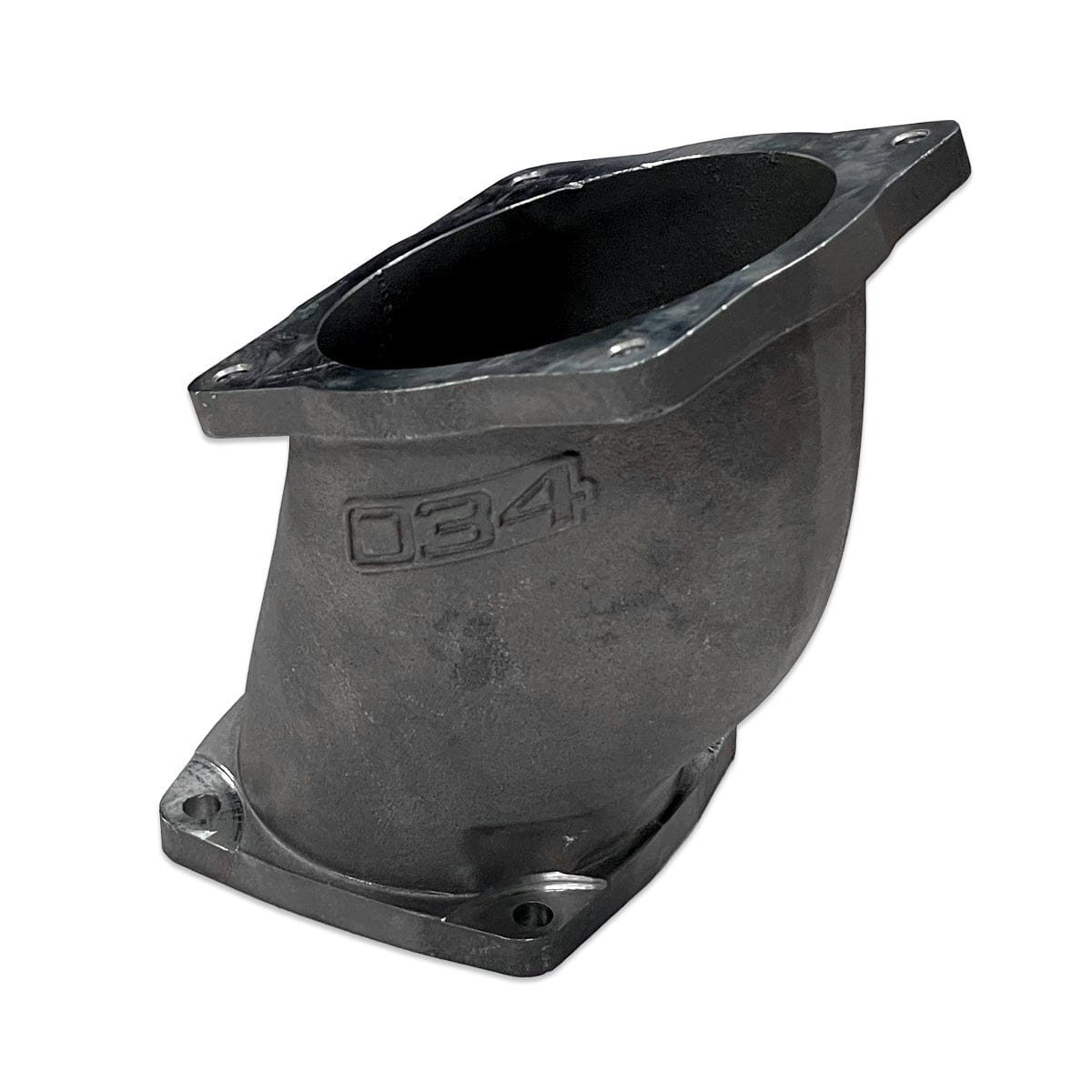

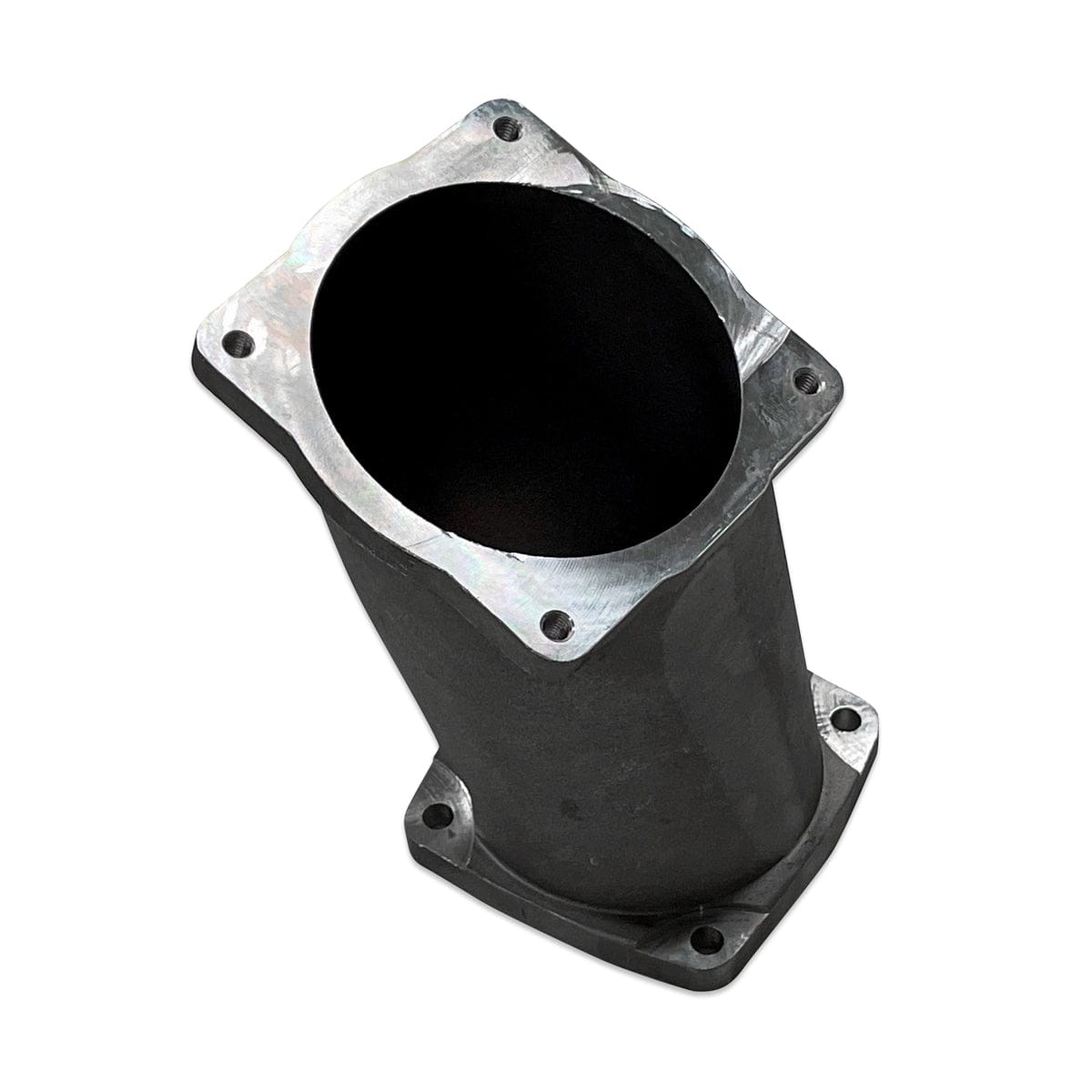

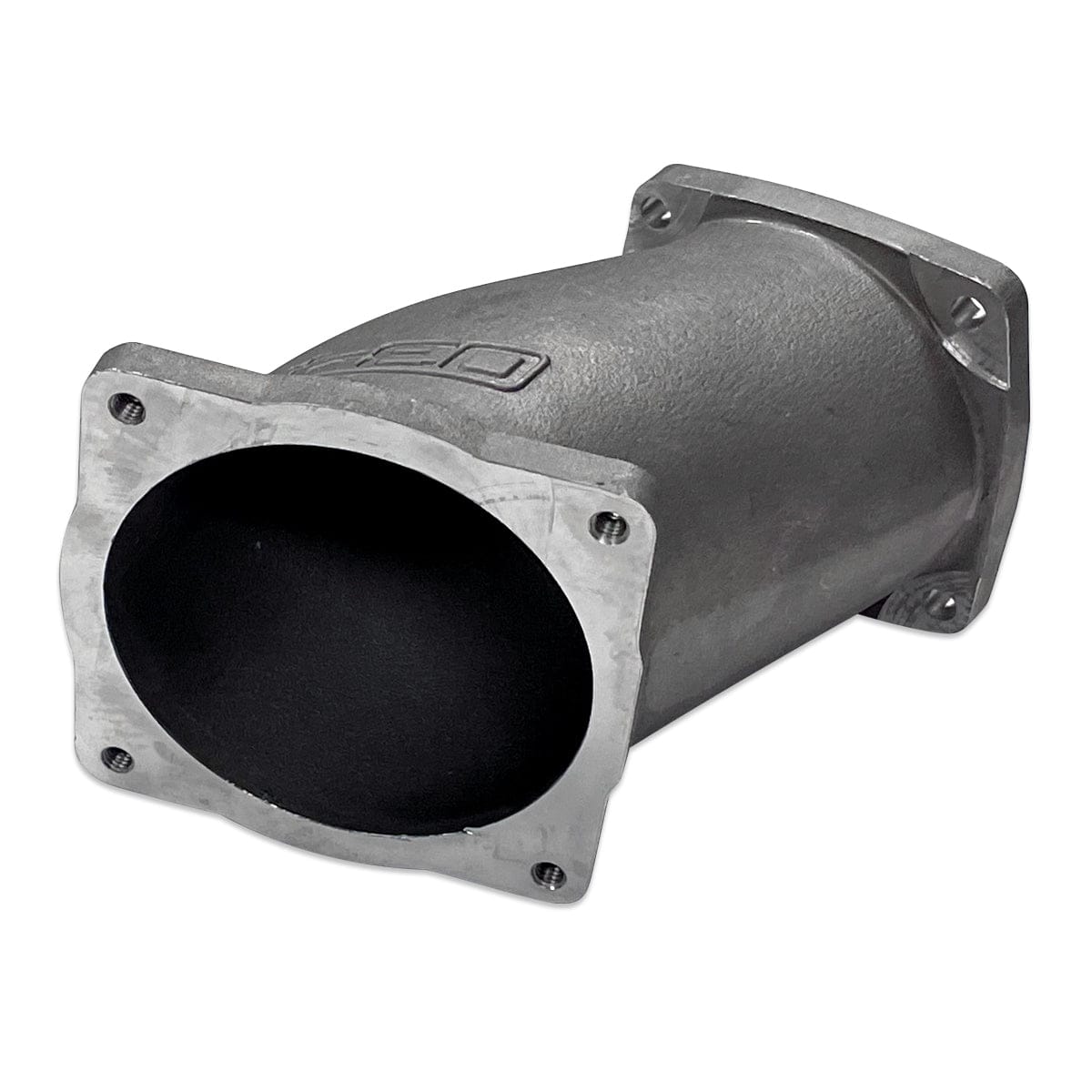

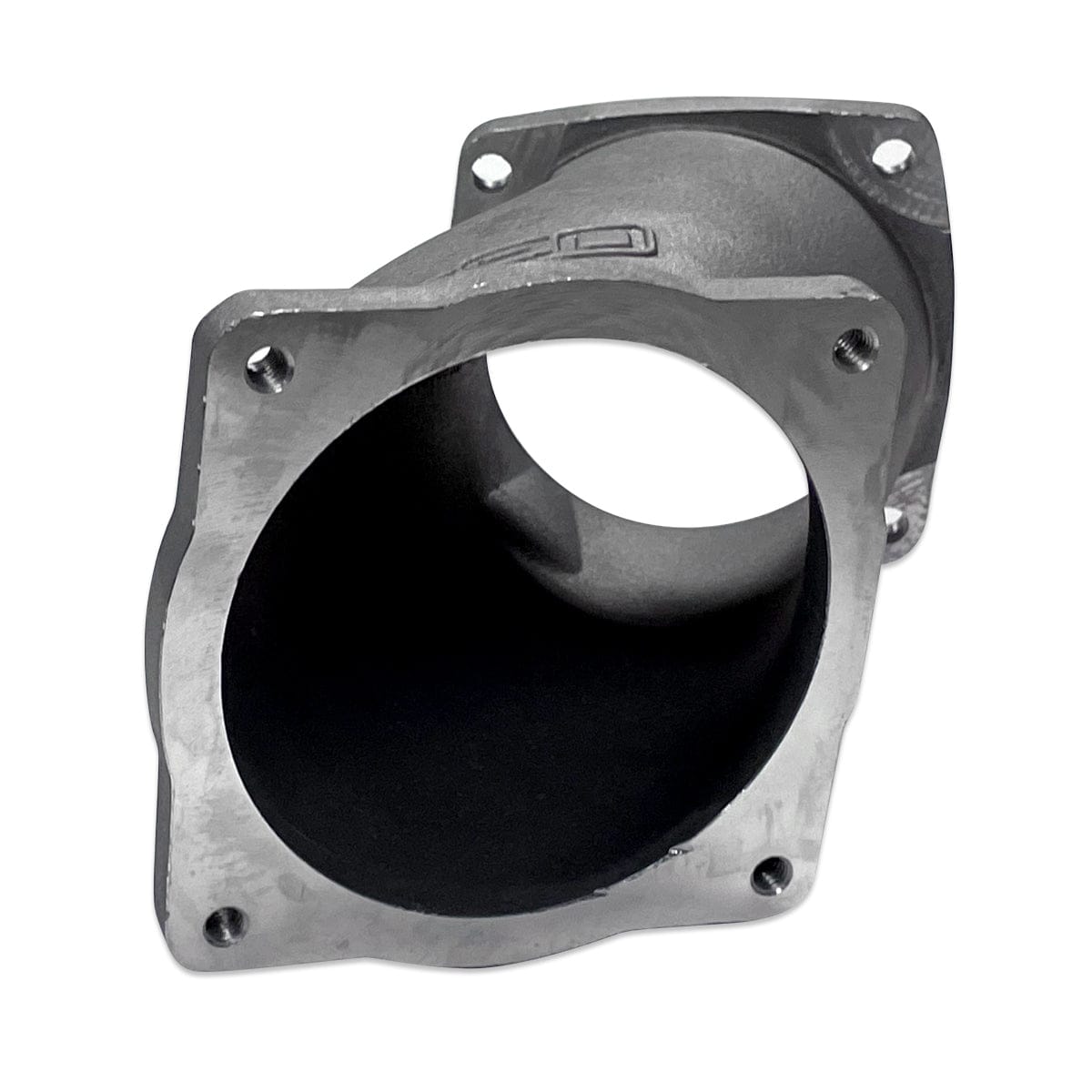

- VDO 84mm throttle body with cast A356 aluminium adapter
- Adapter and gasket can be port matched to the supercharger

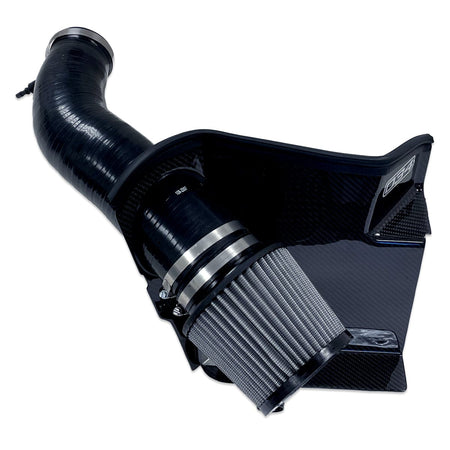

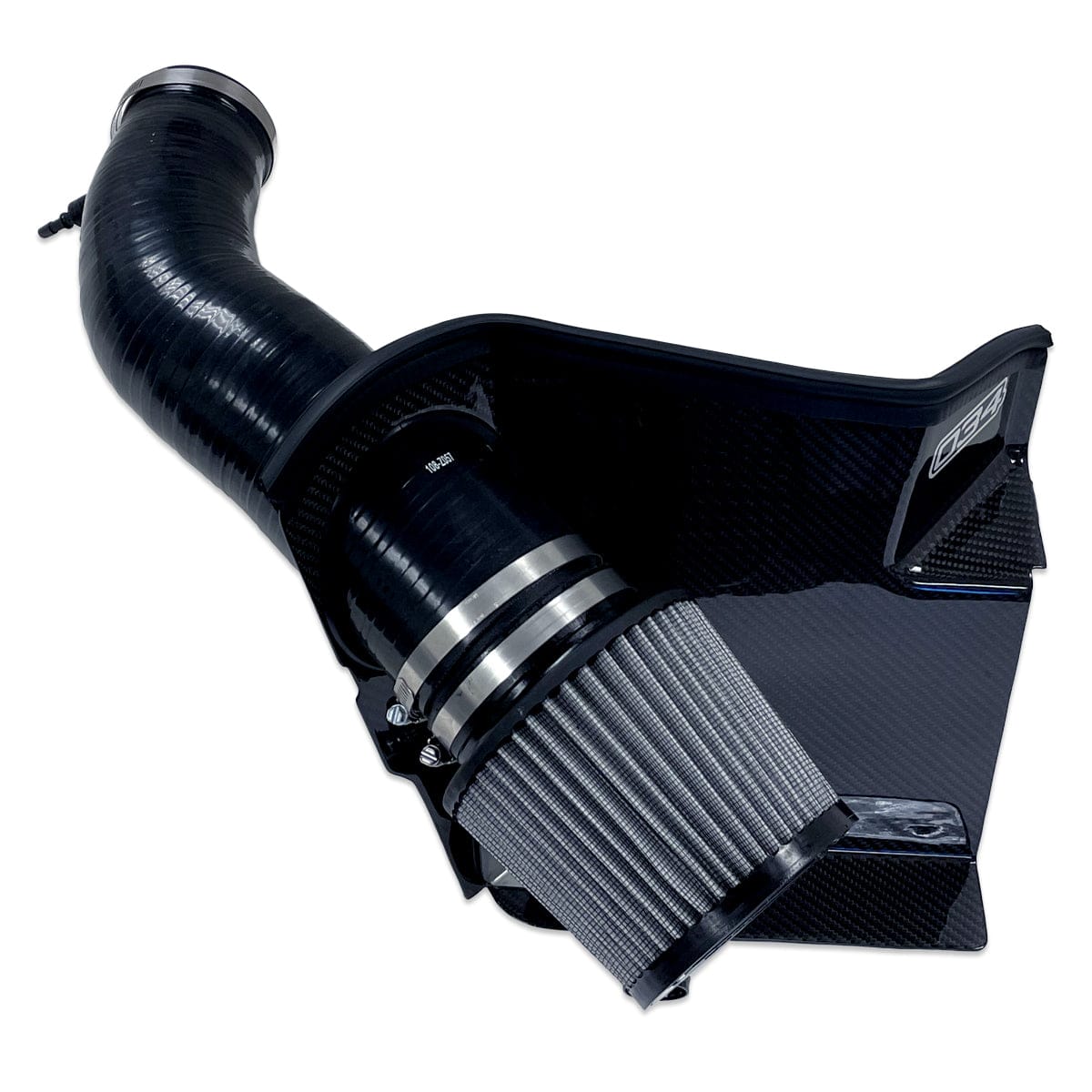

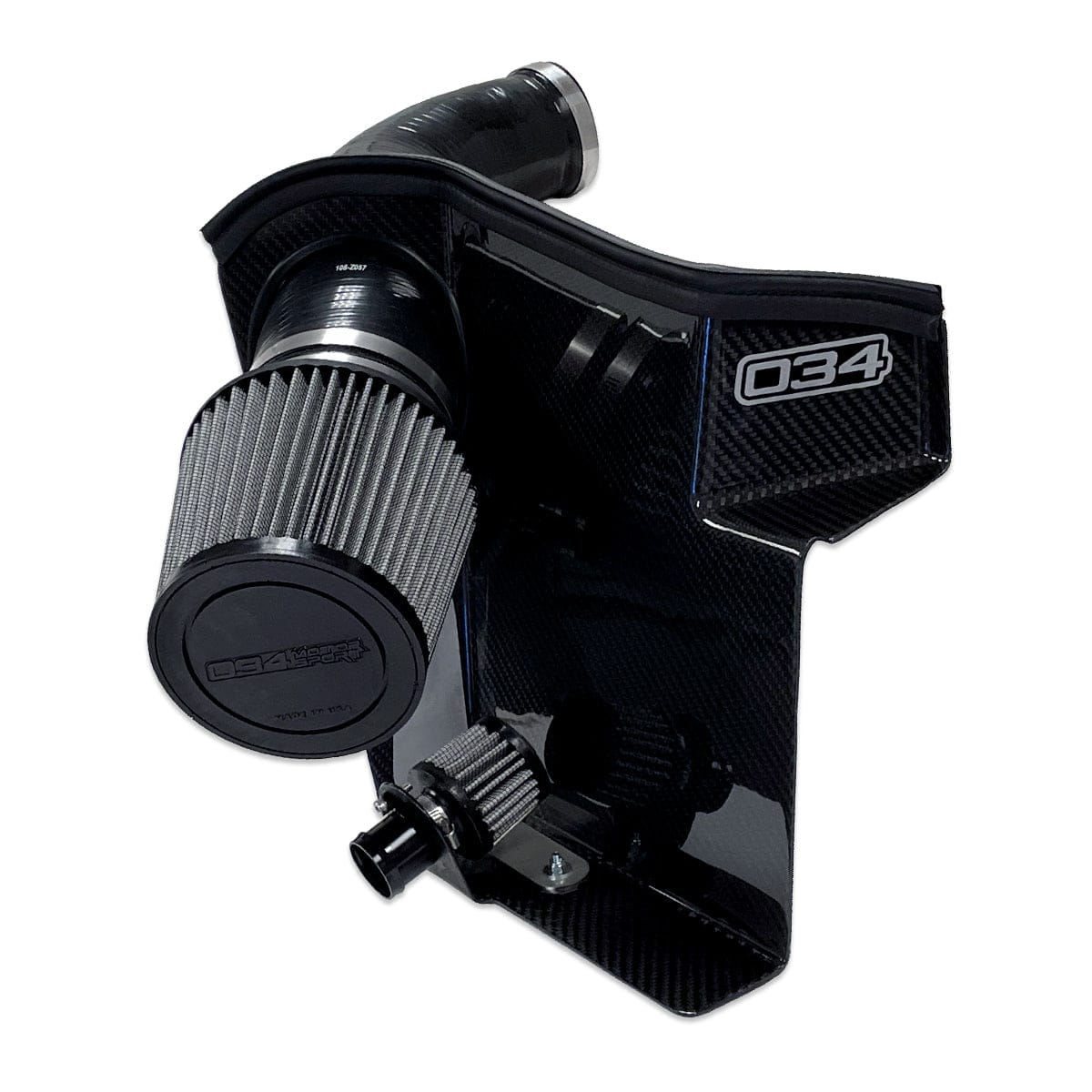

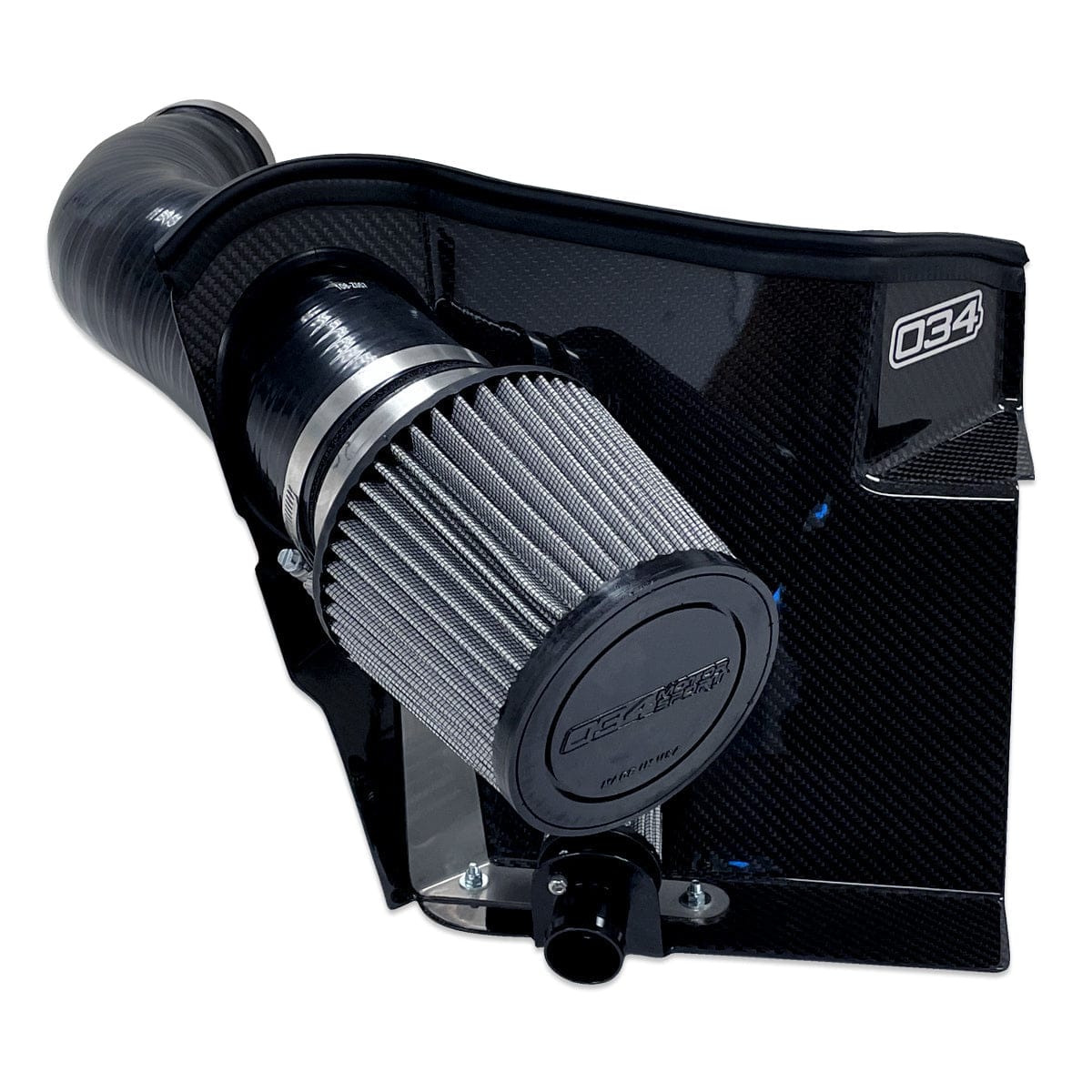

- S34 carbon fibre intake with open airbox design
- 4 inch inlet conical pleated cotton air filter

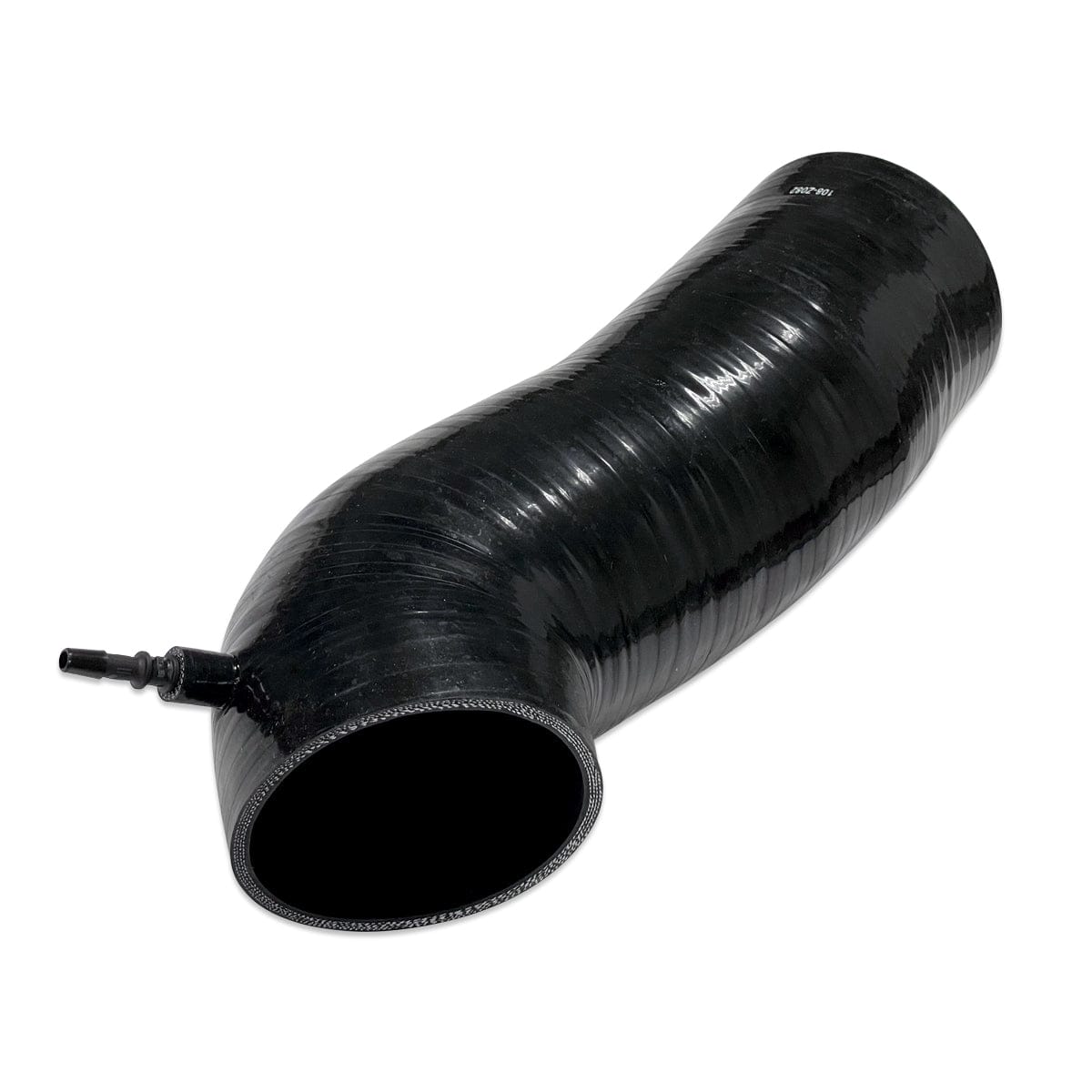

- CFD-optimised 4-ply gloss black silicone intake tube
- Fits left and right hand drive cars
- Installs using factory mounting grommets
Specifications
- Brand: 034Motorsport
- Product Type: Intake System Bundle

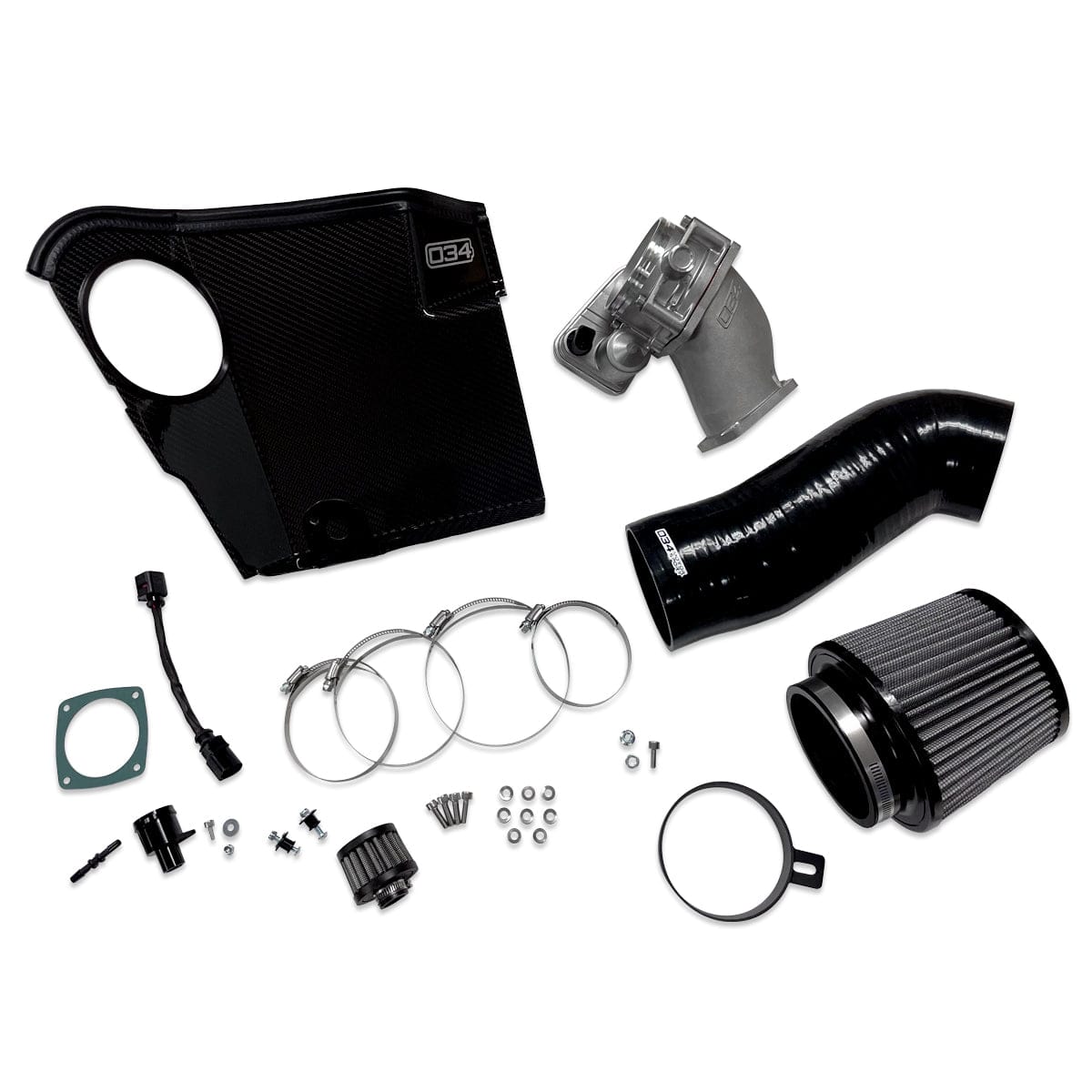

- Includes: SüperDüper 84mm Throttle Body System and S34 Carbon Fiber Intake
- Throttle Body: VDO 84mm, with cast and machined A356 aluminium adapter
- Intake Tube: 4-ply gloss black silicone
- Air Filter: 4 inch inlet conical pleated cotton
- Quoted Airflow: 452 CFM (stock 70mm throttle body and intake: 293 CFM)
- Tuning: Dynamic+ Tuning required, Stage 2+ files
- Part Number: 034-108-1904
Vehicle Compatibility: 2 applications across 1 make. Select a make to view.
Audi (2)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| S4 | B8/B8.5 | 3.0 TFSI | Requires Dynamic+ Tuning | |
| S5 | B8/B8.5 | 3.0 TFSI | Requires Dynamic+ Tuning |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
