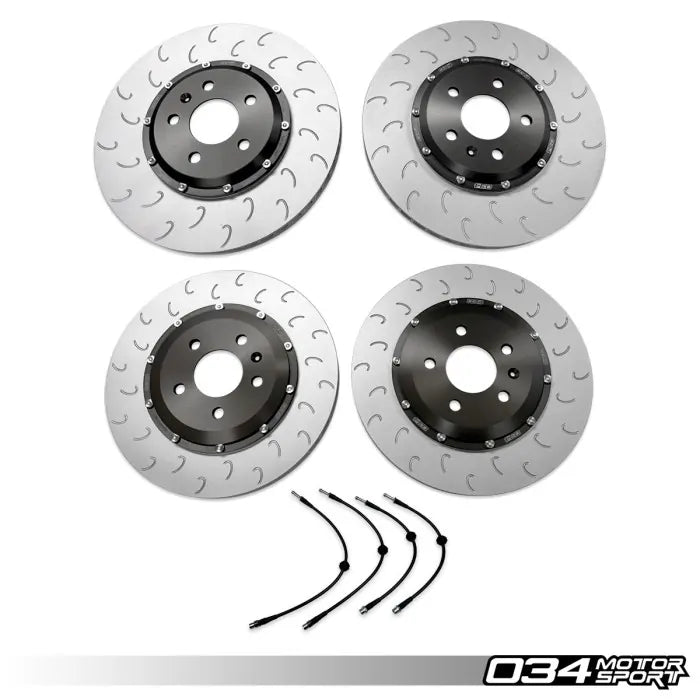

The Dynamic+ Braking Package is a front and rear brake upgrade for the B8 and B8.5 Audi S4 and S5, combining 034Motorsport's 2-piece floating rotors with its stainless steel braided brake line kit. The rotors pair 6061-T6 aircraft specification aluminium hats with alloy rings that 034Motorsport says keep enough thermal mass to absorb braking heat, while 72 directionally curved vanes, specific to each side of the car, flow cooling air through the disc. Rotor weights are quoted at 19.00 lb front and 12.15 lb rear, against 24.10 lb and 16.65 lb for the factory rotors. The Teflon-lined braided lines replace the front and rear rubber hoses and, according to the brand, do not bulge or expand under brake pressure, which improves pedal feel and braking consistency.
Features
- Front and rear 2-piece floating rotors plus braided brake lines
- 6061-T6 aircraft specification aluminium hats
- CM-250 special alloy rings with J-slotted friction face
- 72 directionally curved vanes, specific to each side
- Floating bobbin mounting with replaceable rotor rings
- Teflon-lined stainless steel braided lines, application-specific lengths
- OEM fitment and functionality
Specifications
- Brand: 034Motorsport
- Product Type: Brake Rotor and Brake Line Package
- Includes: 2-piece floating front rotor upgrade kit, 2-piece floating rear rotor upgrade kit, stainless steel braided brake line kit
- Front Rotor Weight: 19.00 lb (OE 24.10 lb)
- Rear Rotor Weight: 12.15 lb (OE 16.65 lb)
- Hat: 6061-T6 aircraft specification aluminium
- Rotor Construction: CM-250 special alloy rings with J-slotted face and 72 directionally curved vanes; high-strength alloy steel floating bobbins
- Brake Lines: Teflon-lined stainless steel braided hoses replacing the front and rear hoses; listed by 034Motorsport as DOT approved
- Finish Note: Type III hard anodising is a functional coating, and 034Motorsport says colour can vary from batch to batch
- Part Number: 034-301-0006
Vehicle Compatibility: 2 applications across 1 make. Select a make to view.
Audi (2)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| S4 | B8/B8.5 | Front and rear rotors and brake line kit | ||
| S5 | B8/B8.5 | Front and rear rotors and brake line kit |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
