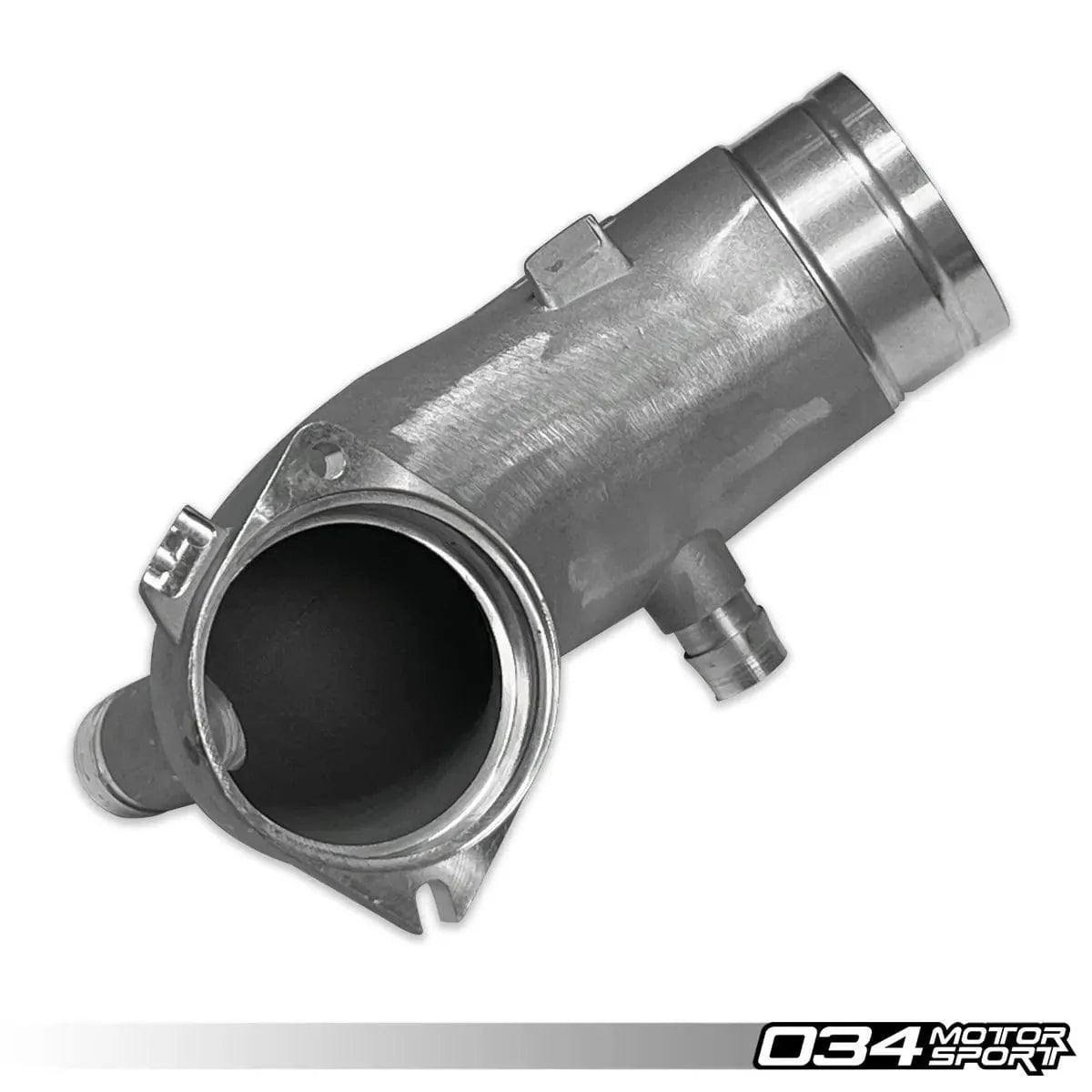

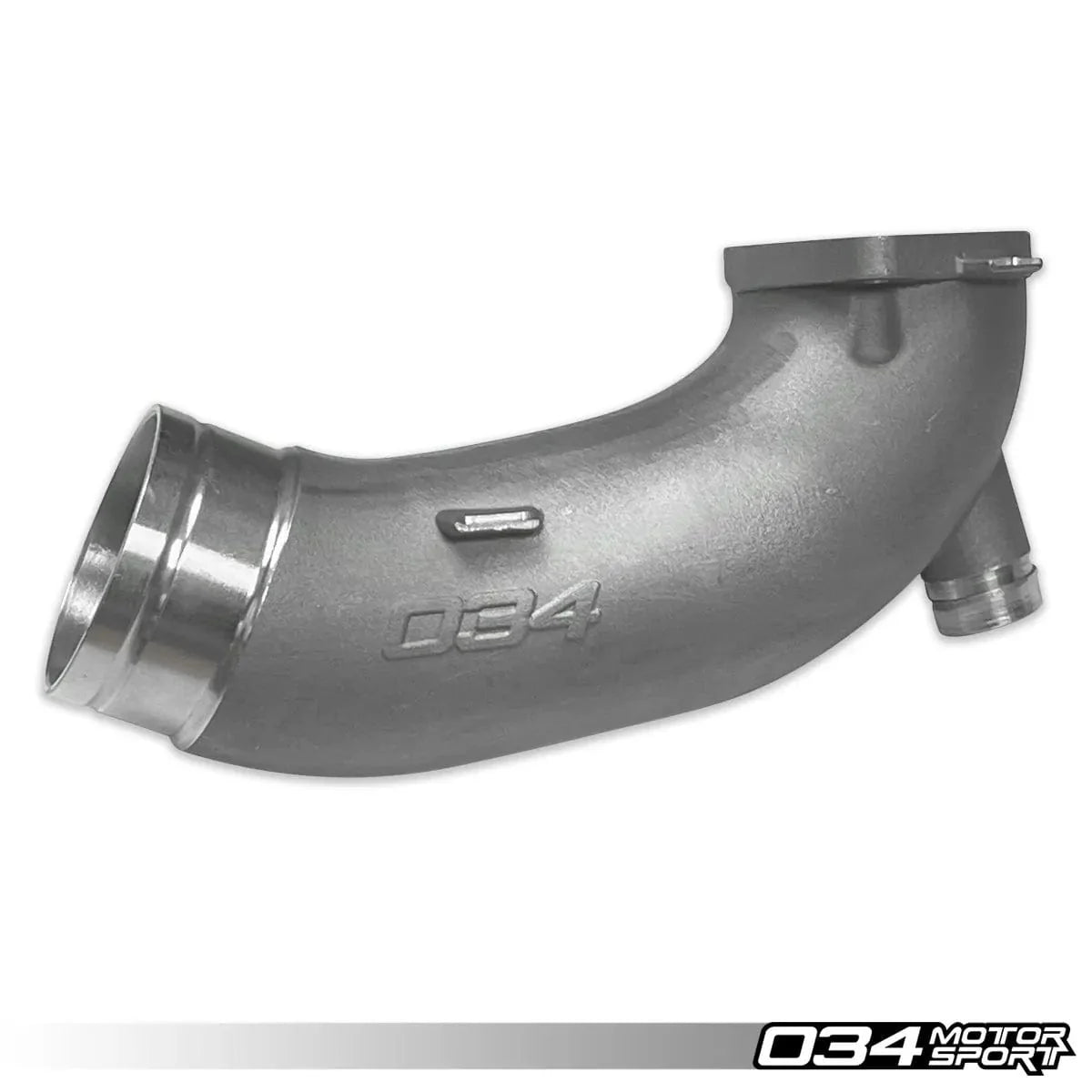

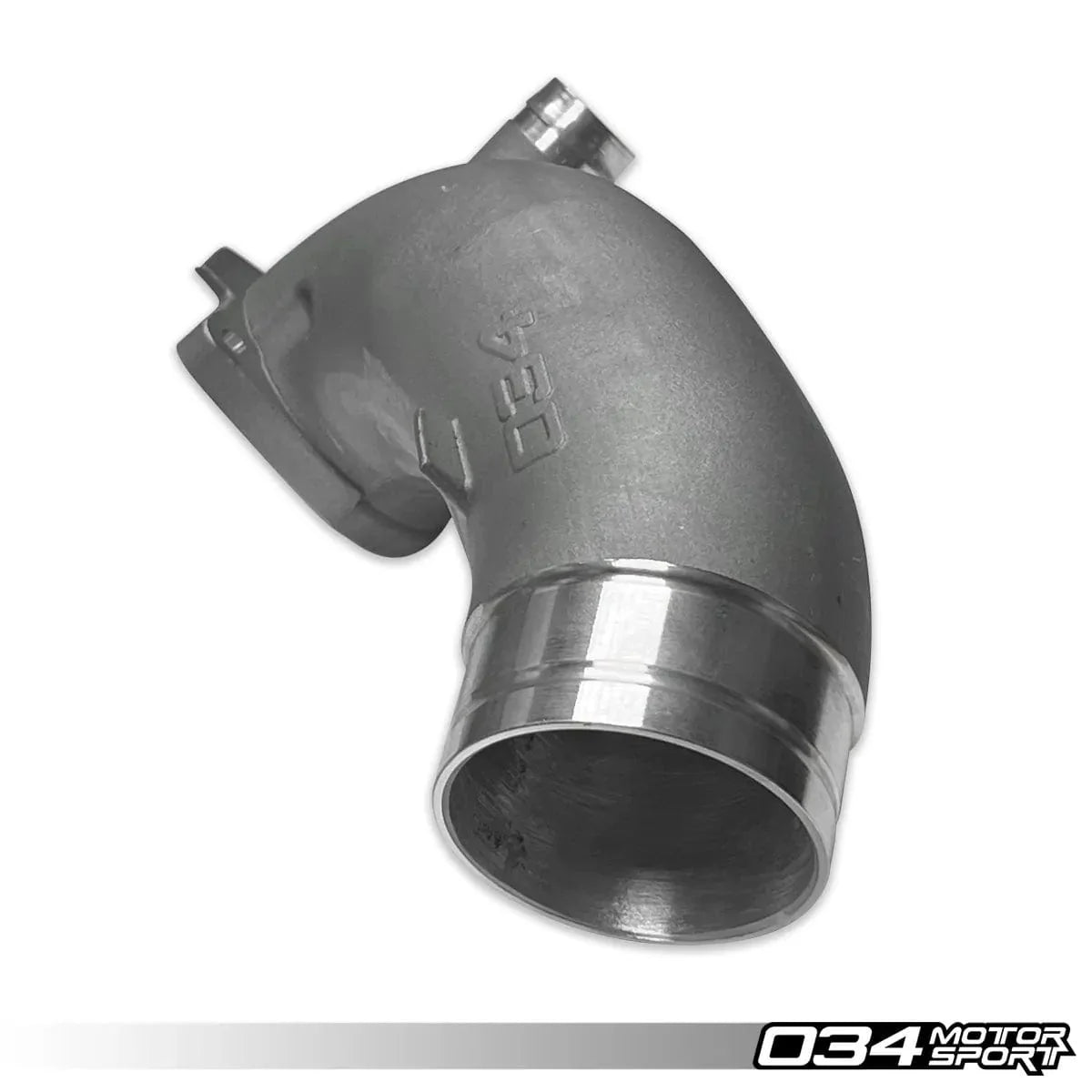

This turbo inlet pipe replaces the factory inlet on EA839 3.0T Audi B9 and B9.5 S4, S5 and SQ5 models, and the fitment table also lists the C8 A6 and A7. 034Motorsport says it removes a critical flow restriction in the intake tract and is designed to get the most from its Dynamic+ Stage 1, 1+, 2 and 2+ stock turbo software. The pipe is cast from A356 aluminium with a CNC machined 6061-T6 aluminium adapter ring matched to the 52.0mm stock turbo inlet, and the brand quotes 406 CFM at 28 in H2O against 396 CFM for the factory inlet. It works with OEM-sized intake hoses, retains the OE PCV hose and bolts on in approximately one hour.
Features
- Cast A356 aluminium pipe
- CNC machined 6061-T6 aluminium adapter, 52.0mm for the stock turbo
- Quoted flow: 406 CFM versus 396 CFM stock at 28 in H2O
- CNC machined edge secures the intake coupler
- Retains the OE PCV hose
- Slotted lower turbo inlet bolt for easy installation
- Direct bolt-on, about 1 hour to install
Specifications
- Brand: 034Motorsport
- Product Type: Turbo Inlet Pipe
- Material: Cast A356 aluminium with CNC machined 6061-T6 aluminium adapter

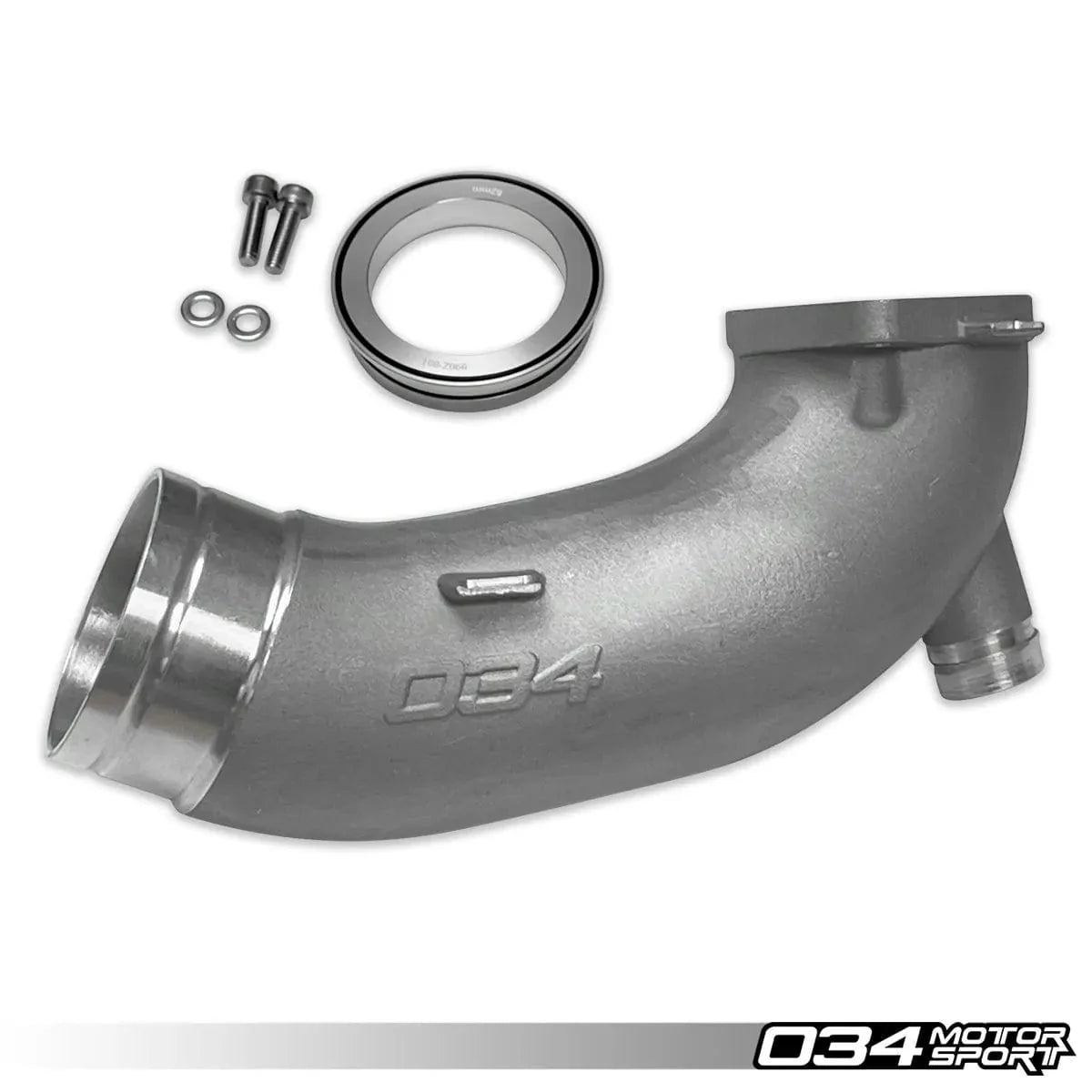

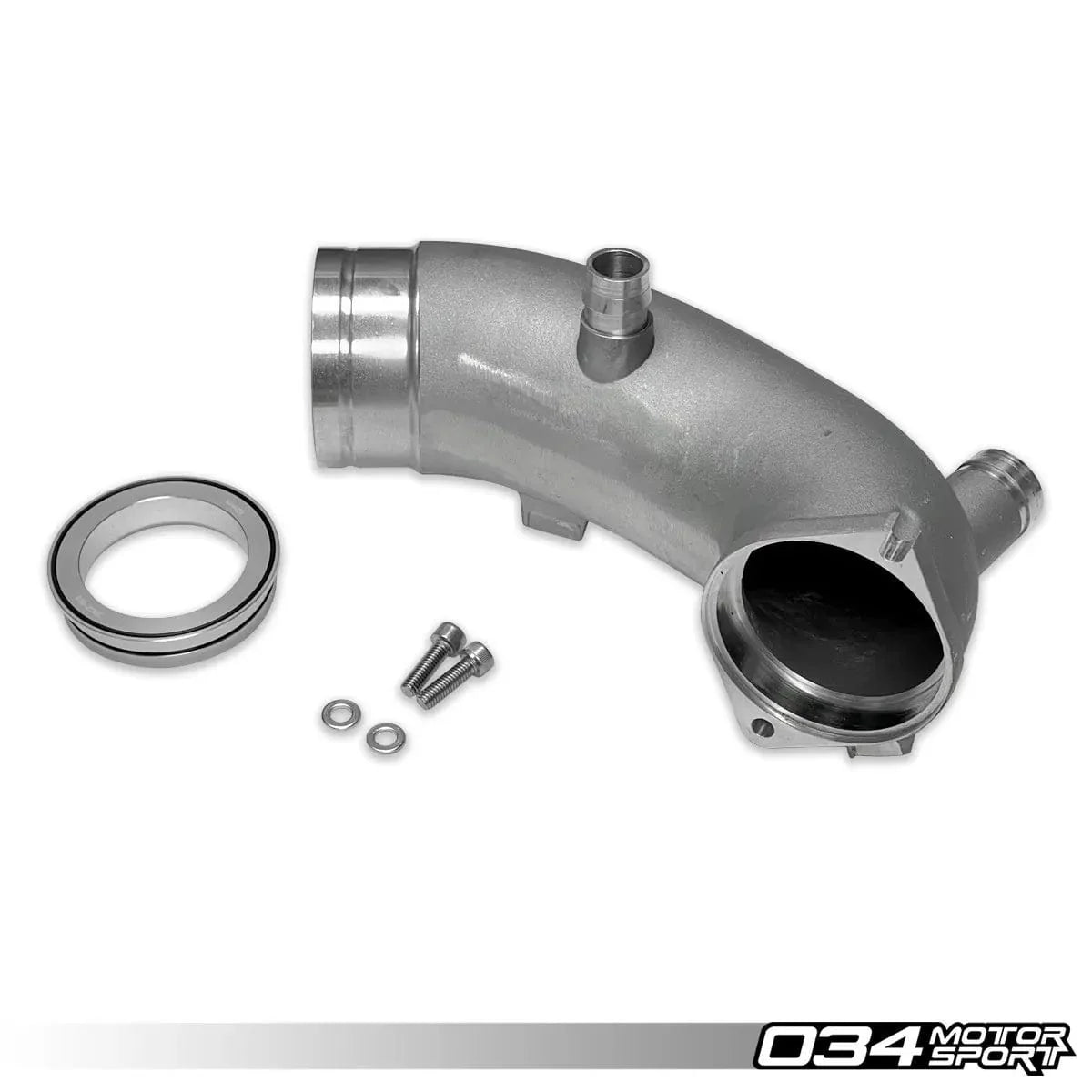

- Adapter Ring: 52mm for the OE turbo, supplied with O-rings; 63.0mm Pure750 ring (034-108-Z094) available separately
- Quoted Flow: Stock inlet 396 CFM; 034 pipe with stock adapter 406 CFM; with Pure750 adapter 490 CFM (at 28 in H2O)
- OE Part Interchange: 06M 129 665 AL, 06M 129 041
- Installation: Approx. 1 hour
- Part Number: 034-108-5012
Vehicle Compatibility: 5 applications across 1 make. Select a make to view.
Audi (5)
| Model | Variant | Engine | Years |
|---|---|---|---|
| S4 | B9/B9.5 | 3.0 TFSI | 2017-on |
| S5 | B9/B9.5 | 3.0 TFSI | 2018-on |
| SQ5 | B9/B9.5 | 3.0 TFSI | 2018-on |
| A6 | C8 | 3.0 TFSI | 2019-on |
| A7 | C8 | 3.0 TFSI | 2019-on |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
