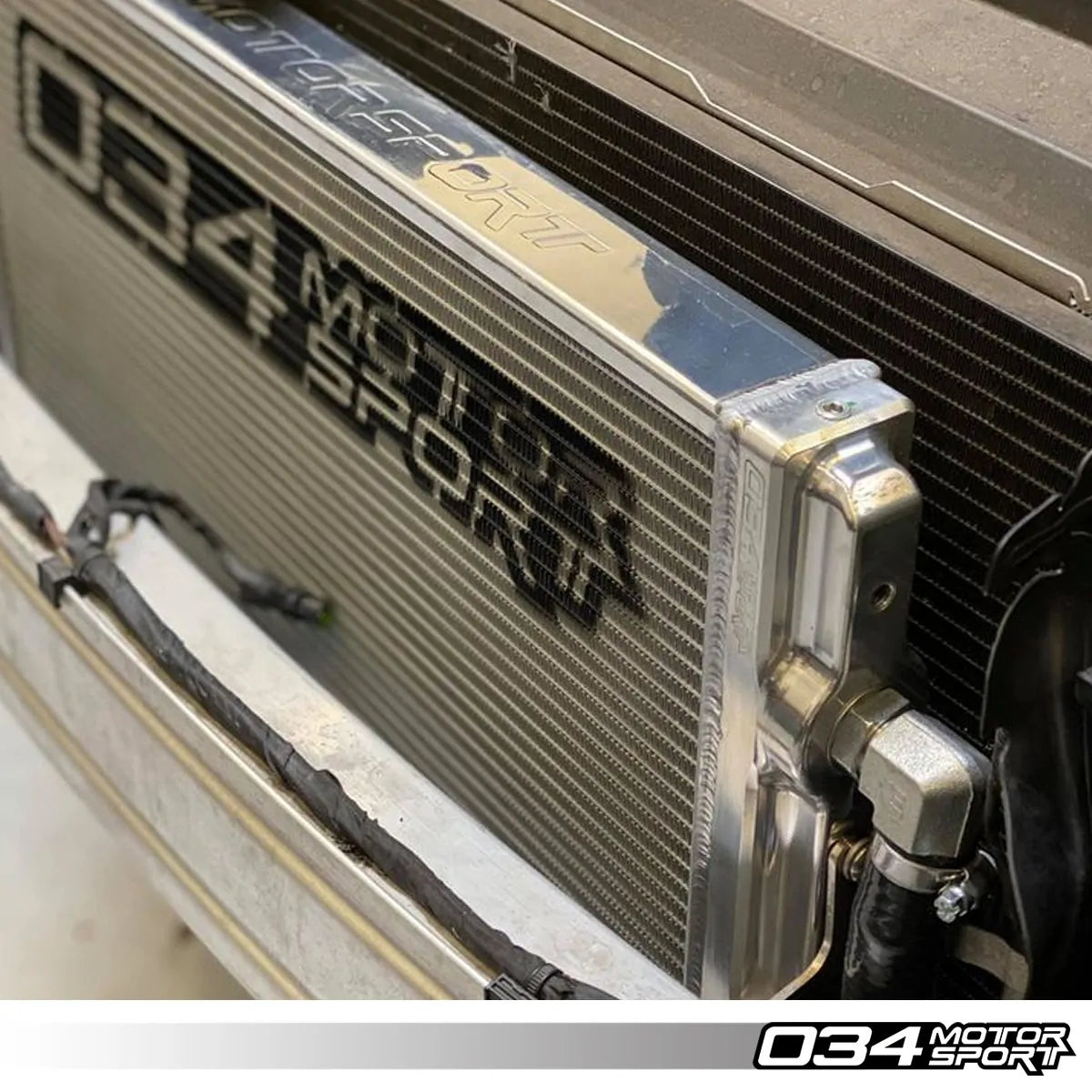

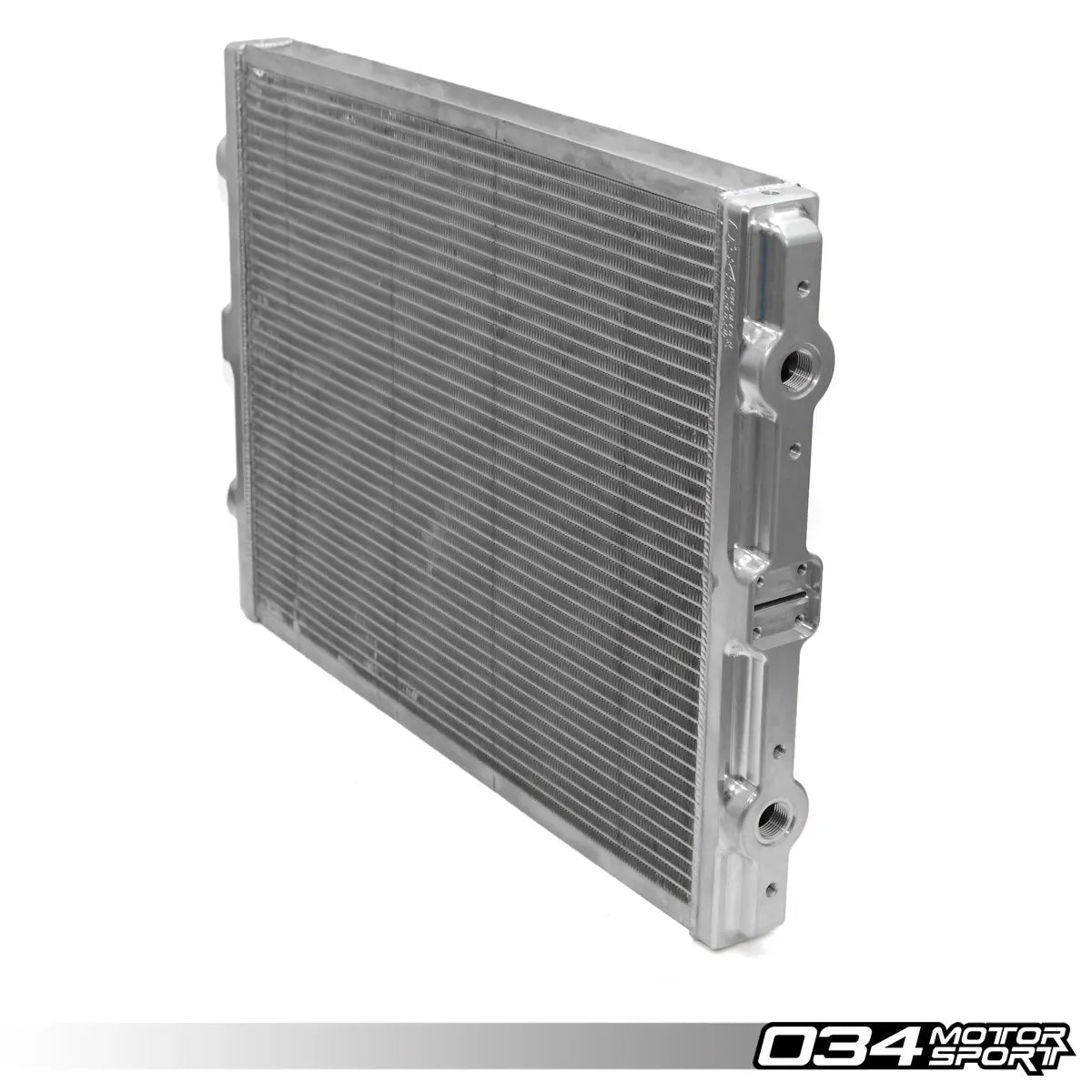

This supercharger heat exchanger kit is a stock-location upgrade for the C7 and C7.5 Audi A6 and A7 with the 3.0 TFSI engine. Its core is 2.4 times larger than stock in frontal area and 2.2 times larger in fluid volume, and it still fits behind the stock crash bar. 034Motorsport says testing shows it significantly reduces intake air temperatures, strongly recommends it for Stage 1, 2 and 2+ tunes and calls it required for higher levels of power. Billet aluminium end tanks with configurable coolant paths suit both single-pass and dual-pass vehicles, and custom molded silicone hoses and air duct sealing panels are supplied.
Features
- Core with 2.4x the frontal area of the stock unit
- Fluid volume of 2.4 qts against 1.1 qts stock
- 6061 billet aluminium end tanks with configurable coolant paths
- Suits single-pass and dual-pass cars with no extra parts
- Custom molded silicone hoses and air duct sealing panels
- Bleeder plugs on both end tanks
- Kept intake charge below 80C over 6 dyno pulls, per 034Motorsport
Specifications
- Brand: 034Motorsport
- Product Type: Supercharger Heat Exchanger Upgrade Kit
- End Tanks: 6061 billet aluminium, CNC machined
- Configuration: Single-pass or dual-pass, set via configurable coolant paths
- Frontal Area: 370 sq. in. (2387.1 sq. cm); OE 156 sq. in. (1006.5 sq. cm)
- Fluid Volume: 2.4 qts; OE 1.1 qts
- Dimensions: 24.4in x 17.7in x 2.0in (620mm x 450mm x 50mm)
- Hoses: Custom molded multilayer silicone
- Kit Contents: 49 components
- Part Number: 034-102-1010
Vehicle Compatibility: 2 applications across 1 make. Select a make to view.
Audi (2)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A6 | C7/C7.5 | 3.0 TFSI | 2012-2018 |
| A7 | C7/C7.5 | 3.0 TFSI | 2012-2018 |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
