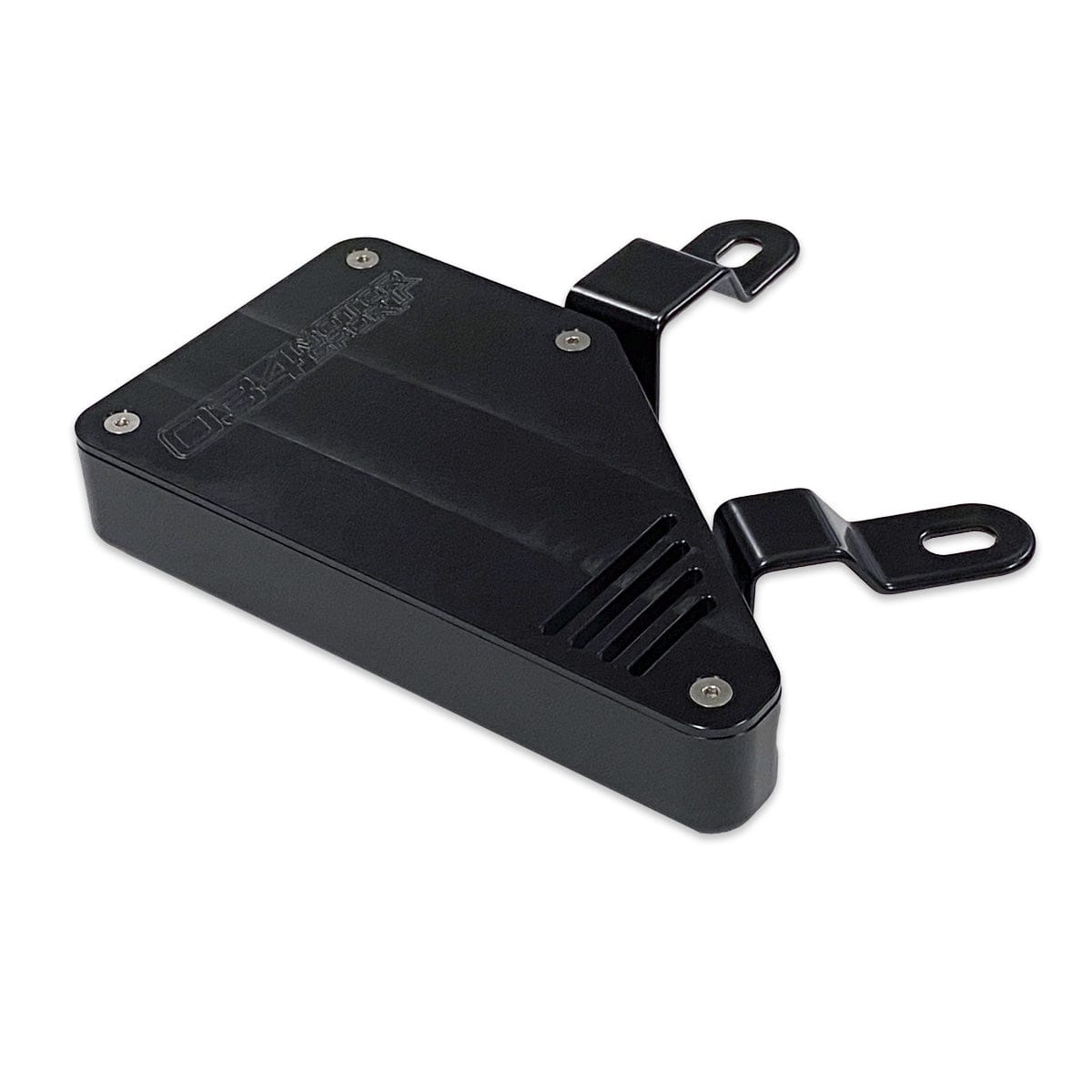

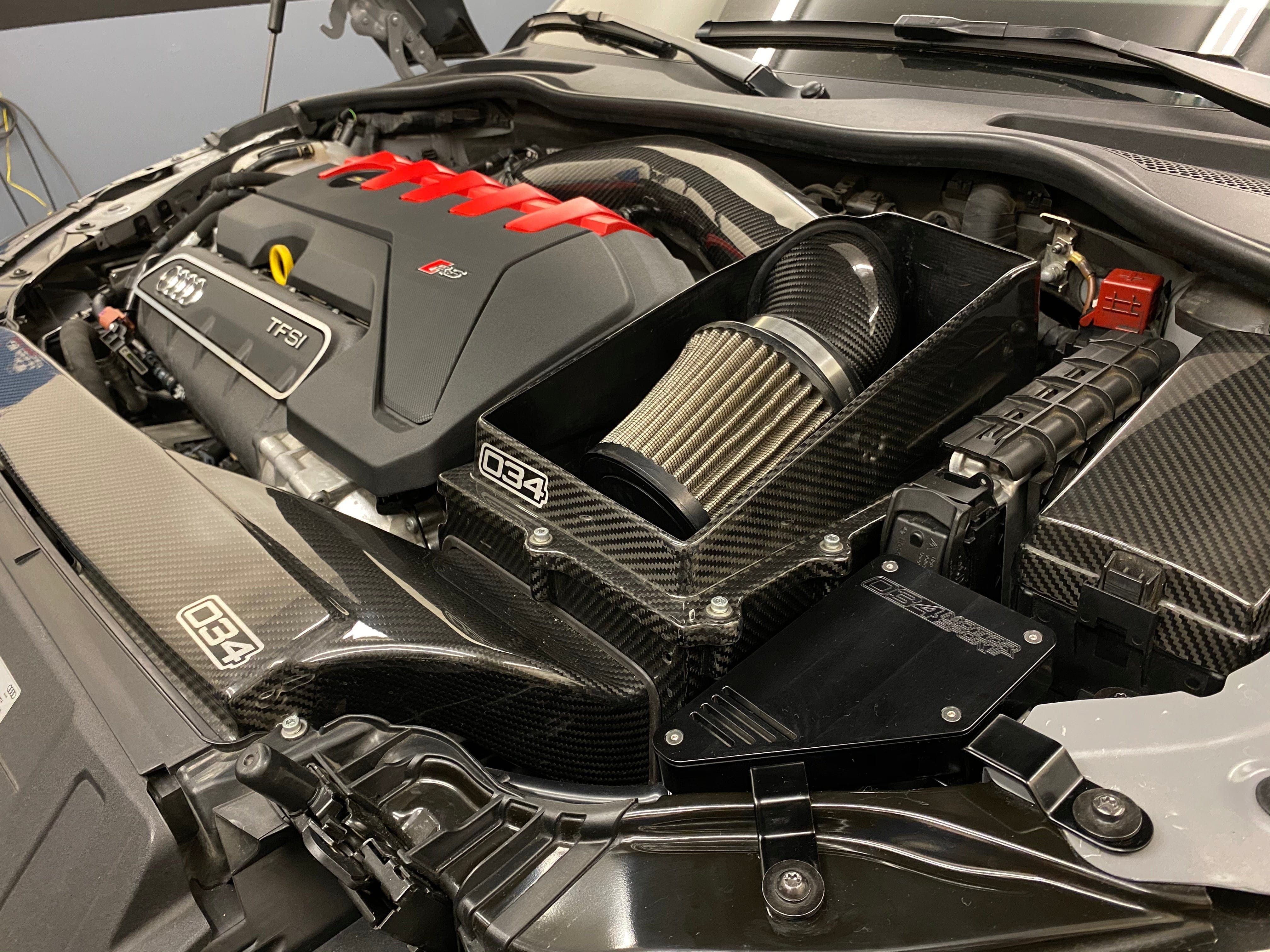

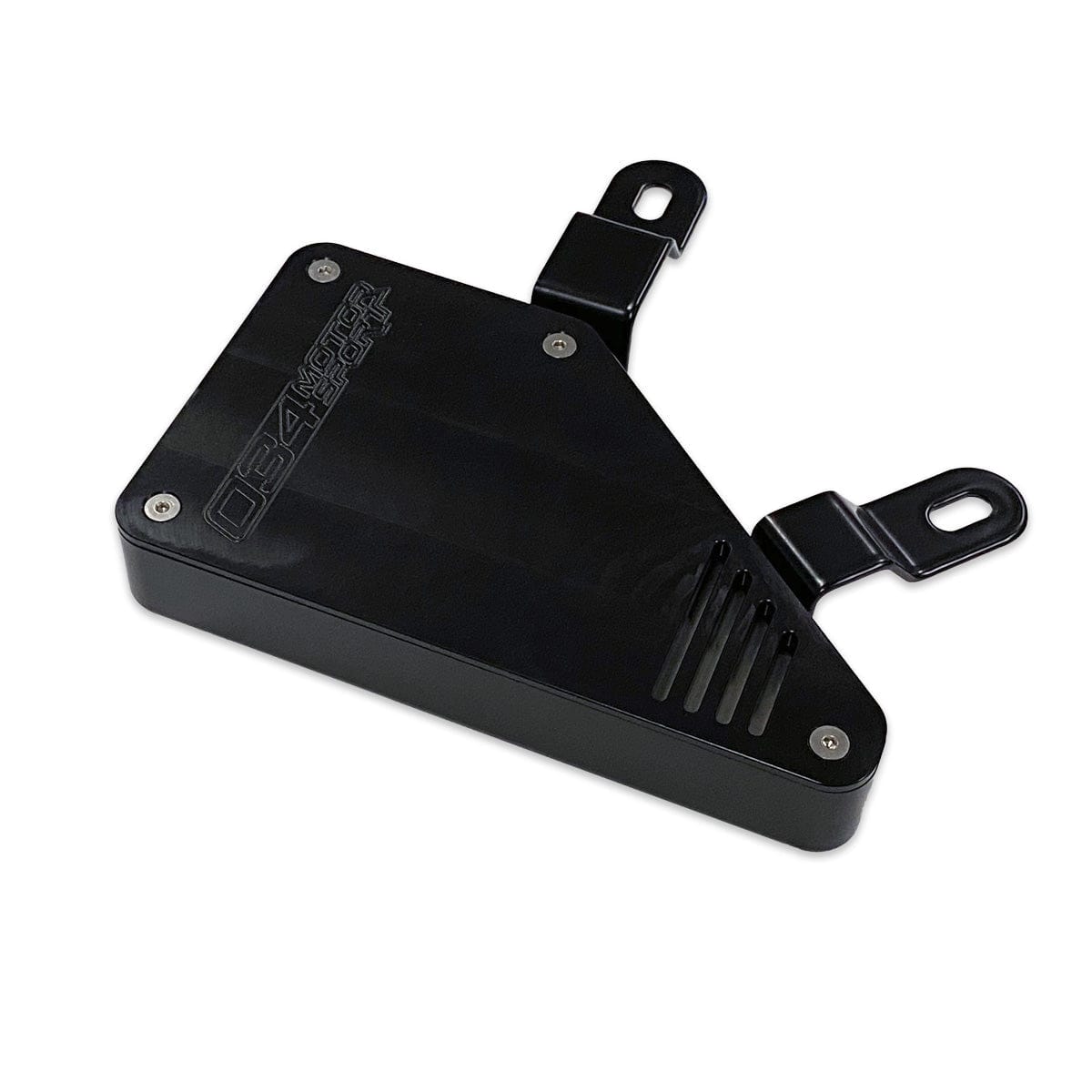

This billet catch can replaces the small plastic factory DSG vent on the 8V.5 Audi RS3 with the 2.5 TFSI EVO (DAZA) engine. It stops transmission fluid from being forced out of the vent and sprayed around the engine bay, and any fluid it collects drains back into the transmission. The body is CNC milled from 6061-T6 billet aluminium and black anodised, with a stainless steel internal baffle plate and powder coated mounting brackets. The factory plastic vent hose is replaced with 8mm ID silicone hose that keeps the OE connector at the transmission, and the can mounts to stock mounting points with no drilling or cutting.
Features
- 6061-T6 billet aluminium body, black anodised

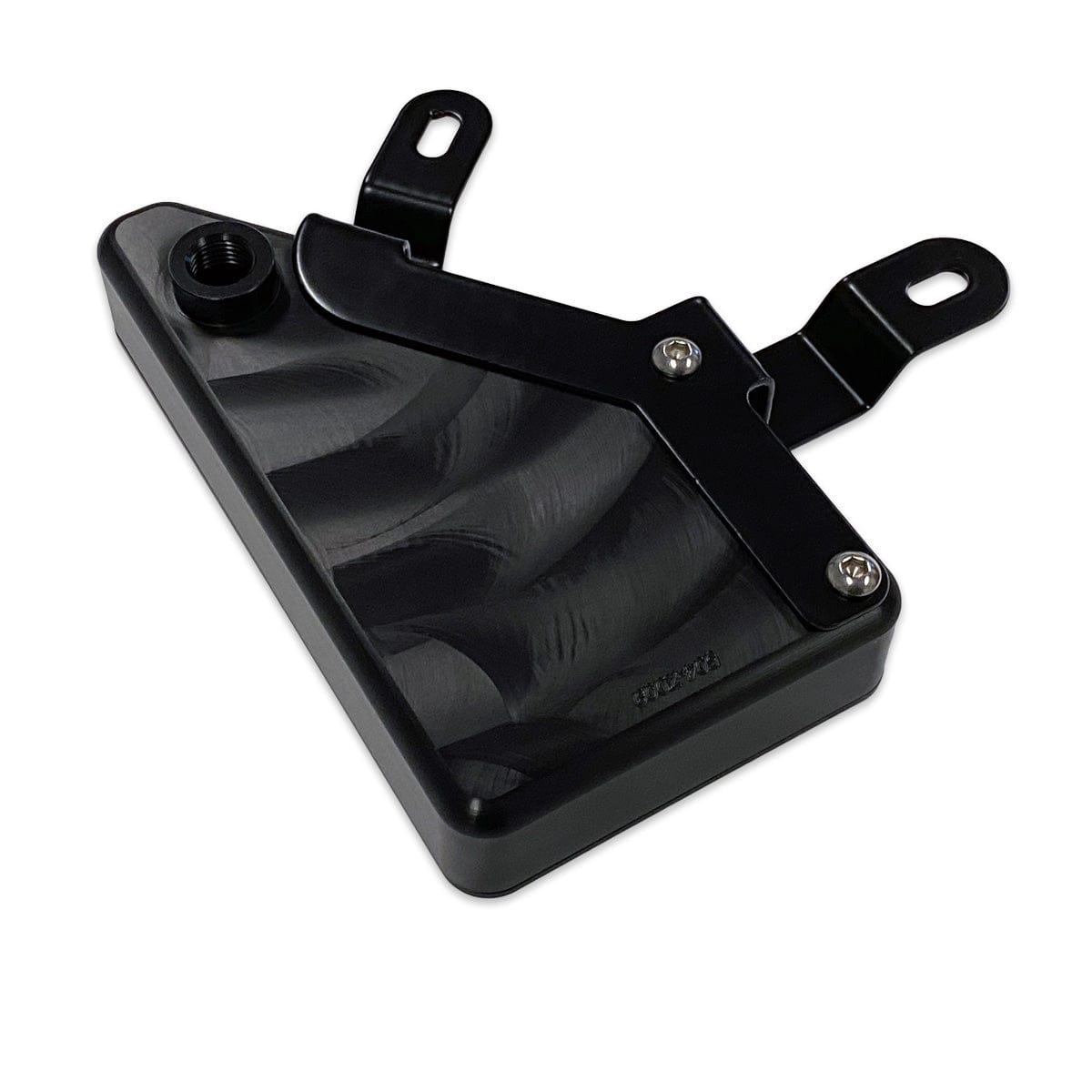

- Stainless steel internal baffle plate
- Collected fluid drains back into the transmission
- Powder coated mounting brackets
- 8mm ID silicone vent hose retains the OE connector
- Uses stock mounting points; no drilling or cutting
Specifications
- Brand: 034Motorsport
- Product Type: DSG Breather Catch Can Kit
- Material: 6061-T6 billet aluminium
- Finish: Black anodised body, powder coated brackets
- Baffle: Stainless steel
- Vent Hose: 8mm ID silicone

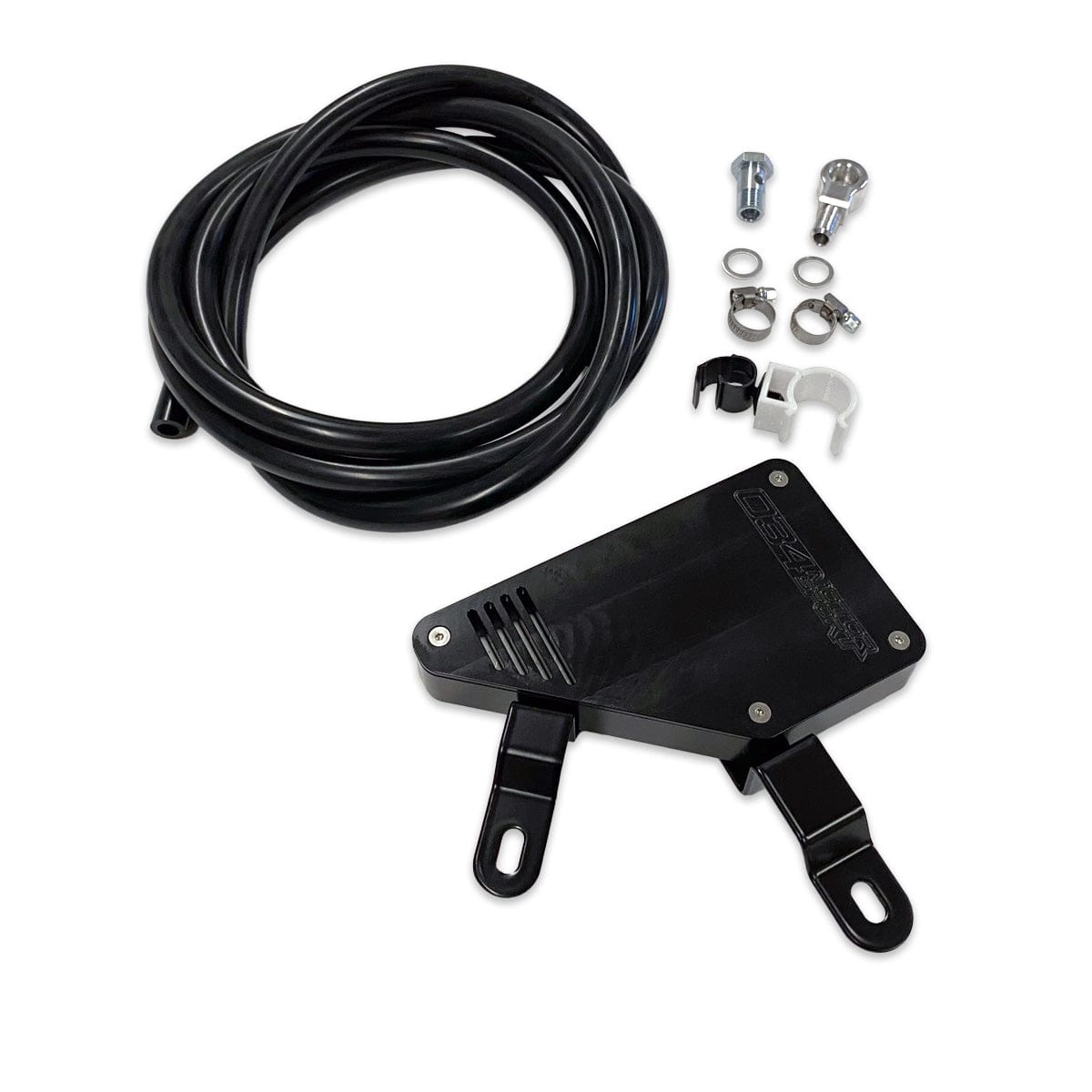

- Includes: Catch can body with brackets, 2ft 8mm ID silicone vent hose, 14mm x 1.5 zinc plated steel banjo bolt, billet aluminium 14mm banjo fitting, 2x 14mm x 20mm aluminium crush washers, 2x M8x16 worm drive clamps, 14-15mm to 20-25mm swivel clip
- Part Number: 034-504-Z007
Vehicle Compatibility: 1 application across 1 make. Select a make to view.
Audi (1)
| Model | Variant | Engine | Years |
|---|---|---|---|
| RS3 | 8V.5 (MQB) | 2.5 TFSI EVO (DAZA) | 2017-on |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
