This billet aluminium oil tube kit from 034Motorsport replaces the failure-prone plastic oil tubes inside the DQ500 DSG used in the 8V.5 Audi RS3 and 8S TT RS, and also suits the 7-speed DSG in the 2014-2015 R8. The factory tubes usually crack or break when the valve body comes out to replace the mechatronic unit or fit an upgraded limited-slip differential, so this kit provides a durable replacement for that job. The tubes are CNC machined from 6061-T6 aluminium, anodised black and reverse engineered from the factory lines, with a larger bore for more fluid flow. Viton fluoroelastomer O-rings handle heat and pressure better than the factory seals, which 034Motorsport says keeps them sealing even at high power or in racing.
Features
- Replaces the failure-prone factory plastic oil tubes
- CNC machined from 6061-T6 aluminium
- Black anodised for harsh conditions
- Reverse engineered from factory DQ500 lines
- Larger bore for more fluid flow
- Viton fluoroelastomer O-rings
Specifications
- Brand: 034Motorsport
- Product Type: DSG Oil Tube Kit
- Transmission: DQ500 DSG; R8 7-speed DSG
- Material: 6061-T6 aluminium
- Finish: Black anodised
- Seals: Viton fluoroelastomer O-rings

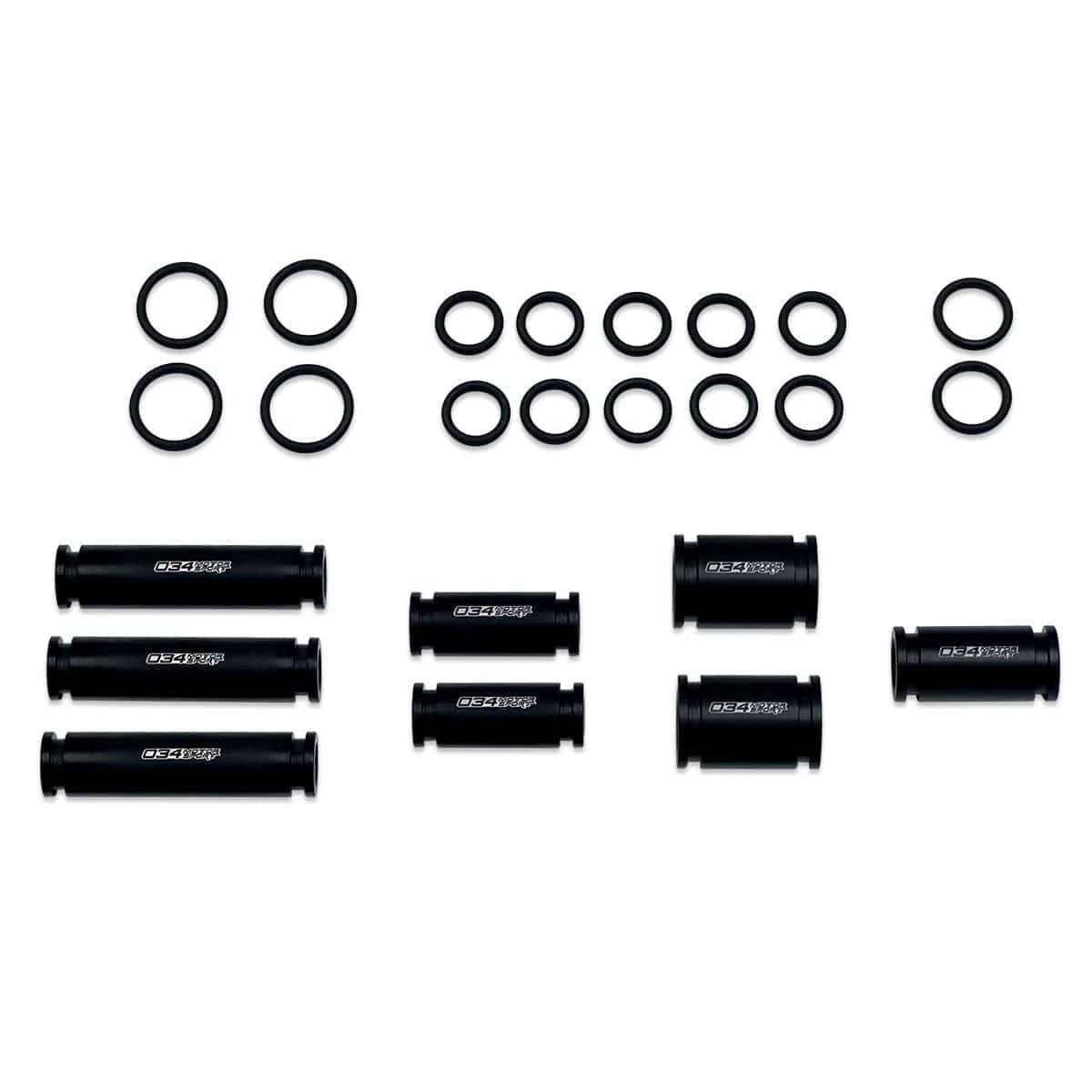

- Includes: 3 x 53mm tubes, 2 x 33mm tubes, 1 x 31mm tube, 2 x 28mm tubes, 16 assorted O-rings
- Part Number: 034-504-z022
Vehicle Compatibility: 43 applications across 5 makes. Select a make to view.
Audi (16)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A3 | 8V | 2.0 TFSI | 2013-2017-RoW Only |
| A3 | 8V.5 | 2.0 TFSI | 2019-2020 |
| A3 | 8Y/8Y.5 | 2.0 TFSI | 2022-on |
| R8 | Mk1.5 | V8 4.2 FSI | 2014-2015 |
| R8 | Mk1.5 | V10 5.2 FSI | 2015-2015 |
| RS Q3 | F3 | 2.5 TFSI | 2019-on |
| RS3 | 8V | 2.5 TFSI | 2015-2017-RoW Only |
| RS3 | 8V.5 | 2.5 TFSI EVO | 2018-2022 |
| RS3 | 8Y/8Y.5 | 2.5 TFSI | 2023-on |
| S3 | 8V | 2.0 TFSI | 2013-2017-RoW Only |
| S3 | 8V.5 | 2.0 TFSI | 2018-2020 |
| S3 | 8Y/8Y.5 | 2.0 TFSI | 2022-on |
| SQ2 | A1 | 2.0 TFSI | 2018-on |
| TT | 8S | 2.0T Gen 3 | 2018-2023 |
| TT RS | 8S | 2.5 TFSI EVO | 2018-2023 |
| TTS | 8S | 2.0T Gen 3 | 2018-2023 |
Cupra (3)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Ateca | Mk1 | 2.0 TSI | 2018-on |
| Formentor | VZ5 | 2.5 TSI | 2020-on |
| Formentor | Mk1 | 2.0 TSI | 2021-on |
Seat (3)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Leon | 5F | 1.8 TSI | 2015-2020 |
| Leon | 5F | 2.0 TSI | 2015-2020 |
| Tarraco | MQB (AWD) | 2.0 TSI | 2019-2021 |
Skoda (5)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Karoq | NU7 | 2.0 TSI | 2017-on |
| Kodiaq | Mk1 (AWD) | 2.0 TSI | 2017-on |
| Octavia | Mk3 5E | 2.0 TSI | 2014-2020 |
| Octavia | Mk4 NX | 2.0 TSI | 2020-on |
| Superb | B8 | 2.0 TSI | 2015-on |
Volkswagen (16)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Arteon | I | 2.0T Gen3 | 2017-2021-RoW Only |
| Arteon | I.5 | 2.0T Gen4 | 2022-2024 |
| Arteon R | I.5 | 2.0T Gen4 | 2020-on |
| Golf | Mk7 GTI | 2.0T Gen3 | 2013-2018-RoW Only |
| Golf | Mk7 R | 2.0 TSI Gen 3 | 2013-2017-RoW Only |
| Golf | Mk7.5 R | 2.0 TSI Gen 3 | 2018-2019 |
| Golf | Mk7.5 GTI | 2.0T Gen3 | 2019-2021 |
| Golf | Mk8/Mk8.5 R | 2.0T Gen4 | 2021-on |
| Golf | Mk8/Mk8.5 GTI | 2.0T Gen4 | 2022-on |
| Jetta | Mk7 GLI | 2.0 TSI Gen3 | 2019-on |
| Passat | B8 | 2.0TSI | 2015-on-RoW Only |
| T-Roc | MQB A1 R | 2.0 TFSI | 2019-on |
| Tiguan | Mk2 | 2.0T Gen3 | 2018-2024-RoW Only |
| Tiguan | Mk2 R | 2.0T Gen4 | 2021-2024 |
| Tiguan | Mk3 | 1.5 TSI eHybrid | 2024-on-RoW Only |
| Tiguan | Mk3 | 2.0 TSI | 2024-on-RoW Only |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
