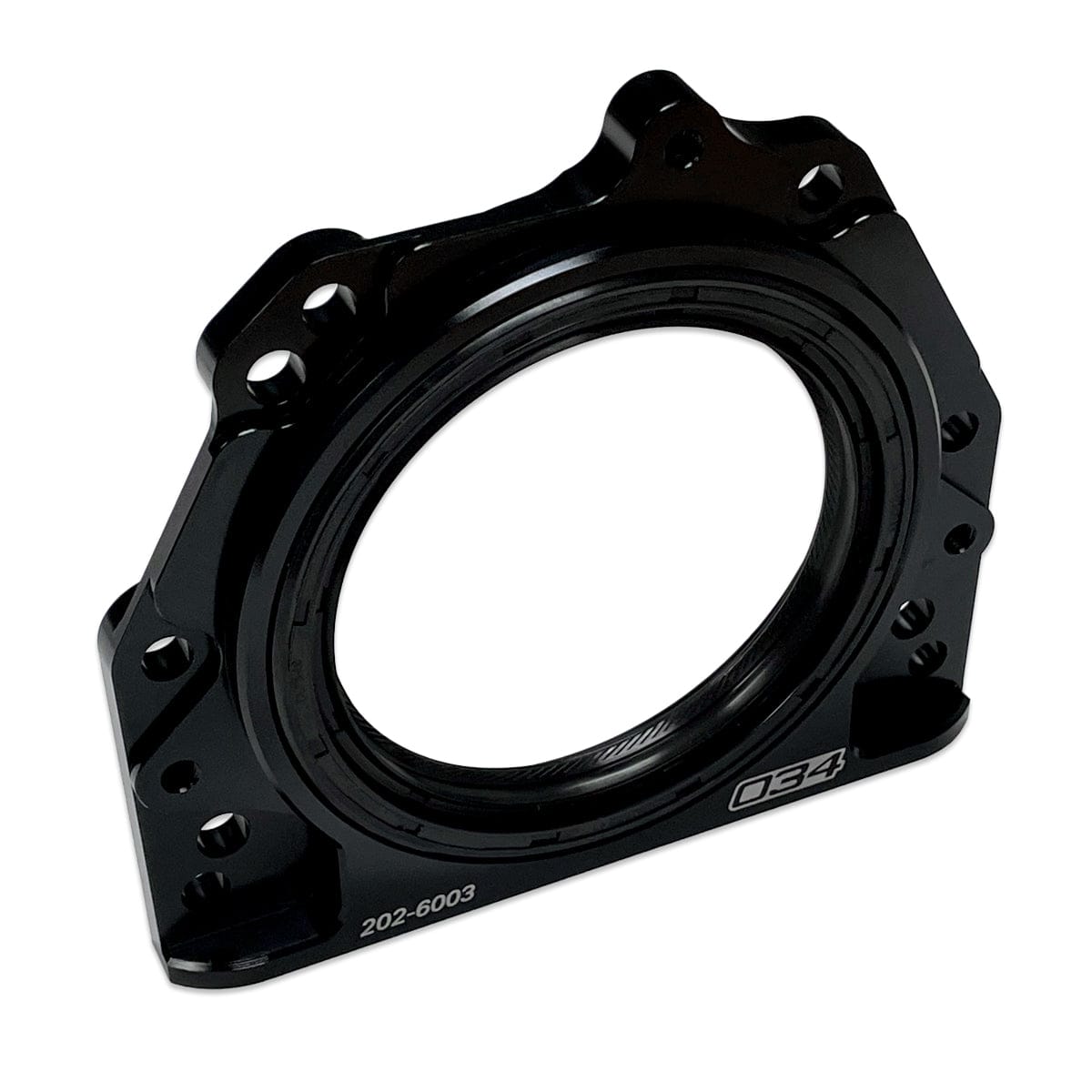

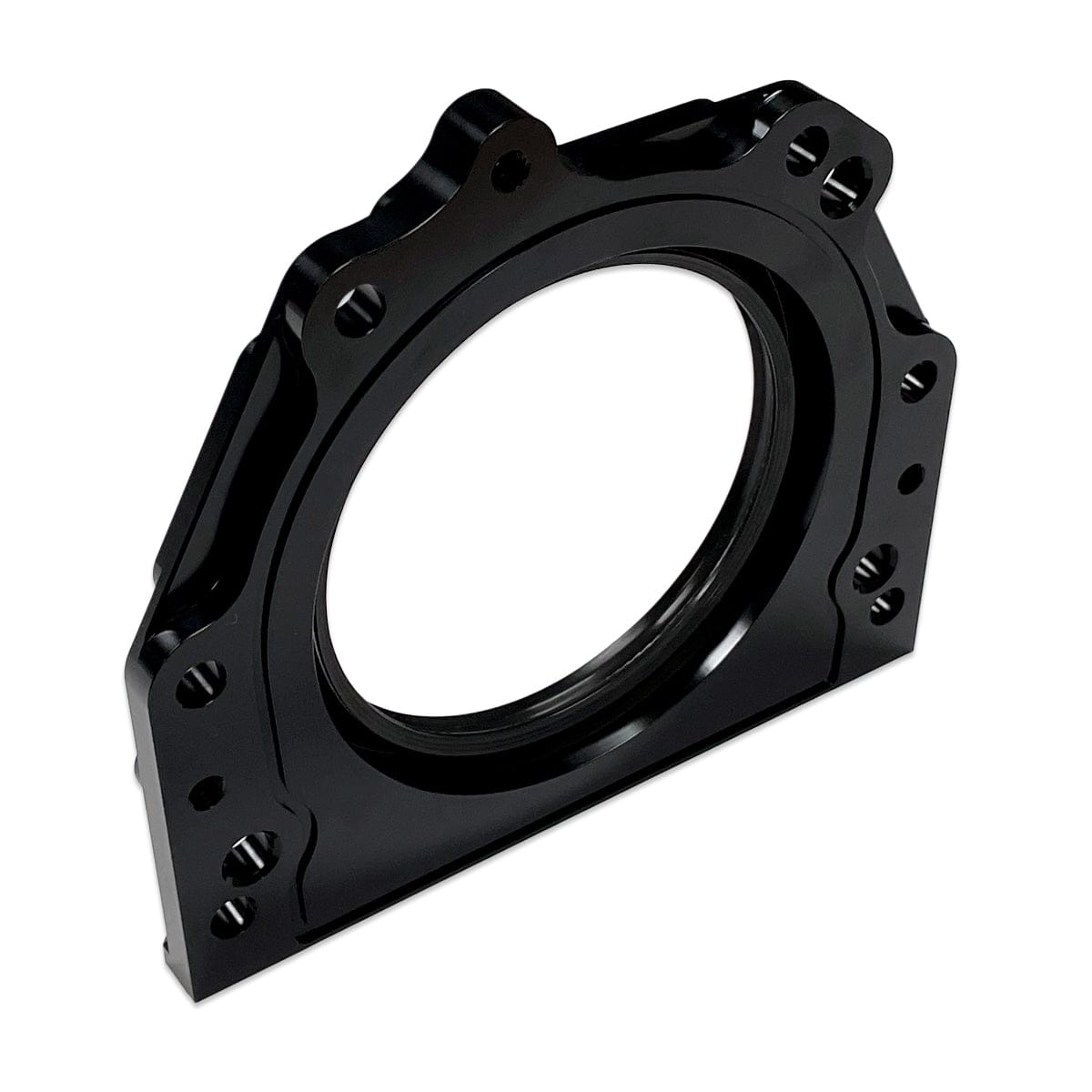

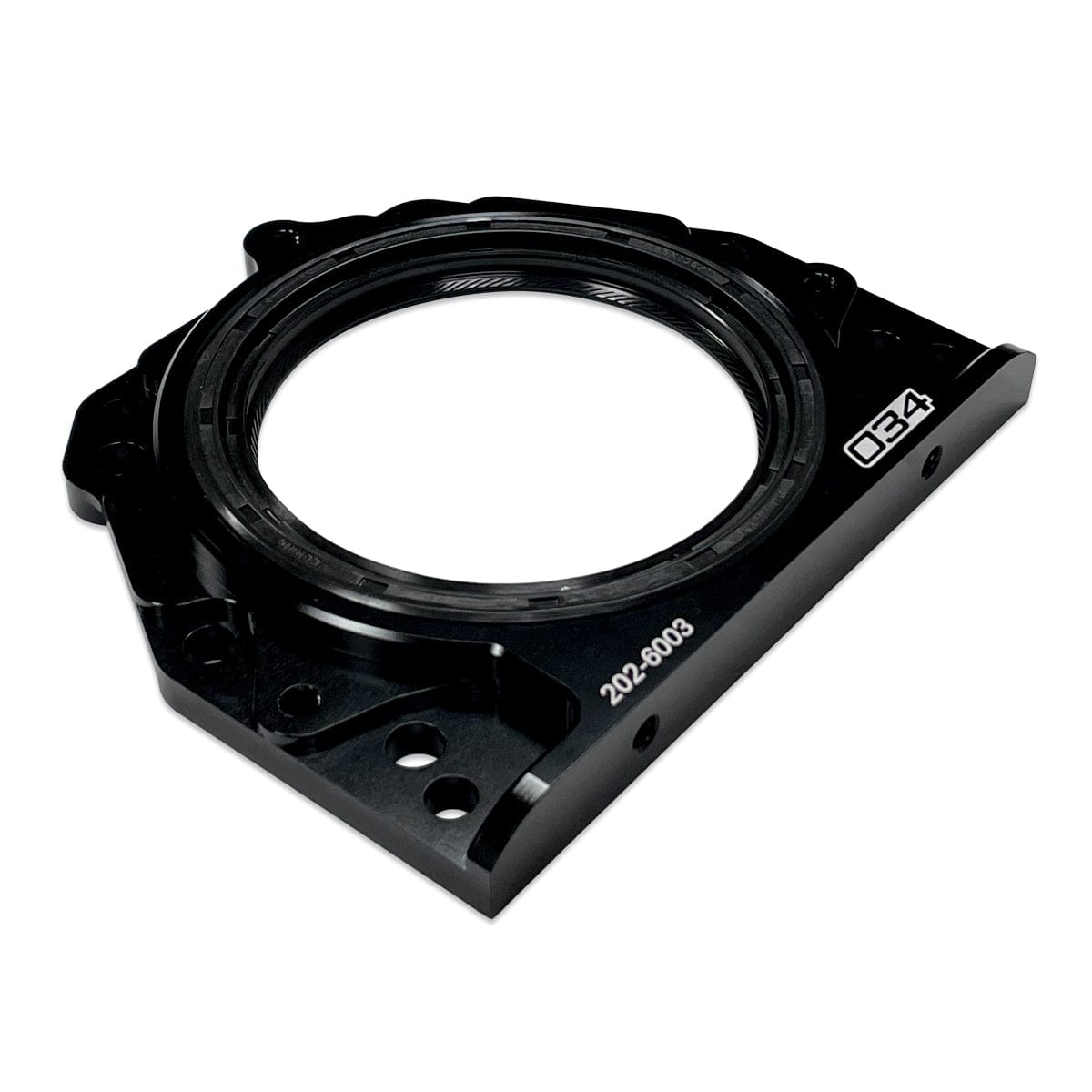

This billet aluminium rear main seal housing replaces the failure-prone stamped steel factory part (OE 06A 103 171A) on Volkswagen and Audi 1.8T and 2.0T FSI EA113 engines, found in cars such as the Mk5 Golf GTI, Mk6 Golf R, 8P A3 and S3, 8J TT and TTS and B7 A4. 034Motorsport explains that the factory seal's PTFE lip can let oil leak between the engine and gearbox over time, and a failed seal can also cause crankcase pressure problems and even misfires. The housing is CNC-machined from 6061-T6 aluminium, gloss black anodised and supplied with an OEM Elring seal with an integral tension spring already fitted, plus an installation tool and new grade 8.8 hardware. A sealant groove and a screwdriver gap for future removal are machined in, and engines with the EA888 need the separate 034 TSI rear main seal instead.
Features
- CNC-machined from billet 6061-T6 aluminium, gloss black anodised
- OEM Elring seal with integral tension spring, pre-installed
- Sealant groove prevents sealant squeeze-out
- Screwdriver gap on the rear for easier future removal
- Installation tool and new grade 8.8 hardware included
- Direct replacement for OE part 06A 103 171A
- Not for EA888 engines
Specifications
- Brand: 034Motorsport
- Product Type: Rear Main Seal
- Material: Billet 6061-T6 aluminium, CNC-machined
- Finish: Gloss black anodised
- Seal: OEM Elring seal with integral tension spring (pre-installed)

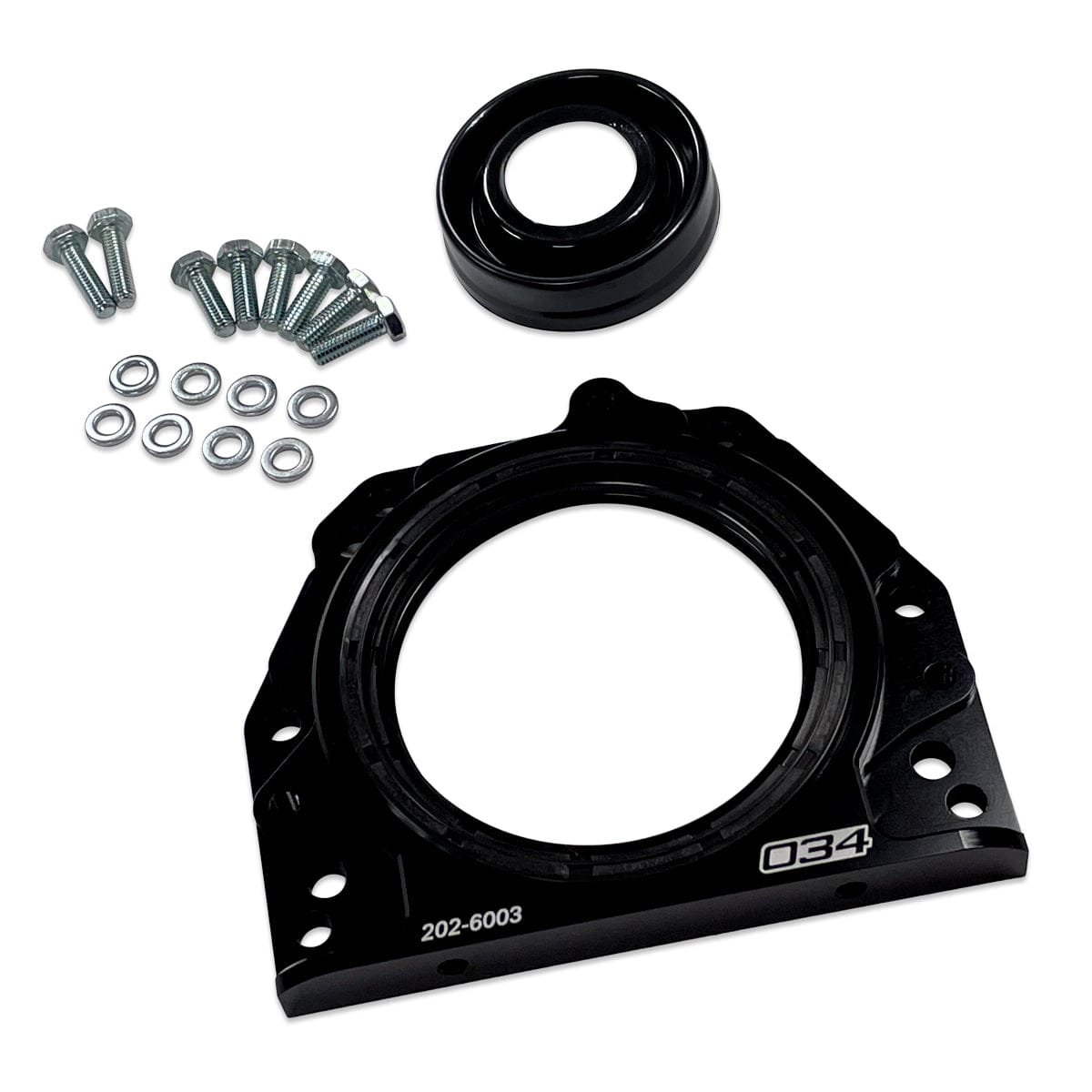

- Includes: Billet rear main seal holder, Elring rear main seal, mounting hardware, installation tool
- Bolt Torque: 15 Nm
- Replaces OE Part: 06A 103 171A
- Part Number: 034-202-6003
Vehicle Compatibility: 47 applications across 2 makes. Select a make to view.
Audi (8)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A3 | 8P | 2.0T FSI | 2006-2008 |
| A4 | B5 | 1.8T | 1996-2001 |
| A4 | B6 | 1.8T | 2002-2005 |
| A4 | B7 | 2.0T FSI | 2005-2008 |
| TT | 8N | 1.8T | 2000-2006 |
| TT | 8J | 2.0 TFSI | 2008-2015 |
| TT | 8J | 2.0 TSI | 2008-2015 |
| TT | 8J | 2.0T FSI | 2008-2015 |
Volkswagen (39)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Beetle | Mk4 | 1.8T | 1998-2010 | |
| Beetle | Mk4 | 2.0L 8V | 1998-2010 | |
| CC | B7 | 2.0 TSI | 2009-2015 | |
| Eos | Mk5 | 2.0 TSI | 2006-2008 | |
| Eos | Mk5 | 2.0T FSI | 2006-2008 | |
| Golf | Mk2 | 16V | 1985-1993 | |
| Golf | Mk2 | 16V | 1985-1993 | Rabbit |
| Golf | Mk2 | 8V | 1985-1993 | |
| Golf | Mk2 | 8V | 1985-1993 | Rabbit |
| Golf | Mk2 GTI | 16V | 1985-1993 | |
| Golf | Mk2 GTI | 8V | 1985-1993 | |
| Golf | Mk3 | 2.0L 8V | 1994-1998 | |
| Golf | Mk3 | 2.0L 8V | 1994-1998 | Rabbit |
| Golf | Mk3 GTI | 2.0L 8V | 1994-1998 | |
| Golf | Mk4 | 1.8T | 1999-2005 | |
| Golf | Mk4 | 1.8T | 1999-2005 | Rabbit |
| Golf | Mk4 | 2.0L 8V | 1999-2005 | |
| Golf | Mk4 | 2.0L 8V | 1999-2005 | Rabbit |
| Golf | Mk4 GTI | 1.8T | 1999-2005 | |
| Golf | Mk4 GTI | 2.0L 8V | 1999-2005 | |
| Golf | Mk5 GTI | 2.0T FSI | 2006-2008 | |
| Golf | Mk6 R | 2.0 FSI | 2012-2013 | |
| Jetta | Mk2 | 16V | 1985-1993 | |
| Jetta | Mk2 | 8V | 1985-1993 | |
| Jetta | Mk2 GLI | 16V | 1985-1993 | |
| Jetta | Mk2 GLI | 8V | 1985-1993 | |
| Jetta | Mk3 | 2.0L 8V | 1994-1998 | |
| Jetta | Mk3 GLI | 2.0L 8V | 1994-1998 | |
| Jetta | Mk4 | 1.8T | 1999-2004 | |
| Jetta | Mk4 | 2.0L 8V | 1999-2004 | |
| Jetta | Mk4 GLI | 1.8T | 1999-2004 | |
| Jetta | Mk4 GLI | 2.0L 8V | 1999-2004 | |
| Jetta | Mk5 GLI | 2.0T FSI | 2005-2008 | |
| Jetta | Mk5 GLI | 2.0 TSI | 2008.5 | |
| Jetta | Mk6 | 2.0L 8V | 2011-2015 | |
| Passat | B3/B4 | 2.0L 16V | 1990-1997 | |
| Passat | B5/B5.5 | 1.8T | 1998-2005 | |
| Passat | B6 | 2.0 TSI | 2006-2010 | |
| Passat | B6 | 2.0T FSI | 2006-2010 |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
