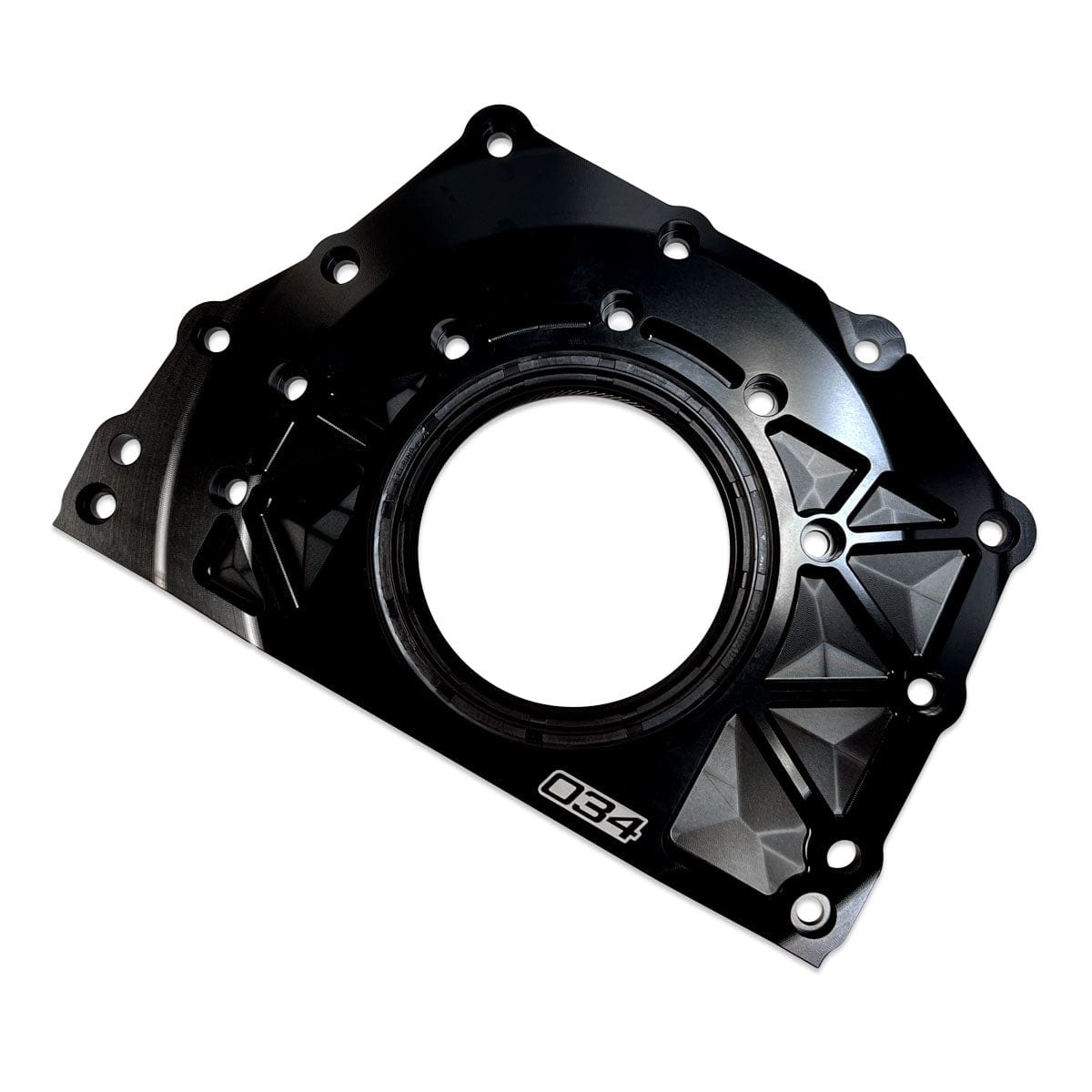

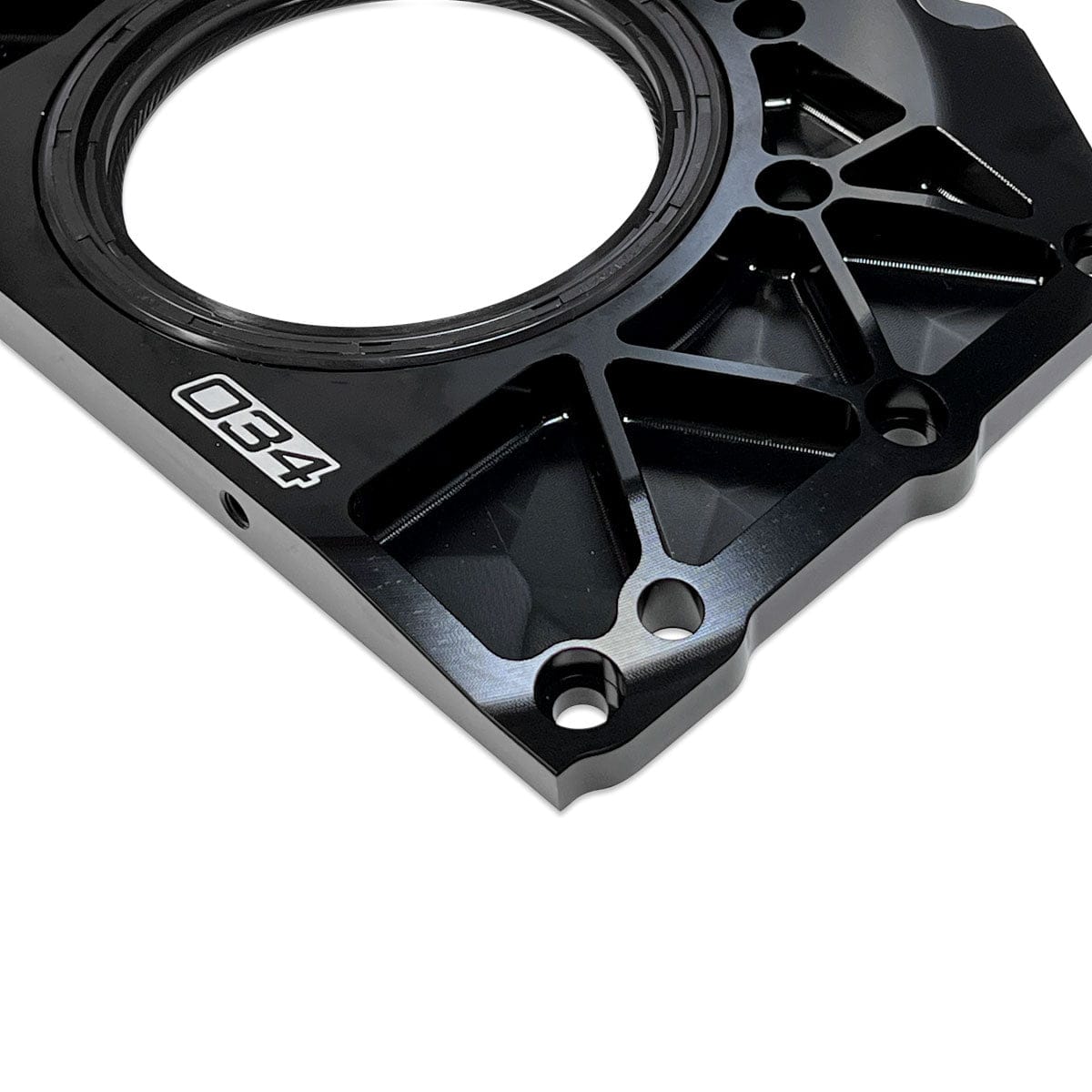

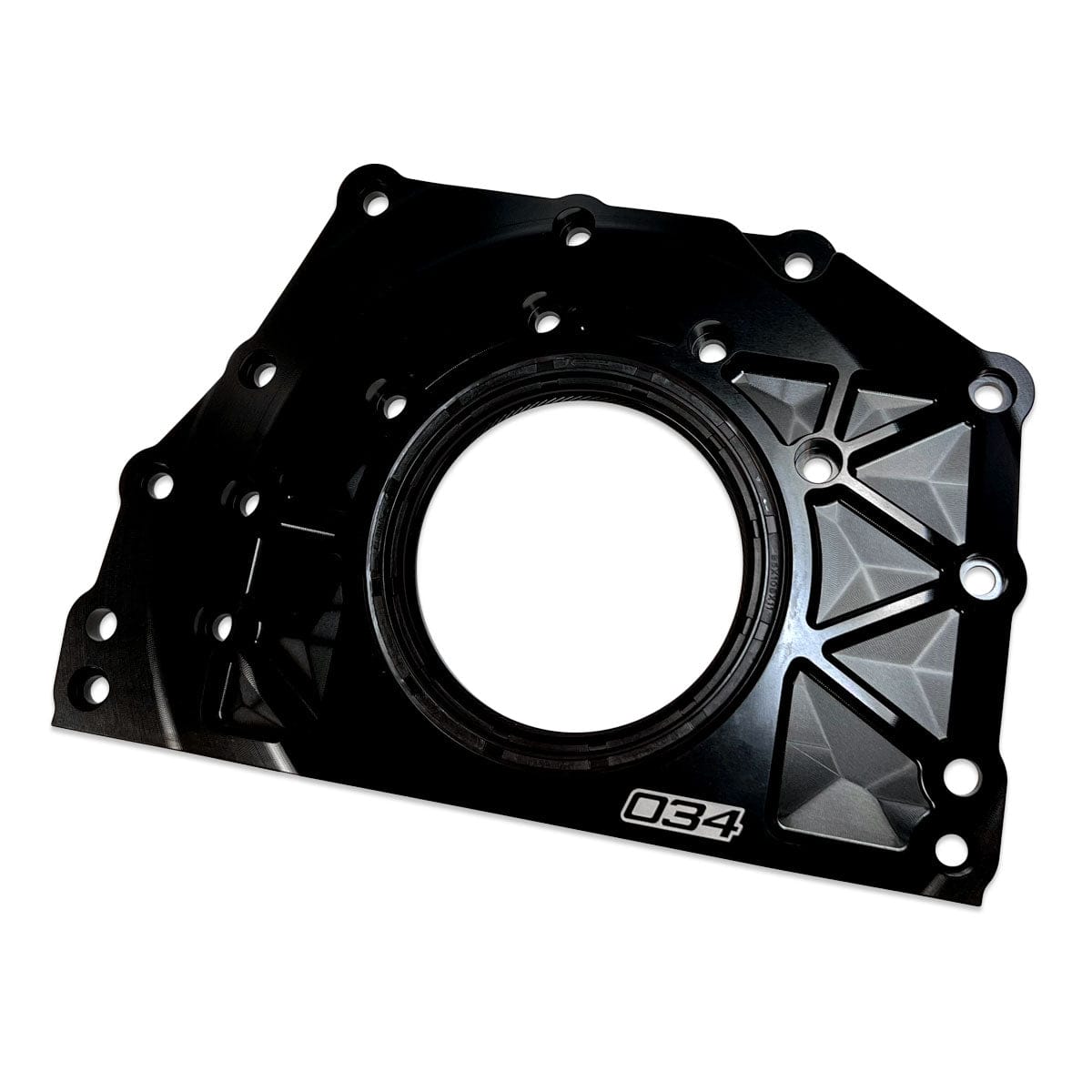

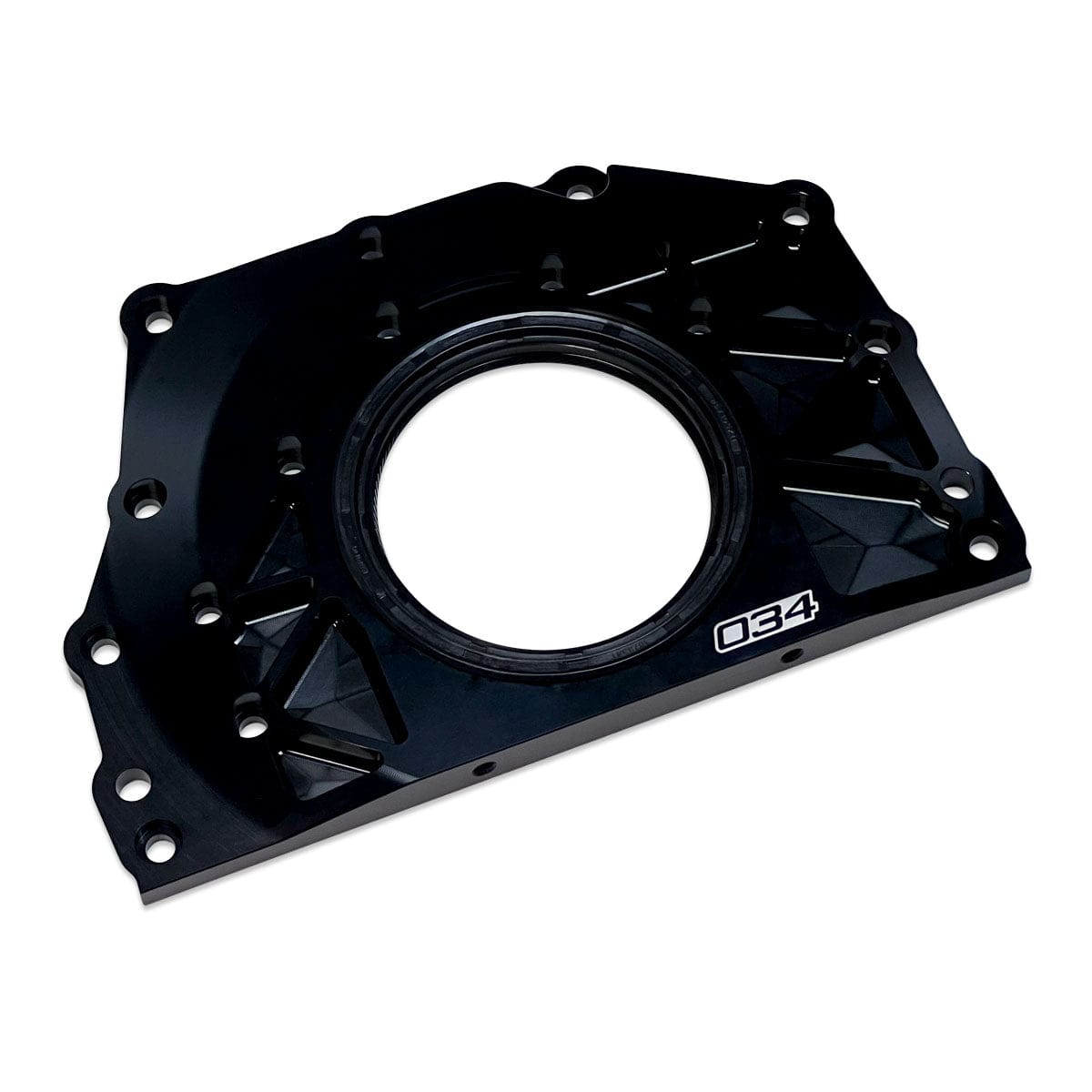

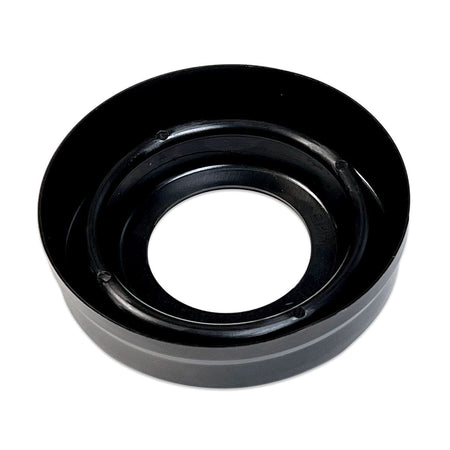

This billet rear main seal replaces the failure-prone cast aluminium factory rear main wiper seal on Audi's 2.7T and 2.8 V6 engines, including the B5 S4 and RS4, C5 A6 and allroad. It is CNC machined from 6061-T6 aluminium with a gloss black anodised finish and carries an OEM Elring Viton seal with an integral tension spring to keep a tight seal against the crankshaft. 034Motorsport notes that the Viton seal copes better with higher crankcase pressure than the factory wiper seal, and that a failed rear main seal can cause crankcase pressure problems and even misfires. It is a direct replacement for OEM part 078 103 171 L and comes with new grade 8.8 mounting hardware.
Features
- CNC machined from billet 6061-T6 aluminium
- Gloss black anodised finish
- OEM Elring Viton seal with integral tension spring
- Copes better with crankcase pressure than the wiper seal
- Direct replacement for OEM part 078 103 171 L
- New grade 8.8 mounting hardware included
Specifications
- Brand: 034Motorsport
- Product Type: Rear Main Seal
- Material: Billet 6061-T6 aluminium
- Finish: Gloss black anodised

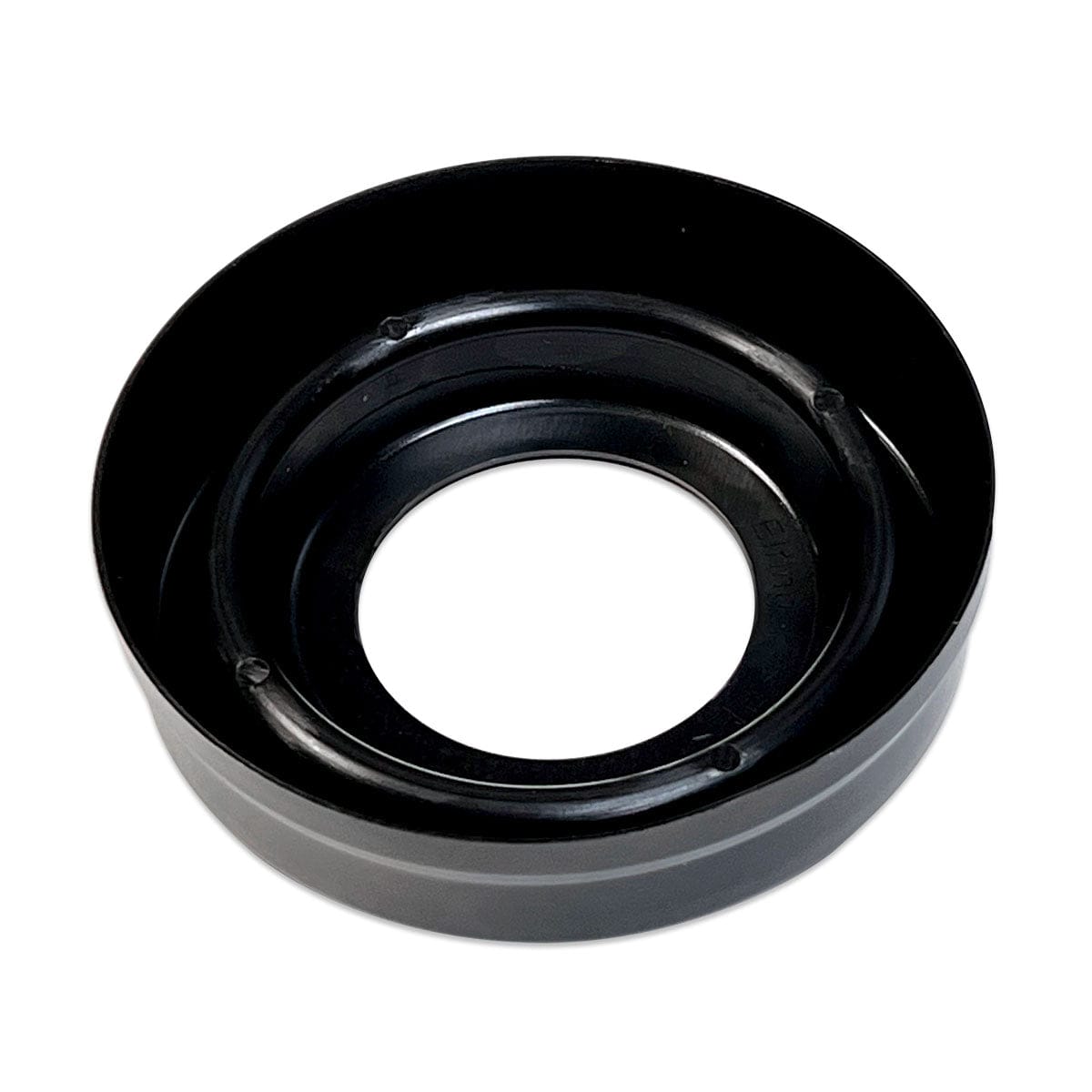

- Seal: OEM Elring Viton with integral tension spring
- Replaces OEM: 078 103 171 L

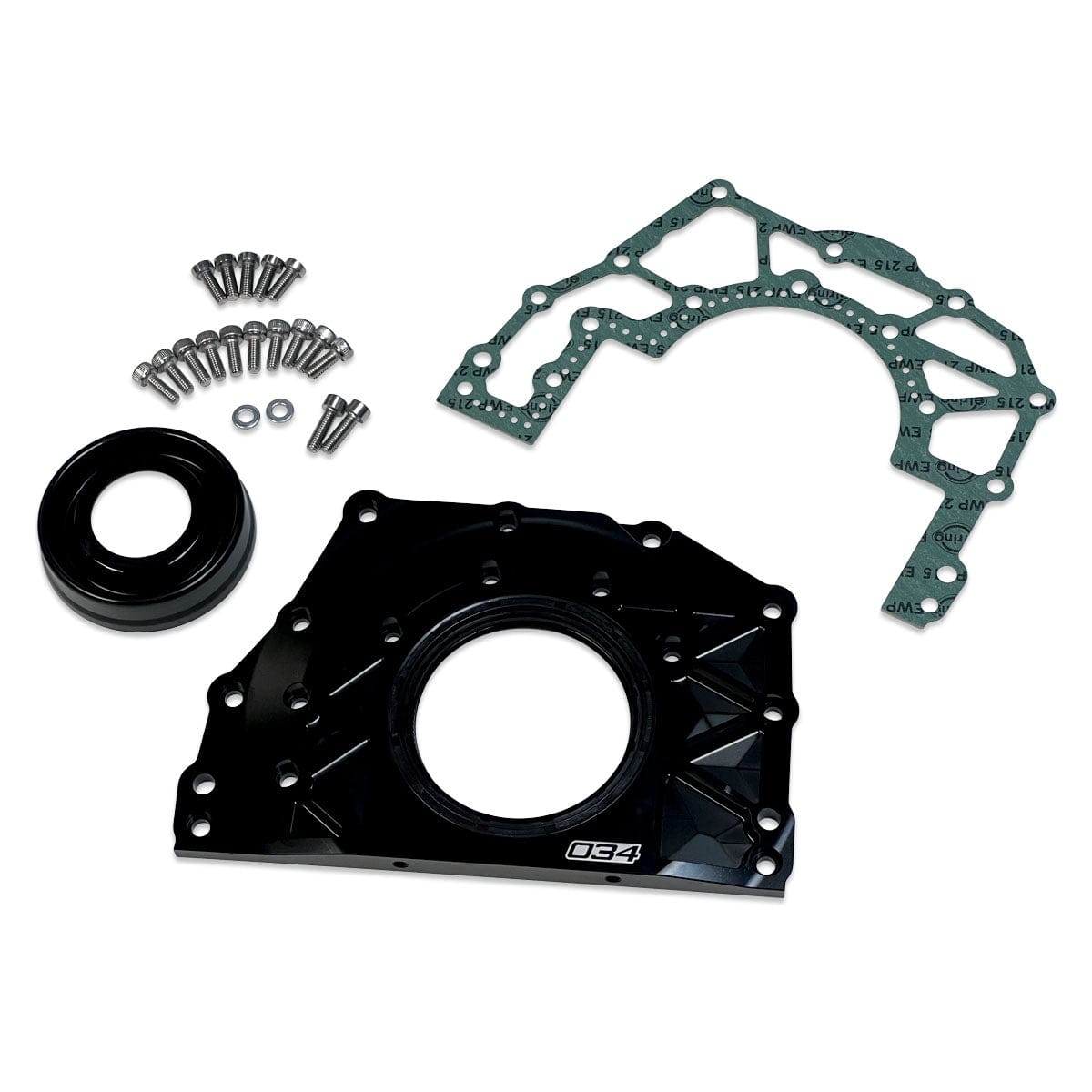

- Includes: Billet rear main seal holder, Elring rear main seal, grade 8.8 mounting hardware

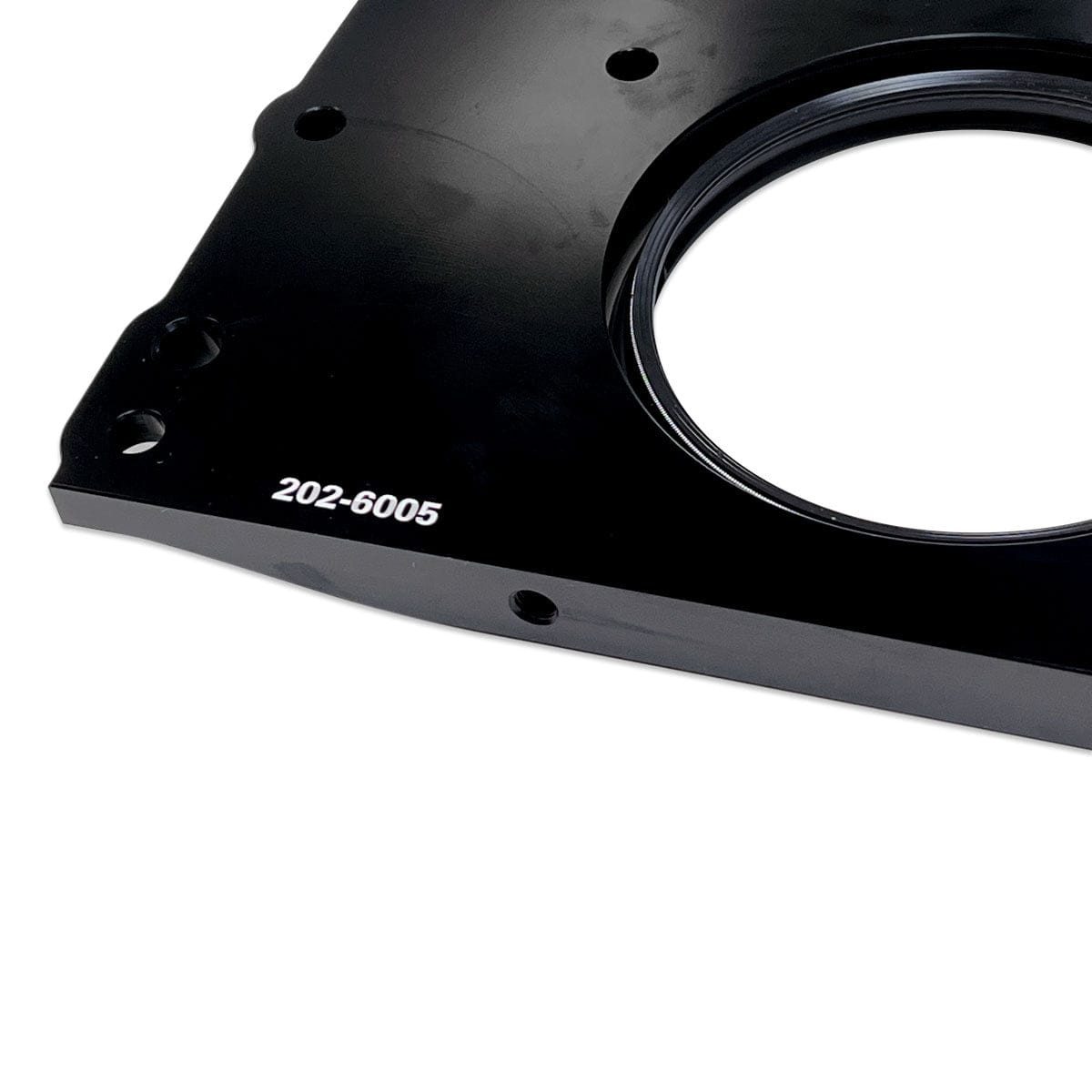

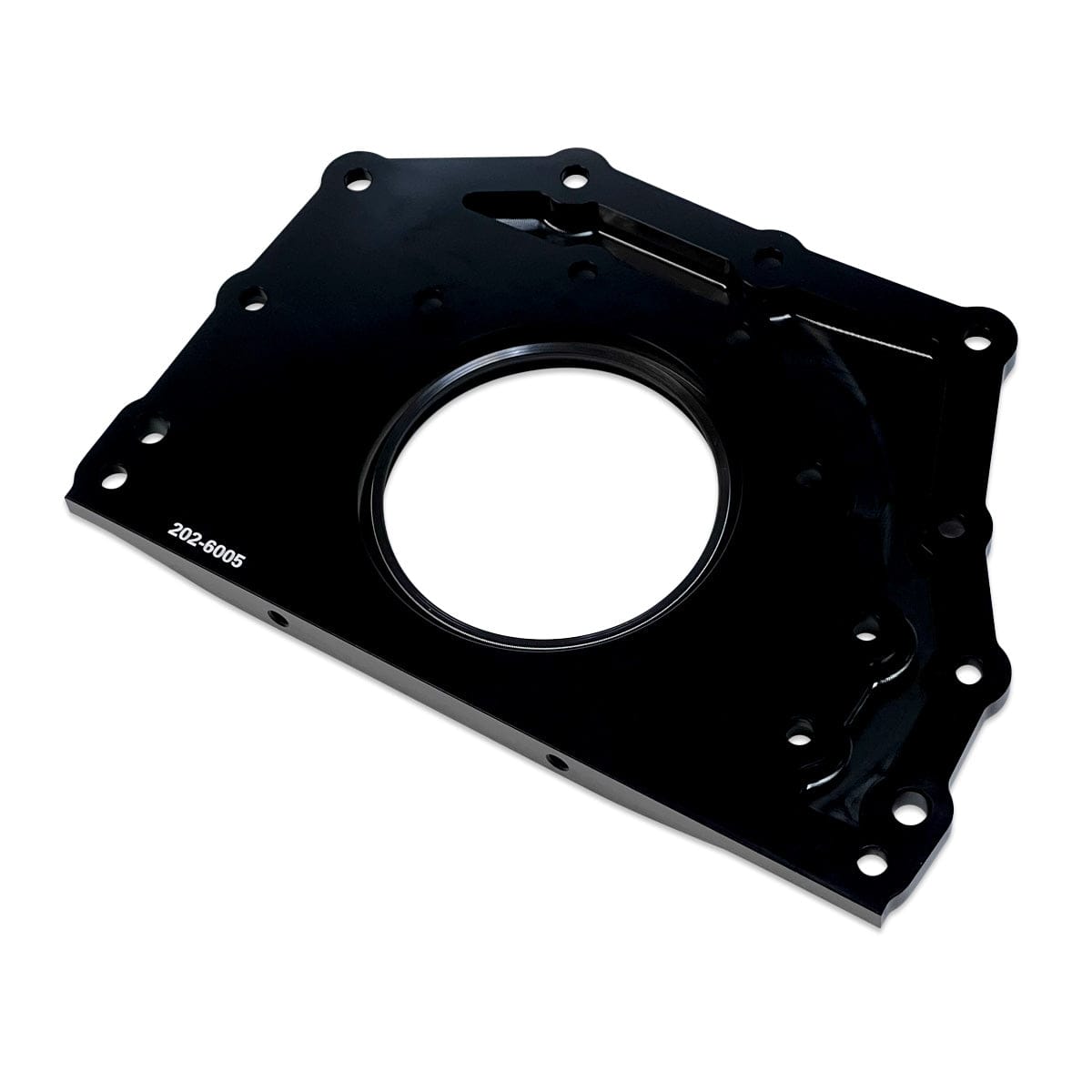

- Part Number: 034-202-6005
Vehicle Compatibility: 7 applications across 1 make. Select a make to view.
Audi (7)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A4 | B5 | 2.8L V6 12V | 1996-2001 |
| A4 | B5 | 2.8L V6 30V | 1996-2001 |
| A6 | C4 | 2.8L V6 12V | 1995-1997 |
| A6 | C5 | 2.7T | 1998-2004 |
| A6 | C5 | 2.8L V6 30V | 1998-2004 |
| A6 allroad | C5 | 2.7T | 2001-2005 |
| S4 | B5 | 2.7T | 2000-2002 |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
