034Motorsport Billet Aluminum Rear Subframe Mount Insert Kit, E9X BMW

This billet aluminium insert kit fills the voids in the four factory rubber rear subframe mounts on E8X BMW 1 Series and E9X 3 Series models, and also limits vertical subframe movement. 034Motorsport explains that the factory mounts deflect under load, making the rear end feel vague and loose, upsetting suspension geometry and adding understeer. Working with the factory mounts, the inserts keep the geometry in check when cornering, sharpen rear suspension and differential response and help aftermarket rear sway bars work more effectively, with virtually no added cabin NVH. The T6-6061 parts are CNC-machined in-house and clear anodised, will not pack down or wear, and install simply and reversibly.

Features

• T6-6061 billet aluminium, CNC-machined in-house
• Clear anodised finish
• Fills voids in all four factory rear subframe mounts
• Helps maintain suspension geometry when cornering
• Reduces subframe movement during launches and acceleration
• Virtually no added cabin NVH, per 034Motorsport
• Simple, reversible installation

Specifications

• Brand: 034Motorsport
• Product Type: Rear Subframe Mount Insert Kit
• Material: T6-6061 billet aluminium, CNC-machined
• Finish: Clear anodised

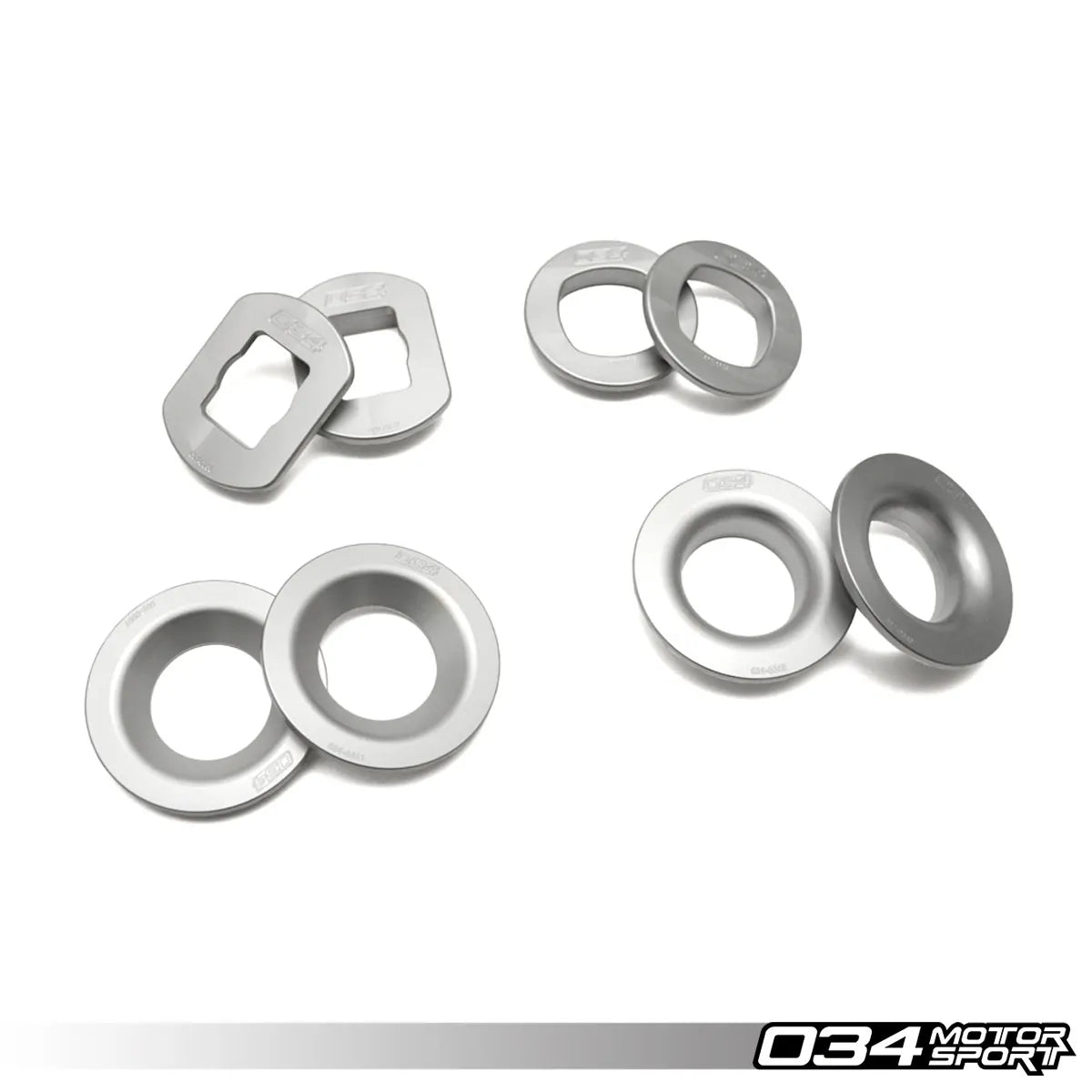

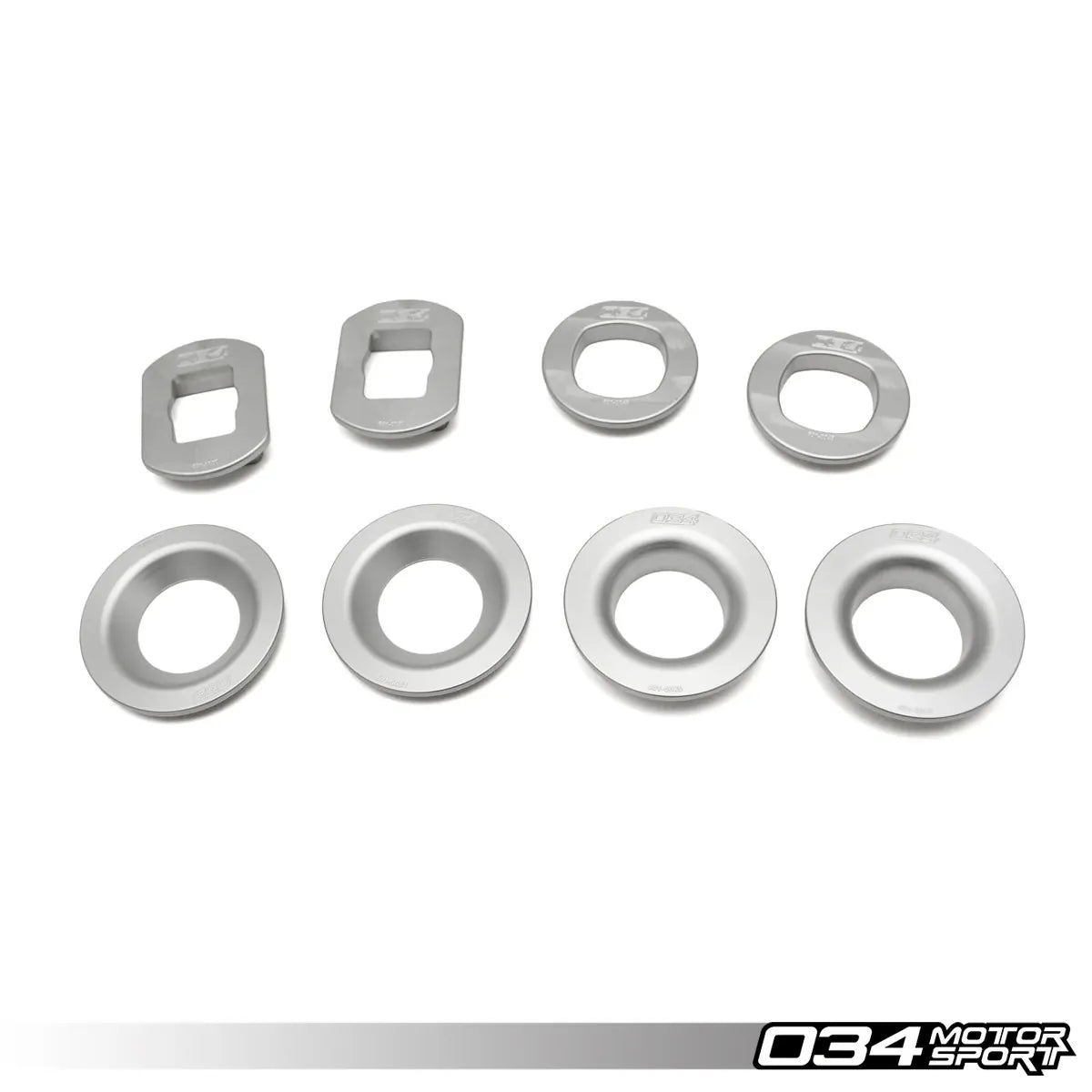

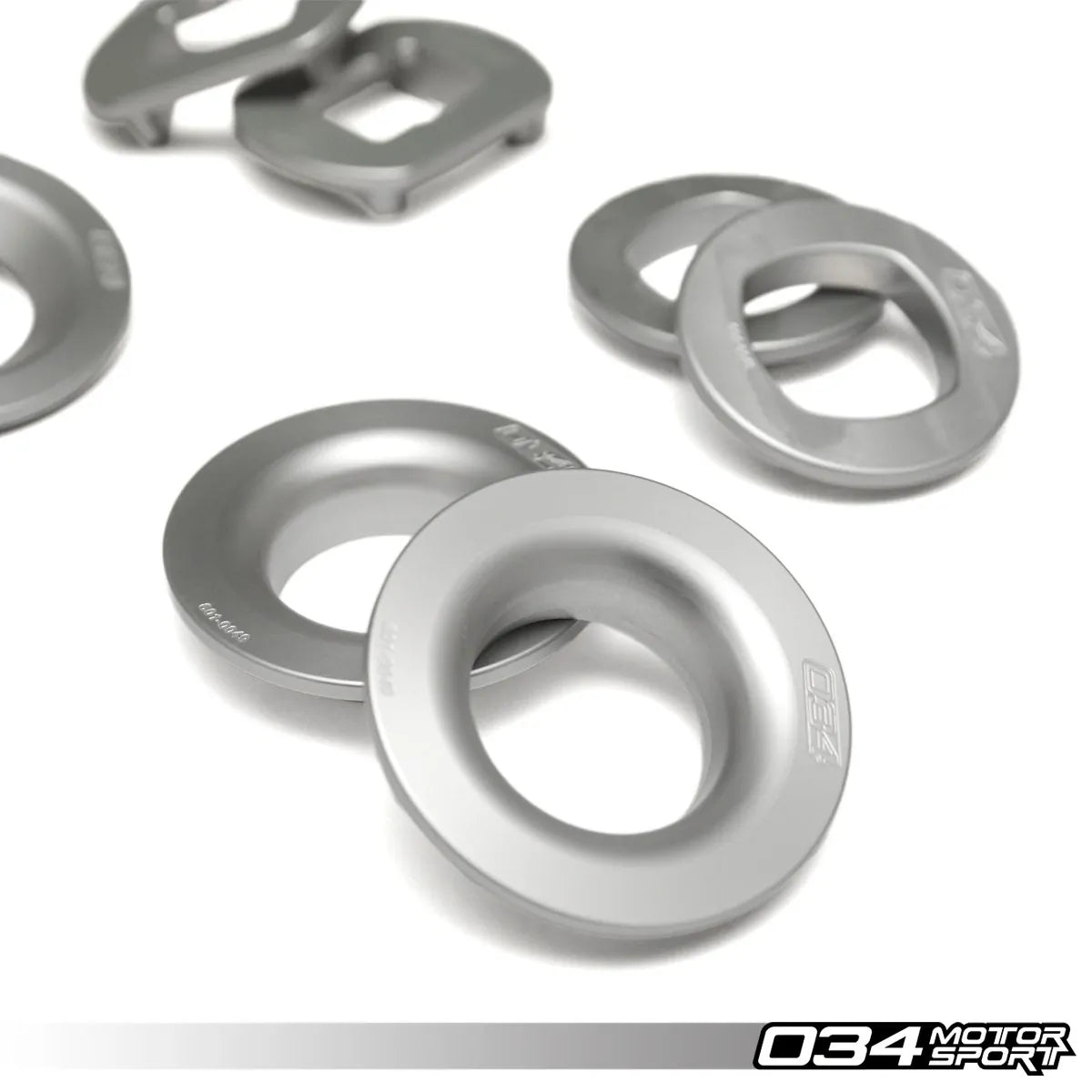

• Includes: Front upper, front lower, rear upper and rear lower inserts (one pair of each)
• Part Number: 034-601-0047

Vehicle Compatibility: 8 applications across 1 make. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
