034Motorsport Billet Aluminum Upper Dogbone Mount Insert, MkV/MkVI Volkswagen Golf/GTI/R/Jetta/GLI and 8P Audi A3/S3 & 8J Audi TT/TTS/TTRS

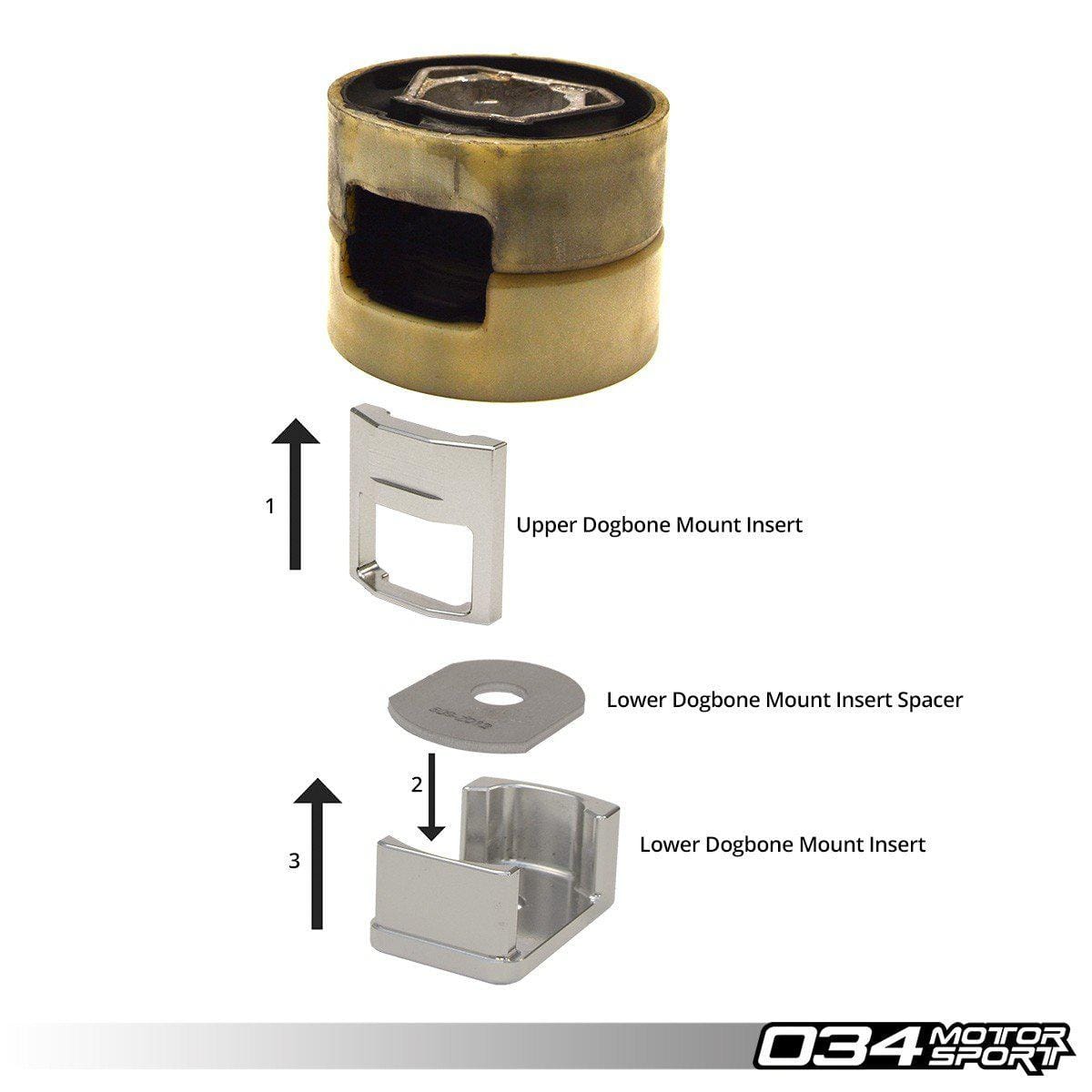

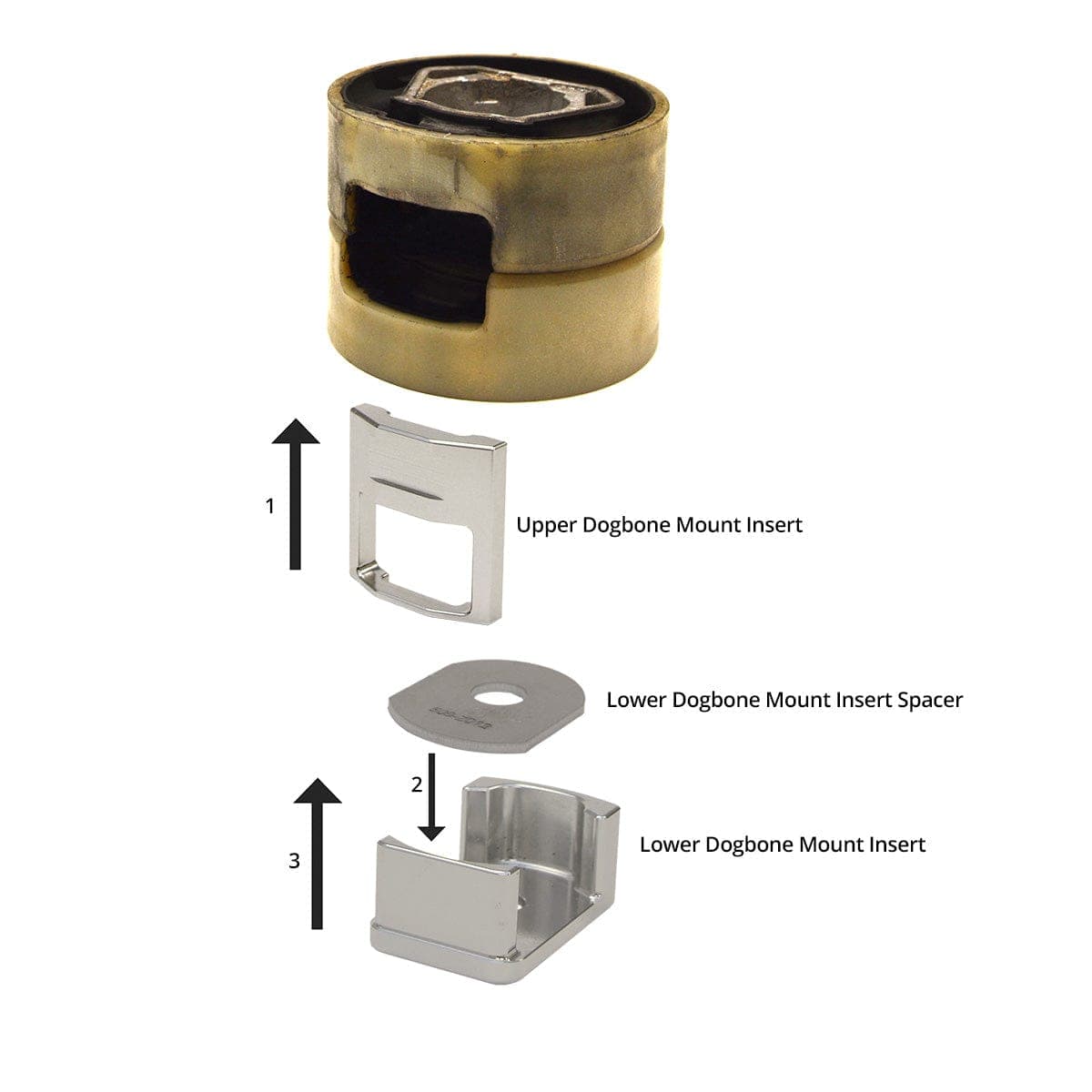

This billet aluminium upper insert is designed for 2009-on Mk5 and Mk6 Volkswagen Golf, GTI, Golf R, Jetta and GLI models and the 8P Audi A3 and S3 and 8J TT, TTS and TT RS running a lower dogbone mount insert. 034Motorsport found that with only the lower puck restrained, violent drivetrain shocks such as burnout-induced wheel hop let the upper puck rotate forward, putting a bending load on the dogbone arm that can bend or even break it and leave the engine unconstrained. The upper insert slips into the front void of the upper puck to match the lower insert, keeping loads in the direction the arm was designed for and compressing both pucks evenly to reduce wear on the lower one. The kit pairs a clear anodised, CNC-machined 6061 billet upper insert with a water-jet cut aluminium lower insert spacer that stops the two inserts touching and vibrating, and installation takes about an hour.

Features

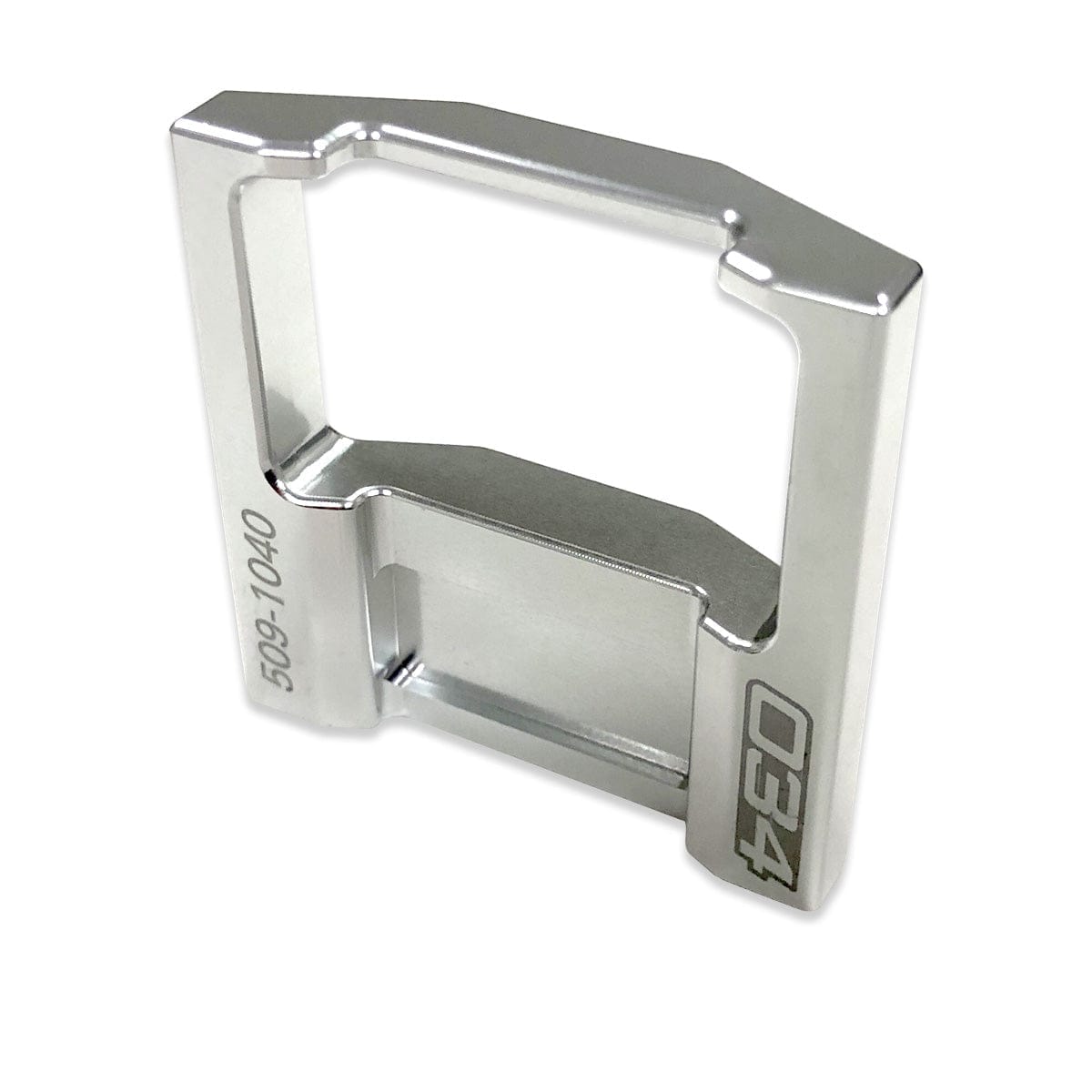

• CNC-machined 6061 billet aluminium upper insert, clear anodised
• Water-jet cut aluminium lower insert spacer
• Removes the bending load on the dogbone arm
• Compresses upper and lower mount pucks evenly
• Reduces wear on the lower dogbone mount puck
• Little to no added NVH, per 034Motorsport
• About 1 hour to install

Specifications

• Brand: 034Motorsport
• Product Type: Upper Dogbone Mount Insert

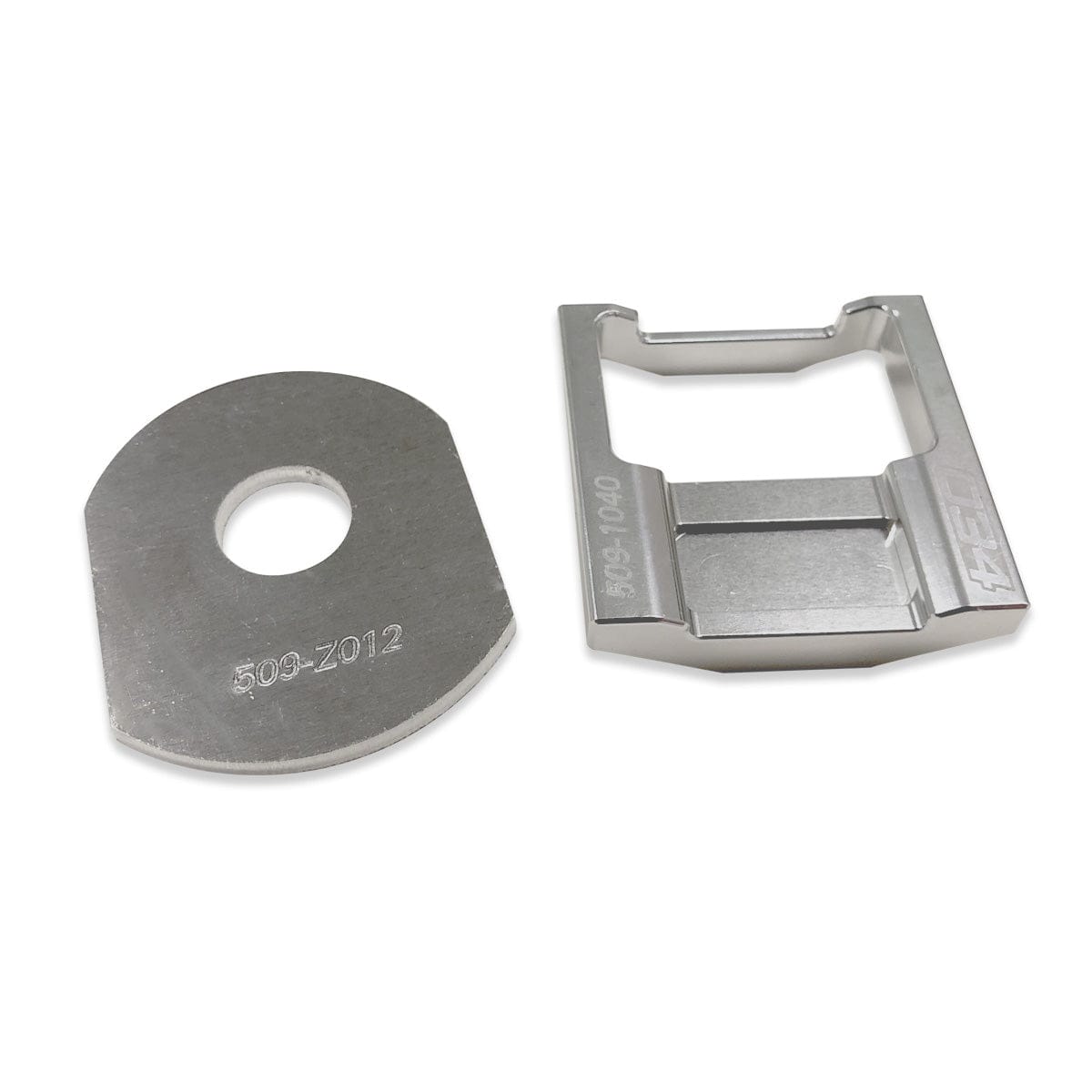

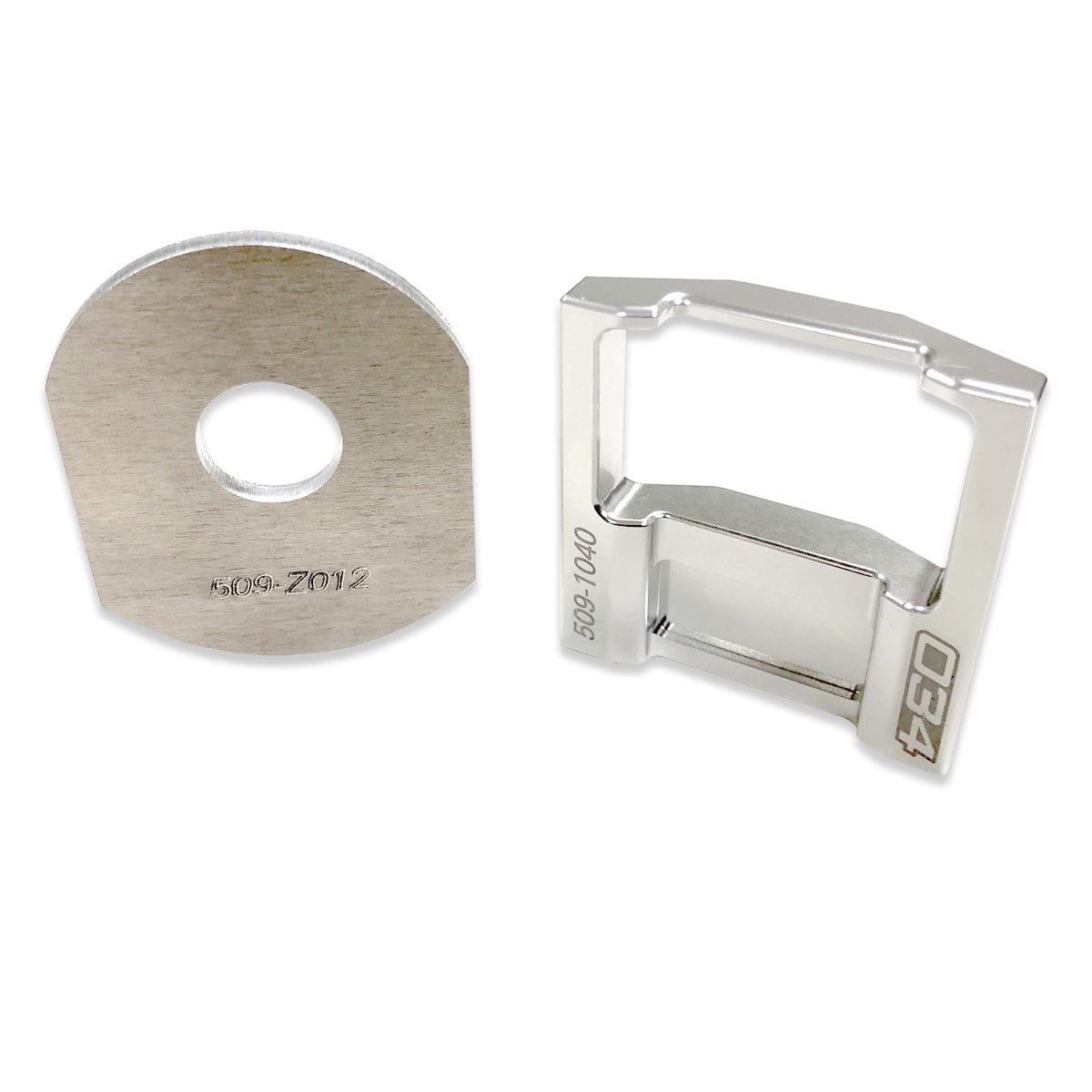

• Material: 6061 billet aluminium upper insert, water-jet cut aluminium spacer
• Finish: Clear anodised
• Includes: Upper dogbone mount insert, lower dogbone mount insert spacer
• Use With: Any dogbone mount with a lower dogbone mount insert; strongly recommended with the OEM mount and a lower insert
• Part Number: 034-509-1040

Vehicle Compatibility: 20 applications across 2 makes. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
