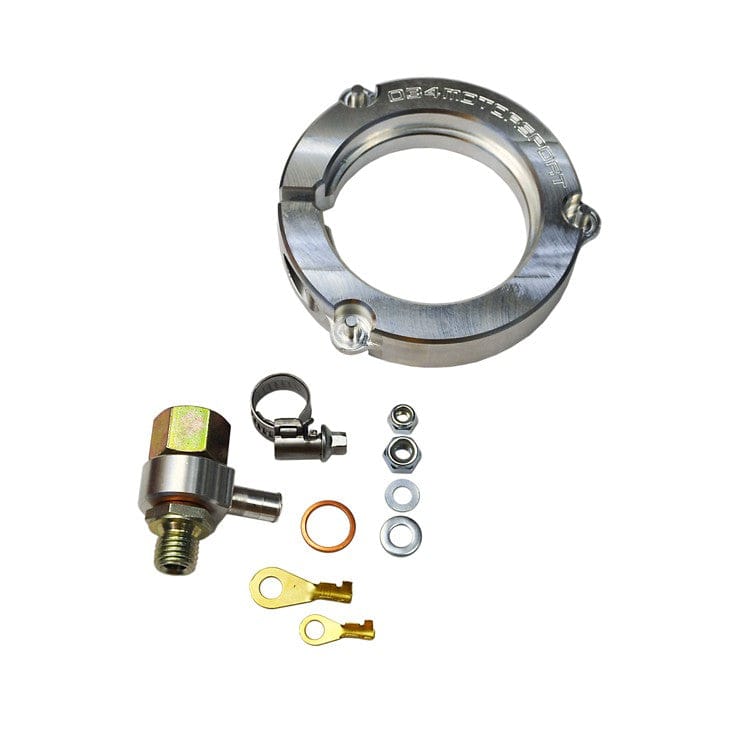

This billet aluminium bracket lets a high-flow Bosch 60mm fuel pump drop straight into the factory fuel pump basket on a range of Audi models, from the B3 and B4 quattro cars to the B5 A4, S4 and RS4, the C5 A6 and allroad and the B6 A4. 034Motorsport recommends the Bosch 040, rated for 500 horsepower, or the Bosch 044, rated for 700 horsepower, although only the 040 fits the C5 and B6 tanks. The kit includes the mounting bracket, a check valve, an outlet fitting that allows the stock fuel line to be used and new ring terminals for the factory pump wiring. The fuel pump itself is not included.
Features
- Billet aluminium drop-in mounting bracket
- Fits Bosch 60mm fuel pumps into the factory basket
- Suits the Bosch 040 or 044 pump
- Outlet fitting retains the stock fuel line
- Check valve and new ring terminals included
- Fuel pump not included
Specifications
- Brand: 034Motorsport
- Product Type: Fuel Pump Adapter Kit
- Pump Size: Bosch 60mm
- Recommended Pumps: Bosch 040 (175 LPH at 55 PSI, 155 LPH at 75 PSI) or Bosch 044 (265 LPH at 55 PSI, 250 LPH at 75 PSI)
- Includes: Billet aluminium fuel pump mounting bracket, check valve, fuel pump outlet fitting, new ring terminals
- Not Included: Fuel pump
- Note: C5 A6/allroad and B6 A4 accept the Bosch 040 only
- Part Number: 034-106-6018
Vehicle Compatibility: 11 applications across 1 make. Select a make to view.
Audi (11)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Coupe | B3 | I5 20V | Quattro | |
| 90 | B3 | I5 20V | Quattro | |
| 90 | B4 | Quattro | ||
| S2 | B3/B4 | |||
| RS2 | B3/B4 | |||
| A4 | B5 | |||
| S4 | B5 | |||
| RS4 | B5 | |||
| A6 | C5 | Bosch 040 pump only | ||
| Allroad | C5 | Bosch 040 pump only | ||
| A4 | B6 | Bosch 040 pump only |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
