034Motorsport Billet Spherical Dogbone Mount Hardware Kit, Audi 8V/8S S3/TT/TTS & MK7 Volkswagen Golf GTI/R - 034-509-Y016
Regular price
$49.99
This kit supplies the factory dogbone mount bolts for the 8V and 8S Audi A3, S3, TT and TTS and the Mk7 Volkswagen Golf, GTI and R. 034Motorsport recommends fitting new factory stretch bolts when installing its Billet Spherical Dogbone Mount, and this kit groups the three bolts needed under one part number. Each bolt is a factory part listed by its OE number.
Features
- Complete set of factory dogbone mount bolts
- New factory stretch bolts, as 034Motorsport recommends
- Suits the 034Motorsport Billet Spherical Dogbone Mount
- OE part numbers N91201001, N10699401 and N91167101
Specifications
- Brand: 034Motorsport
- Product Type: Dogbone Mount Hardware Kit

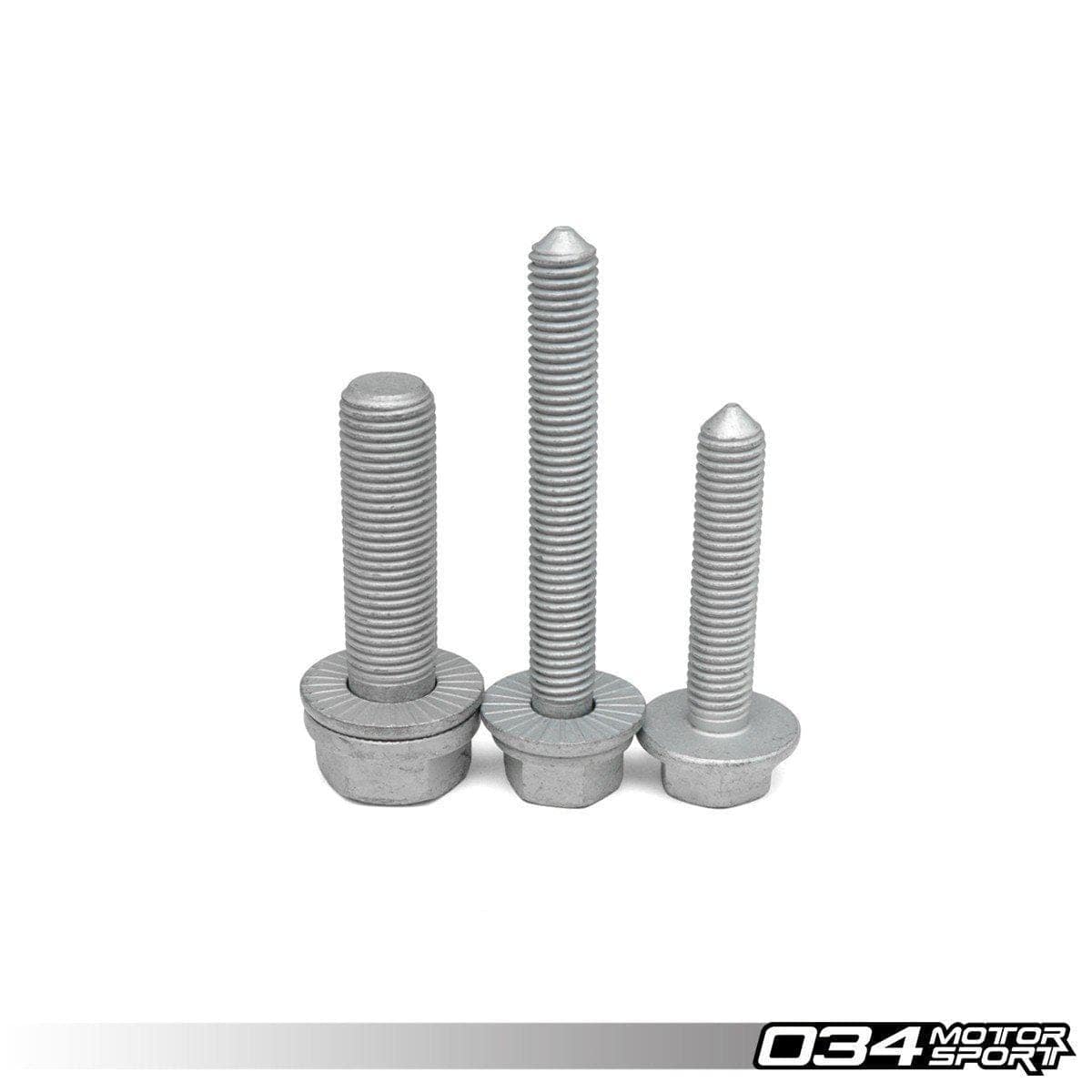

- Contents: M14x1.5x50 (N91201001), M10x1.5x50 (N10699401) and M10x1.5x75 (N91167101) hex head bolts, one of each
- Part Number: 034-509-Y016
Vehicle Compatibility: 7 applications across 2 makes. Select a make to view.
Audi (4)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A3 | 8V (MQB) | 2013-on | |
| S3 | 8V (MQB) | 2013-on | |
| TT | 8S (Mk3, MQB) | 2015-on | |
| TTS | 8S (Mk3, MQB) | 2015-on |
Volkswagen (3)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Golf | Mk7 (MQB) | 2013-on | |
| Golf | Mk7 GTI (MQB) | 2013-on | |
| Golf R | Mk7 (MQB) | 2013-2016 |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
