034Motorsport Boost Tap Kit, 3.0 TFSI, B8/B8.5 Audi S4/S5/Q5/SQ5, C7/C7.5 A6/A7

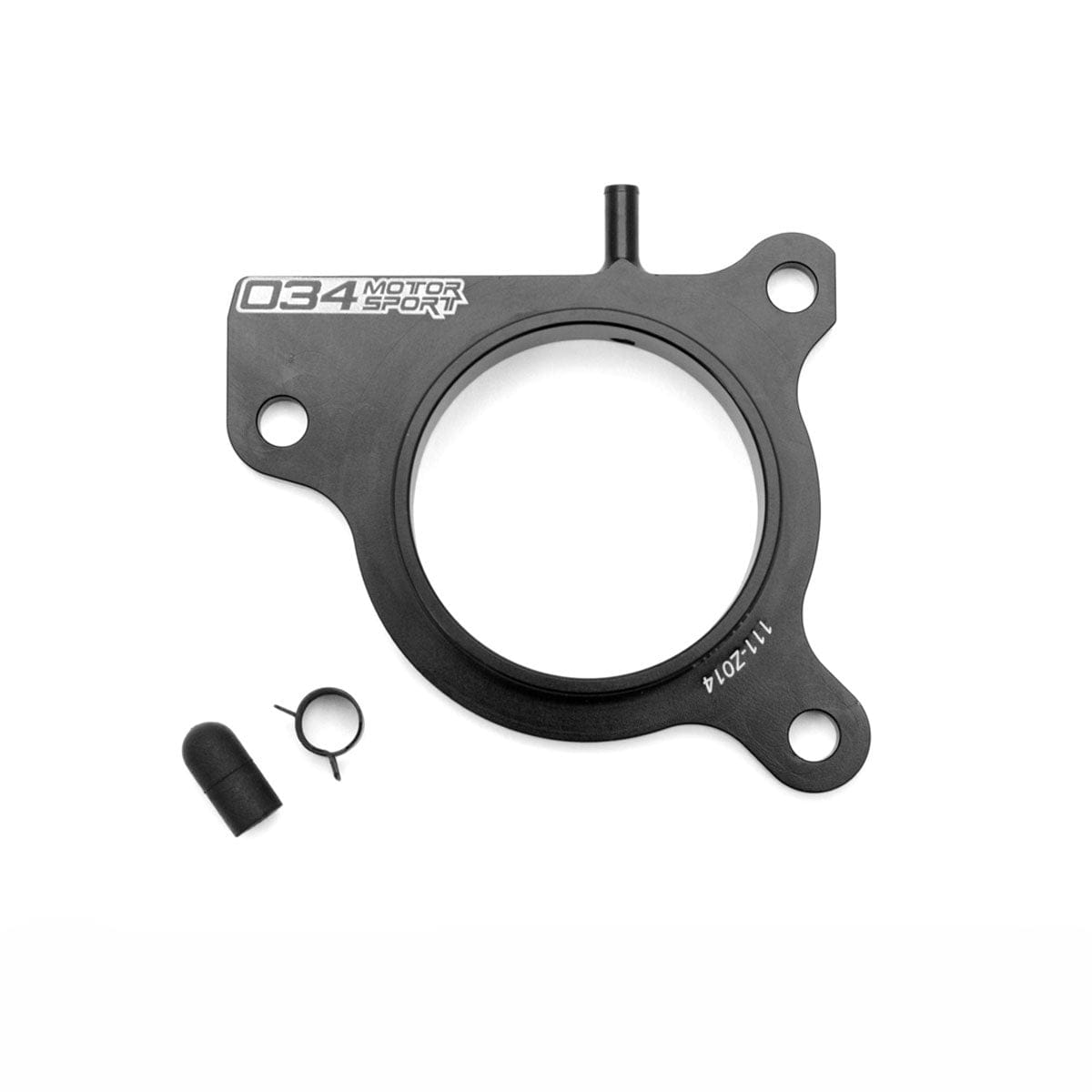

This billet aluminium boost tap replaces the factory plastic spacer between the supercharger and discharge tube on the 3.0 TFSI in B8 and B8.5 Audi S4, S5, Q5 and SQ5 models and C7 and C7.5 A6 and A7 models. A single 5mm (3/16 inch) nipple on the back gives a convenient connection, routed from the firewall, for a boost gauge line or a vacuum source for diagnosis. Made from T6-6061 aluminium with a black anodised finish, it will not warp or crack like the plastic original. It drops in without modification, and a rubber cap is supplied to seal the nipple until it is needed.
Features
- T6-6061 billet aluminium, black anodised
- Replaces the factory plastic supercharger spacer
- 5mm (3/16 inch) nipple for a boost gauge or vacuum line
- Will not warp or crack
- Direct drop-in, no modification required
- Rubber cap and hose clamp included
Specifications
- Brand: 034Motorsport
- Product Type: Boost Tap
- Material: T6-6061 billet aluminium
- Finish: Black anodised
- Nipple Size: 5mm (3/16 inch)
- Includes: Billet boost tap, rubber nipple cap, hose clamp
- Part Number: 034-111-Z015
Vehicle Compatibility: 6 applications across 1 make. Select a make to view.
Audi (6)
| Model | Variant | Engine | Years |
|---|---|---|---|
| S4 | B8/B8.5 | 3.0 TFSI | 2009-on |
| S5 | B8/B8.5 | 3.0 TFSI | 2009-on |
| Q5 | B8/B8.5 | 3.0 TFSI | 2008-on |
| SQ5 | B8/B8.5 | 3.0 TFSI | 2008-on |
| A6 | C7/C7.5 | 3.0 TFSI | 2012-on |
| A7 | C7/C7.5 | 3.0 TFSI | 2012-on |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
