034Motorsport Camshaft Kit for Supercharged Audi 3.0 TFSI - B8 S4/S5 & C6 A6 - 034-201-1006

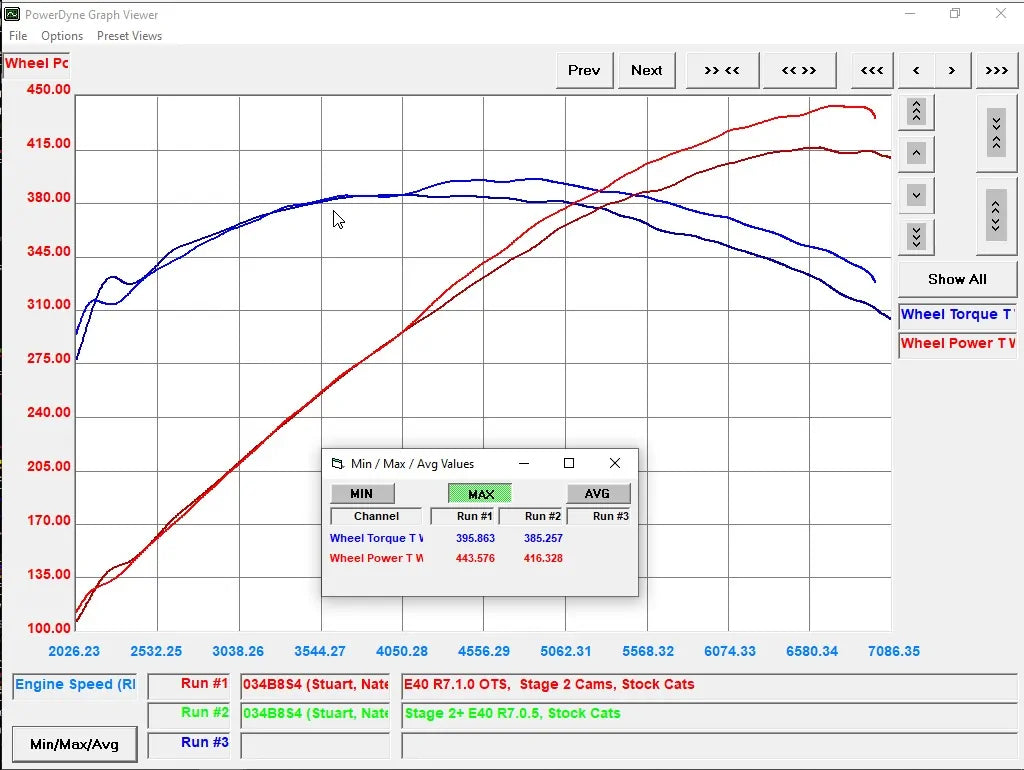

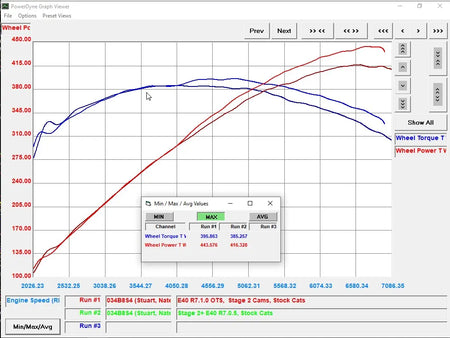

This camshaft kit is a direct drop-in replacement for the factory camshafts, valve springs and retainers in Audi's supercharged 3.0 TFSI V6, and part 034-201-1006 is the version for B8 models from 2009-2012, including the S4 and S5, plus the C6 A6. Made for 034Motorsport by Cat Cams from single-piece steel billets, the cams add lift and duration so the intake valves stay open longer, stretching the powerband to redline while keeping bottom-end torque. 034Motorsport measured around 30 peak wheel horsepower and 10-15 peak wheel torque on a Stage 2+ E40 tune with the stock throttle body, supercharger and cats, with stock-like driveability. The kit includes all four camshafts with new valve springs and retainers, and the brand recommends it only for cars on a dual pulley ratio with its Dynamic+ Stage 2+ ECU tuning, with no custom tune required.
Features
- Direct drop-in replacement for factory cams, springs and retainers
- Made by Cat Cams from single-piece steel billets
- More lift and duration for power to redline
- Around 30 peak WHP and 10-15 peak WTQ, per 034Motorsport
- New valve springs and retainers reduce valve train mass
- Stock-like driveability; no custom tune required
- For dual pulley cars on 034Motorsport Stage 2+ tuning
Specifications
- Brand: 034Motorsport
- Product Type: Camshaft Kit
- Manufacturer: Cat Cams, for 034Motorsport
- Construction: Single-piece steel billet
- Duration @ 1.0mm: 215° intake / 225° exhaust (OE 201° / 210°)
- Duration @ 0.1mm: 262° intake / 271° exhaust (OE 252° / 257°)
- Valve Lift: 11.25mm intake / 11.00mm exhaust (OE 10.05mm / 10.00mm)
- Cam Lift: 6.65mm intake / 6.55mm exhaust (OE 6.00mm / 5.95mm)

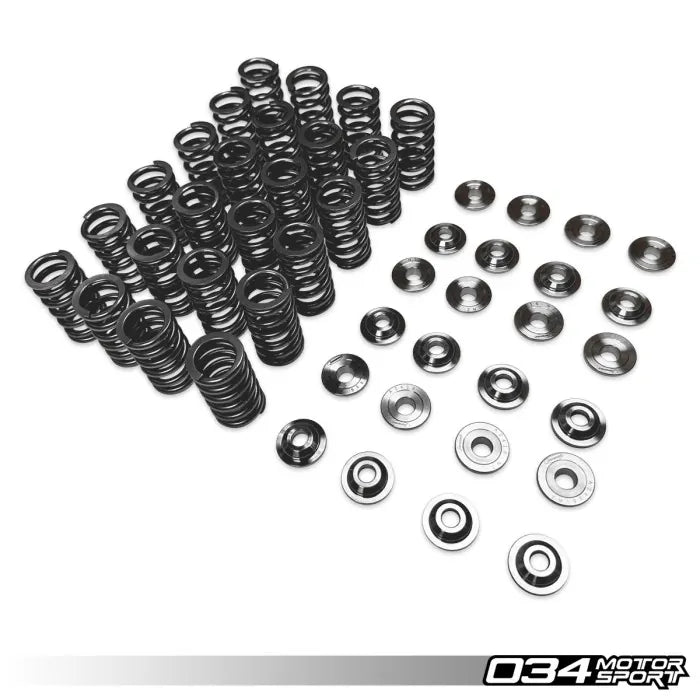

- Includes: 2x intake cams, 2x exhaust cams, 24x valve springs, 24x top and 24x bottom valve spring retainers
- Part Number: 034-201-1006
Vehicle Compatibility: 3 applications across 1 make. Select a make to view.
Audi (3)
| Model | Variant | Engine | Years |
|---|---|---|---|
| S4 | B8 | 3.0 TFSI | 2009-2012 |
| S5 | B8 | 3.0 TFSI | 2009-2012 |
| A6 | C6 | 3.0 TFSI | 2009-2011 |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
