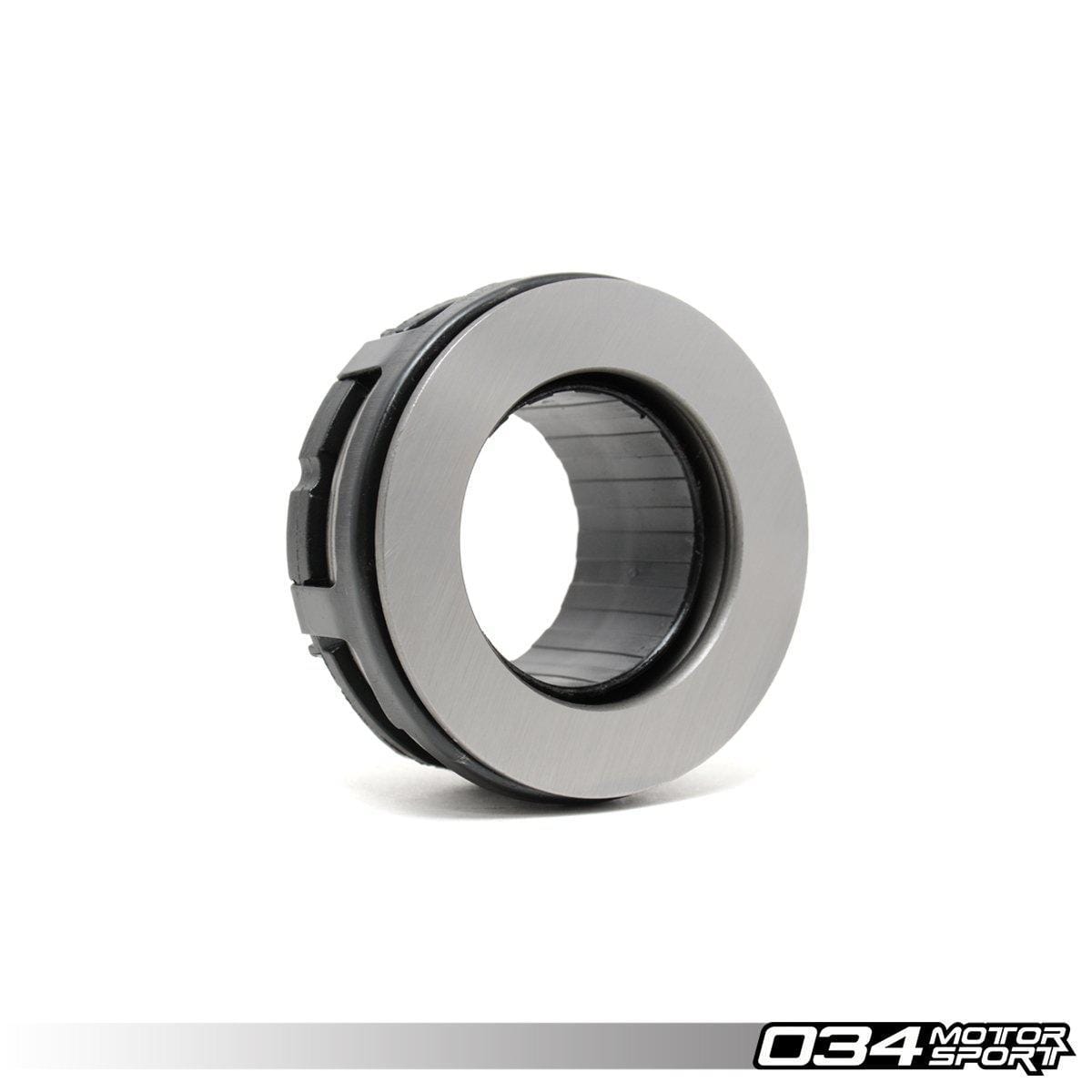

This metal-faced clutch throw out bearing suits Audi and Volkswagen models with the 01A or 01E manual gearbox, including B5, B6 and B7 Audi A4, S4 and RS4, C4 S4 and S6, C5 A6 and Allroad, and B5 Volkswagen Passat. 034Motorsport notes that Sachs now only supplies a plastic-faced bearing, which does not cope with the clamping force and heat of high-performance clutches. This bearing is engineered and built with a full metal face from the start, rather than being a plastic-faced unit with its ring removed. The brand says it is a proven part, used in many of its own track cars and sold in the thousands worldwide.
Features
- Full metal-faced throw out bearing
- Suits 01A and 01E gearbox applications
- Handles high clamping force and heat
- Engineered metal face, not a modified plastic unit
- Proven in 034Motorsport track cars
Specifications
- Brand: 034Motorsport
- Product Type: Clutch Throw Out Bearing
- Face: Full metal
- Transmission: Audi 01A / 01E
- Part Number: 034-502-4004
Vehicle Compatibility: 12 applications across 2 makes. Select a make to view.
Audi (11)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| A4 | B5 | 1.8T, V6 12V, V6 30V | FWD and quattro | |
| S4 | B5 | 2.7T | ||
| A4 | B6 | 1.8T, V6 30V | V6 30V: quattro only | |
| S4 | B6 | V8 | ||
| A4 | B7 | 2.0T, 3.2L V6 | 3.2L V6: quattro only | |
| S4 | B7 | V8 | ||
| RS4 | B7 | V8 | ||
| S4 | C4 | 20V turbo | quattro | |
| S6 | C4 | 20V turbo | quattro | |
| A6 | C5 | 2.7T | quattro | |
| Allroad | C5 | 2.7T | quattro |
Volkswagen (1)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Passat | B5 | 1.8T | FWD and 4Motion |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
