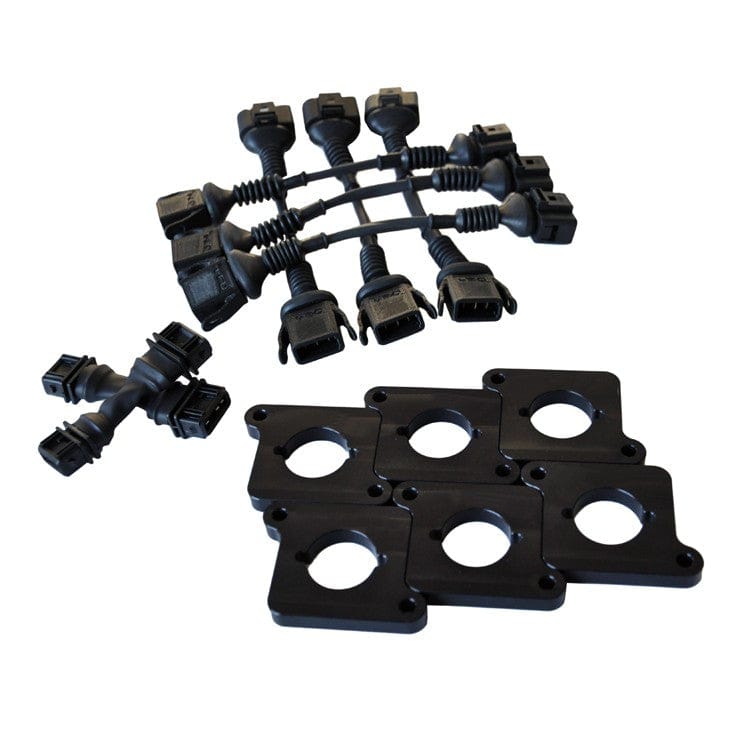

This plug-in harness kit lets the 2.7T Audi engine drop the factory ignition control modules and run 2.0T FSI coils instead. 034Motorsport developed it and assembles it in-house with proprietary connectors, and says the factory ICMs are troublesome while the 2.0T FSI coils are more reliable. The kit supplies two ICM delete harnesses, six FSI coil conversion harnesses, six coil adapter brackets that mount the 2.0T FSI coils to the 2.7T valve cover, and twelve M6x20 Allen head bolts. The coils themselves are not included, and 034Motorsport points to R8 coil packs as the complete solution, six per engine.
Features
- Plug-in harness eliminates the factory ICMs
- Converts the 2.7T to 2.0T FSI coils
- Developed and assembled in-house by 034Motorsport
- Proprietary connectors
- Six coil adapter brackets and twelve M6x20 bolts included
- Coil packs not included; six needed per engine
Specifications
- Brand: 034Motorsport
- Product Type: Coil Conversion and ICM Delete Harness Kit
- Contents: ICM delete harnesses (2), FSI coil conversion harnesses (6), coil adapter brackets for 2.0T FSI coils on the 2.7T valve cover (6), M6x20 Allen head bolts (12)
- Engine: 2.7T (APB engine code only on C5 A6 and Allroad)
- Coils Required: 6 coil packs, not included; 034Motorsport suggests R8 coil packs 06E905115E or 07L905115A
- Part Number: 034-107-7000-BLK
Vehicle Compatibility: 4 applications across 1 make. Select a make to view.
Audi (4)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| S4 | B5 | 2.7T | 2000-2002 | |
| RS4 | B5 | 2.7T | 2000-2002 | |
| A6 | C5 | 2.7T | 1999-2003 | APB engine code only |
| Allroad | C5 | 2.7T | 2001-2003 | APB engine code only |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
