034Motorsport Cold Air Induction Bundle - (MQB EVO) Volkswagen Golf MK8R & Audi 8Y S3 - 034-108-3048
This induction bundle combines 034Motorsport's turbo inlet pipe, turbo inlet hose and drop-in panel air filter for the MQB EVO Volkswagen Golf R and Audi 8Y S3, and it also suits other EA888 Gen 4 engines with the high output Continental turbo. The wire-reinforced multi-ply silicone hose replaces the restrictive corrugated factory hose and resists collapsing under vacuum, while the 6061-T6 aluminium inlet pipe uses a billet compressor flange and an O-ring sealed adapter ring matched to the factory turbo. On 034Motorsport's flow bench the bundle flowed 535.81 CFM against 437.38 CFM for the OE assembly, an increase of about 22.5%. The double-layered cotton filter drops into the factory airbox in place of part 5Q0129620, and installation takes about 30 minutes.
Features
- Turbo inlet pipe, inlet hose and panel filter in one kit

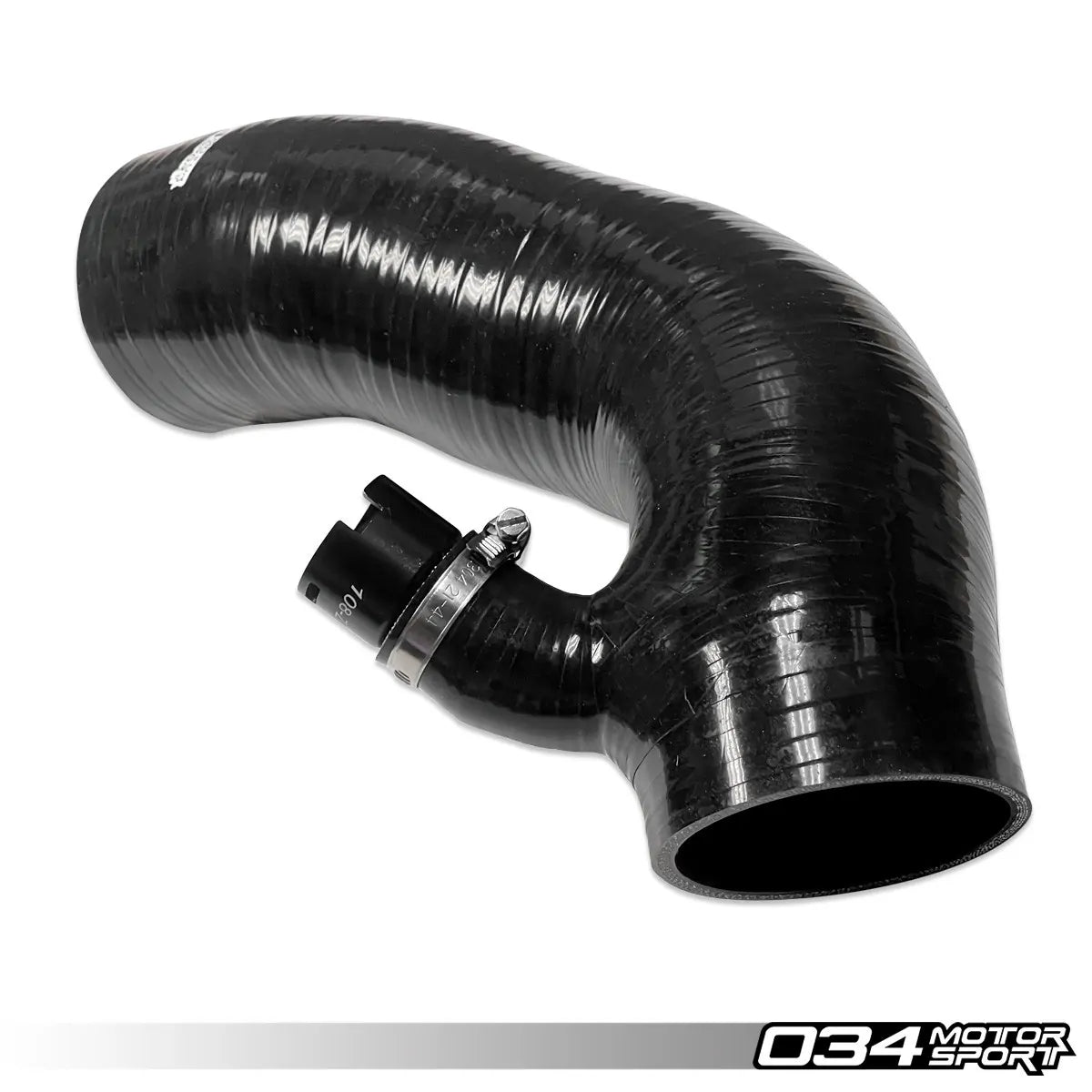

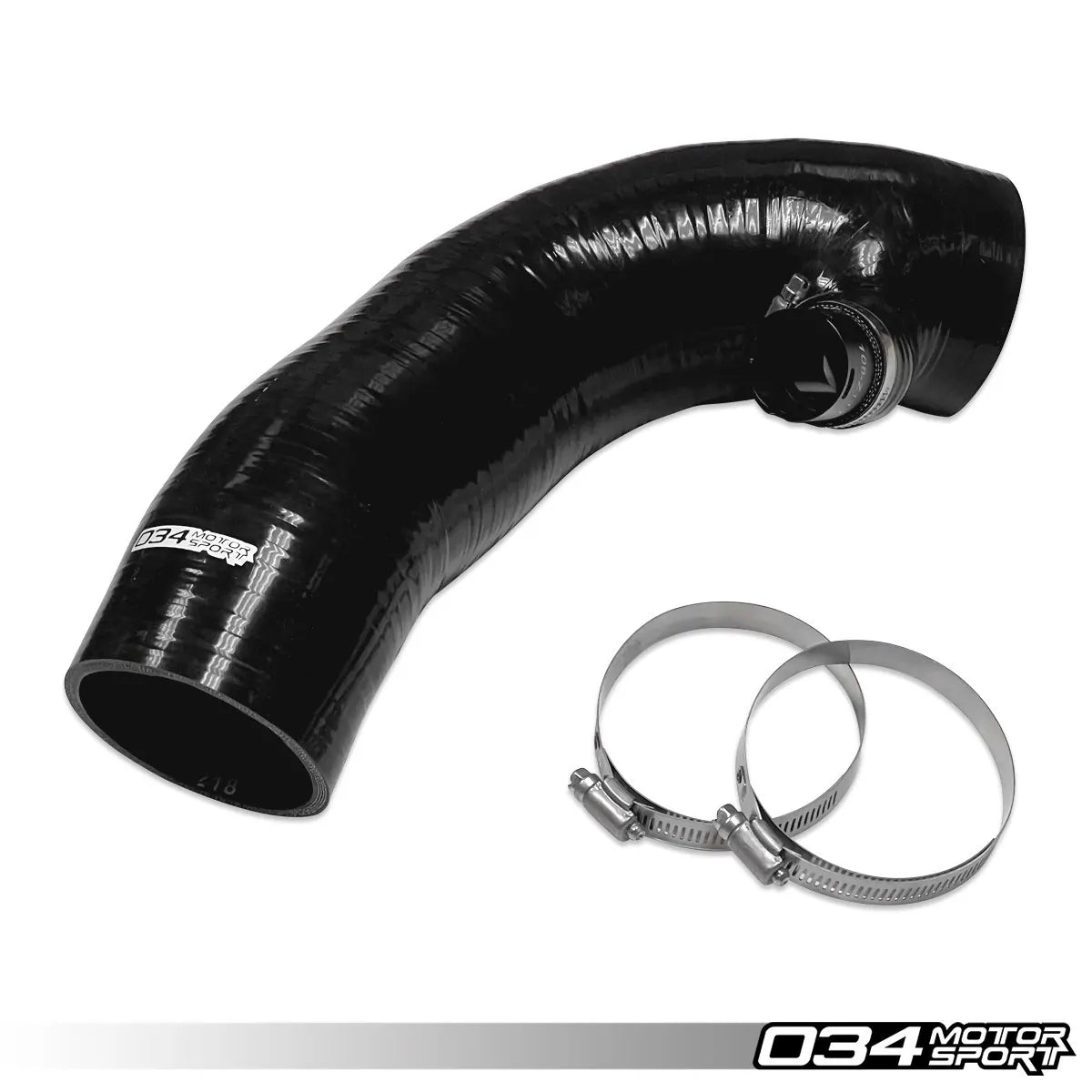

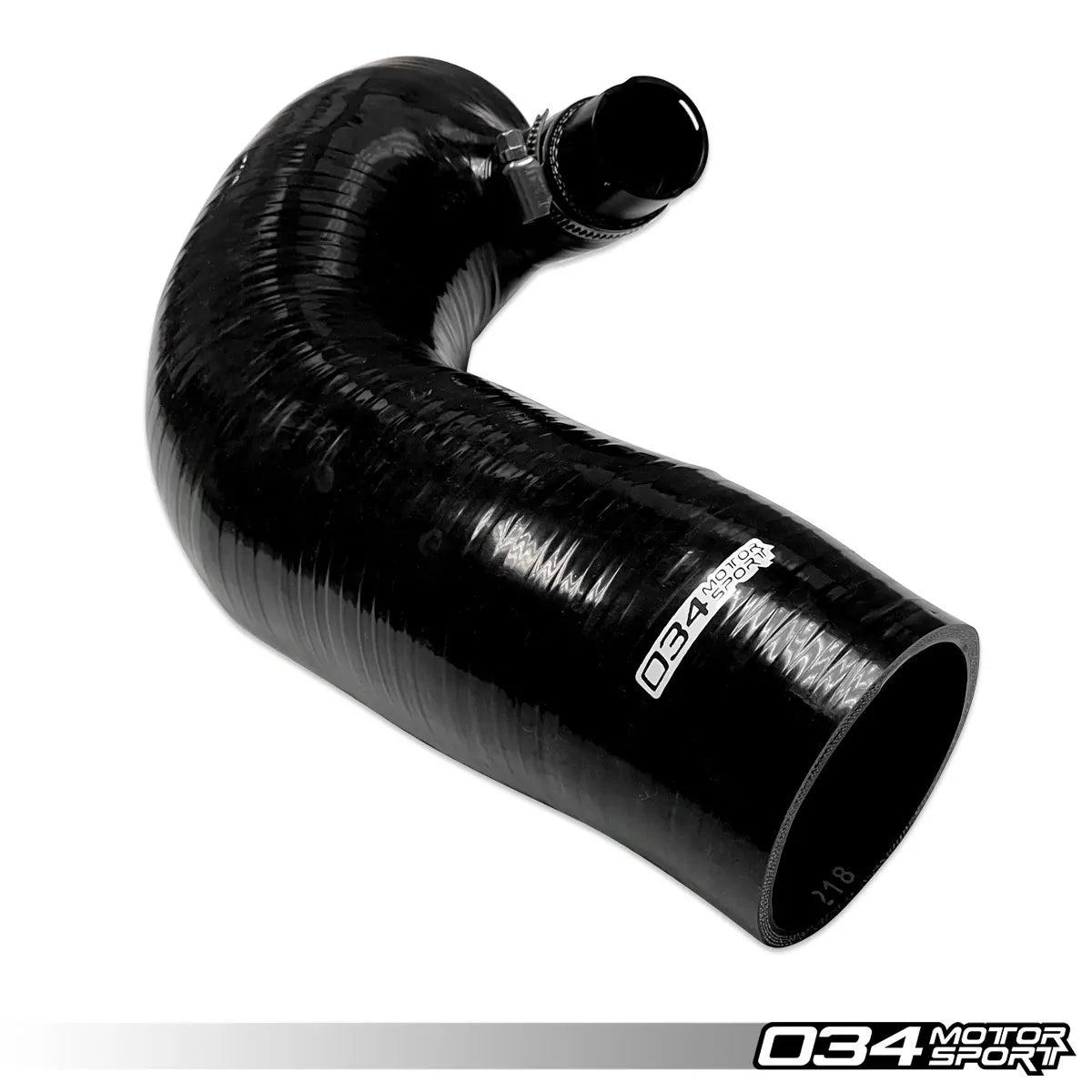

- Wire-reinforced multi-ply silicone turbo inlet hose
- 6061-T6 aluminium inlet pipe with billet compressor flange
- About 22.5% more flow than OE, per 034Motorsport testing
- Double-layered cotton filter replaces 5Q0129620
- Gloss black pipe with laser-etched 034 logo
- Bolt-on installation in about 30 minutes
Specifications
- Brand: 034Motorsport
- Product Type: Intake Induction Bundle

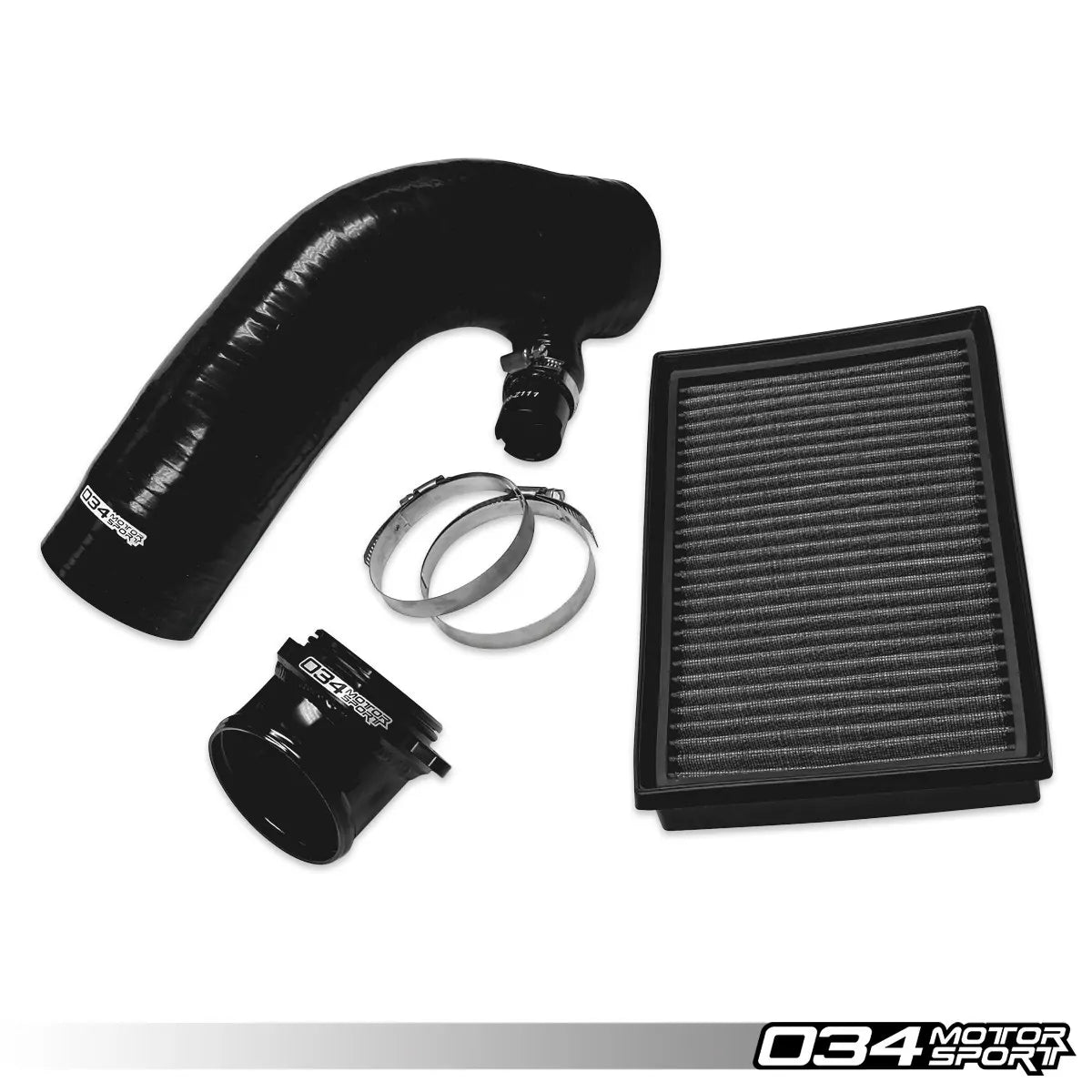

- Included: Turbo inlet pipe, turbo inlet hose, performance drop-in panel air filter, associated hardware

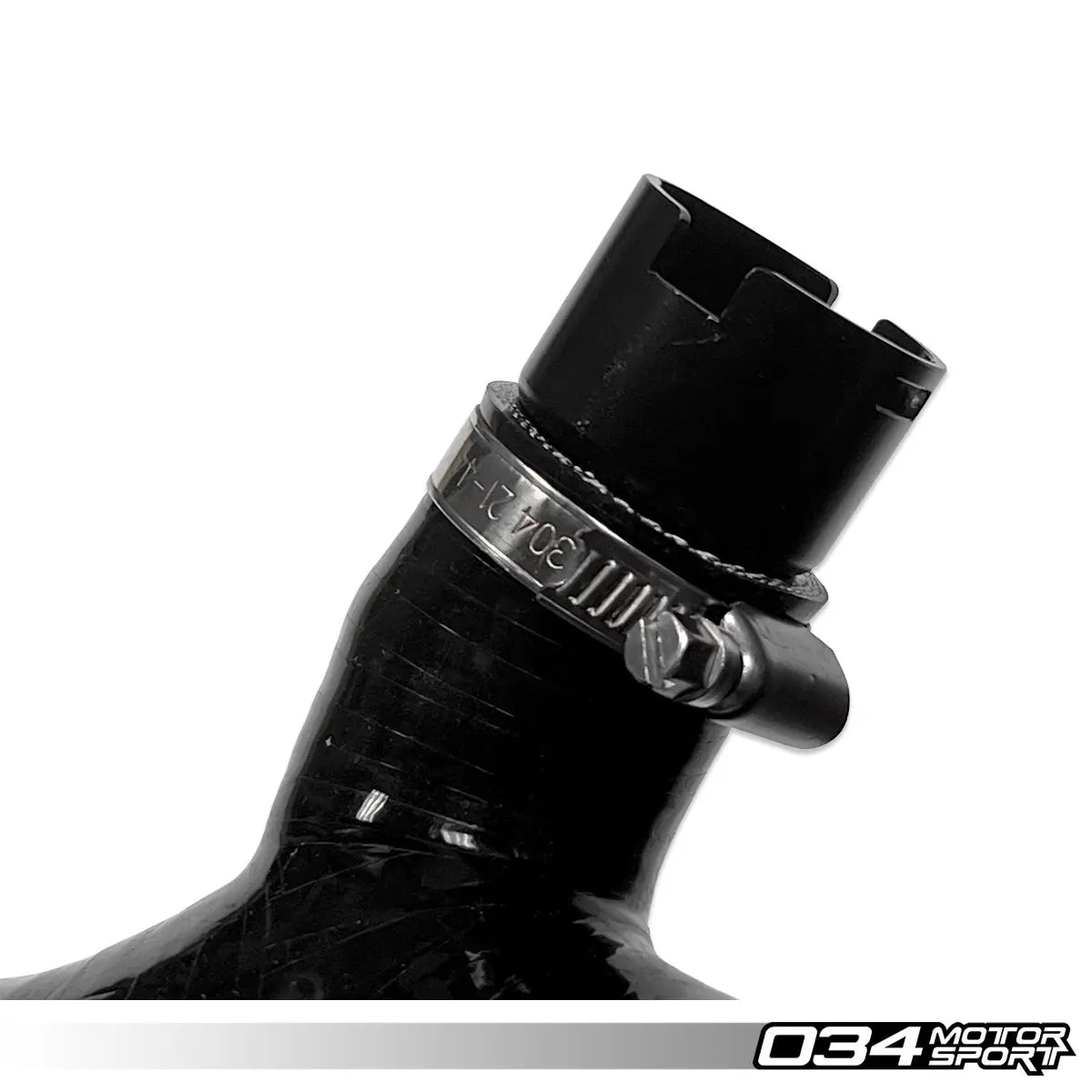

- Inlet Hose: Wire-reinforced multi-ply silicone with CNC-machined billet turbo recirculation adapter

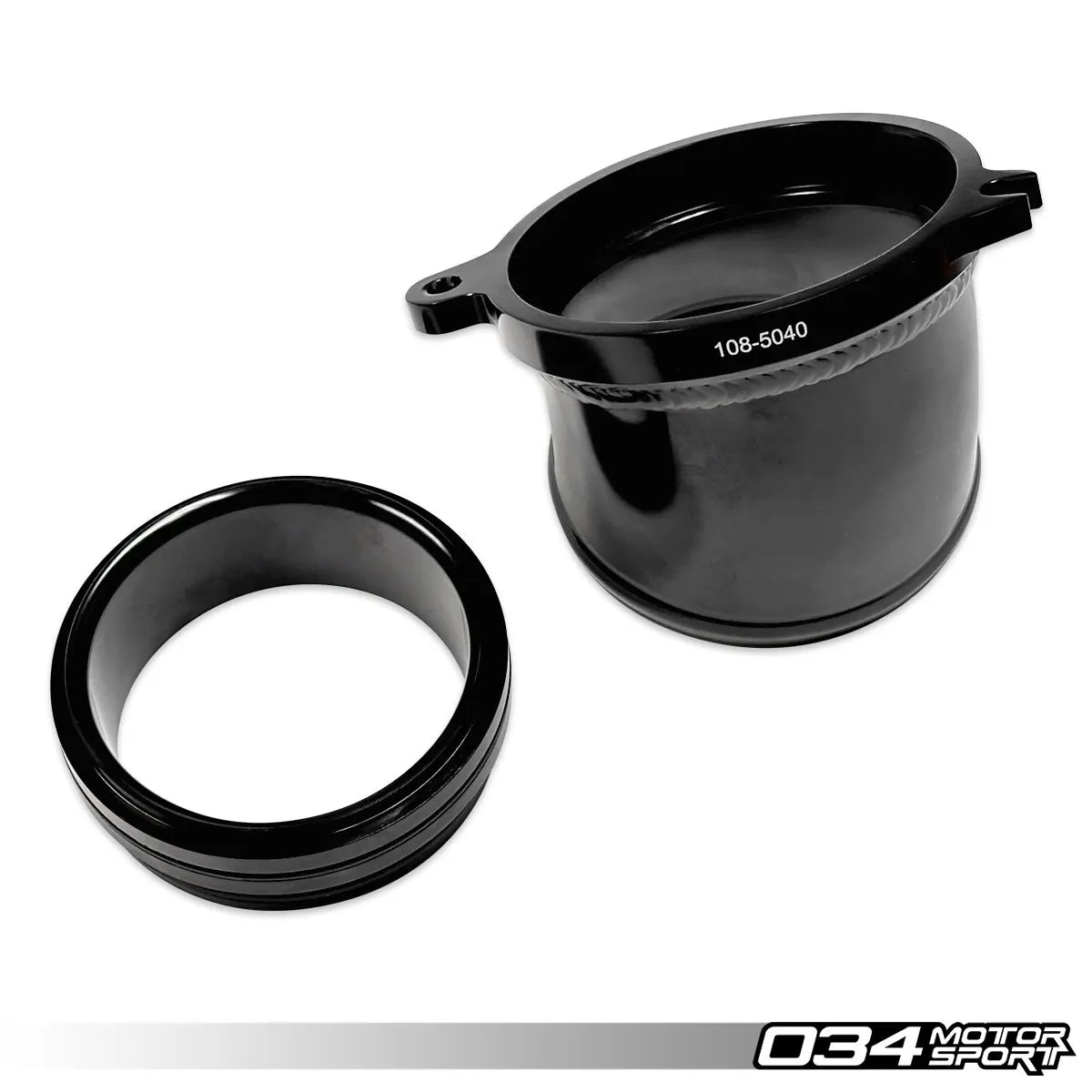

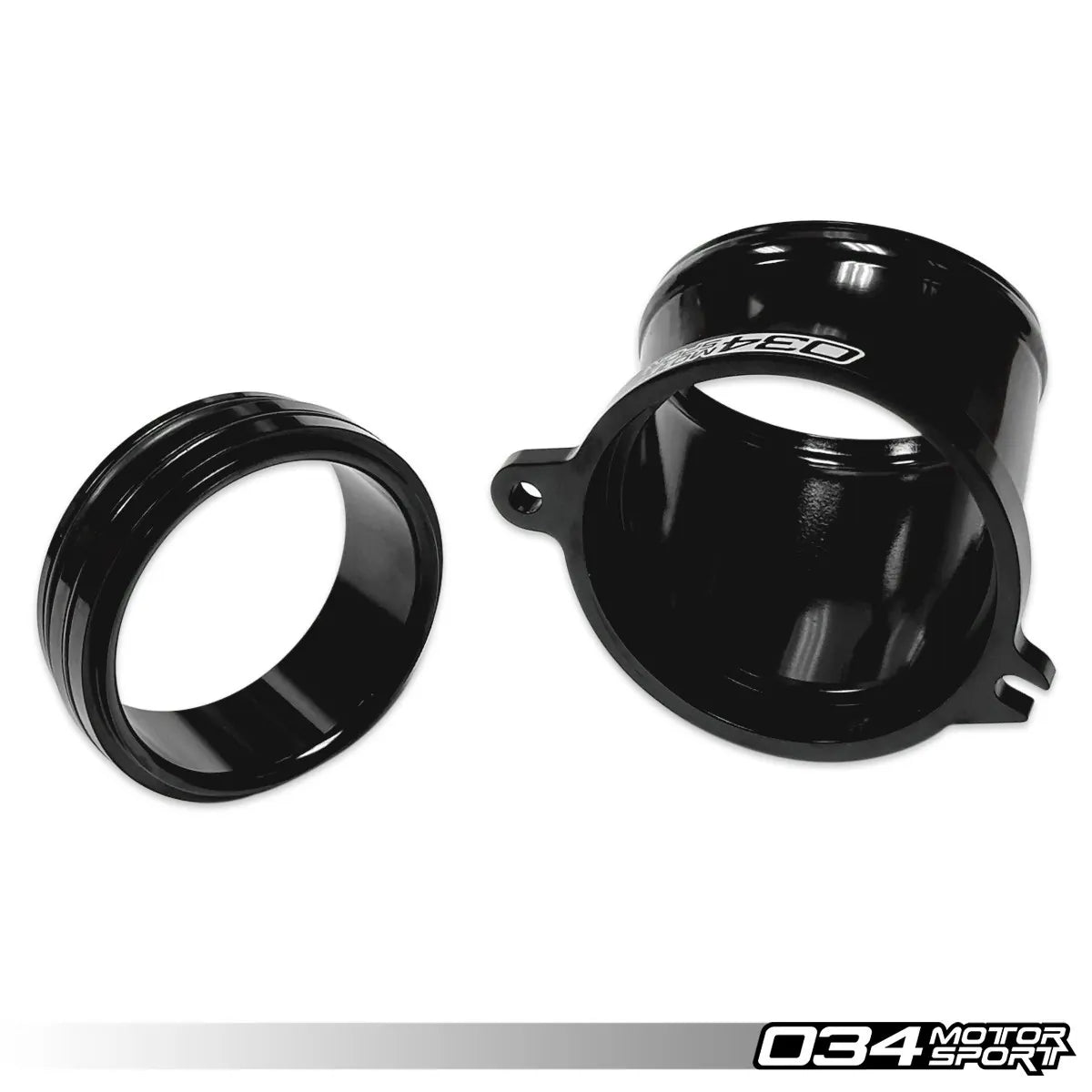

- Inlet Pipe: 6061-T6 aluminium, billet compressor inlet flange and O-ring sealed adapter ring, gloss black

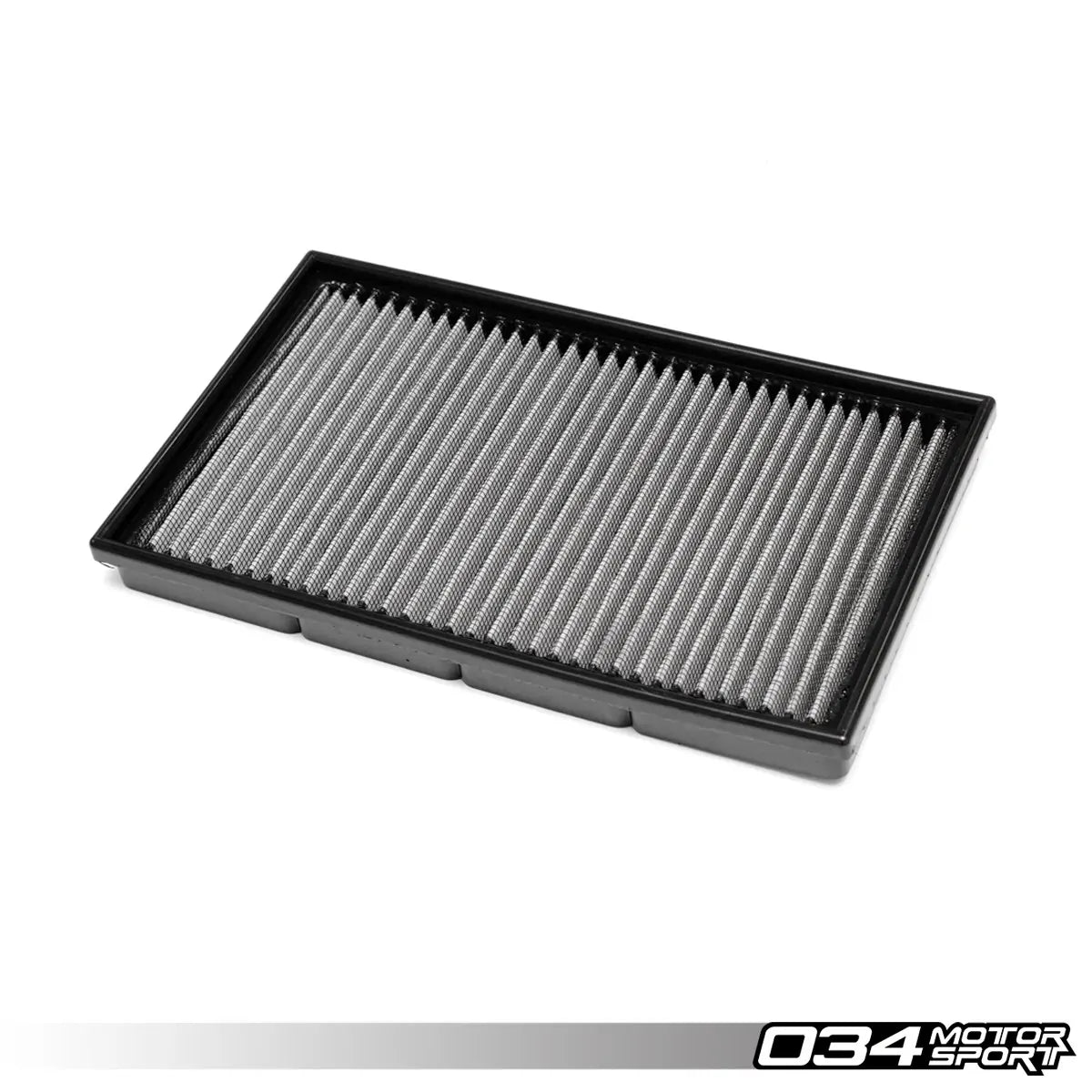

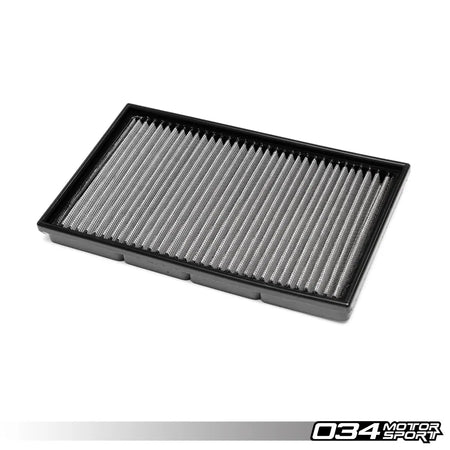

- Air Filter: Double-layered cotton, traps particles down to 5 microns, replaces 5Q0129620
- Flow (034Motorsport bench test): 535.81 CFM vs 437.38 CFM for OE, at 28 in.H2O
- Engine: EA888 Gen 4 2.0T with high output Continental turbo
- Installation Time: Approximately 30 minutes
- Part Number: 034-108-3048
Vehicle Compatibility: 9 applications across 3 makes. Select a make to view.
Audi (2)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| S3 | 8Y | 2.0T EA888 Gen 4 | 2022-on | |
| SQ2 | 2.0T EA888 Gen 4 | High output Continental turbo |
Cupra (3)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Leon | VZX | 2.0T EA888 Gen 4 | High output Continental turbo | |
| Formentor | VZX | 2.0T EA888 Gen 4 | High output Continental turbo | |
| Ateca | VZX | 2.0T EA888 Gen 4 | High output Continental turbo |
Volkswagen (4)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Golf R | Mk8 | 2.0T EA888 Gen 4 | 2021-on | |
| Arteon | I.5 (Gen 2) | 2.0T EA888 Gen 4 | 2022-2024 | |
| Tiguan R | 2.0T EA888 Gen 4 | High output Continental turbo | ||
| T-Roc R | 2.0T EA888 Gen 4 | High output Continental turbo |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
