034Motorsport Control Arm Pair, Motorsport, Rear Upper Adjustable, Volkswagen & Audi PQ35, MQB, and MQB EVO

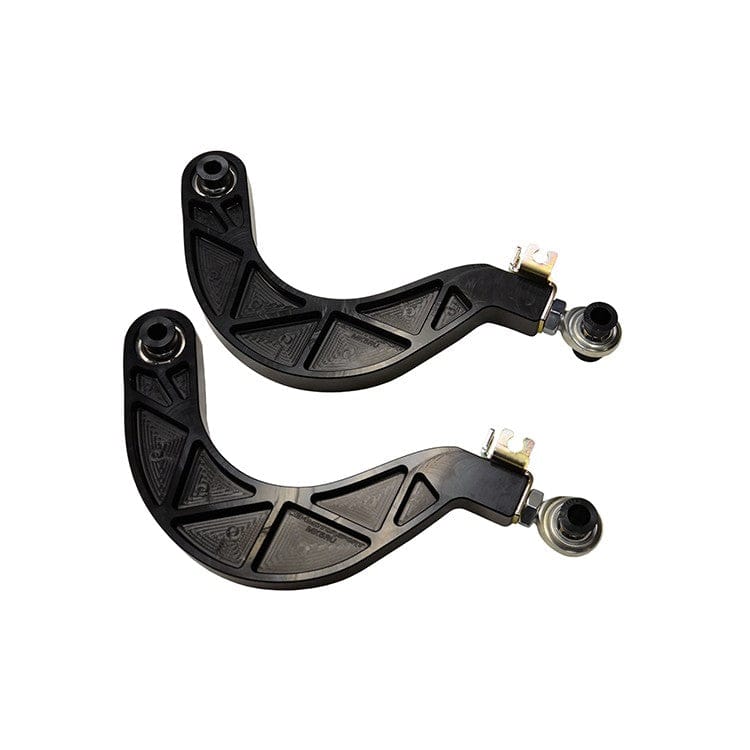

These Motorsport Line rear upper control arms replace the factory stamped steel and rubber arms on PQ35, MQB and MQB EVO Volkswagen and Audi models, covering the Mk5 to Mk8 Golf, the 8P, 8V and 8Y A3 family and the 8J and 8S TT. Machined from billet aluminium and anodised black, they use genuine Aurora spherical bearings in place of rubber bushings, so 034Motorsport says there is no deflection to upset suspension geometry. Each arm gives about 5 degrees of camber adjustment, from -2.4 to +2.6 degrees, on top of the factory eccentric bolt, set in 1/36" steps of roughly 0.18 degrees. Dust boots are included, and the brand warns the arms must never run with fewer than 8 threads engaged in the aluminium body.

Features

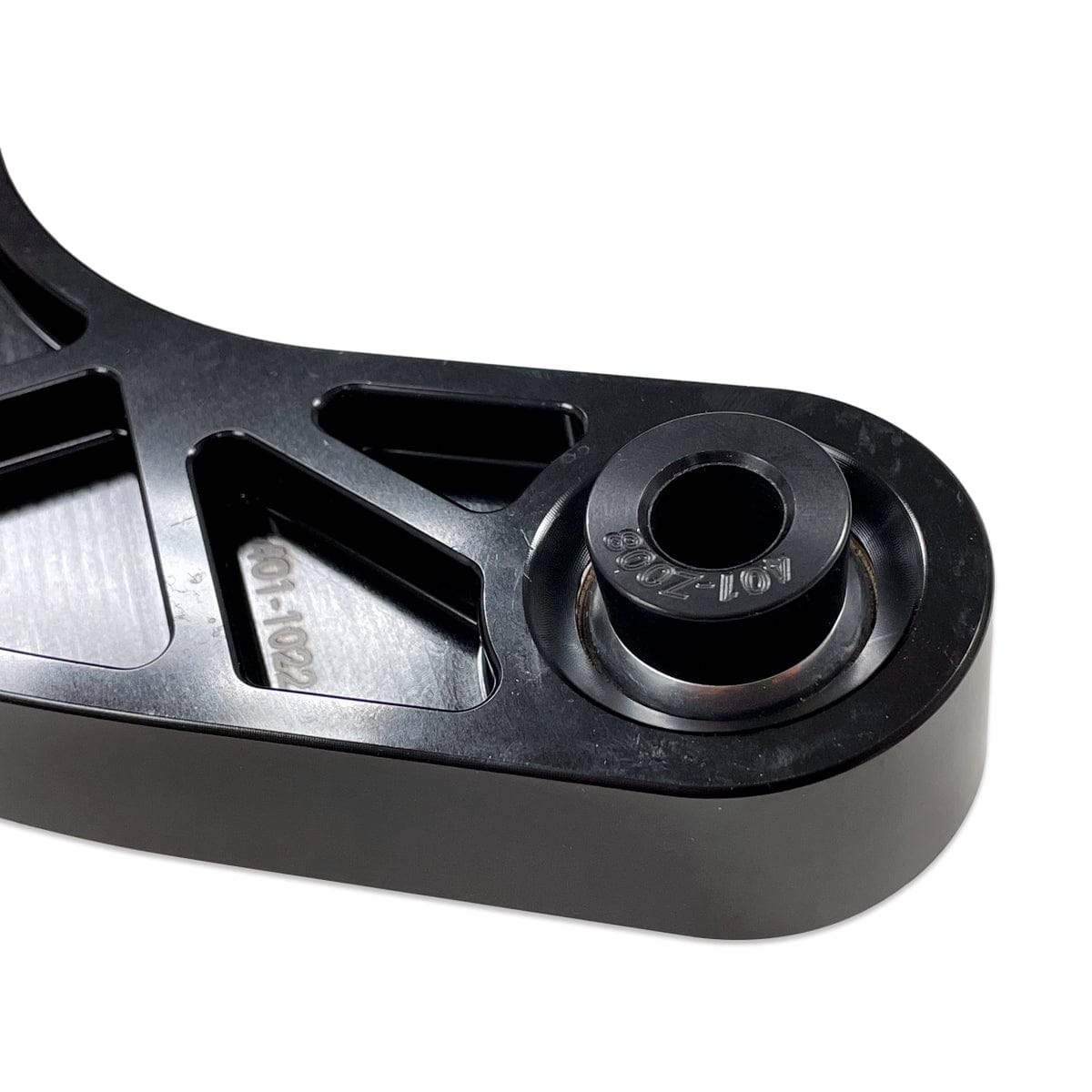

• Billet aluminium arms, black anodised

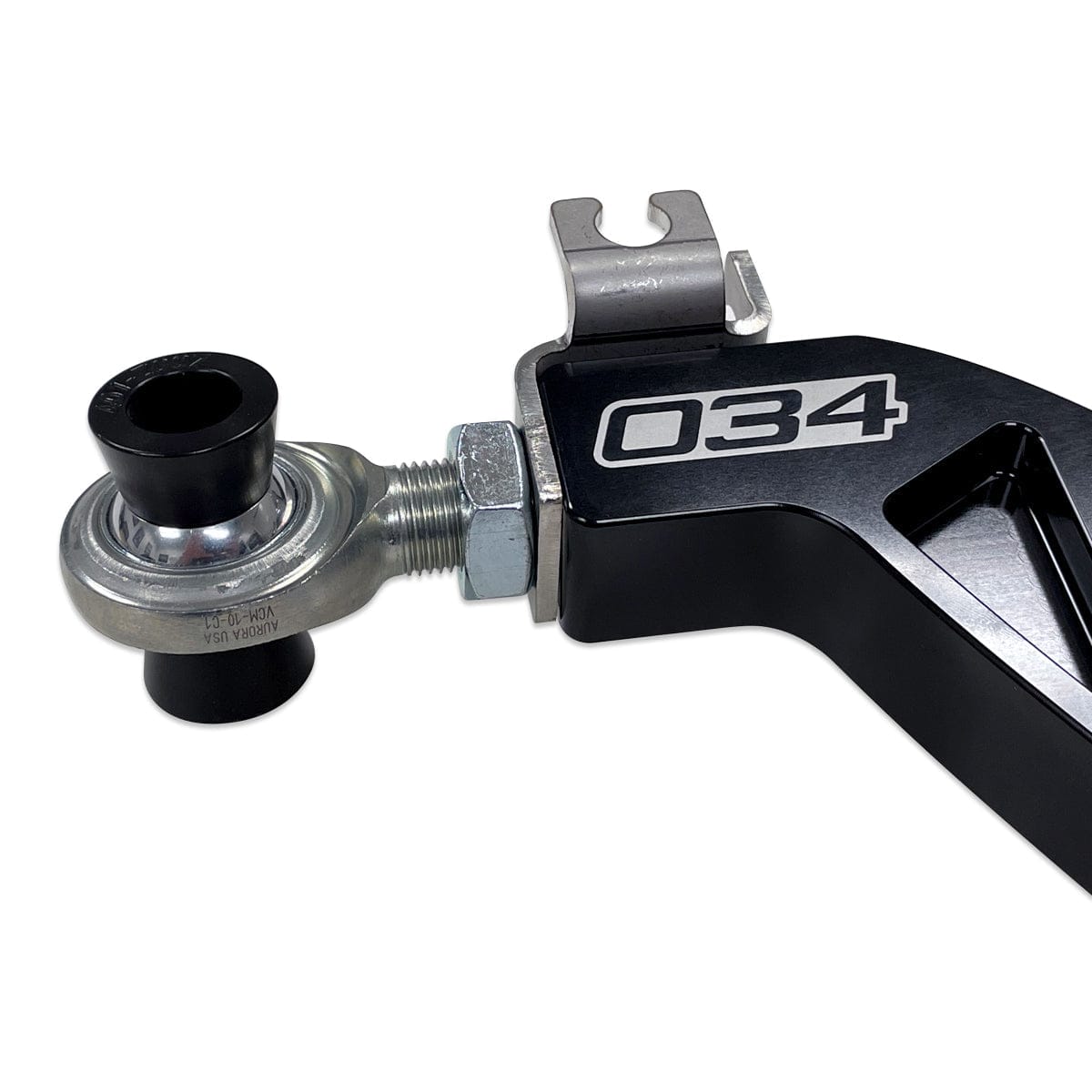

• Genuine Aurora spherical bearings for zero deflection
• About 5 degrees of camber adjustment (-2.4 to +2.6)
• Adjusts in 1/36" steps of about 0.18 degrees
• Direct replacement for the factory arms

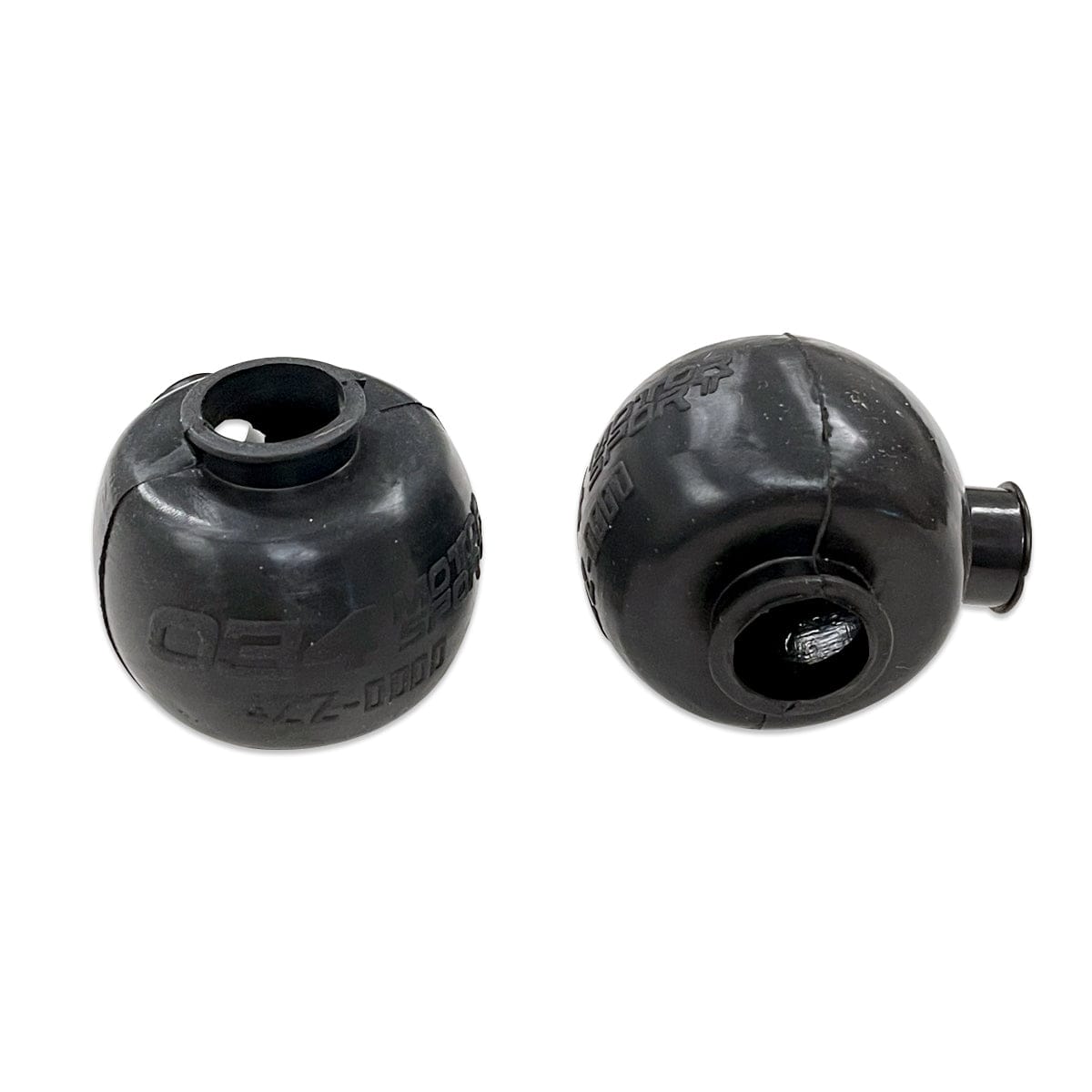

• Dust boots included
• Installation takes about one hour

Specifications

• Brand: 034Motorsport
• Product Type: Rear Upper Control Arms (Adjustable)
• Line: Motorsport
• Material: Billet aluminium, black anodised
• Bearings: Genuine Aurora spherical bearings
• Camber Adjustment: Approx. 5 degrees (-2.4 to +2.6) beyond the factory eccentric bolt
• Adjustment Increment: 1/36" (approx. 0.18 degrees)
• Quantity: Pair
• Included: Dust boots
• Replaces: 1K0505323N
• Minimum Thread Engagement: 8 threads in the aluminium body
• Part Number: 034-401-1022

Vehicle Compatibility: 105 applications across 5 makes. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
