034Motorsport Density Line Upper Control Arm Kit - Audi B9/B9.5 Q5/SQ5 - 034-401-1073
This Density Line kit replaces all four factory front upper control arms on the B9 and B9.5 Audi Q5 and SQ5, and 034Motorsport's fitment list also covers a range of C8 and 4M-platform models. Factory arms can start wearing from around 40,000 miles, the brand notes, and as the bushings degrade and the ball joints develop play, alignment suffers and steering loses precision. These non-adjustable arms use 70 durometer rubber bushings and quality ball joints to limit unwanted suspension deflection, which 034Motorsport says gives tighter handling and sharper steering than new factory arms. The kit is a drop-in replacement with new hardware, the bushings must be tightened at static ride height, and professional installation is recommended.
Features

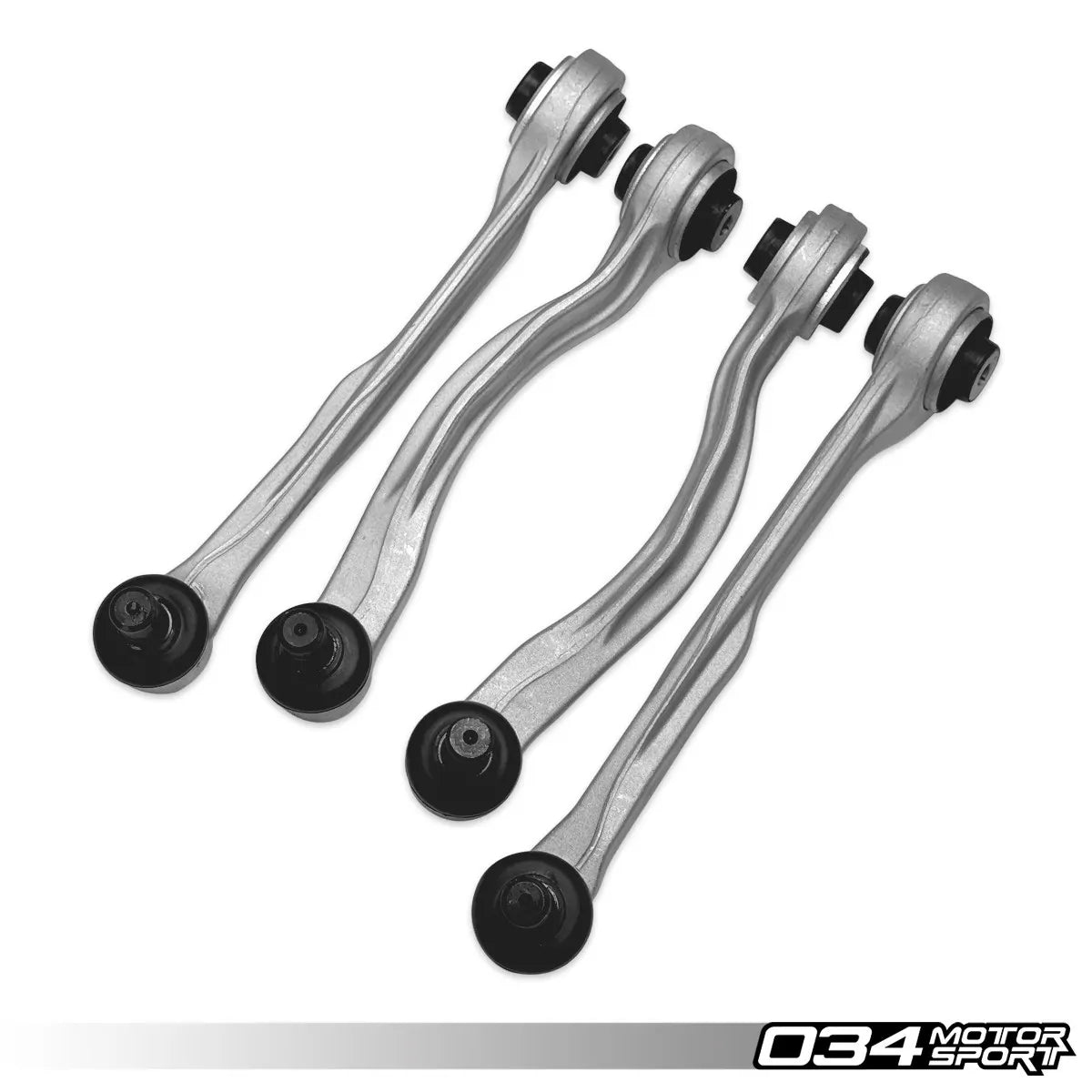

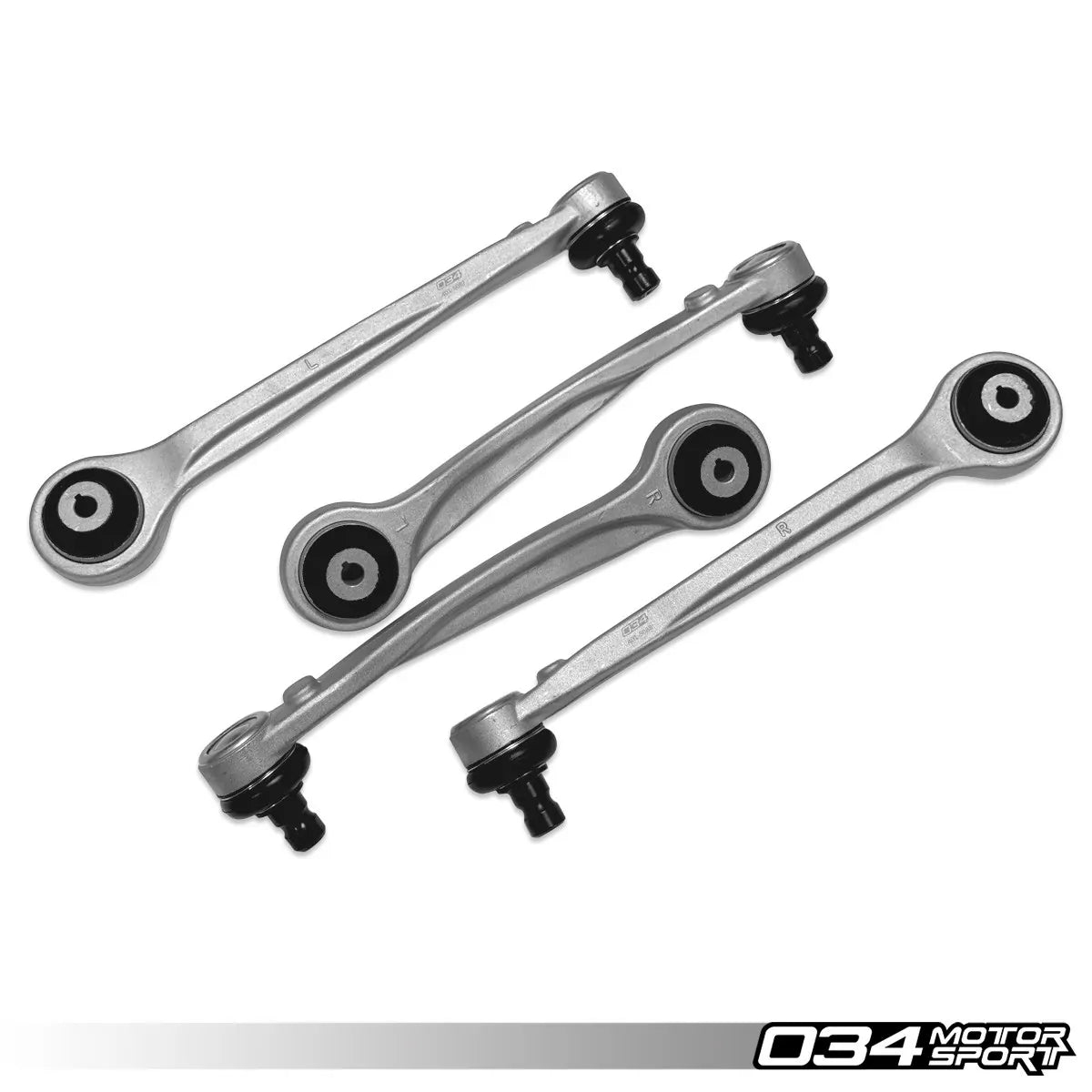

- Replaces all four front upper control arms
- Non-adjustable, direct replacement for the factory arms
- 70 durometer rubber bushings
- Quality ball joints limit suspension deflection

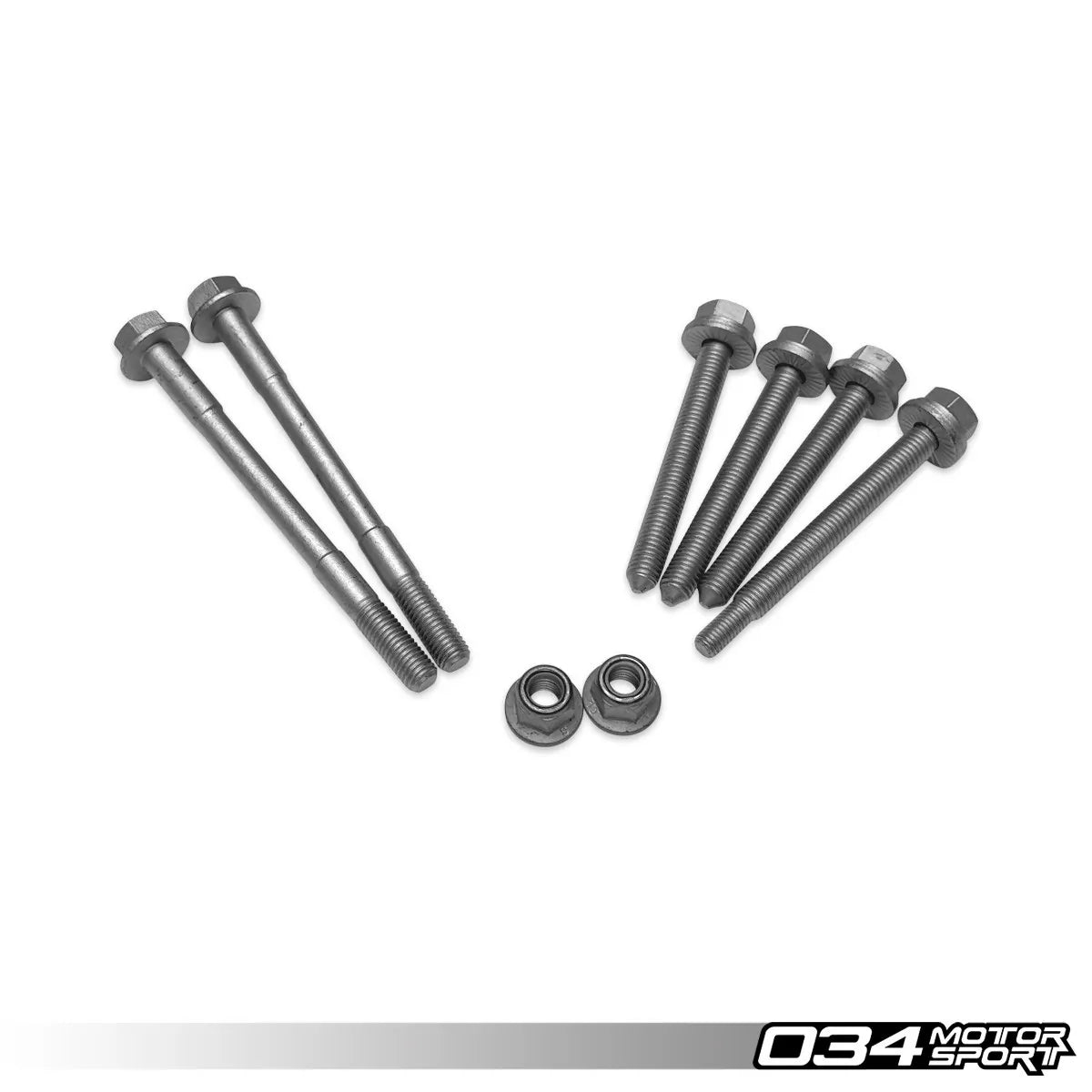

- New installation hardware included
- 1 year limited replacement warranty
Specifications
- Brand: 034Motorsport
- Product Type: Upper Control Arm Kit
- Adjustment: Non-adjustable
- Bushings: 70 durometer rubber

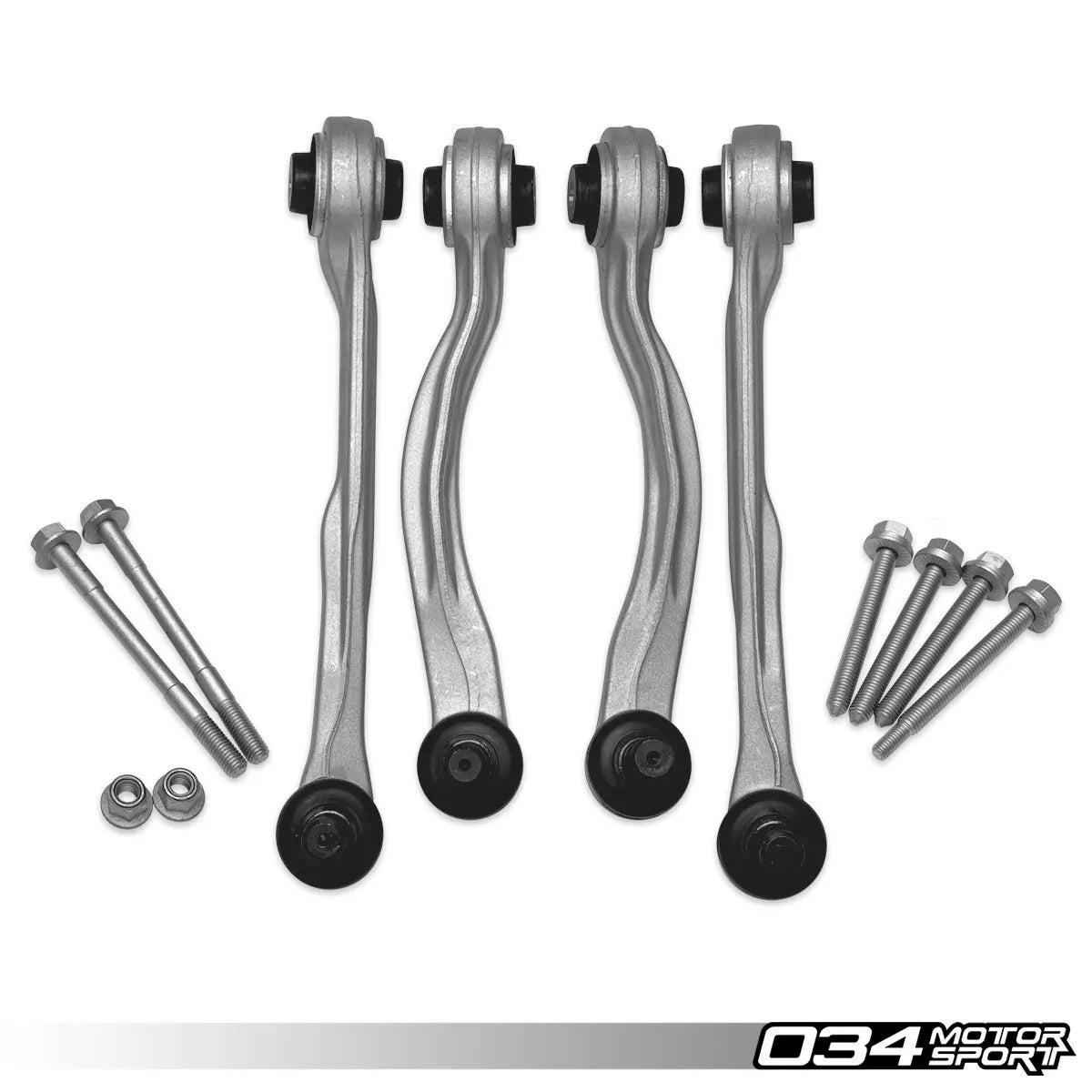

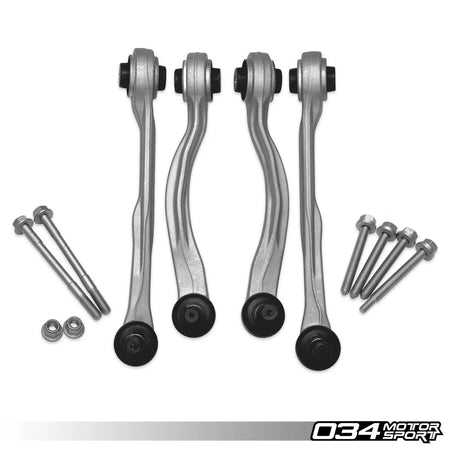

- Includes: Front upper control arms (front and rear, left and right), installation hardware
- OE Part Interchange: 4M0 407 505 B, 4M0 407 506 B, 4M0 407 509 B, 4M0 407 510 B
- Installation Note: Tighten pivot bushings at static ride height; professional installation recommended
- Warranty: 1 year limited replacement
- Part Number: 034-401-1073
Vehicle Compatibility: 18 applications across 1 make. Select a make to view.
Audi (18)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A6 | C8 | 2.0 TFSI | 2019-on |
| A6 | C8 | 3.0 TFSI | 2019-on |
| A6 allroad | C8 | 3.0 TFSI | 2019-on |
| A7 | C8 | 3.0 TFSI | 2019-on |
| e-tron | 4M.5 | e-tron | 2019-2023 |
| Q5 | B9/B9.5 | 2.0 TFSI | 2018-on |
| Q7 | 4M/4M.5 | 2.0 TFSI | 2015-on |
| Q7 | 4M/4M.5 | 3.0 TFSI | 2015-on |
| Q8 | 4M8 | e-tron | 2018-on |
| Q8 | 4M8 | 3.0 TFSI | 2019-on |
| RS Q8 | 4M8 | 4.0 TFSI | 2020-on |
| RS6 | C8 | 4.0 TFSI | 2020-on |
| RS7 | C8 | 4.0 TFSI | 2019-on |
| S6 | C8 | 2.9 TFSI | 2019-on |
| S7 | C8 | 2.9 TFSI | 2019-on |
| SQ5 | B9/B9.5 | 3.0 TFSI | 2018-on |
| SQ7 | 4M/4M.5 | 4.0 TFSI | 2020-on |
| SQ8 | 4M8 | 4.0 TFSI | 2020-on |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
