034-145-Z016 Drain Flange, 2.7T Pan to -10AN, Small 22mm
Order In
034Motorsport

034Motorsport Drain Flange, 2.7T Oil Pan to -10AN, Small (22mm)

$64.99

Seen this item cheaper somewhere else? Send us the link and we'll do our best to match or beat the price. We'll reply by email.

Product details
  • Type Engine Components
  • Vendor 034Motorsport
  • SKU 034-145-Z016
  • Barcode A3-1-3
Description Reviews

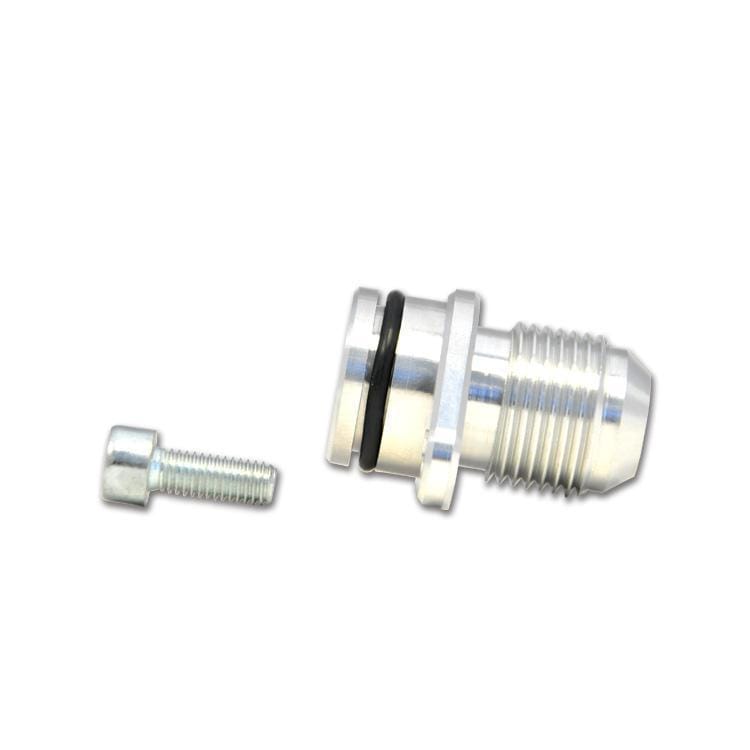

This small (22mm) oil drain flange fits the oil pan drain provision on 2.7T engines and lets owners build an AN oil drain line for custom turbo kits and similar projects. It is CAD developed and CNC machined from 6061 aluminium as a direct fit, and it carries a -10 male AN bung for the connection. One fitting is supplied with mounting hardware and a sealing o-ring. 034Motorsport notes that a vehicle may use two small fittings, two large (24mm) fittings or one of each, so the right size should be chosen for the application.

Features

  • Small 22mm flange for the 2.7T oil pan drain provision
  • CNC machined from 6061 aluminium
  • -10 male AN bung for oil drain lines
  • Direct fit to the 2.7T oil pan
  • Mounting hardware and sealing o-ring included
  • Also offered in a large 24mm size

Specifications

  • Brand: 034Motorsport
  • Product Type: Oil Pan Drain Flange
  • Size: Small (22mm)
  • Material: CNC machined 6061 aluminium
  • Connection: -10 male AN bung
  • Includes: One fitting, mounting hardware, sealing o-ring
  • Part Number: 034-145-Z016

Vehicle Compatibility: 4 applications across 1 make. Select a make to view.

Audi (4)
Model Variant Engine Years Notes
S4 B5 2.7T 2000-2002 Confirm small (22mm) or large (24mm) fitting
RS4 B5 2.7T 2000-2002 Confirm small (22mm) or large (24mm) fitting
A6 C5 2.7T 1998-2004 Confirm small (22mm) or large (24mm) fitting
Allroad C5 2.7T 2001-2003 Confirm small (22mm) or large (24mm) fitting

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
