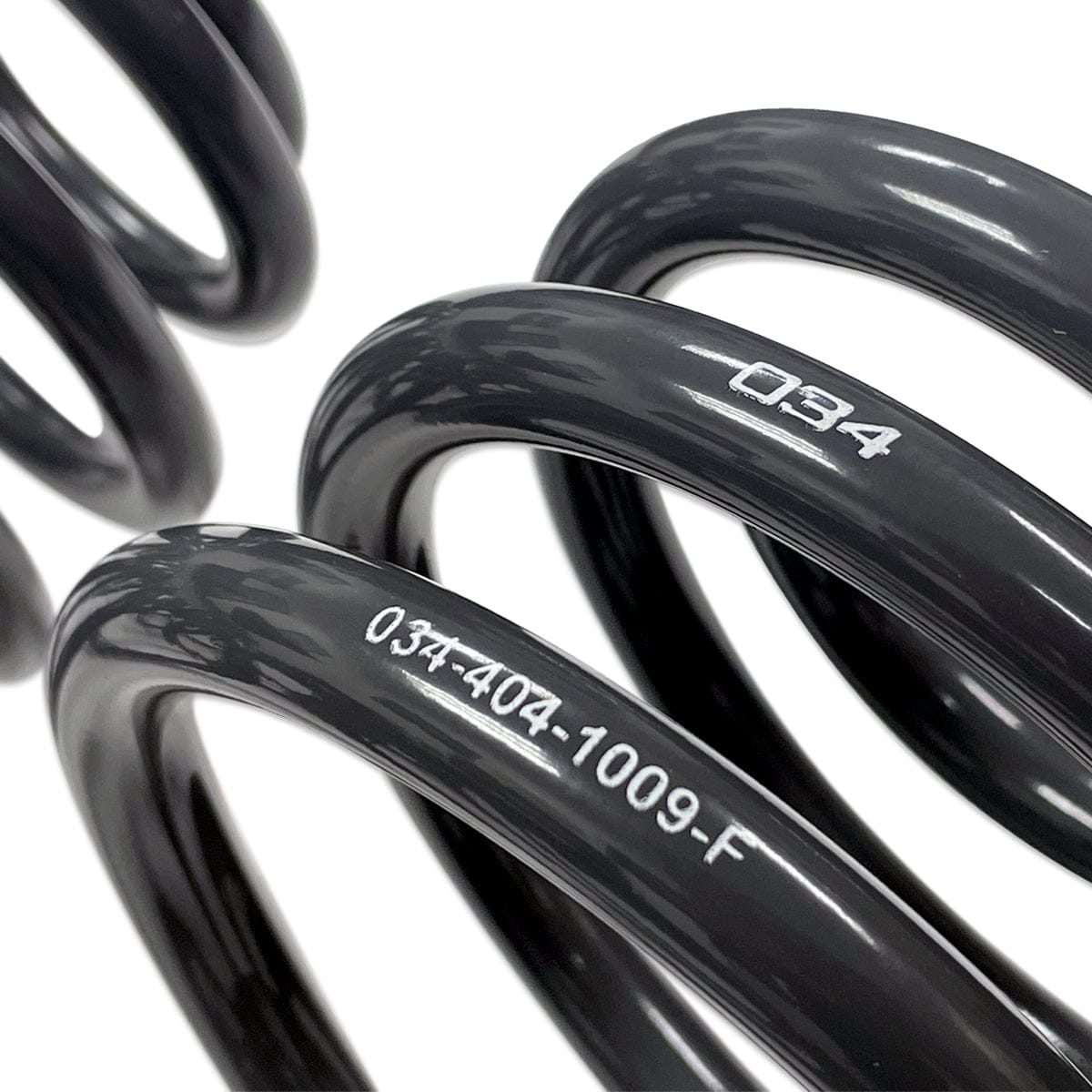

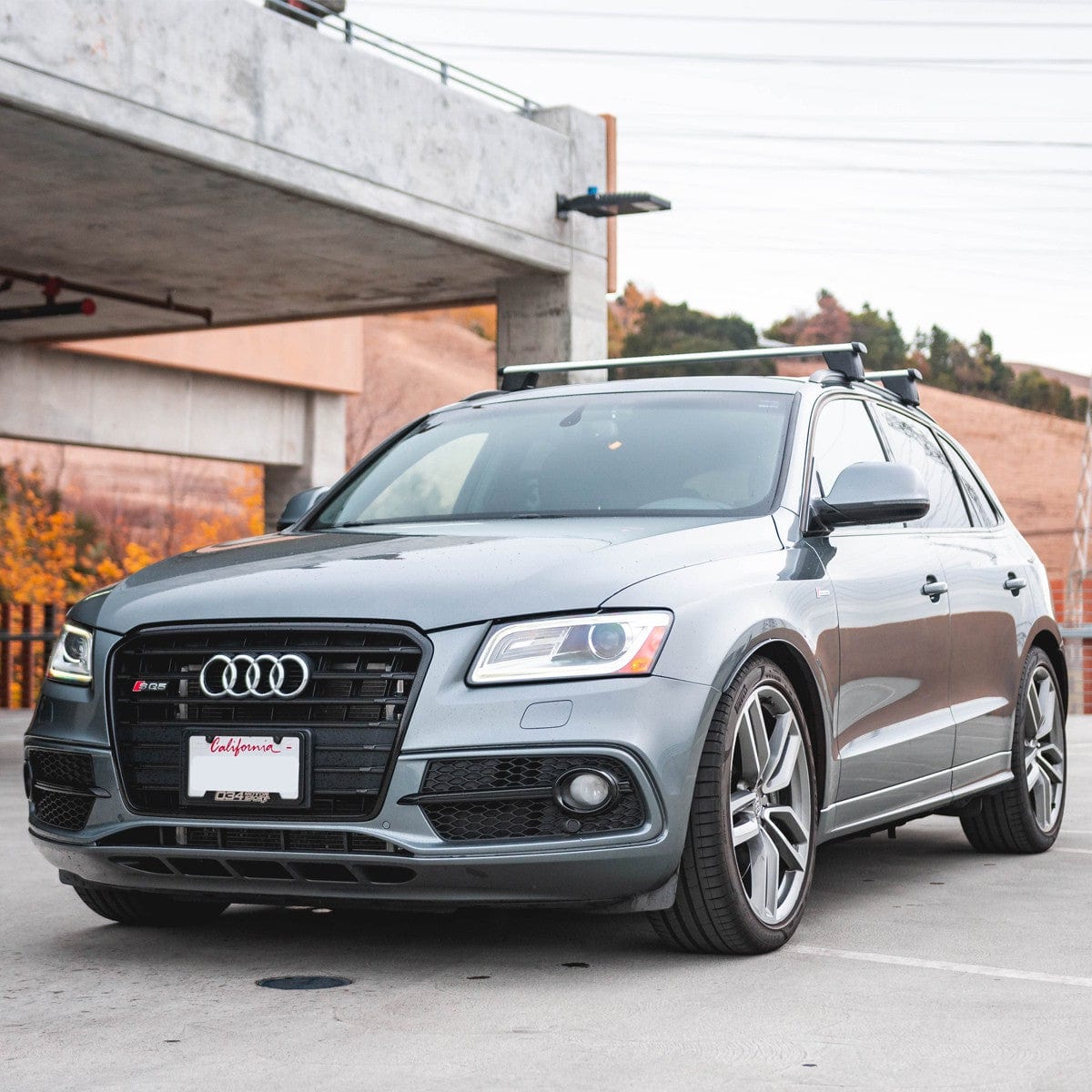

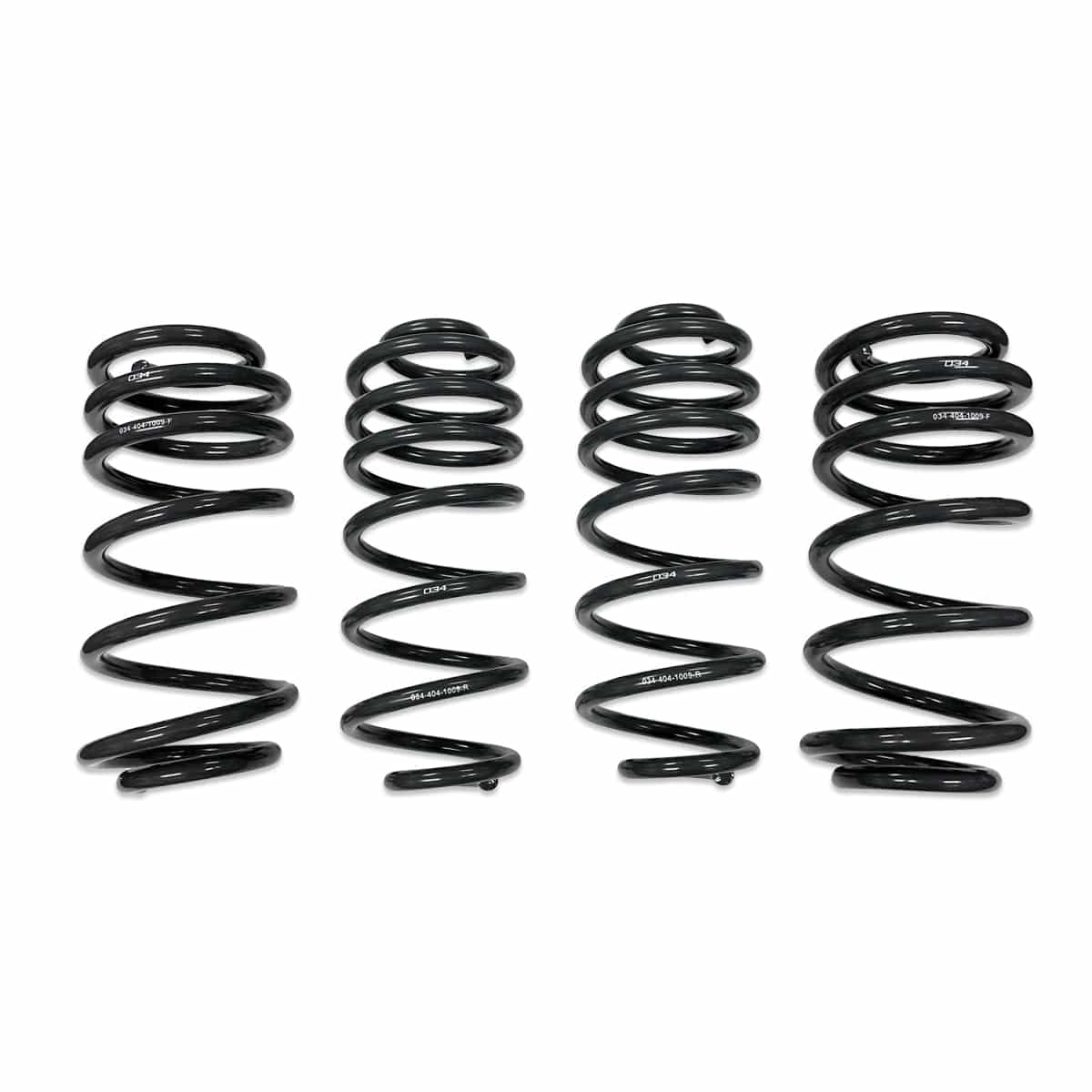

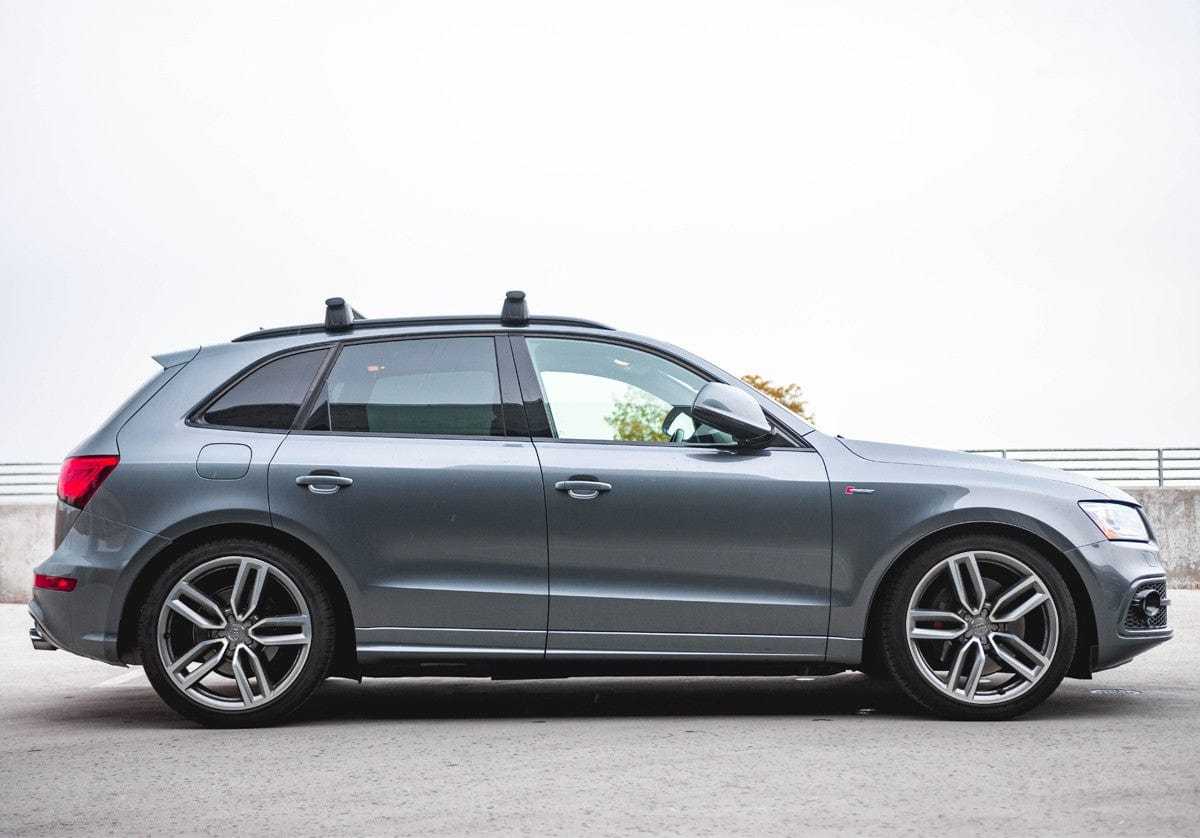

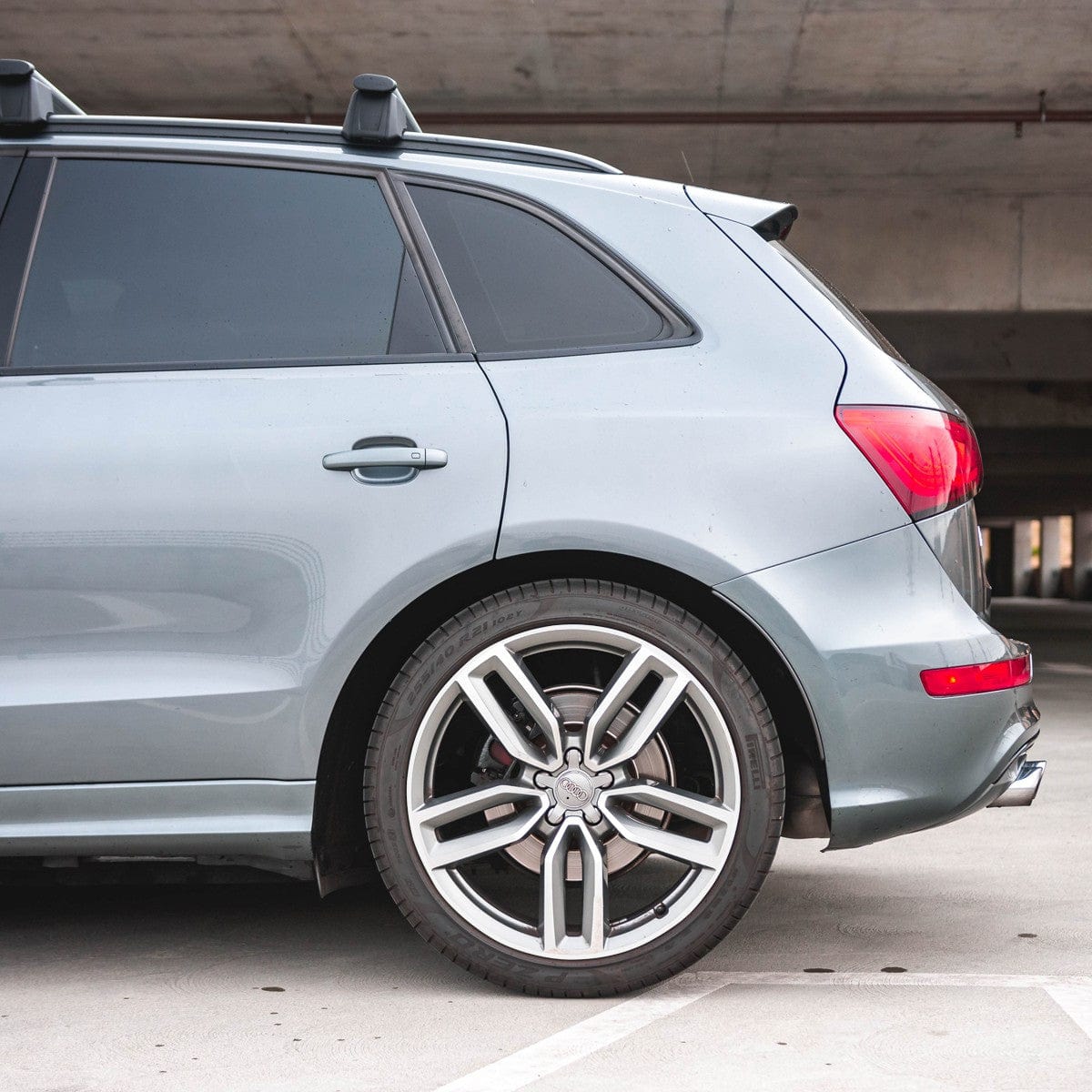

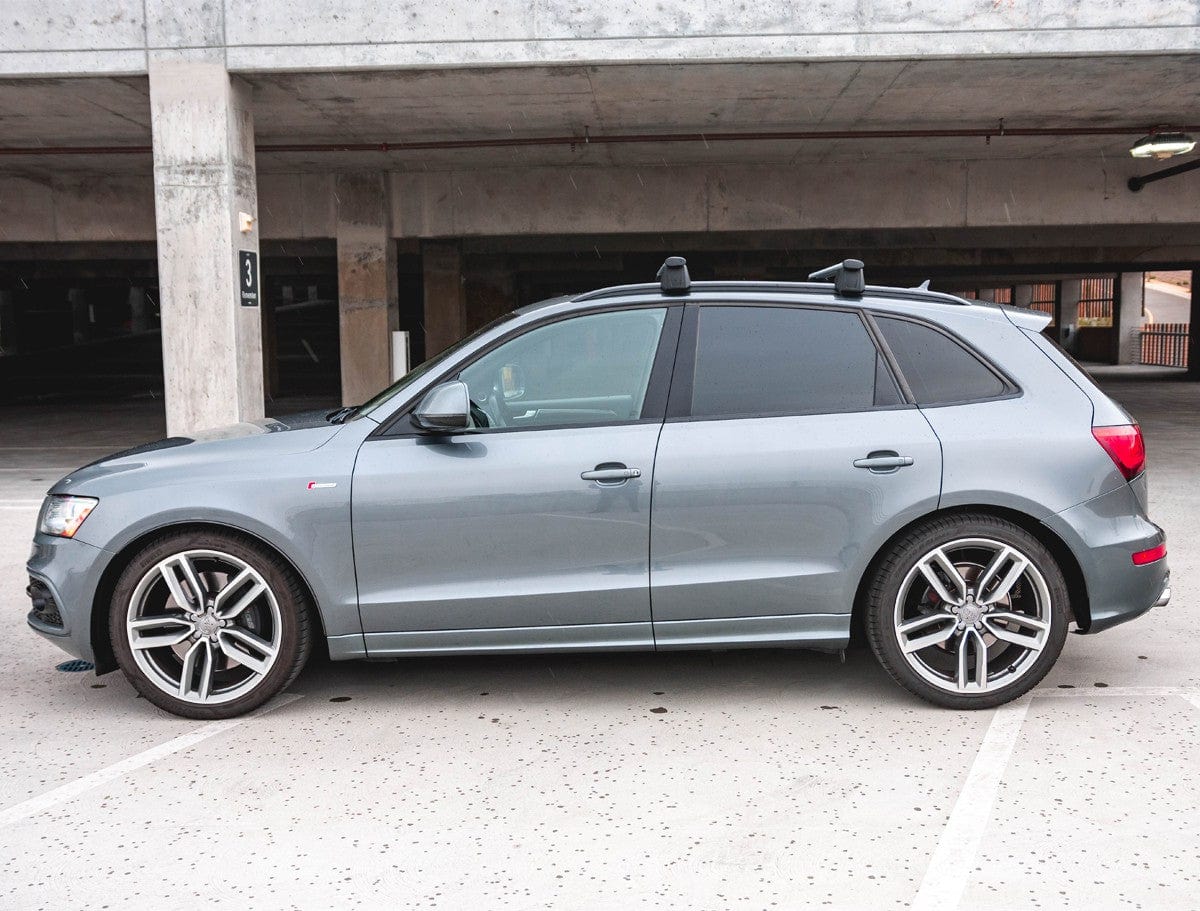

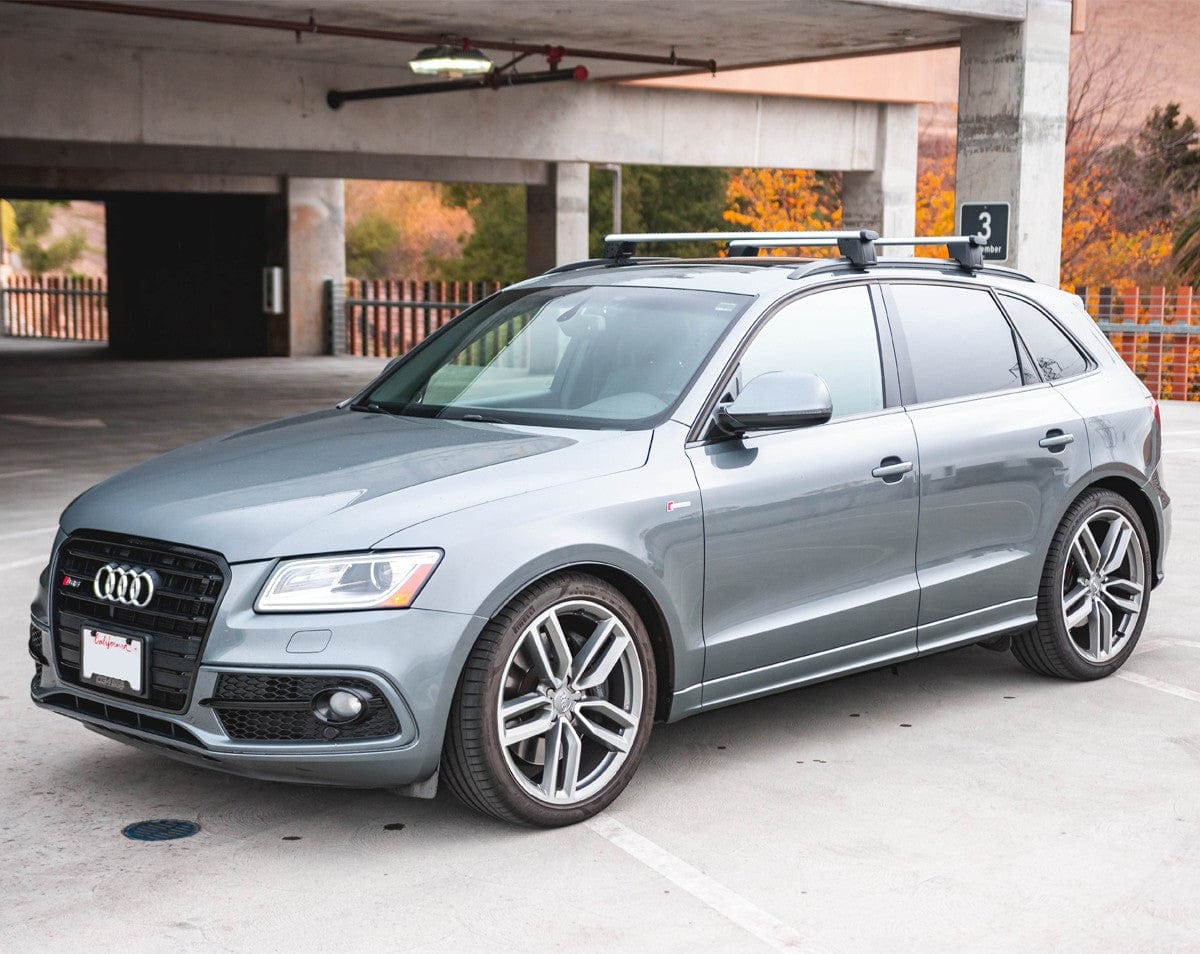

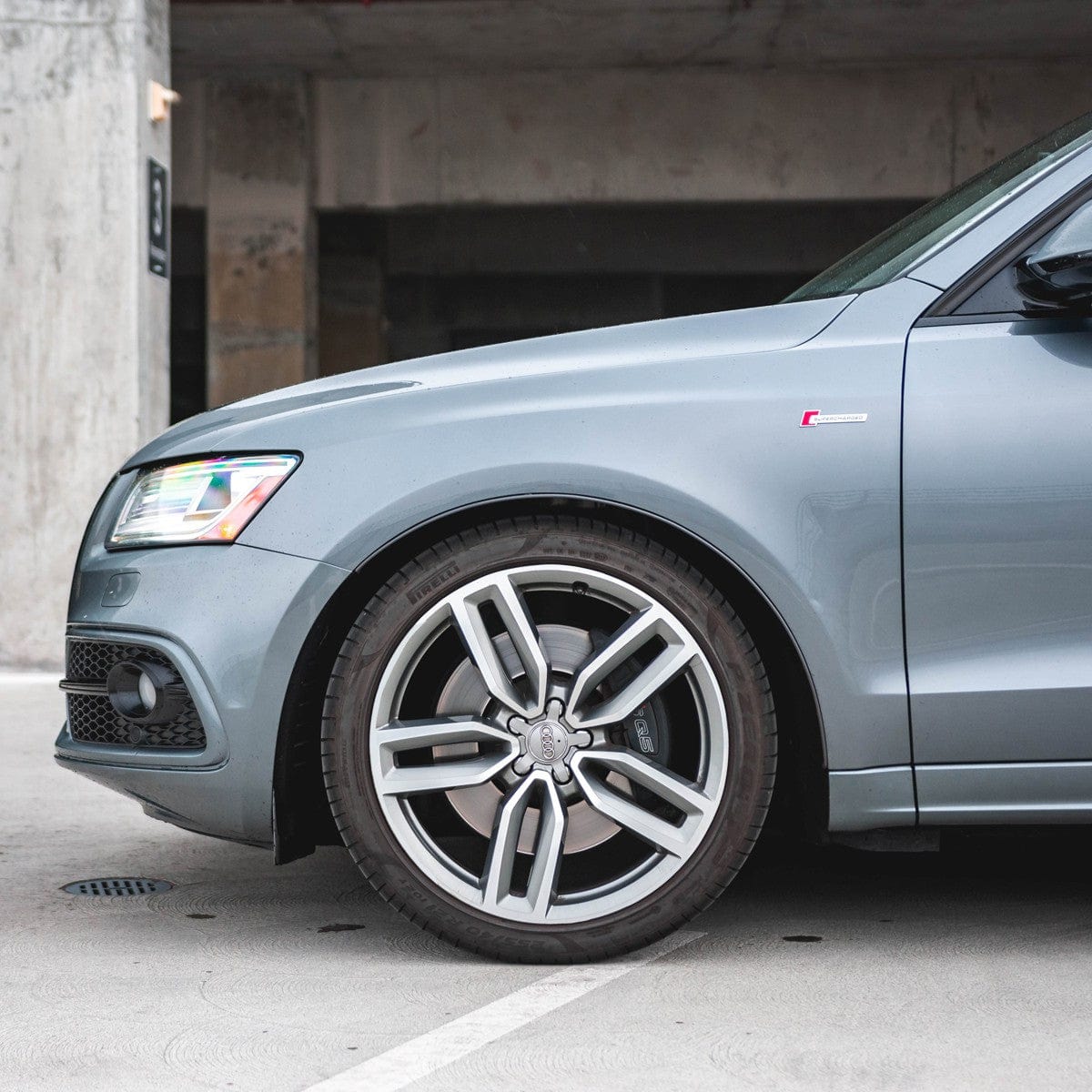

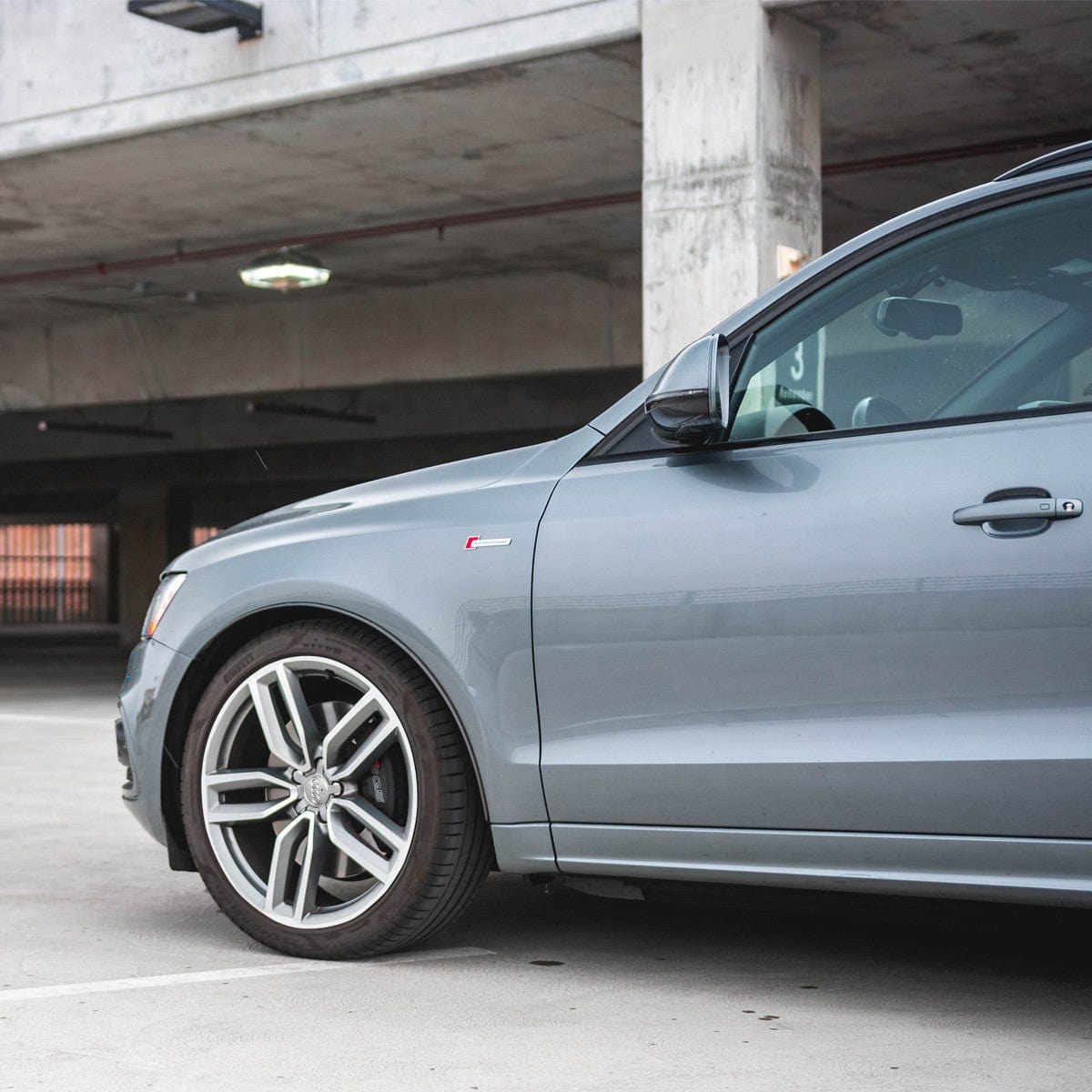

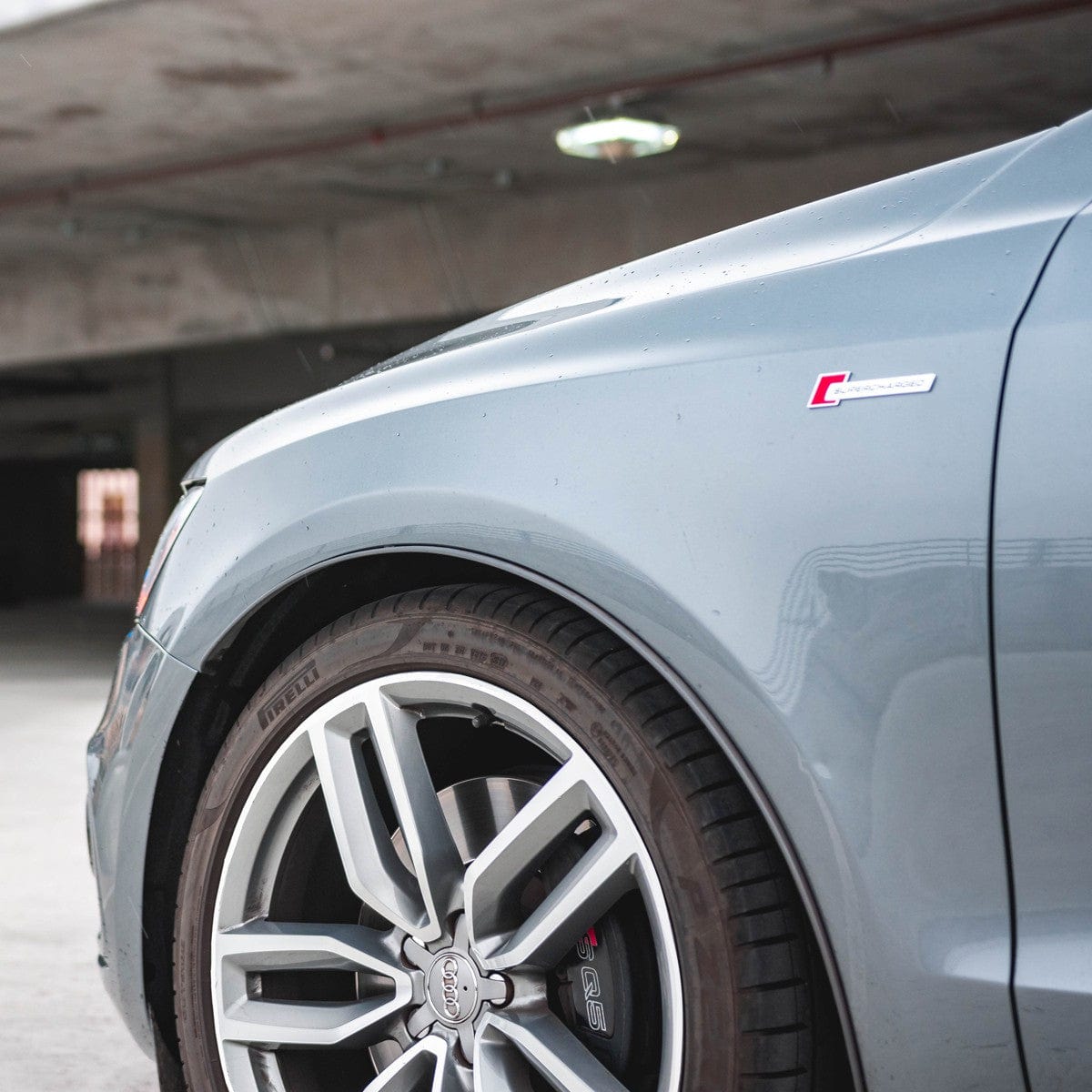

034Motorsport's Dynamic+ lowering springs drop the B8 and B8.5 Audi Q5 and SQ5 by around 60-80mm front and rear while working with the factory dampers. The brand developed them on its own Q5 and SQ5 development vehicles over months of street and track testing, settling on a dual-rate design that raises effective rates by about 10% at the front and 15% at the rear. 034Motorsport says the result is less body roll and understeer with OEM+ comfort, while a slight positive rake preserves ground clearance and lets the rear carry heavy loads. The springs are shot peened, powder coated and made in the USA at an ISO 9001 certified facility to a +/- 5% tolerance, and they work with Audi adaptive suspension.
Features
- Lowers about 60-80mm front and rear
- Dual-rate design matched to the factory dampers
- Reduced body roll and understeer, per 034Motorsport
- Slight positive rake to accommodate loads
- Compatible with Audi Adaptive Suspension

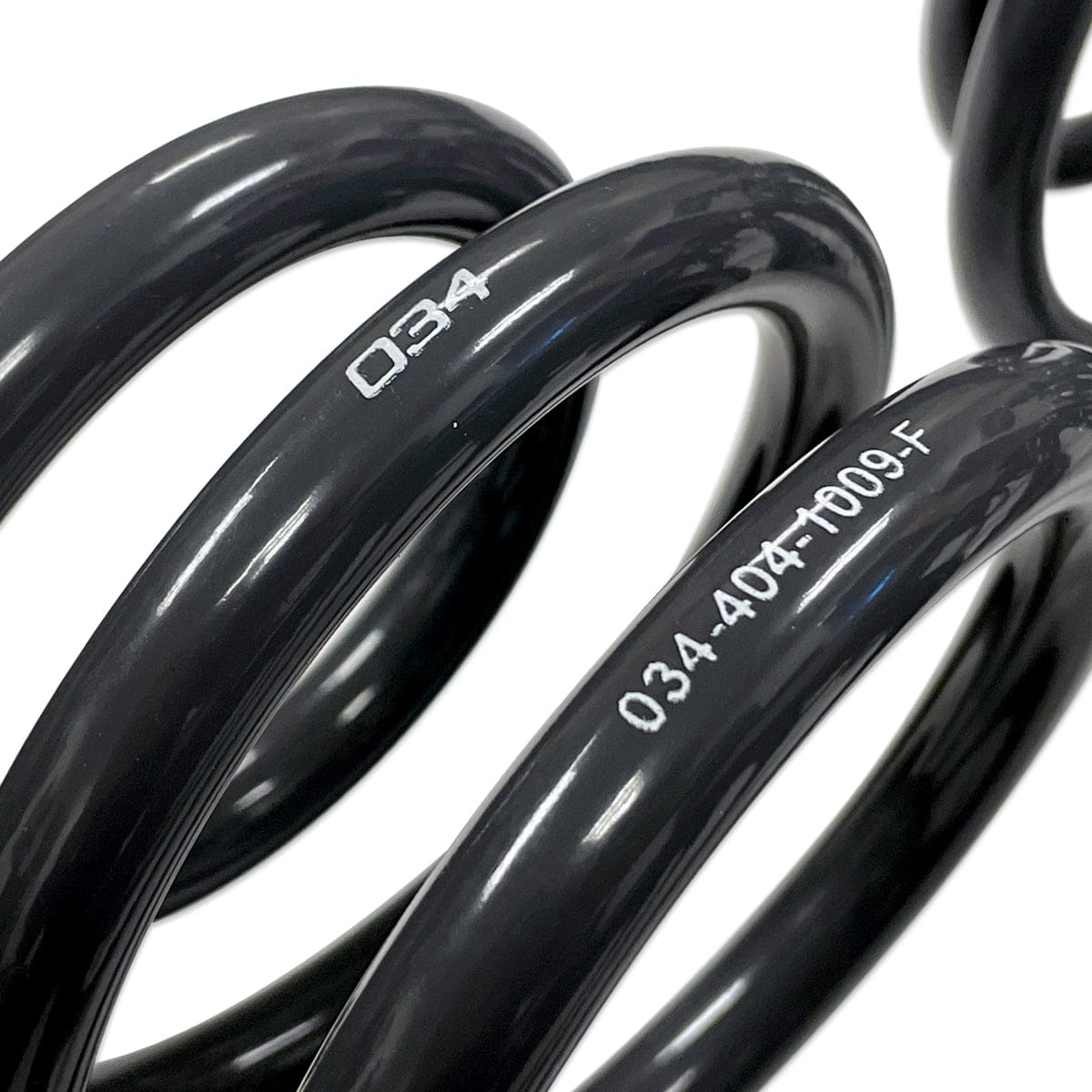

- Shot peened and powder coated
- Made in USA to a +/- 5% tolerance
Specifications
- Brand: 034Motorsport
- Product Type: Lowering Springs
- Product Line: Dynamic+
- Lowering: Front 60-80mm, rear 60-80mm (varies with vehicle, wheels and tyres)
- Front Spring Rate: 275/431 lbs/in dual rate (stock 382 lbs/in linear)
- Rear Spring Rate: 174/248 lbs/in dual rate (stock 213 lbs/in linear)
- Tolerance: +/- 5%
- Finish: Shot peened, powder coated
- Made In: USA (ISO 9001 certified facility)
- Part Number: 034-404-1009
Vehicle Compatibility: 2 applications across 1 make. Select a make to view.
Audi (2)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Q5 | B8/B8.5 | 2.0 TFSI, 3.0 TFSI, 3.2 FSI | 2009-2017 |
| SQ5 | B8/B8.5 | 3.0 TFSI | 2012-2017 |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
