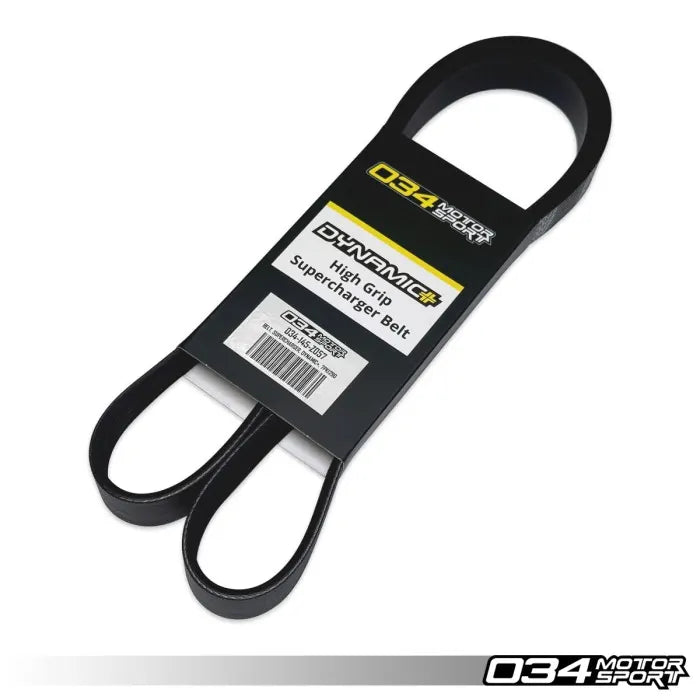

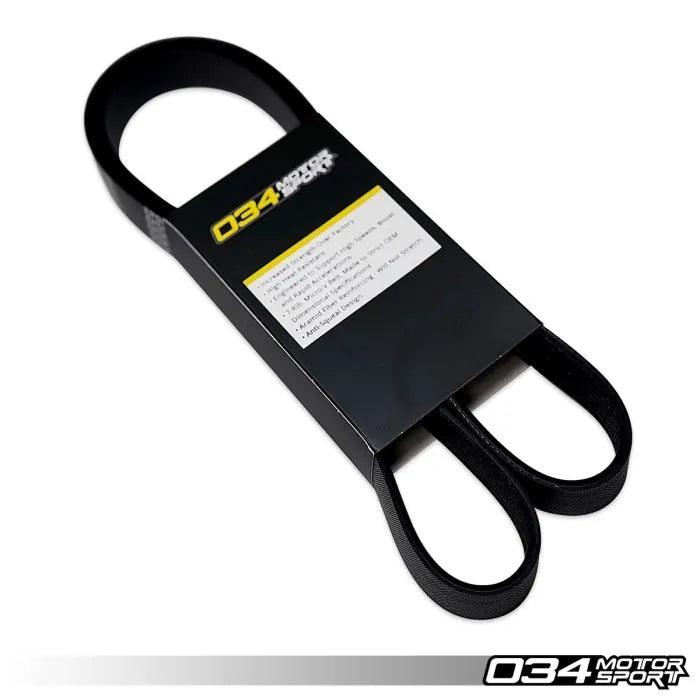

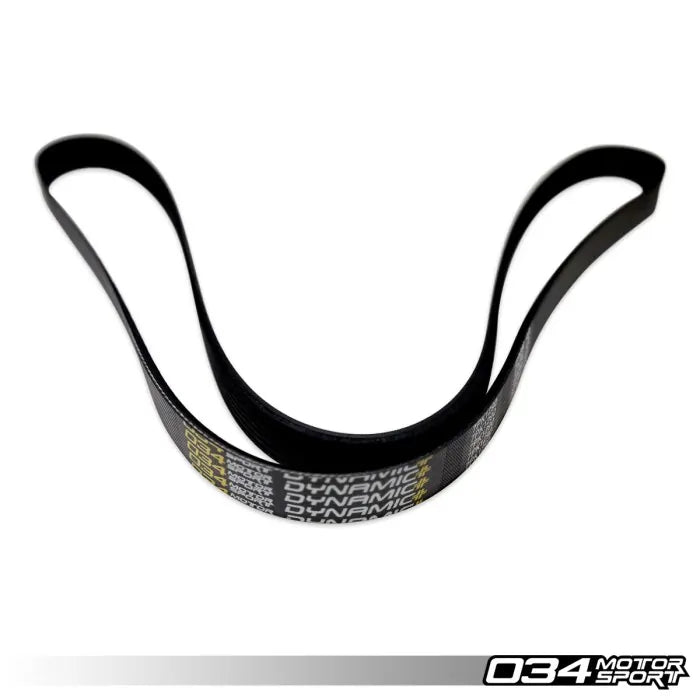

034Motorsport - Dynamic+ Supercharger Belt 1270mm - Audi B8 S4/S5 & C7 A6/A7 - 034-145-Z056

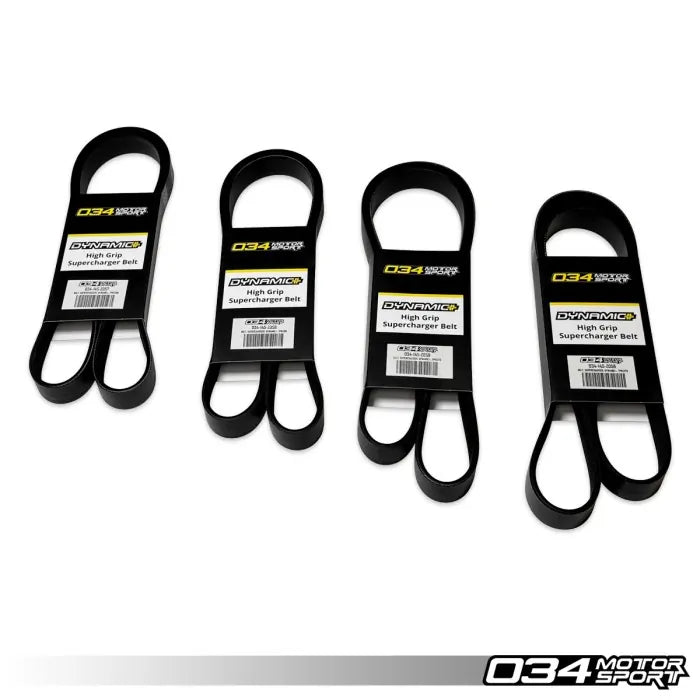

This 1270mm Dynamic+ supercharger belt suits the supercharged EA837 3.0 TFSI in B8 and B8.5 Audi S4, S5 and Q5, C7 and C7.5 A6 and A7, and D4 A8 models. 034Motorsport designed it for high-output engines, using aramid fibre reinforcement that the brand says will not stretch, along with high heat resistance and an anti-squeal design to keep boost consistent at high speeds and under rapid acceleration. The 7-rib Micro-V belt is made to strict OEM dimensional specifications and is compatible with GripTec pulleys. It is offered in several lengths to suit different pulley combinations, and the brand puts installation at about 30 minutes.
Features
- Stronger than the factory belt
- Aramid fibre reinforcement resists stretching
- High heat resistance
- 7-rib Micro-V profile to OEM dimensional specifications
- Anti-squeal design
- Compatible with GripTec pulleys
Specifications
- Brand: 034Motorsport
- Product Type: Supercharger Belt
- Length: 1270mm
- Profile: 7-rib Micro-V
- Reinforcement: Aramid fibre
- Engine: EA837 3.0 TFSI (supercharged)
- Includes: 1 belt
- OE Interchange: 06E 903 137 AB
- Installation Time: Approx. 30 minutes
- Part Number: 034-145-Z056
Vehicle Compatibility: 7 applications across 1 make. Select a make to view.
Audi (7)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A6 | C7/C7.5 | 3.0 TFSI | 2012-2018 |
| A7 | C7/C7.5 | 3.0 TFSI | 2012-2018 |
| A8 | D4 | 3.0 TFSI | 2011-2018 |
| Q5 | B8/B8.5 | 3.0 TFSI | 2009-2017 |
| S4 | B8/B8.5 | 3.0 TFSI | 2010-2017 |
| S5 | B8.5 | 3.0 TFSI | 2013-2017 |
| SQ5 | B8/B8.5 | 3.0 TFSI | 2012-2017 |
Images shown are generic and for illustration only. The part supplied may differ in appearance.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
