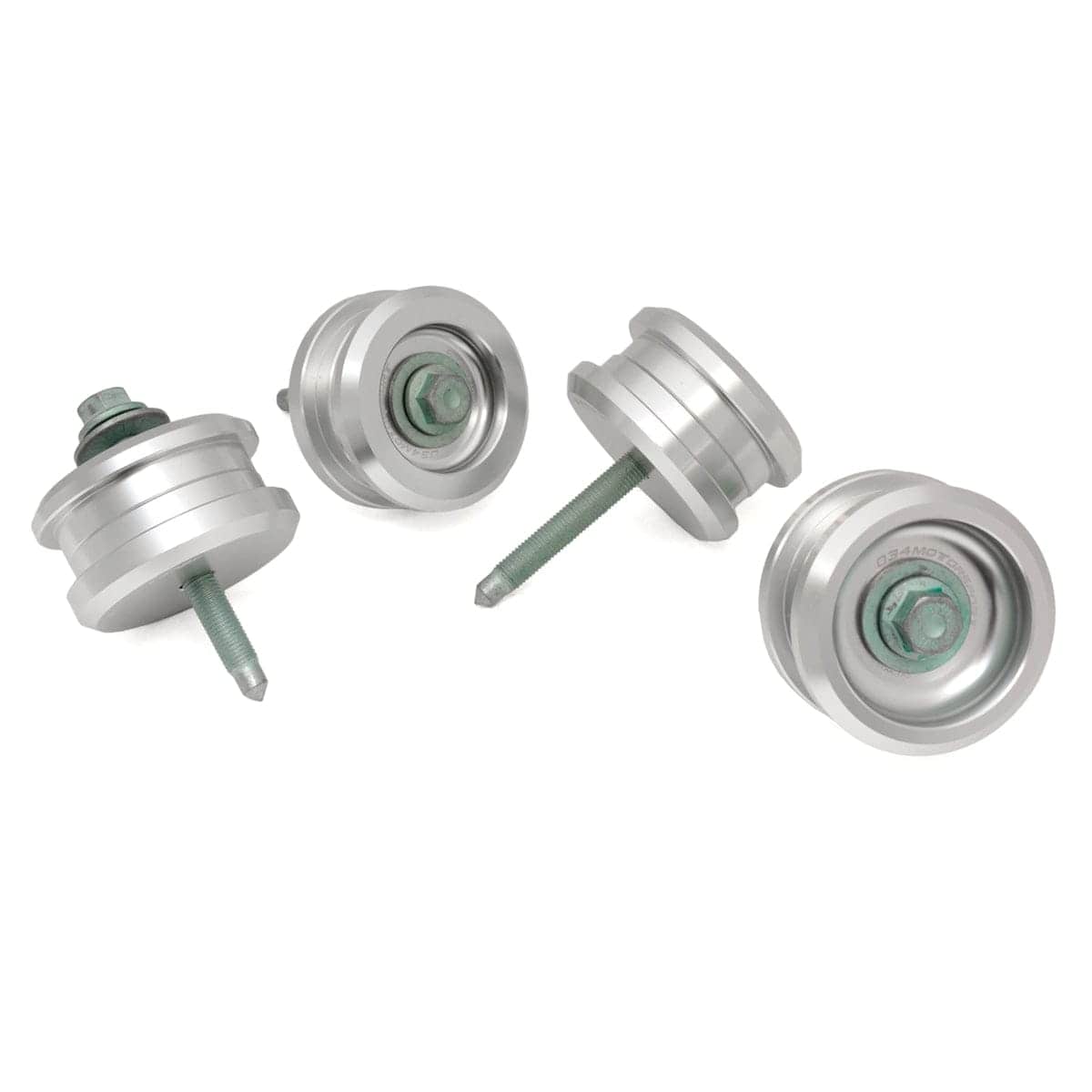

These billet aluminium front subframe bushings replace the factory rubber bushings on the Audi B5, B6 and B7 A4 and the C5 A6 and S6. 034Motorsport says stock rubber bushings are quiet but deflect under load and let the subframe shift, which changes camber, caster and other suspension geometry, and its bushings are designed to hold geometry under severe cornering forces. The set is CNC machined in-house from 6061 billet aluminium, with separate upper and lower halves for the front and rear of the front subframe, each individually labelled for installation. New OEM subframe bolts are included with each set, and the brand notes the subframe must be clearanced to fit because stock subframes have loose tolerances.
Features
- Billet 6061 aluminium, CNC machined in-house
- Specific upper and lower halves for front and rear mounts
- Individually labelled for easy installation
- Set covers one front subframe
- New OEM subframe bolts included
- Subframe must be clearanced to fit
- Will not fit cars with a CVT transmission
Specifications
- Brand: 034Motorsport
- Product Type: Front Subframe Bushing Set
- Material: Billet 6061 aluminium, CNC machined in-house
- Coverage: One front subframe
- Includes: Upper and lower bushing halves for the front and rear of the front subframe, new OEM subframe bolts
- Installation Note: Subframe needs clearancing with a sanding roll or carbide grinding bit
- Exclusion: Not for cars with a CVT transmission
- Part Number: 034-601-0000
Vehicle Compatibility: 5 applications across 1 make. Select a make to view.
Audi (5)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| A4 | B5 | Not for CVT cars | ||
| A4 | B6 | Not for CVT cars | ||
| A4 | B7 | Not for CVT cars | ||
| A6 | C5 | Not for CVT cars | ||
| S6 | C5 | Not for CVT cars |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
