034Motorsport MQB Front Subframe Locking Collar Upgrade Kit, 8V/8V.5/8S Audi A3/S3/RS3 & TT/TTS/TTRS, Stainless Steel

These stainless steel locking collars centre and lock the aluminium front subframe on MQB-platform models, including the 8V Audi A3, S3 and RS3, the 8S TT, TTS and TT RS, the Mk7.5 Volkswagen Golf GTI and Golf R, and the Mk8 Golf R. 034Motorsport says the kit cures the clunks, pops and creaks caused by the subframe shifting during slow turns, driveway entries, stops and take-offs, while firming up the front end for better braking and steering feel. The CNC-machined upper and lower collars locate the subframe precisely, and the supplied factory bolts have factory-correct tips to prevent thread stripping. The kit suits light-coloured aluminium subframes only, cars with a black stamped steel subframe need 034-601-0043, and installation takes about an hour with no permanent modification.

Features

• CNC-machined stainless steel upper and lower locking collars
• Centres the front subframe to stop shifting and clunks
• Improves chassis rigidity and front-end feel
• New factory subframe bolts included
• No added cabin NVH, per 034Motorsport
• Fully reversible, about 1 hour to install

Specifications

• Brand: 034Motorsport
• Product Type: Subframe Locking Collars
• Material: Stainless steel, CNC-machined

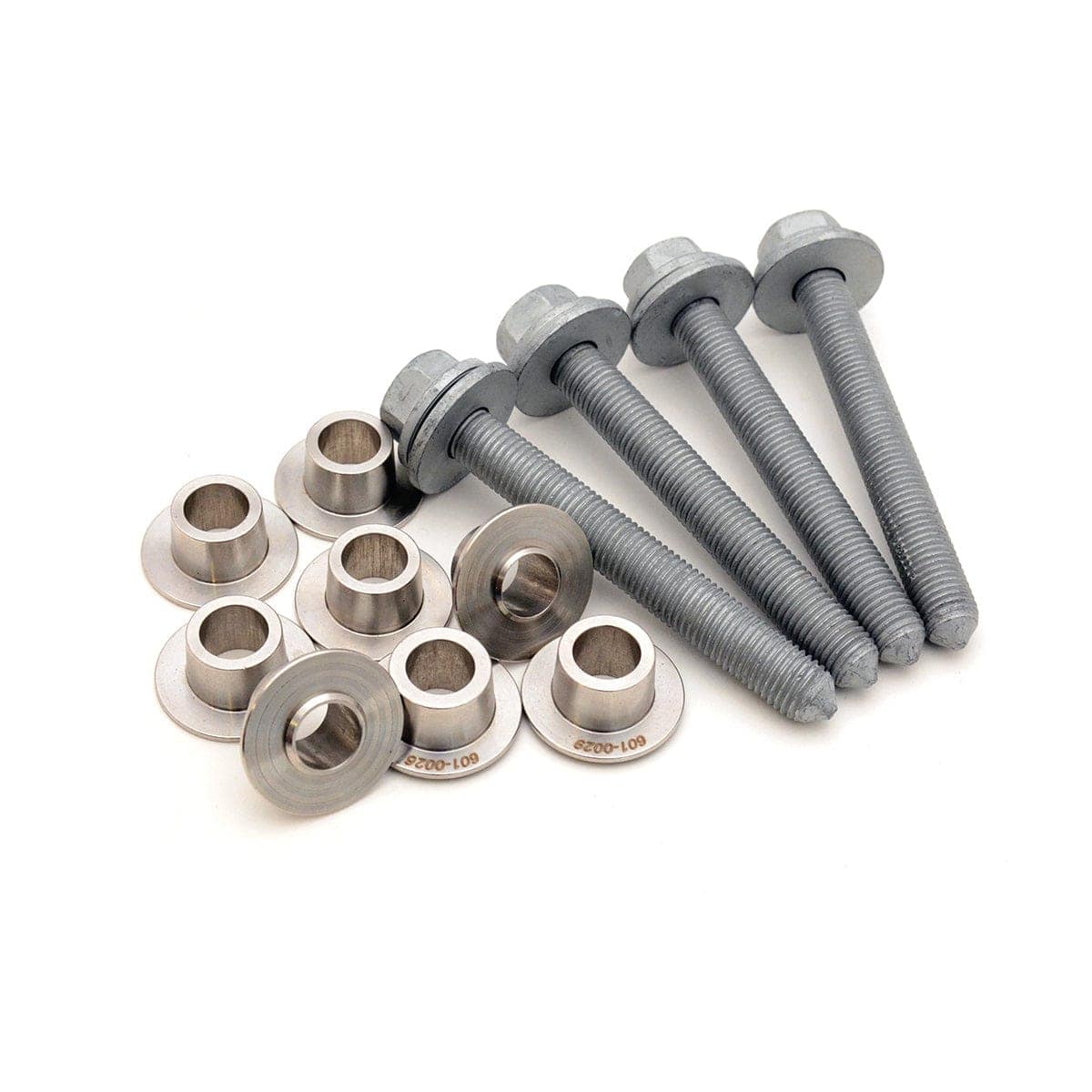

• Includes: Upper front collars (2), upper rear collars (2), lower collars (4), subframe bracket spacing washers (4), factory replacement subframe bolts (4)

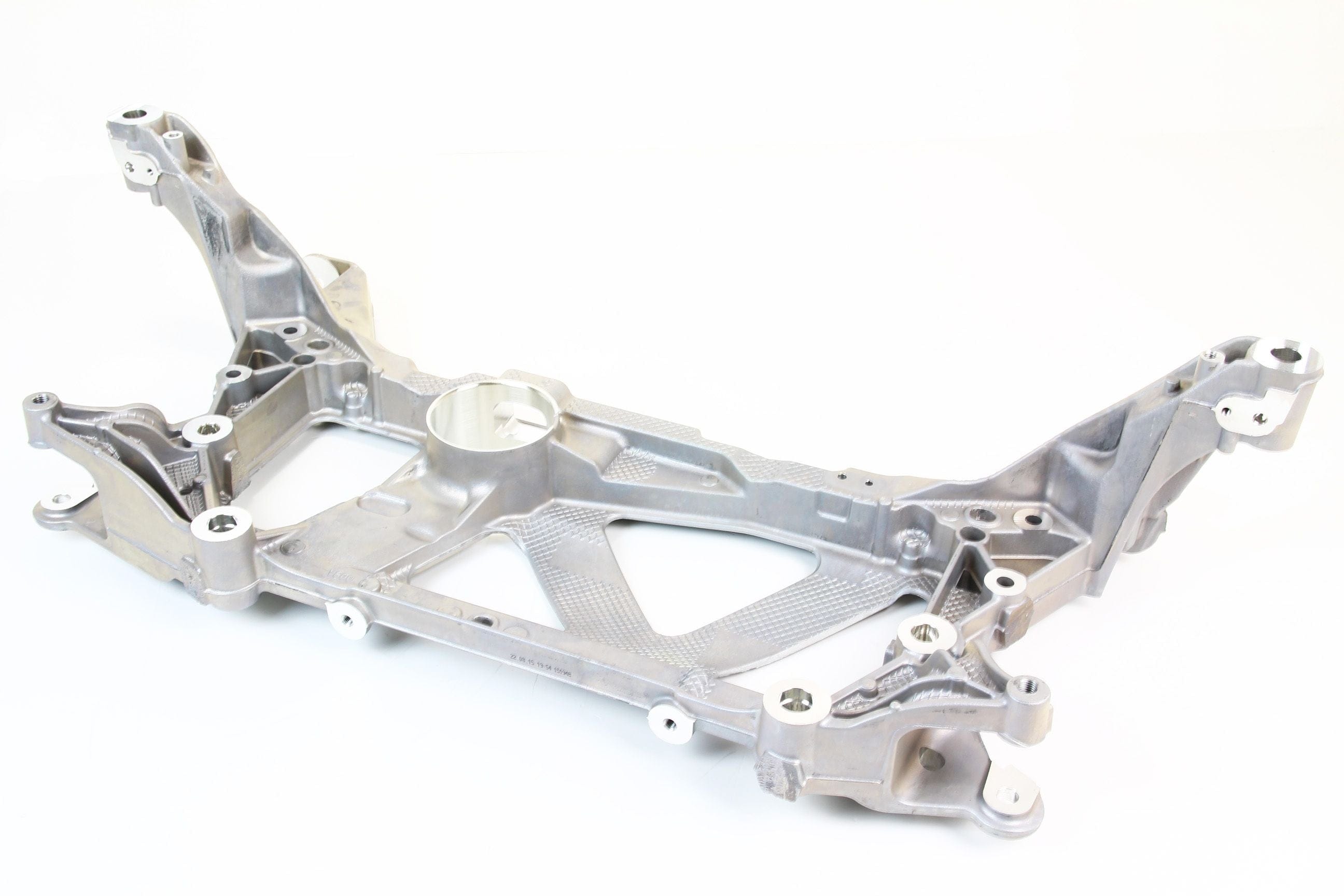

• Subframe: Light-coloured aluminium subframe, part numbers 5Q0199369G or 3Q0199369E
• Steel Subframe Alternative: 034-601-0043
• Other MQB Models: Fits any MQB model with this aluminium subframe; check before ordering
• Part Number: 034-601-0028

Vehicle Compatibility: 6 applications across 1 make. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
