034Motorsport X-Clear Driveshaft Tunnel Brace, AWD Volkswagen & Audi MQB And MQB EVO

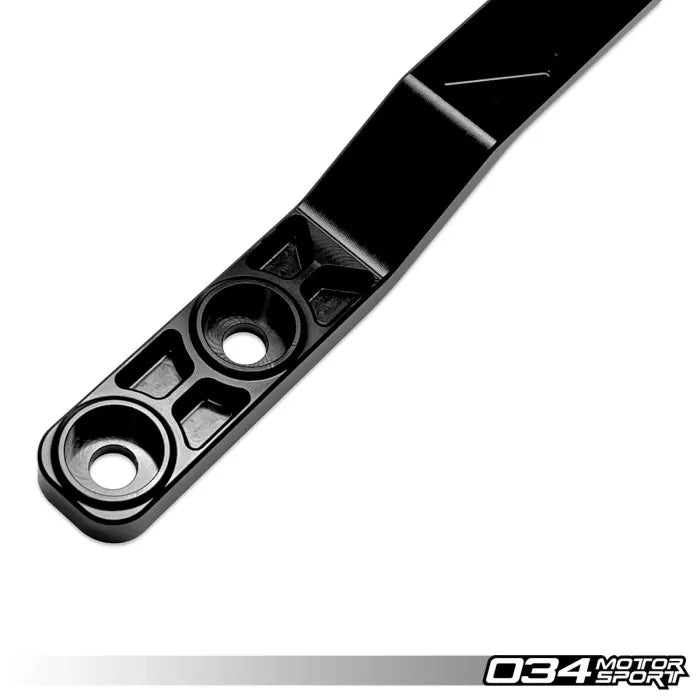

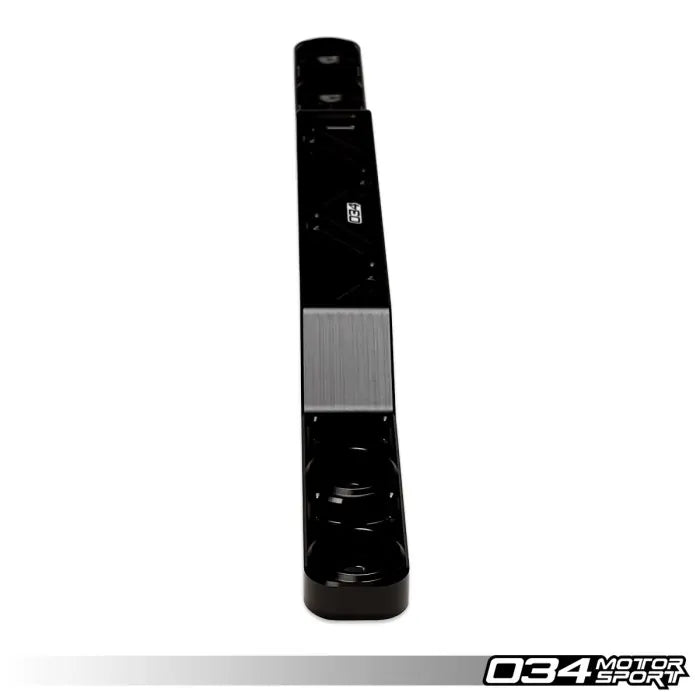

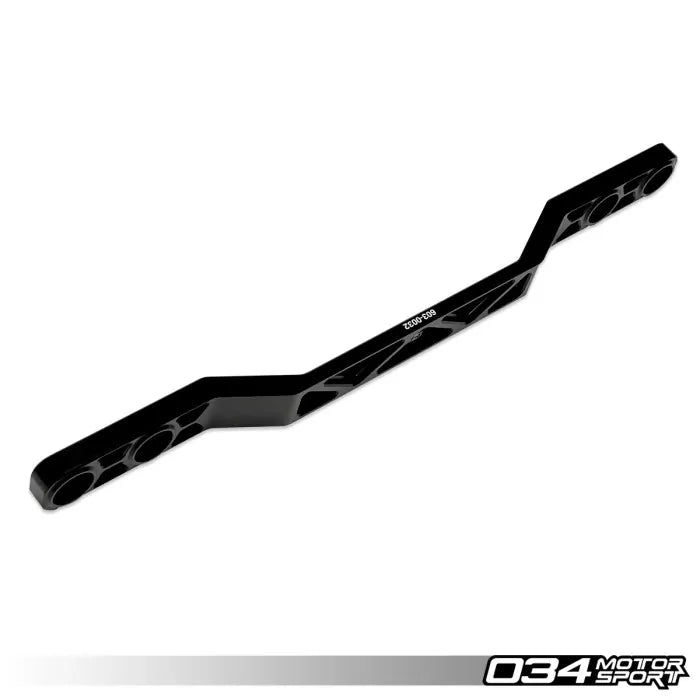

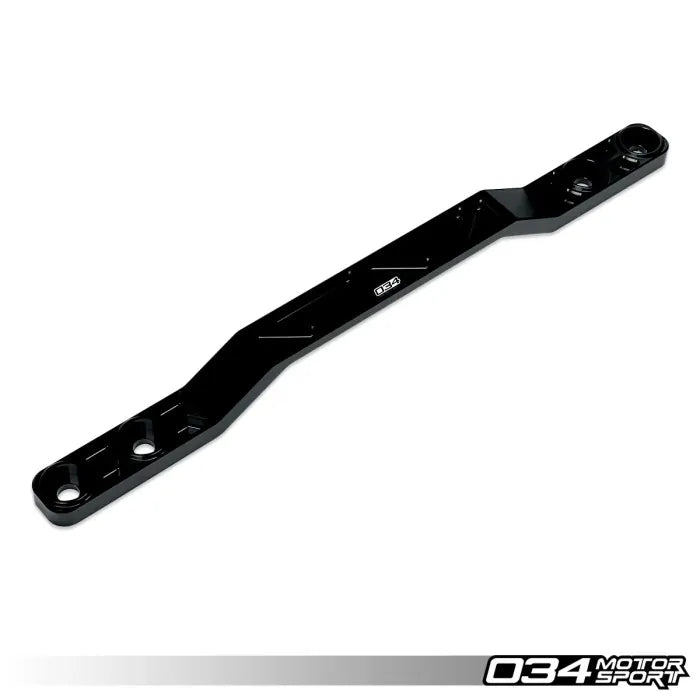

The X-Clear tunnel brace replaces the shallow factory driveshaft tunnel brace on all-wheel-drive MQB and MQB EVO cars such as the Mk7 and Mk8 Volkswagen Golf R and the 8V and 8Y Audi S3. It is CNC-machined from billet 6061-T6 aluminium and adds 8mm of exhaust clearance over the factory stamped steel brace, making room for an aftermarket exhaust up to 1/2" larger in diameter without rattles or vibration. 034Motorsport says the brace is also stiffer than the OE part and adds no extra NVH. It is finished in bright black anodising with a laser-etched logo, and the brand puts installation at about 30 minutes.
Features
- Adds 8mm of exhaust clearance over the OE brace
- Allows exhausts up to 1/2" larger in diameter
- CNC-machined from billet 6061-T6 aluminium
- Stiffer than the OE stamped steel part
- Bright black anodised with laser-etched logo
- No added NVH, about 30 minutes to fit
Specifications
- Brand: 034Motorsport
- Product Type: Driveshaft Tunnel Brace
- Material: CNC-machined billet 6061-T6 aluminium
- Finish: Bright black anodised, laser-etched logo
- Exhaust Clearance: 8mm more than OE

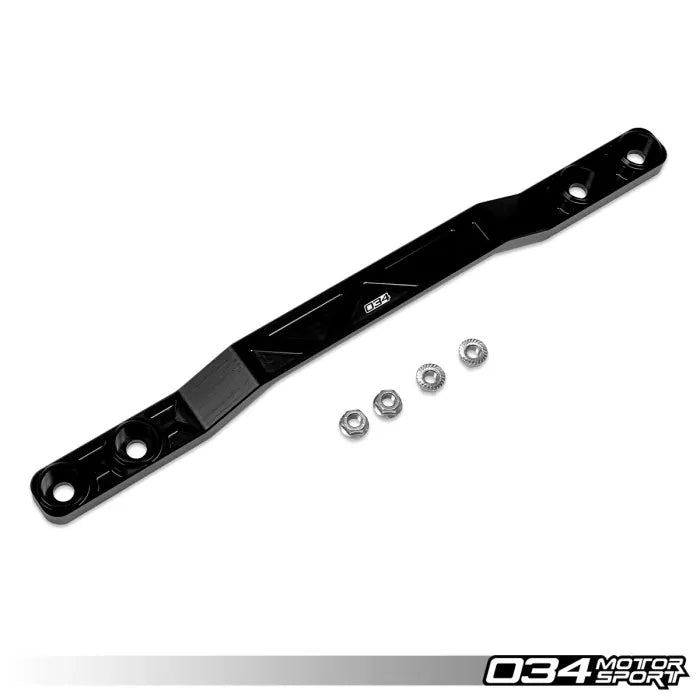

- Includes: Billet tunnel brace, mounting hardware
- OE Interchange: 5Q0 802 128
- Installation Time: Approx. 30 minutes
- Part Number: 034-603-0032
Vehicle Compatibility: 5 applications across 2 makes. Select a make to view.
Audi (2)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| S3 | 8V/8V.5 | 2.0 TFSI | 2013-2020 | quattro only |
| S3 | 8Y | 2.0 TFSI | 2022-on | quattro only |
Volkswagen (3)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Golf Alltrack | Mk7/Mk7.5 | 1.8T Gen 3 | 2013-2020 | AWD only |
| Golf R | Mk7/Mk7.5 | 2.0 TSI Gen 3 | 2013-2020 | |
| Golf R | Mk8 | 2.0T Gen 4 | 2021-on |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
