034Motorsport P34 Cold Air Intake - Audi B9 A4/A5 2.0 TFSI (MAF) - 034-108-1023

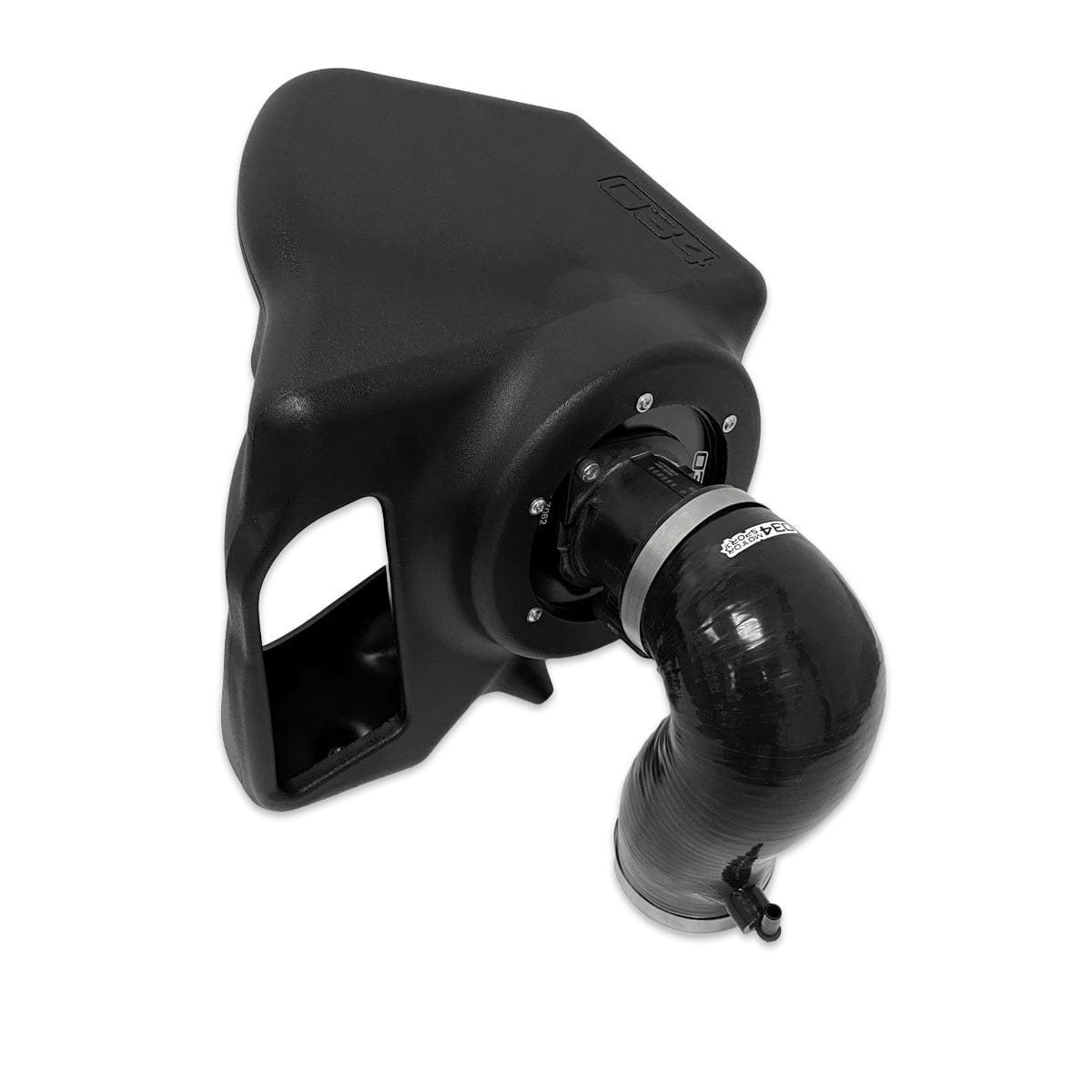

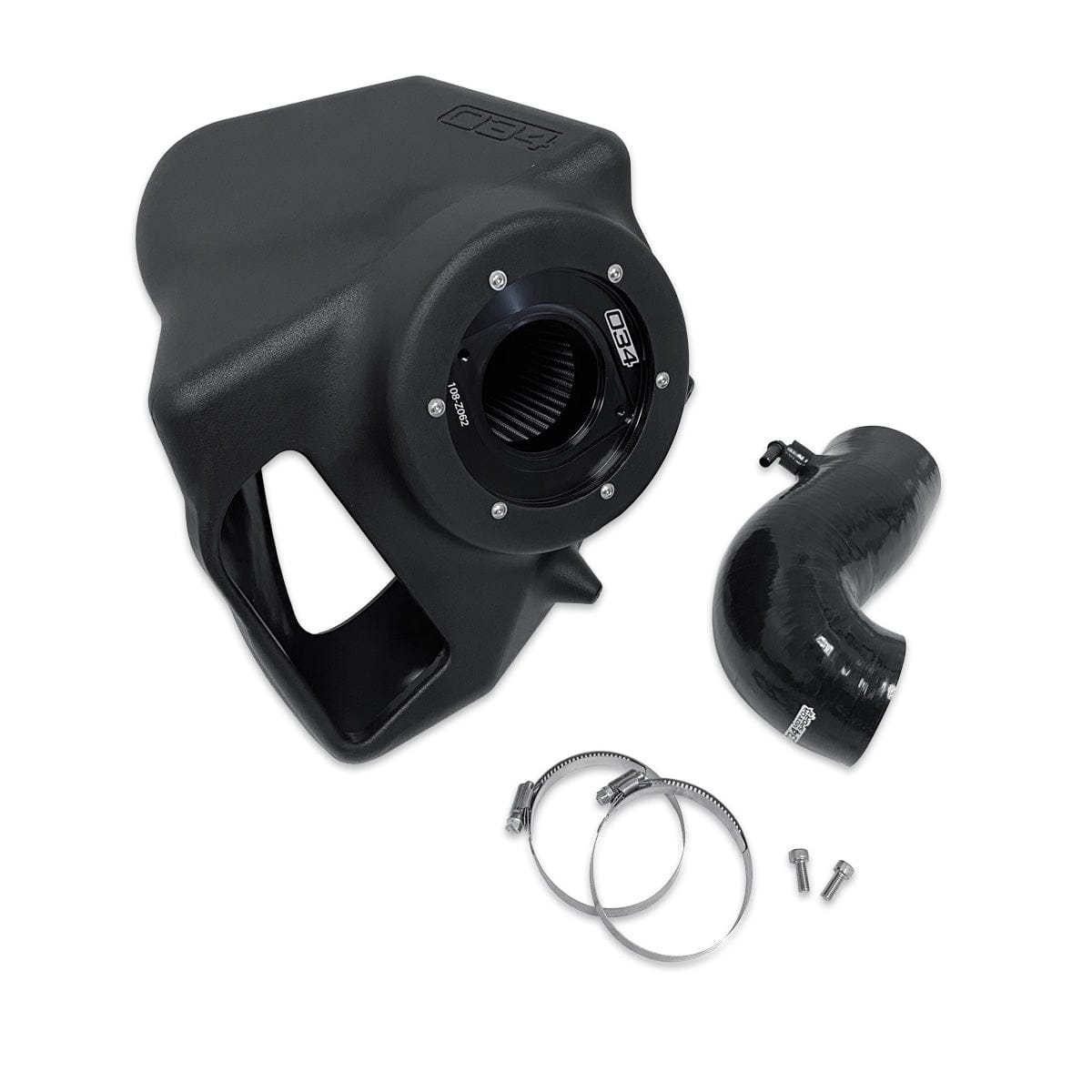

This P34 cold air intake suits the longitudinal EA888 Gen 3 2.0 TFSI in the B9 Audi A4, A5 and Allroad, in the version with a MAF sensor mounted on the factory airbox, typically the 140 kW models. It replaces the factory airbox and turbo inlet hose with a partially enclosed airbox that keeps the factory fresh air duct and heat shield, a 5-inch inlet conical filter and a CNC-machined billet aluminium velocity stack that carries the factory MAF sensor, feeding a large, CFD-optimised reinforced silicone turbo inlet hose. In 034Motorsport's dyno testing, peak output rose from 253 hp and 270 ft-lbs to 262 hp and 274 ft-lbs, and peak pressure drop at the turbo inlet fell from 0.58 psi to 0.10 psi. Cars without a MAF on the airbox need the separate MAP version (034-108-1012).

Features

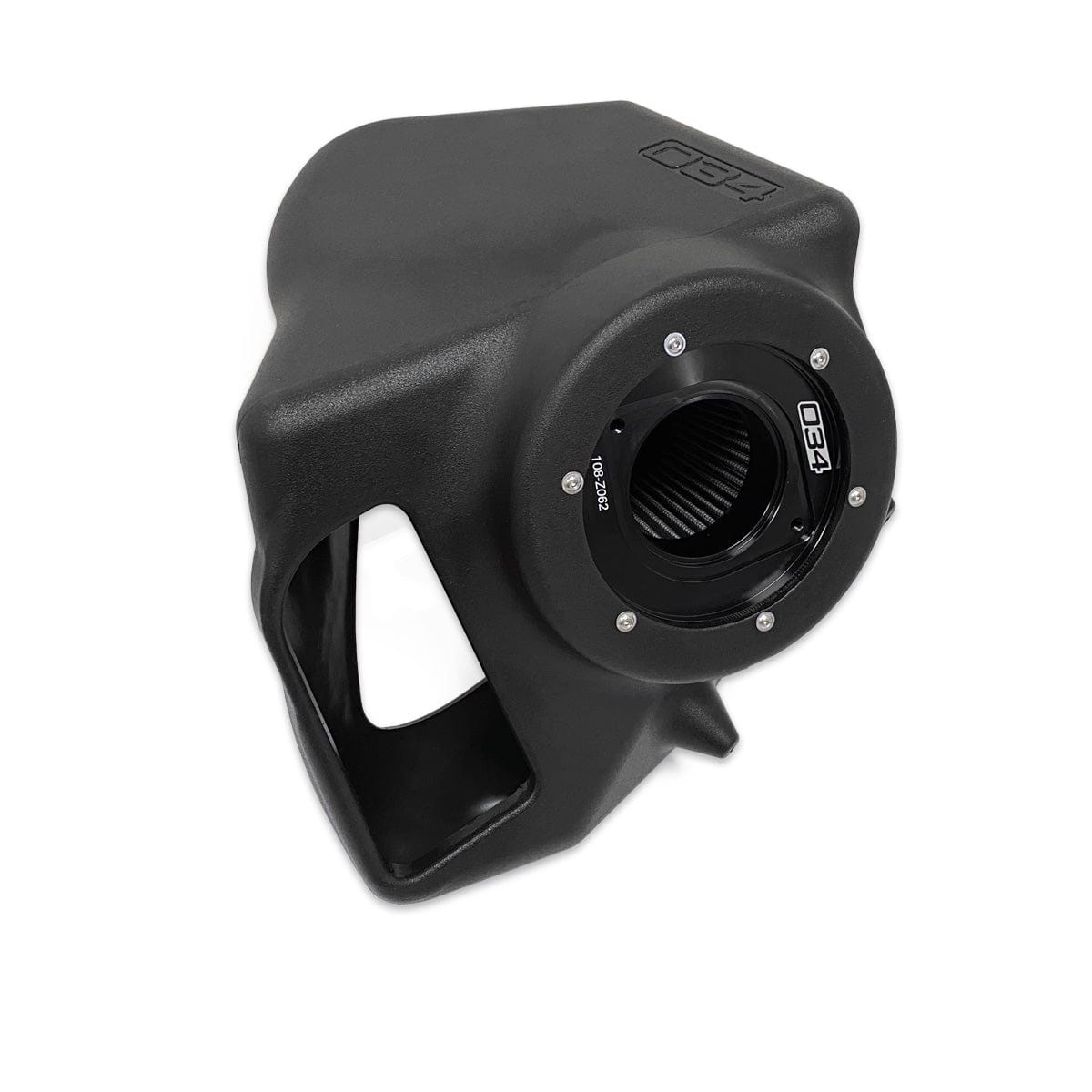

• Partially enclosed airbox uses the factory inlet duct and heat shield

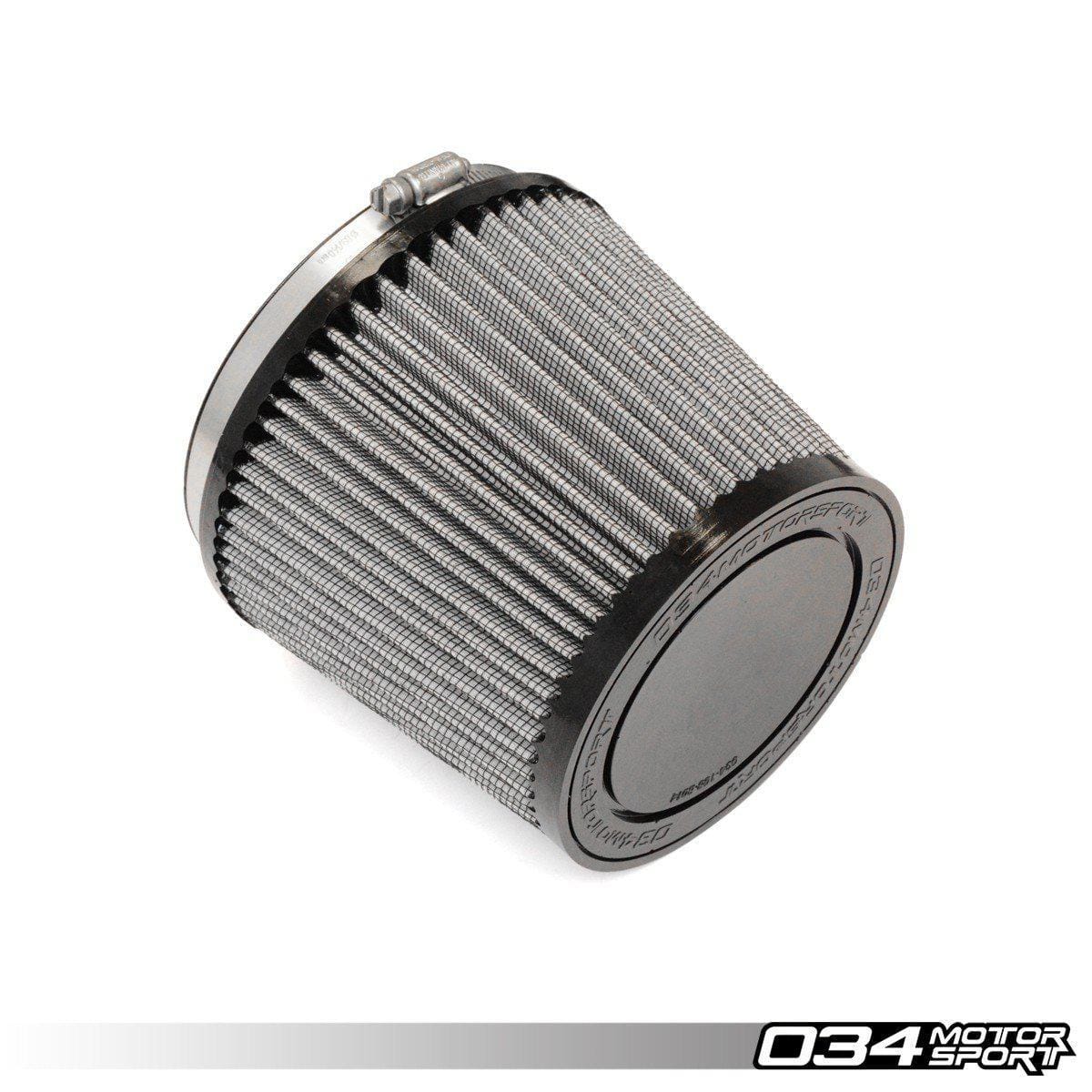

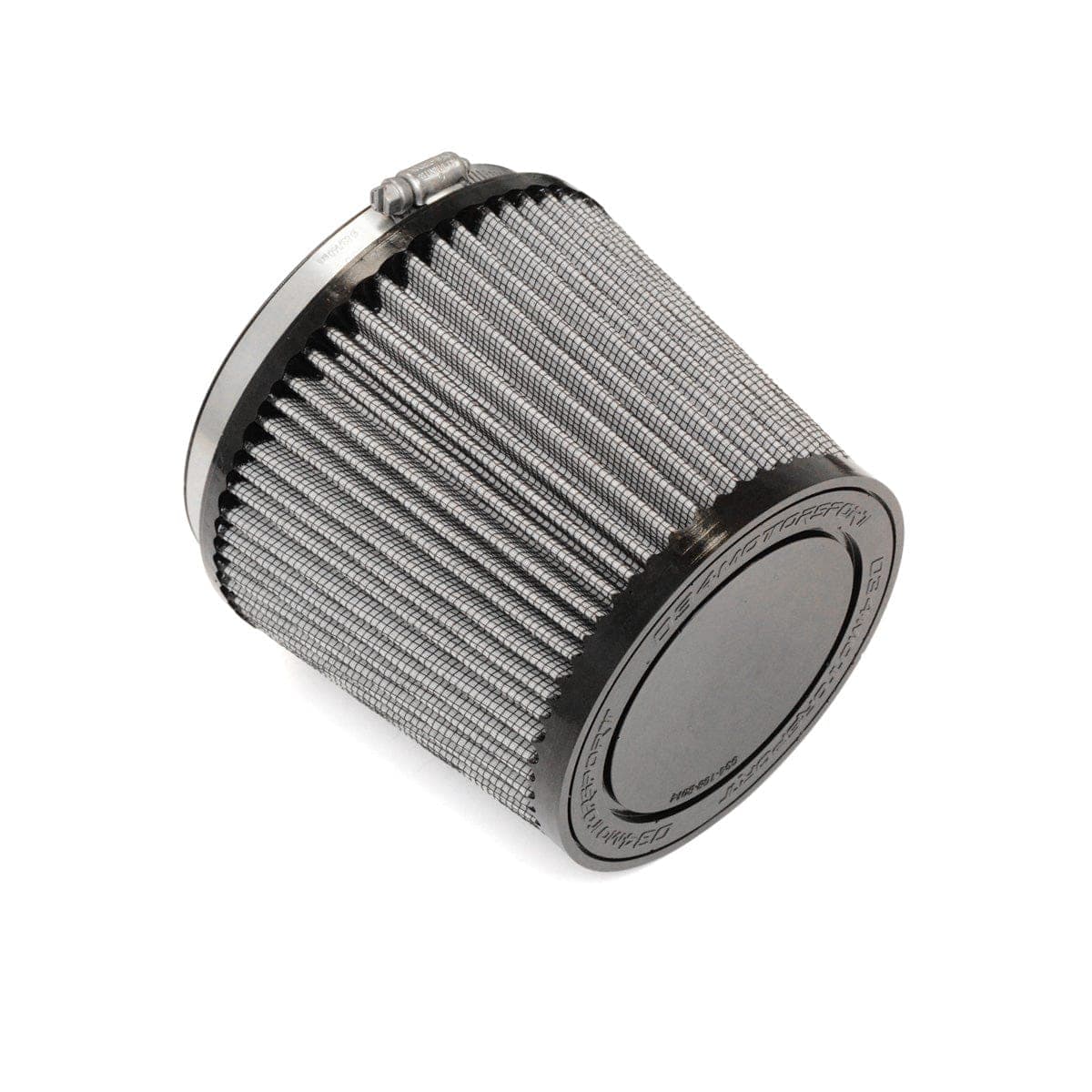

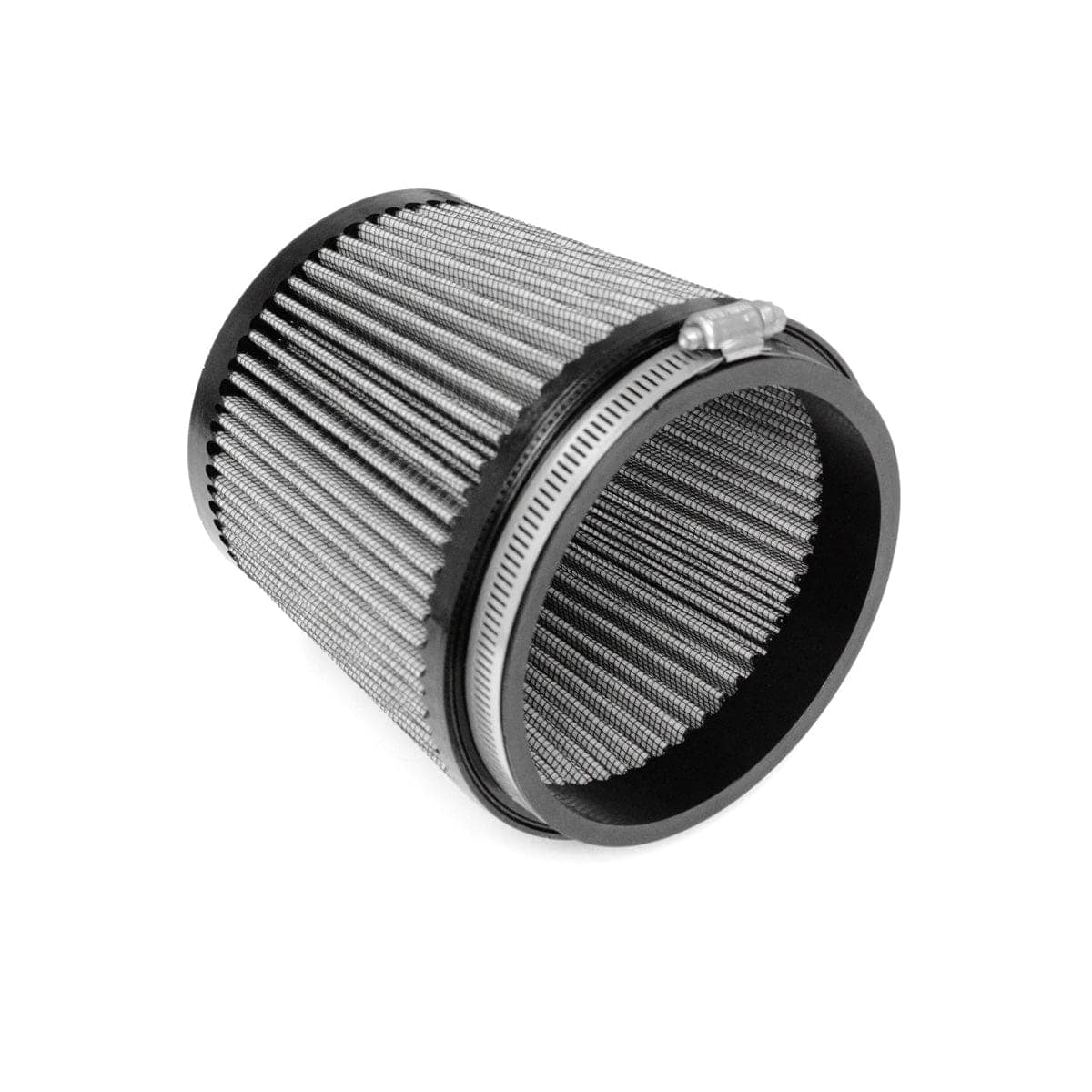

• 5-inch inlet conical air filter

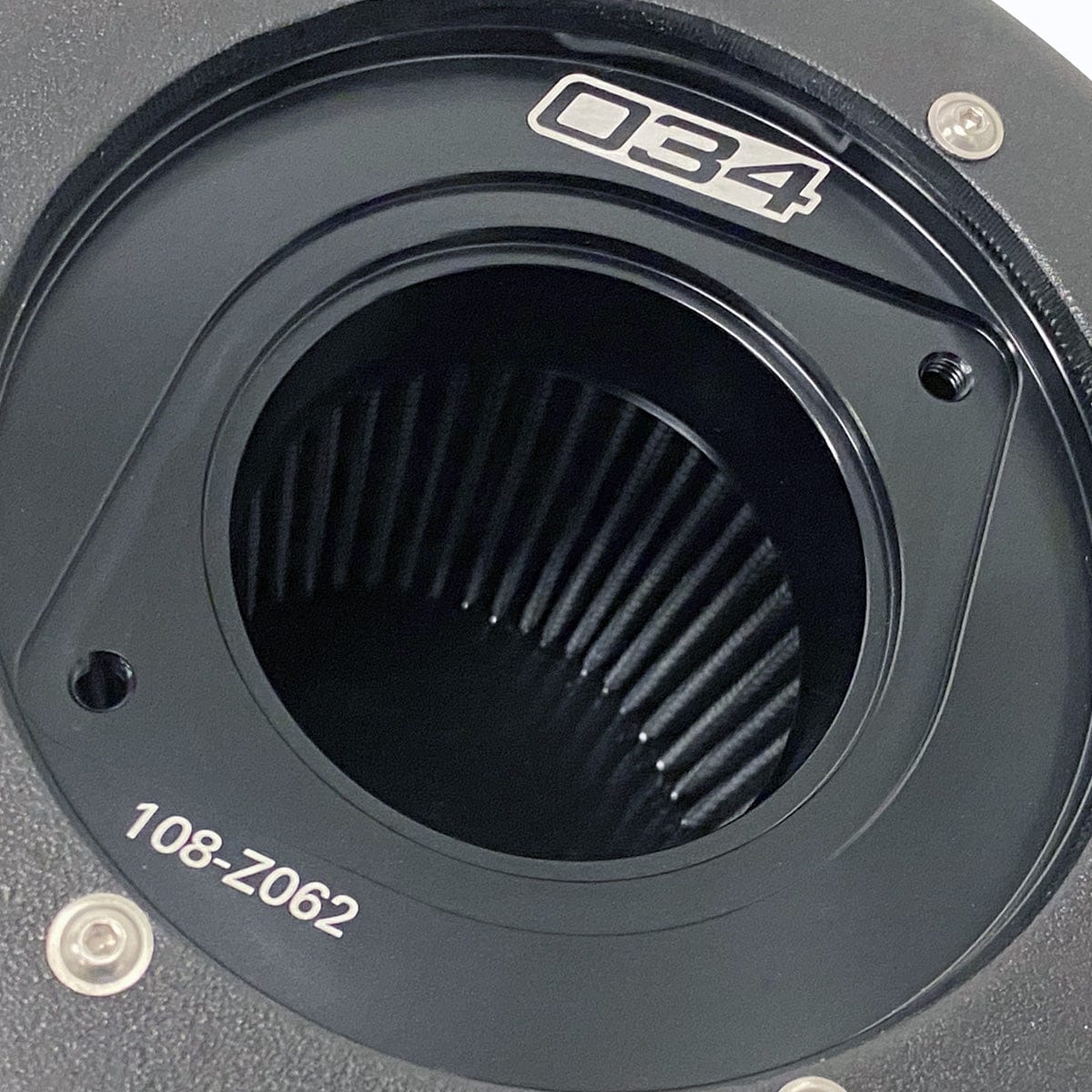

• Billet aluminium velocity stack with MAF sensor mount

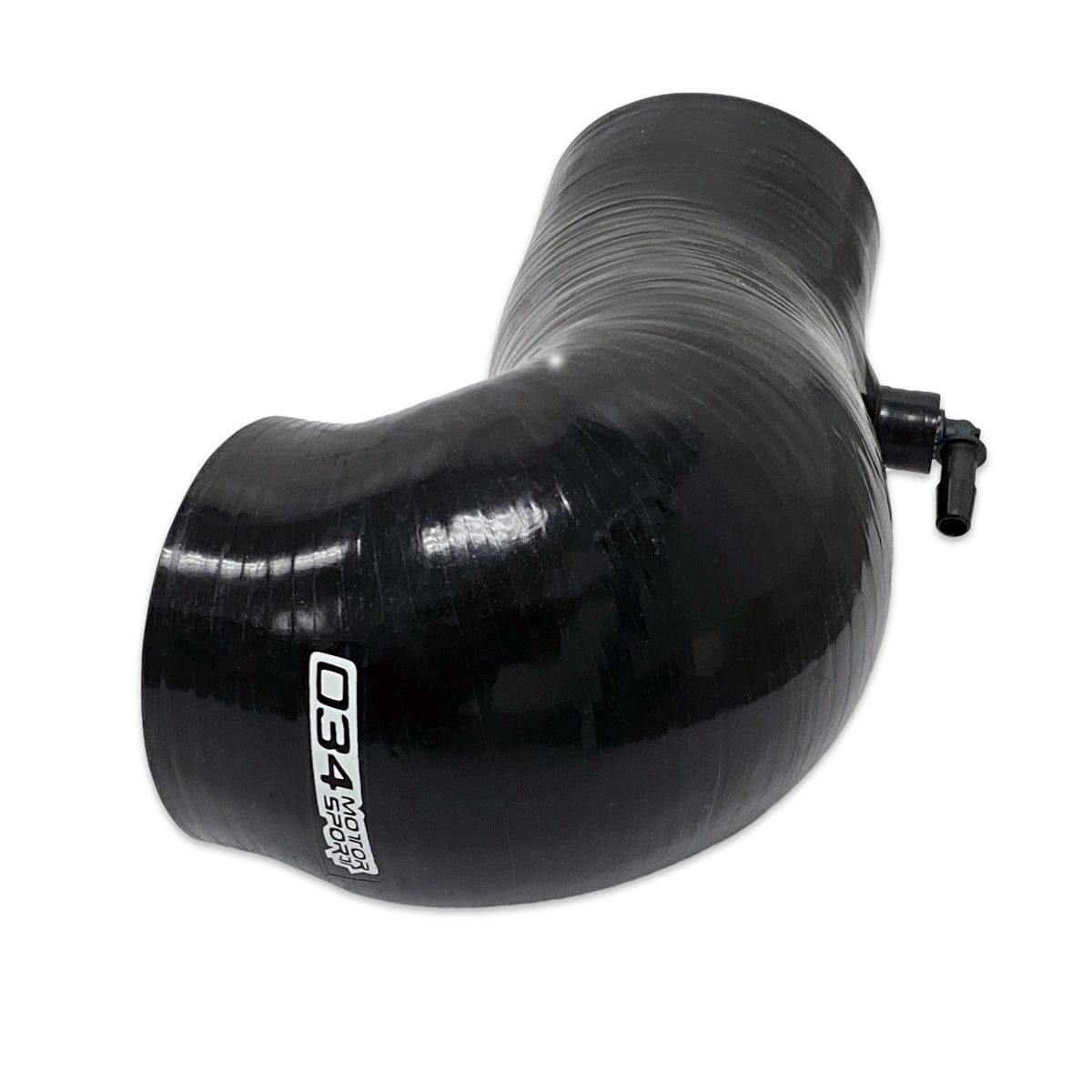

• Large CFD-optimised reinforced silicone turbo inlet hose
• Dyno-tested gains of up to 10 hp and 8 ft-lbs, per 034Motorsport
• Installs with the factory mounting grommets
• For MAF-equipped cars only

Specifications

• Brand: 034Motorsport
• Product Type: Cold Air Intake System
• Engine: EA888 Gen 3 2.0 TFSI (MAF version, typically 140 kW)
• Filter: 5-inch inlet conical
• Velocity Stack: CNC-machined billet aluminium with MAF mount provisions
• Turbo Inlet Hose: Reinforced silicone, CFD-optimised
• Dyno Results: 253 hp / 270 ft-lbs stock vs 262 hp / 274 ft-lbs with P34
• Peak Pressure Drop: 0.58 psi stock vs 0.10 psi at 6,300 RPM
• Part Number: 034-108-1023

Vehicle Compatibility: 3 applications across 1 make. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
