034Motorsport P34 Cold Air Intake - Audi B9 A4/A5 2.0 TFSI (MAP) - 034-108-1012

$1,349.99

Seen this item cheaper somewhere else? Send us the link and we'll do our best to match or beat the price. We'll reply by email.

Product details
  • Type Intake Systems
  • Vendor 034Motorsport
  • SKU 034-108-1012
  • Barcode Y5
Description Reviews

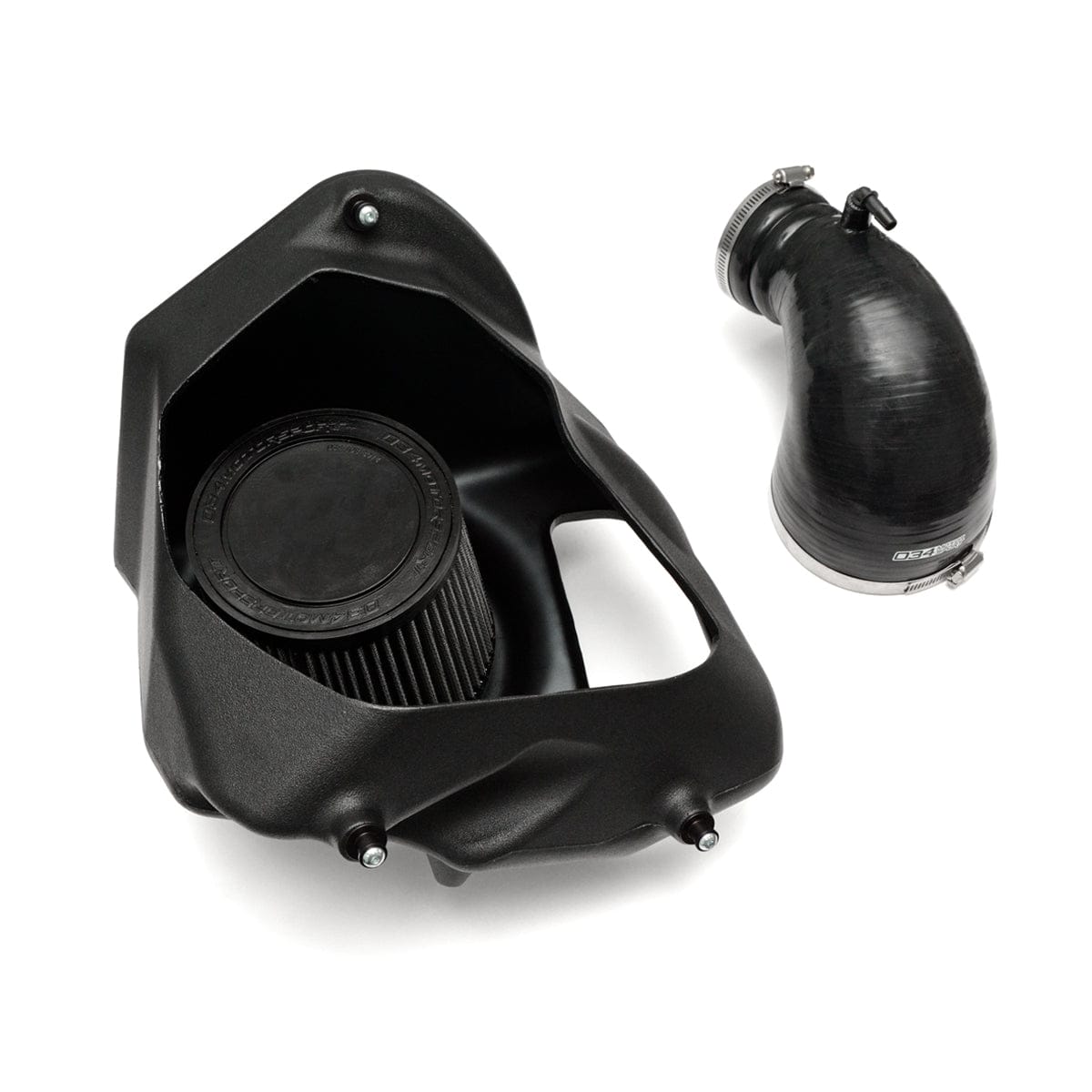

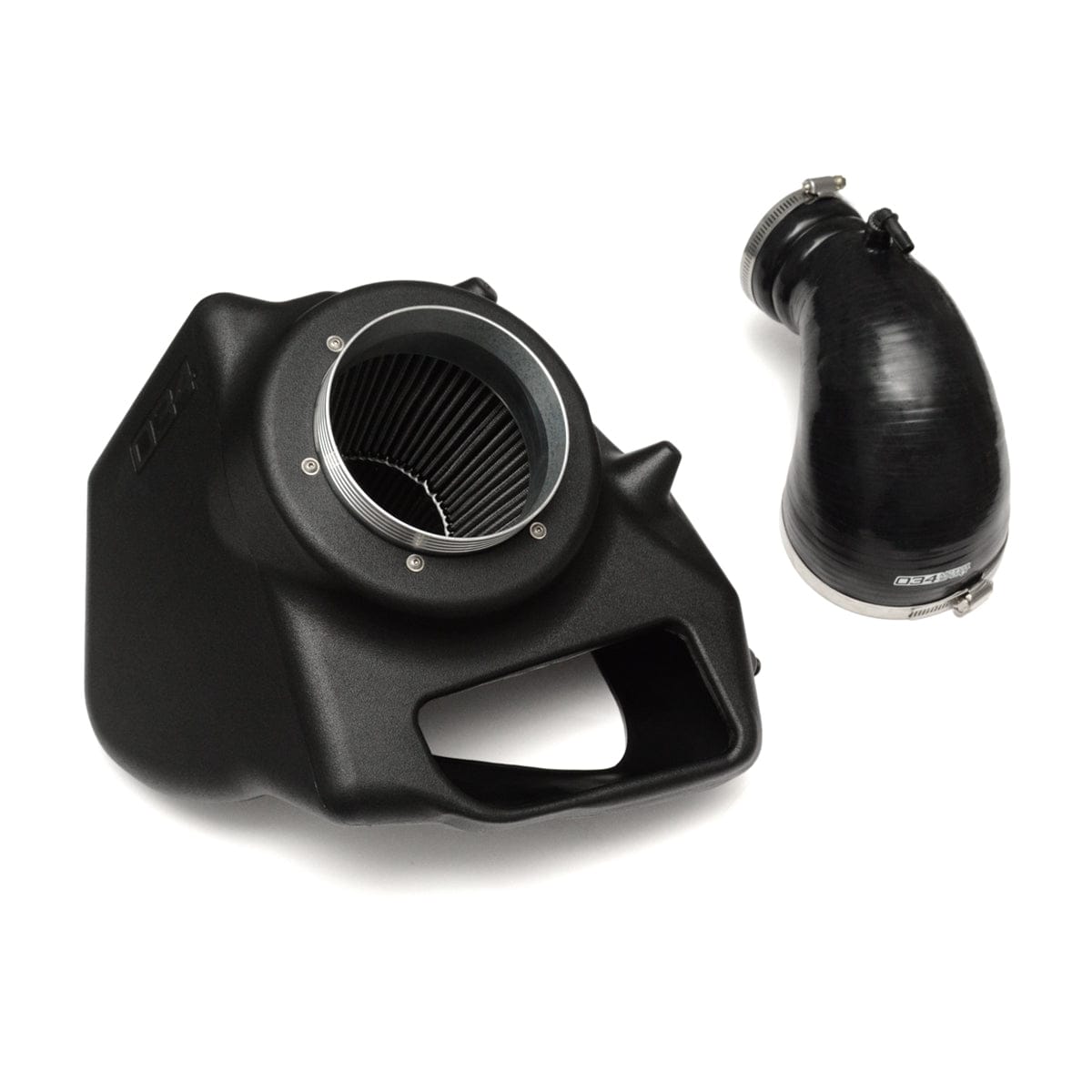

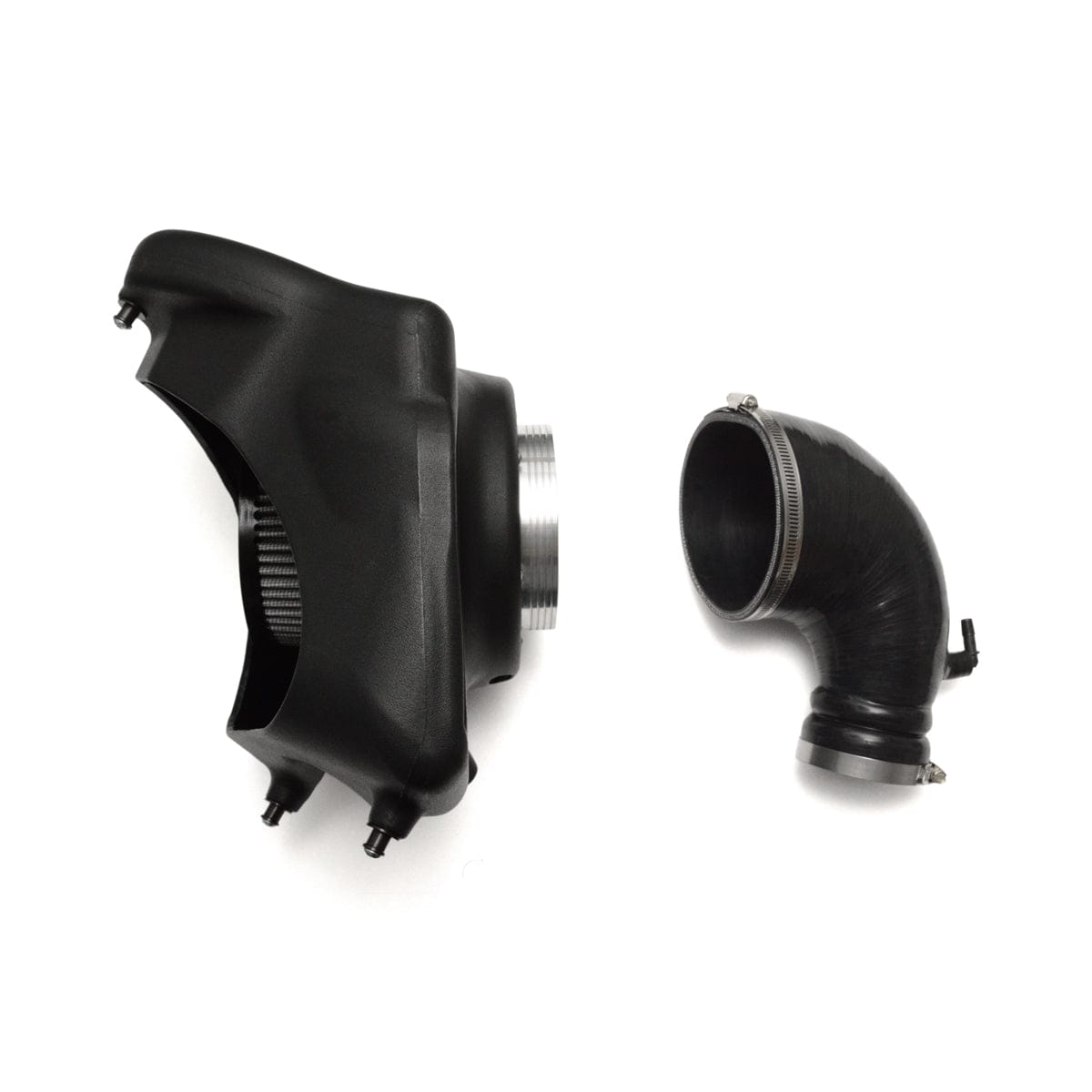

The P34 is a cold air intake for the longitudinal EA888 Gen 3 2.0 TFSI in the B9 Audi A4, A5 and Allroad, in the MAP-sensor version typically found on 180 kW models with the IS20 turbo. It replaces the factory airbox and turbo inlet hose with a partially enclosed airbox that keeps the factory fresh air duct and heat shield, a 5-inch inlet conical filter, a CNC-machined billet aluminium velocity stack and a large, CFD-optimised reinforced silicone turbo inlet hose. In 034Motorsport's dyno testing, peak output rose from 253 hp and 270 ft-lbs to 262 hp and 274 ft-lbs, and peak pressure drop at the turbo inlet fell from 0.58 psi to 0.10 psi. It suits only cars without a MAF sensor on the factory airbox, as a separate MAF version (034-108-1023) covers those, typically 140 kW models.

Features

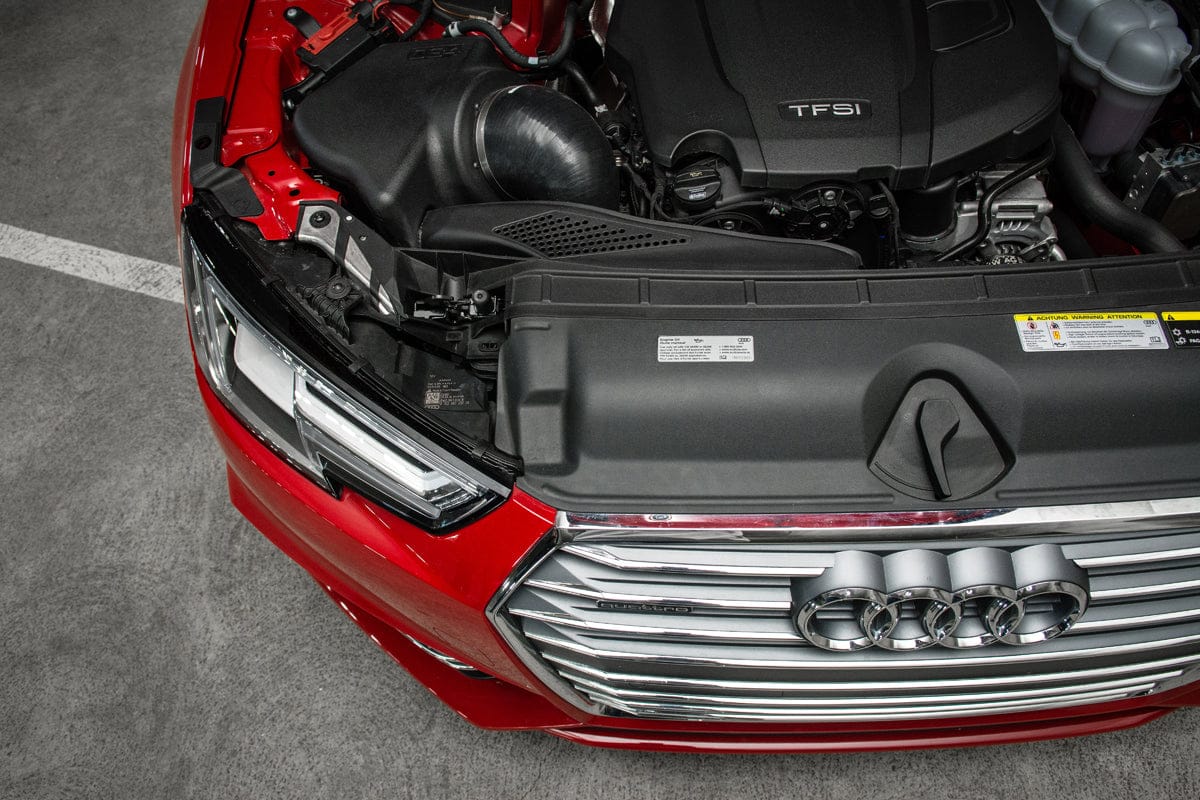

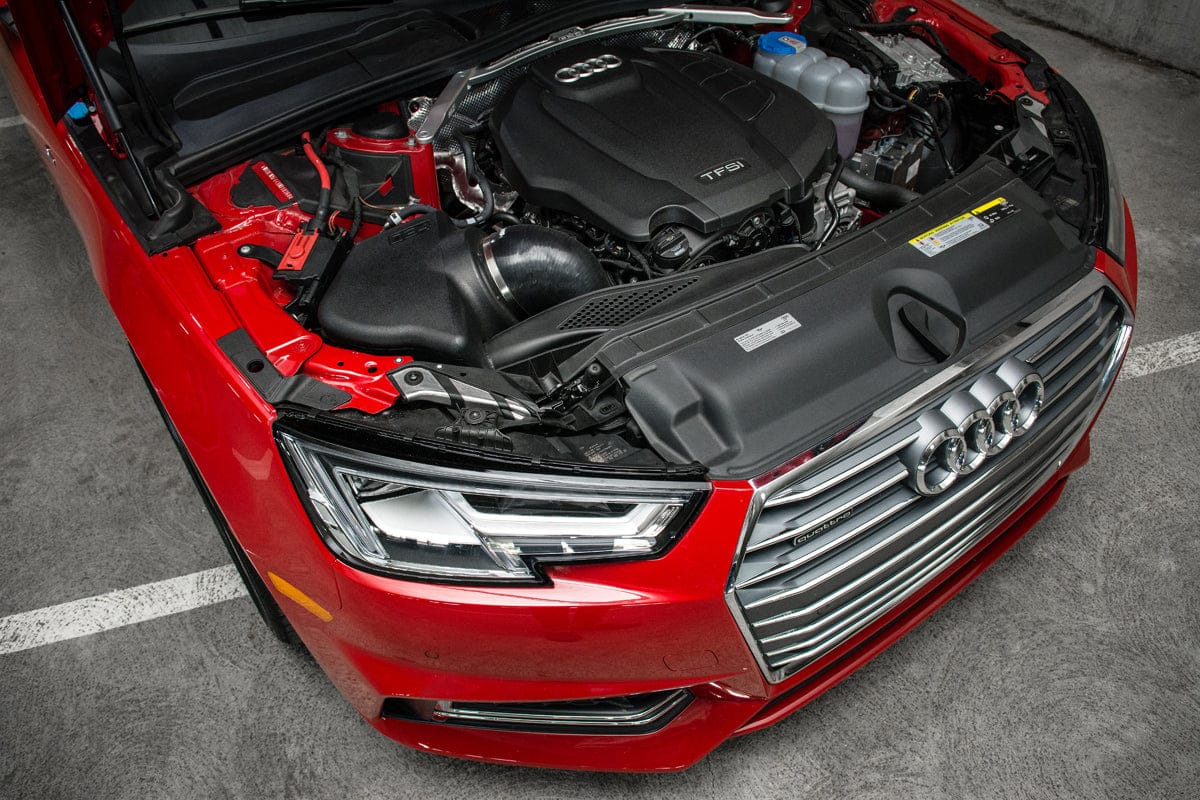

  • Partially enclosed airbox uses the factory inlet duct and heat shield

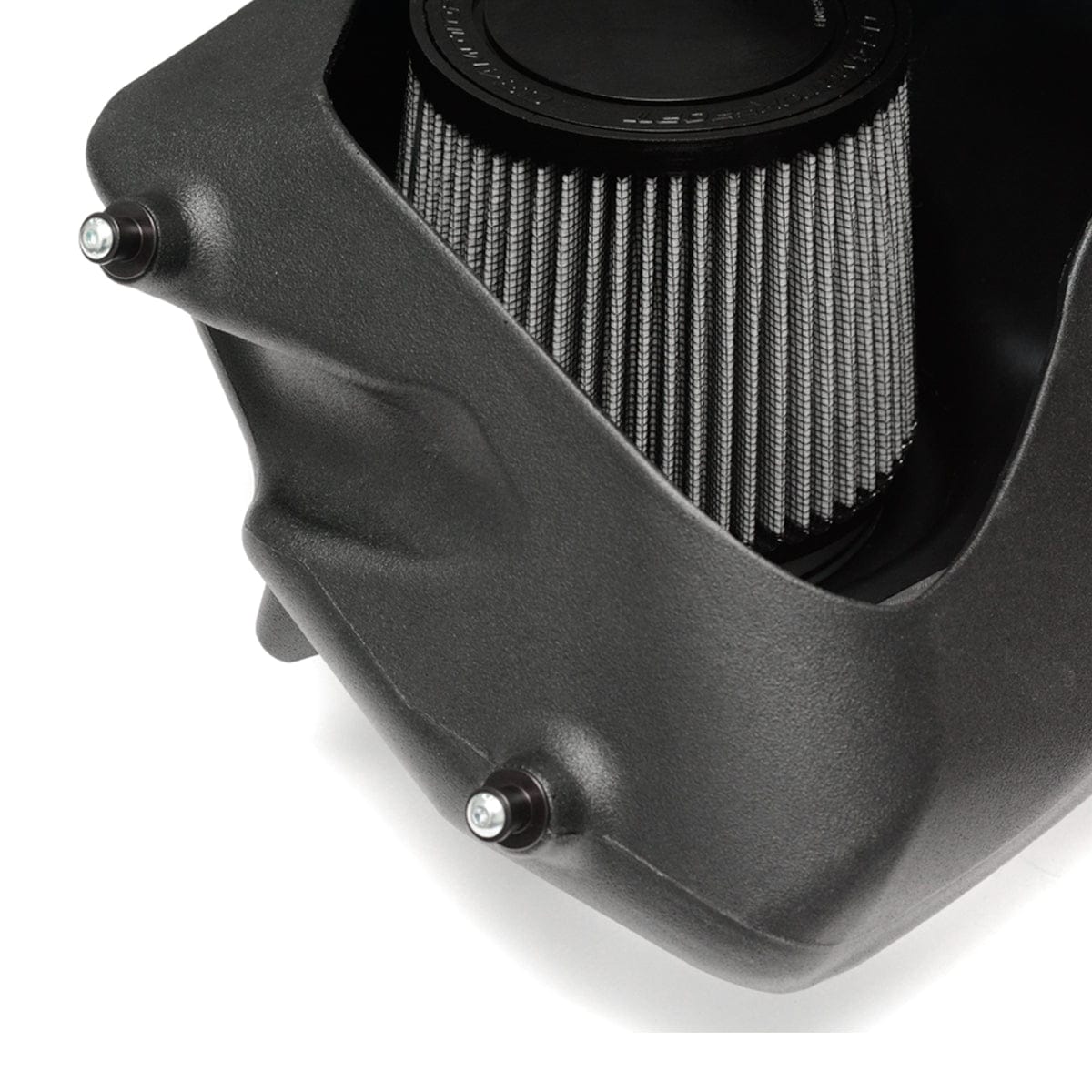

  • 5-inch inlet conical air filter
  • CNC-machined billet aluminium velocity stack
  • Large CFD-optimised reinforced silicone turbo inlet hose
  • Dyno-tested gains of up to 10 hp and 8 ft-lbs, per 034Motorsport
  • Installs with the factory mounting grommets
  • For MAP versions without a MAF on the airbox

Specifications

  • Brand: 034Motorsport
  • Product Type: Cold Air Intake System
  • Engine: EA888 Gen 3 2.0 TFSI (MAP version, 180 kW)
  • Filter: 5-inch inlet conical
  • Velocity Stack: CNC-machined billet aluminium
  • Turbo Inlet Hose: Reinforced silicone, CFD-optimised
  • Dyno Results: 253 hp / 270 ft-lbs stock vs 262 hp / 274 ft-lbs with P34
  • Peak Pressure Drop: 0.58 psi stock vs 0.10 psi at 6,300 RPM
  • Part Number: 034-108-1012

Vehicle Compatibility: 3 applications across 1 make. Select a make to view.

Audi (3)
Model Variant Engine Years Notes
A4 B9 2.0 TFSI (EA888 Gen 3, 180 kW) 2017-on MAP version only, no MAF on airbox
Allroad B9 2.0 TFSI (EA888 Gen 3, 180 kW) 2017-on MAP version only, no MAF on airbox
A5 B9 2.0 TFSI (EA888 Gen 3, 180 kW) 2018-on MAP version only, no MAF on airbox

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
