034Motorsport Rear Differential Mount, Delrin, Audi Small Chassis B2/B3 Audi UrQuattro/4000/80/90/Coupe Quattro - 034-505-2002

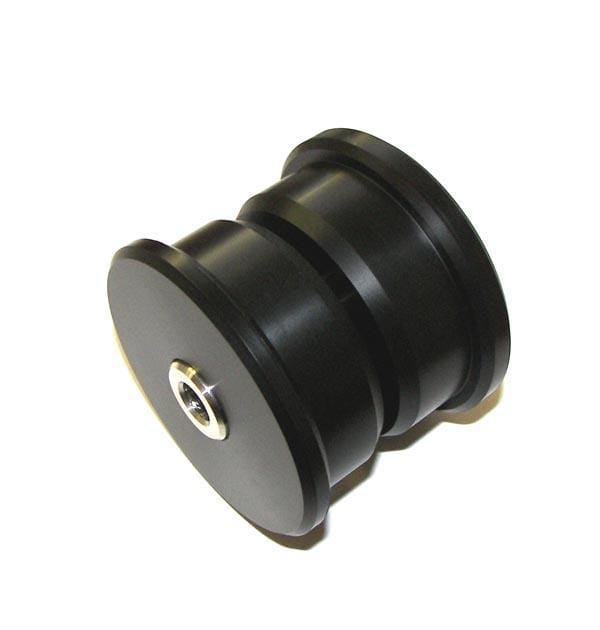

This Delrin rear differential mount replaces the rubber-bonded factory mount on small chassis Audi quattro models such as the Ur-quattro, 4000 quattro and the 80, 90 and Coupe Quattro. Made from high-density black Delrin with a steel centre for secure installation, it is an interference fit in the stock aluminium mount housing and a snug fit in the subframe bracket, giving very rigid differential mounting while keeping the factory off-centre differential position and alignment. 034Motorsport suggests pairing it with Density Line engine mounts to reduce drivetrain bind and movement and sharpen throttle response, and new mounting hardware is included. Fitting requires removing the stock bonded mount, and because Audi made the housings in two sizes, smaller housings will be 0.5mm undersize and need clearancing, which can only be checked by measuring once the old bushing is out.

Features

• High-density black Delrin with steel centre
• Interference fit into the stock aluminium housing
• Keeps the factory off-centre differential position
• Reduces drivetrain bind and movement
• New mounting hardware included
• Smaller housings need 0.5mm of clearancing

Specifications

• Brand: 034Motorsport
• Product Type: Rear Differential Mount
• Material: High-density black Delrin with steel centre
• Fit: Press fit for the larger factory housing; smaller housings need clearancing
• Includes: New mounting hardware
• Installation Note: Stock rubber-bonded mount must be removed
• Part Number: 034-505-2002

Vehicle Compatibility: 5 applications across 1 make. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
