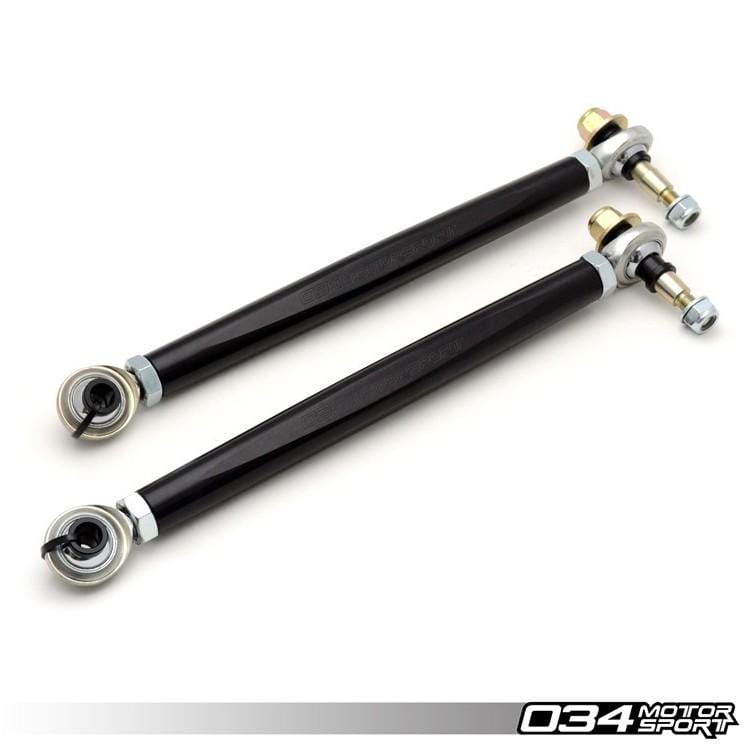

034Motorsport Rear Tie Rod Set, Spherical, Audi Small Chassis - 034-406-2001-9
This spherical rear tie rod set suits small-chassis Audi quattro models such as the Quattro, 4000 quattro, 80 and 90 quattro, Coupe quattro, S2 and RS2. Each link is billet aluminium with high-quality Aurora heim joints and a machined steel tie rod end adapter that fits the standard bearing carrier. The kit covers one rear subframe and includes the hardware and dust boots needed to install it. Because Audi used different tie rod lengths in this era, the factory rod should be measured centre to centre before ordering; this 9" kit suits rods measuring 11.625" to 13.5".
Features
- Billet aluminium links
- Aurora heim joints
- Machined steel adapter fits the stock bearing carrier
- Hardware and dust boots included
- Covers one rear subframe
- 9" kit suits factory rods of 11.625" to 13.5"
Specifications
- Brand: 034Motorsport
- Product Type: Spherical Rear Tie Rod Set
- Material: Billet aluminium links, machined steel tie rod end adapters
- Joints: Aurora heim joints
- Length: 9" kit, for factory tie rods measuring 11.625"-13.5" (11" kit covers 13.625"-15.5")
- How to Measure: Centre of inner mounting bolt to centre of outer tie rod end
- Includes: Parts for one rear subframe, hardware, dust boots
- Part Number: 034-406-2001-9
Vehicle Compatibility: 6 applications across 1 make. Select a make to view.
Audi (6)
| Model | Variant | Engine | Years |
|---|---|---|---|
| 4000 | |||
| 80 | |||
| 90 | |||
| Coupe | |||
| Quattro | |||
| S2 |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
