034Motorsport Rear Upper Adjustable Control Arms, Audi 8J/8P/8V A3/S3/RS3/TT/TTS/TTRS & Volkswagen Golf GTI/R MK5/6/7 - 034-401-1053

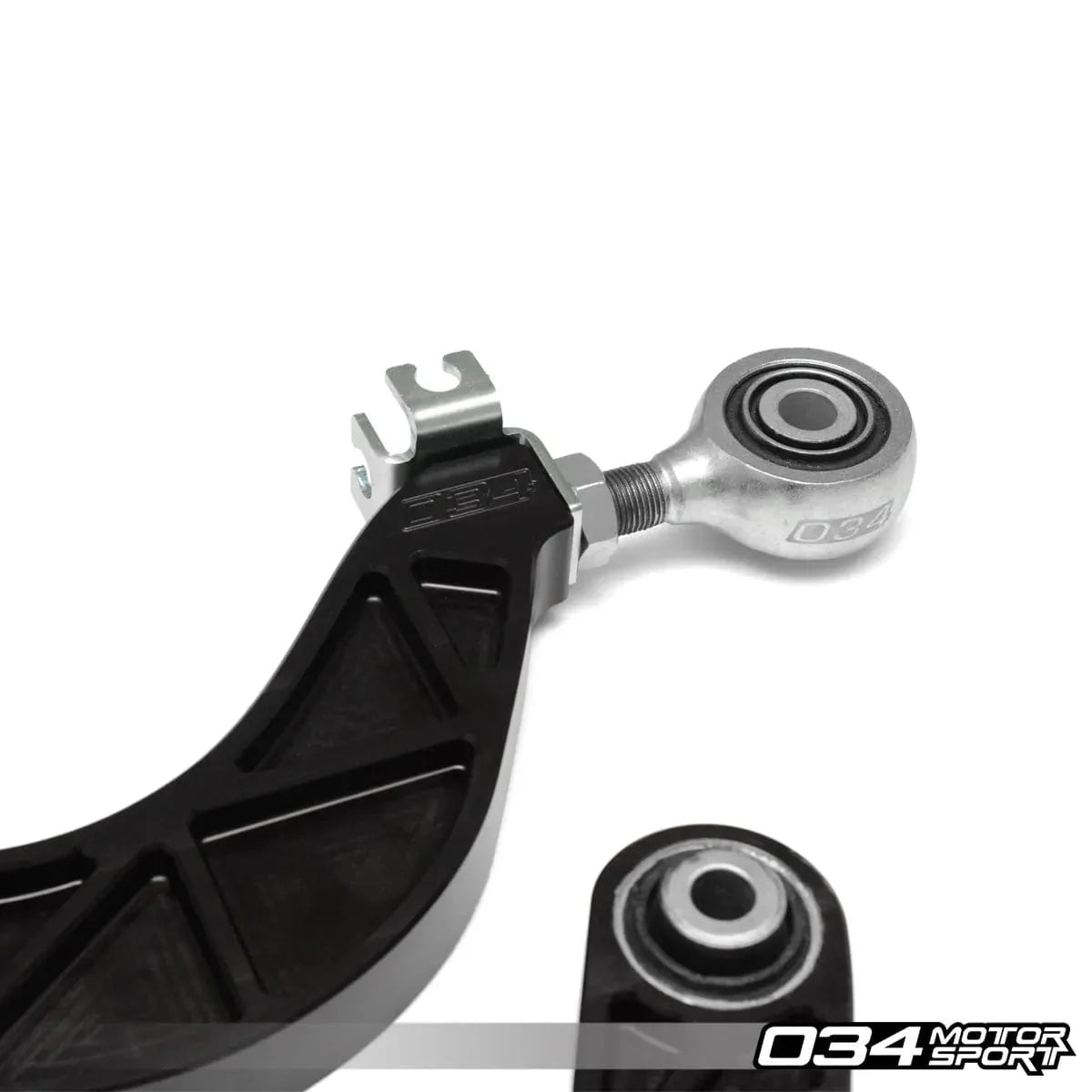

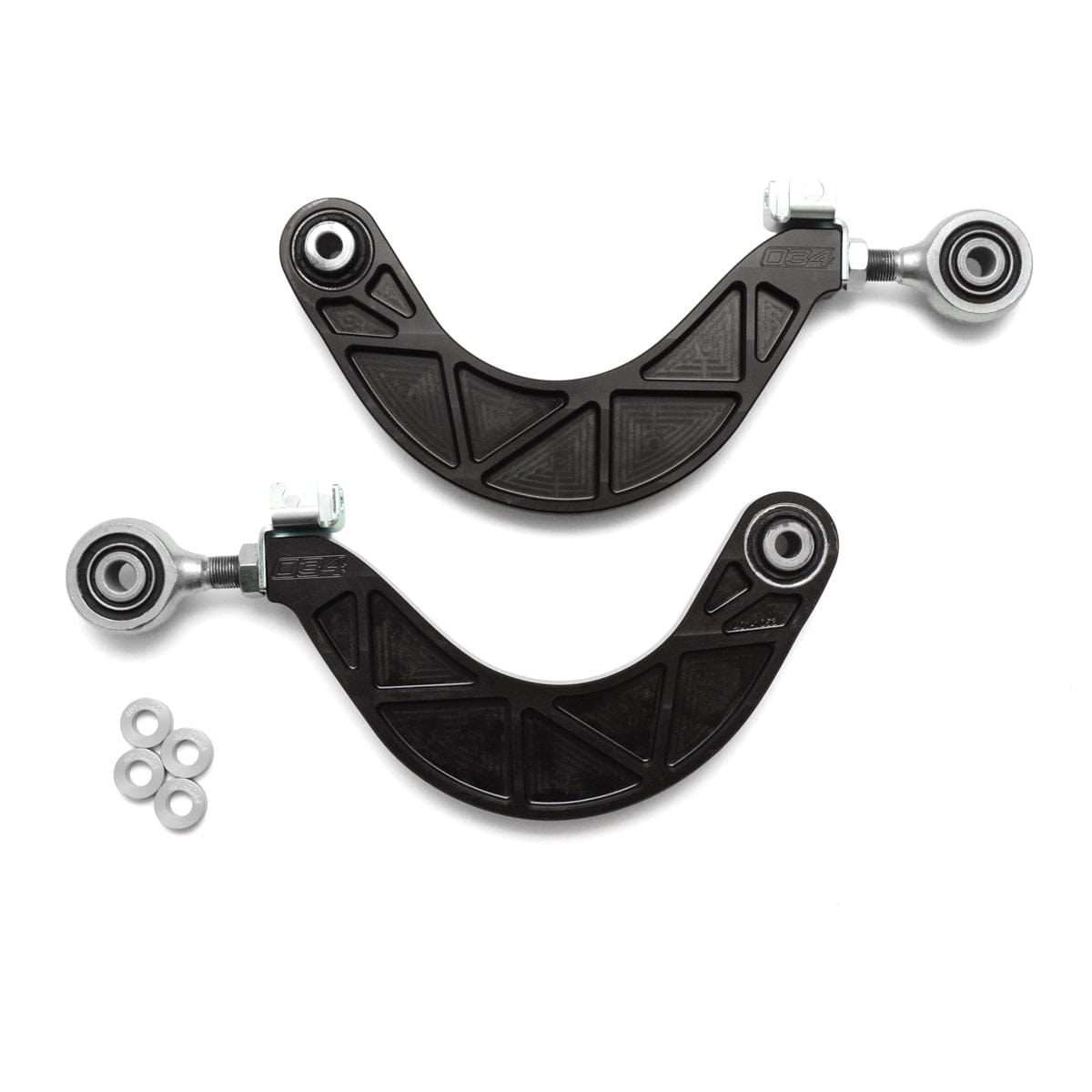

These Density Line adjustable rear upper control arms replace the factory stamped steel arms on PQ35, MQB and MQB EVO platform cars, including the Mk5 to Mk8 Volkswagen Golf, GTI and R, the 8P, 8V and 8Y Audi A3, S3 and RS3, and the 8J and 8S Audi TT, TTS and TT RS. They allow simple, precise rear camber adjustment of approximately 5 degrees beyond the range of the factory eccentric bolt, from -2.4 to +2.6 degrees, in 1/36" steps of about 0.18 degrees each. The arms are CNC machined from 6061-T6 aluminium and anodised black, with zinc-plated forged steel threaded rod ends. High-durometer (90) rubber bushings limit deflection under load so suspension geometry is maintained, and the arms are a direct drop-in replacement sold as a pair.
Features
- CNC-machined 6061-T6 aluminium arms, black anodised

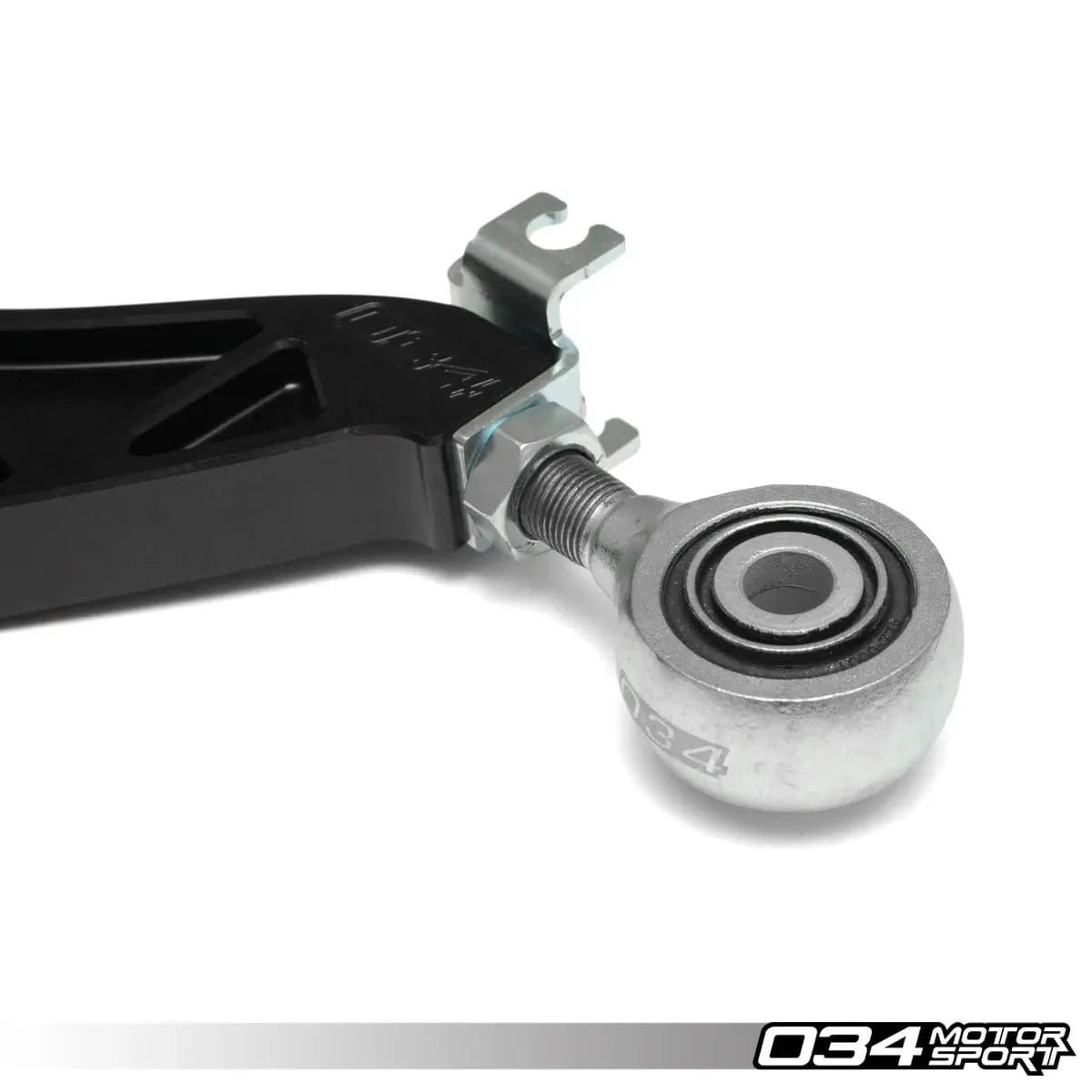

- Zinc-plated forged steel threaded rod ends

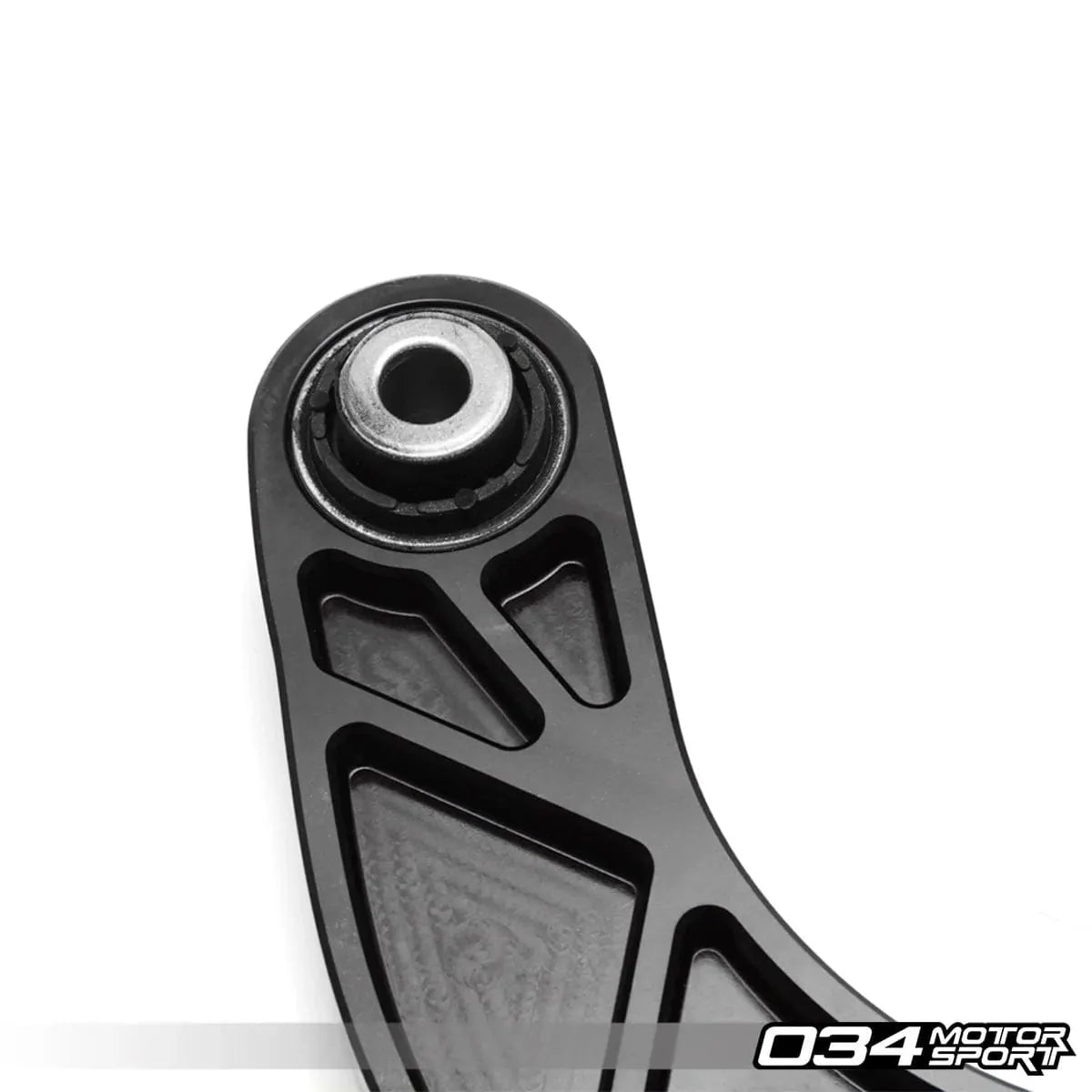

- 90 durometer rubber bushings reduce deflection
- About 5 degrees of extra camber adjustment (-2.4 to +2.6)
- Adjusts in 1/36" steps of about 0.18 degrees
- Direct drop-in replacement for the factory arms
- Sold as a pair
Specifications
- Brand: 034Motorsport
- Product Type: Rear Upper Control Arms
- Material: CNC-machined 6061-T6 aluminium
- Finish: Black anodised
- Rod Ends: Zinc-plated forged steel
- Bushings: 90 durometer rubber
- Camber Adjustment: Approx. 5 degrees (-2.4 to +2.6) beyond the factory eccentric bolt
- Adjustment Increment: 1/36" (approx. 0.18 degrees)
- Quantity: Pair
- Platform: PQ35, MQB, MQB EVO
- Part Number: 034-401-1053
Vehicle Compatibility: 42 applications across 5 makes. Select a make to view.
Audi (19)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A3 | 8P | 2.0 TDI, 2.0 TSI, 2.0T FSI, 3.2L VR6 24V | 2006-2013 |
| A3 | 8V | 1.8 TFSI, 2.0 TDI, 2.0 TFSI | 2015-on |
| A3 | 8Y | ||
| S3 | 8P | 2.0T FSI | 2006-2013 |
| S3 | 8V | 2.0 TFSI | 2015-on |
| S3 | 8Y | ||
| RS3 | 8P | 2.5 TFSI | 2011-2013 |
| RS3 | 8V | 2.5 TFSI | 2015-2017 |
| RS3 | 8V.5 | 2.5 TFSI EVO | 2017-on |
| RS3 | 8Y | 2.5 TFSI EVO | 2022-on |
| Q2 | MQB | 2.0T | 2017-2021 |
| Q3 | 8U | 2.0 TFSI | 2012-on |
| RS Q3 | F3 | 2.5T | 2019-on |
| TT | 8J | 2.0 TFSI, 2.0 TSI, 2.0T FSI, 3.2L VR6 24V | 2008-2015 |
| TT | 8S | 2.0T Gen 3 | 2016-on |
| TTS | 8J | 2.0T FSI | 2008-2015 |
| TTS | 8S | 2.0T Gen 3 | 2016-on |
| TT RS | 8J | 2.5 TFSI | 2012-2013 |
| TT RS | 8S | 2.5 TFSI EVO | 2018-on |
Cupra (1)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Formentor | Mk1 | 2.0T/2.5T | 2021-on |
SEAT (3)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Ateca | Mk1 | 1.8T/2.0T | 2016-2021 |
| Leon | Mk2/Mk3/Mk4 | All | 2006-on |
| Tarraco | Mk1 | 2.0T | 2019-2021 |
Skoda (5)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Karoq | Mk1 | 2.0T | 2017-on | |
| Kodiaq | Mk1 | 2.0T | 2016-on | |
| Octavia | 2.0T | 2016-on | ||
| Superb | B8 | 1.8T/2.0T | 2016-2020 | |
| Yeti | Mk1 | 1.8T | 2010-2018 | Confirm fitment before ordering |
Volkswagen (14)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Eos | Mk5 | 2.0 TSI, 2.0T FSI, 3.2L VR6 24V | 2006-2015 | |
| Golf | Mk5 | 2.0 TSI, 2.0T FSI, 2.5L | 2006-2009 | |
| Golf | Mk6 | 2.0 TDI, 2.0 TSI, 2.5L | 2010-2014 | |
| Golf | Mk7 | 1.8T Gen 3, 2.0 TDI, 2.0T Gen 3 | 2015-on | |
| e-Golf | Mk7/Mk7.5 | 2015-2020 | ||
| Golf GTI | Mk5 | 2.0 TSI, 2.0T FSI | 2006-2009 | |
| Golf GTI | Mk6 | 2.0 TSI | 2010-2014 | |
| Golf GTI | Mk7 | 2.0T Gen 3 | 2015-on | |
| Golf GTI | Mk8 | |||
| Golf R | Mk6 | 2.0 TSI | ||
| Golf R | Mk7 | 2.0 TSI | ||
| Golf R | Mk8 | |||
| Jetta | Mk5 | 2.0 TDI, 2.0 TSI, 2.0T FSI, 2.5L | 2005-2010 | Includes GLI |
| Jetta | Mk6 | 1.4 TSI, 1.8T Gen 3, 2.0 TDI, 2.0 TSI, 2.0L 8V, 2.0T Gen 3, 2.5L | 2011-2017 | Includes GLI |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
