034Motorsport Subframe Bushing Set, Aluminum, Volkswagen MK4 & 8L Audi - 034-601-0004

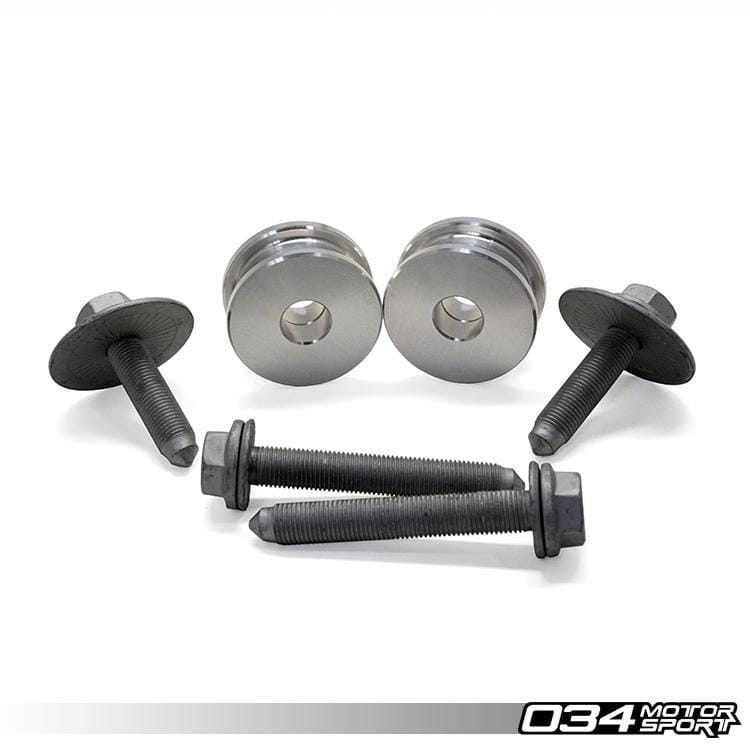

This set of solid aluminium bushings replaces the rubber rear bushings in the front subframe of front-wheel-drive Mk4 Volkswagen models and the 8L Audi A3, where the front mounting points are already solid from the factory. CNC-machined from 6061-T6 aluminium, the bushings remove the slop and movement of the rubber originals and hold suspension geometry for sharper steering, better handling and more even tyre wear. A set of four bushings and a factory subframe bolt set are included. Because the factory steel subframe has loose tolerances and the bushings are machined to a very tight fit, 034Motorsport advises that the subframe will need clearancing with a sanding roll or carbide bit during installation.
Features
- CNC-machined 6061-T6 aluminium bushings
- Replaces the rear bushings in the front subframe
- Eliminates subframe slop and movement
- Maintains suspension geometry for steering response and tyre wear
- Set of four with factory subframe bolts
- Subframe clearancing required
Specifications
- Brand: 034Motorsport
- Product Type: Subframe Bushing Set
- Material: Solid CNC-machined 6061-T6 aluminium
- Position: Rear bushings of the front subframe
- Includes: 4 solid aluminium subframe bushings, factory subframe bolt set
- Replaces OE: 1J0199429
- Installation Note: Subframe must be clearanced to fit
- Part Number: 034-601-0004
Vehicle Compatibility: 6 applications across 2 makes. Select a make to view.
Audi (1)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| A3 | 8L | FWD only |
Volkswagen (5)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Golf | Mk4 | FWD only | ||
| Golf GTI | Mk4 | FWD only | ||
| Jetta | Mk4 | FWD only | ||
| Jetta GLI | Mk4 | FWD only | ||
| Beetle | Mk4 chassis | FWD only |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
