034Motorsport Subframe Bushing Set, MK4 Volkswagen R32 & 8L/8N Audi A3/S3/TT Quattro - 034-601-0003

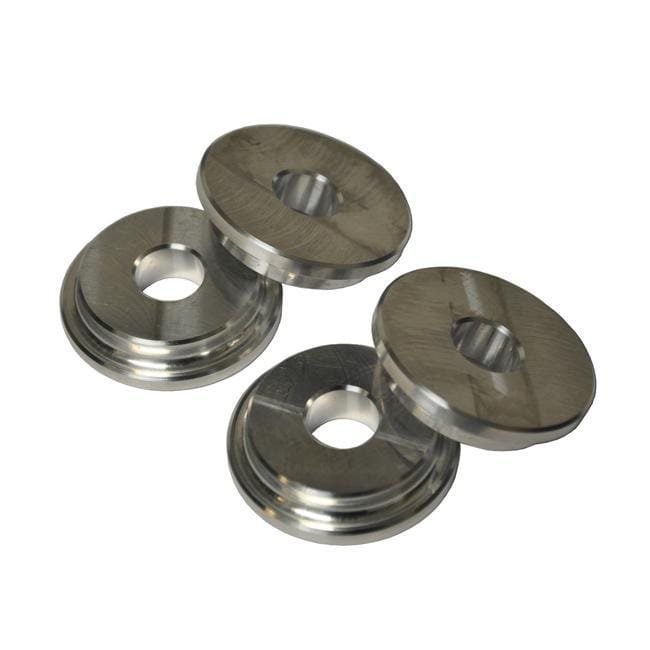

These solid billet aluminium bushings replace the factory rubber bushings at the rear of the front subframe on the Mk4 Volkswagen R32 and other Mk4 AWD models, the 8L Audi A3 and S3 quattro and all 8N Audi TT models. 034Motorsport explains that the comfort-oriented rubber bushings let the subframe shift under load, creating suspension and drivetrain slop that shows up when the car is pushed on track. CNC machined from 6061-T6 aluminium, the bushings hold the subframe firmly to maintain geometry for better handling, tyre wear and steering response, and a factory subframe bolt set is included. The billet parts are machined to tight tolerances while the factory subframe is not, so the subframe will need clearancing with a sanding roll or carbide bit to fit them.
Features
- CNC-machined 6061-T6 aluminium
- Replaces the rear bushings in the front subframe
- Removes subframe slop and movement
- Maintains geometry for handling, tyre wear and steering
- Replaces factory parts 8N0199282C and 8N0199282D
- Factory subframe bolt set included
- Subframe requires clearancing to fit
Specifications
- Brand: 034Motorsport
- Product Type: Subframe Bushing Set
- Material: CNC-machined 6061-T6 aluminium
- Position: Rear mounts of the front subframe
- Quantity: Set of 4
- Includes: 4 solid aluminium subframe bushings, factory subframe bolt set
- Replaces OEM: 8N0199282C, 8N0199282D
- Part Number: 034-601-0003
Vehicle Compatibility: 5 applications across 2 makes. Select a make to view.
Audi (3)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| A3 | 8L | Quattro only | ||
| S3 | 8L | |||
| TT | 8N | FWD and quattro |
Volkswagen (2)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Golf R32 | Mk4 | |||
| Golf | Mk4 | AWD (4Motion) only |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
