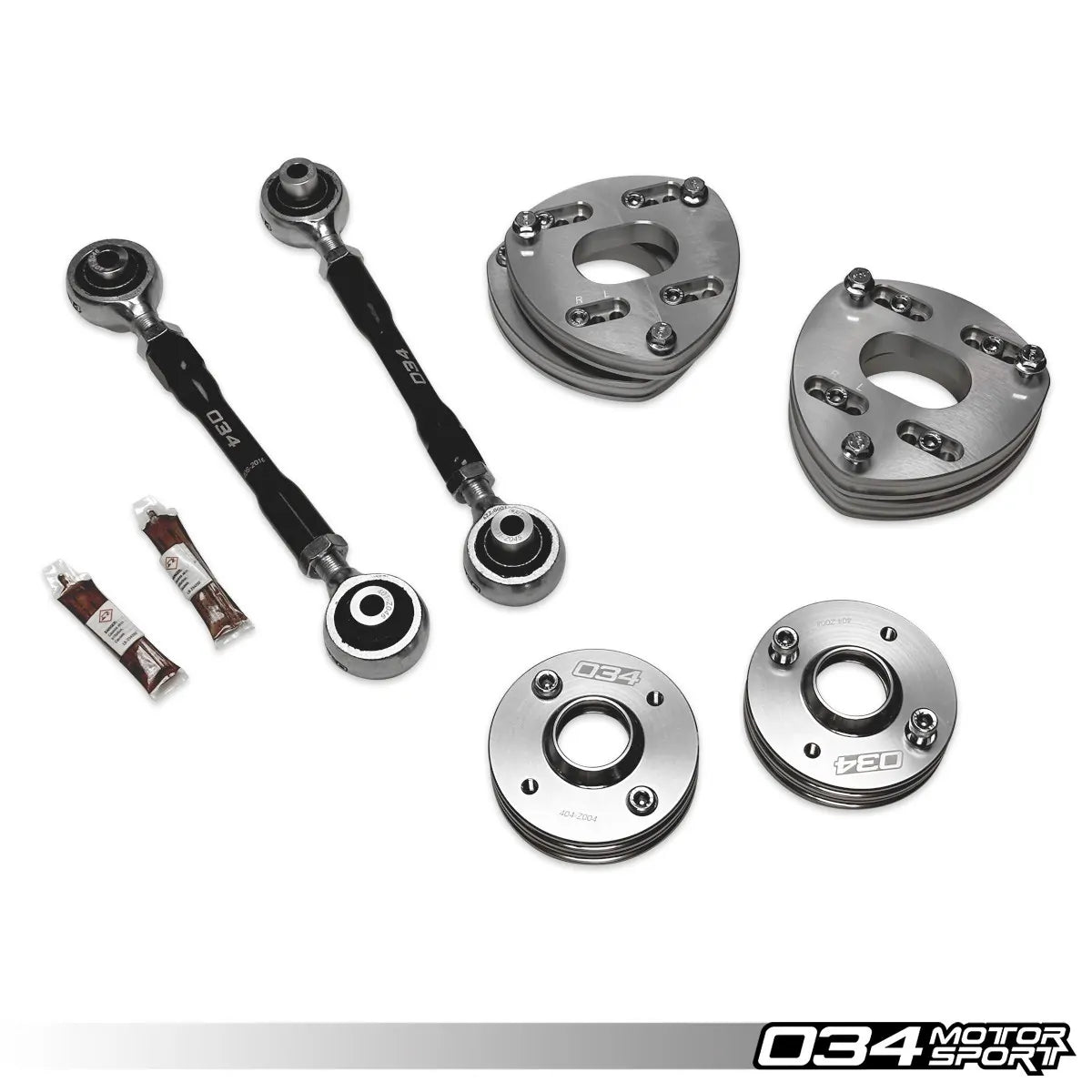

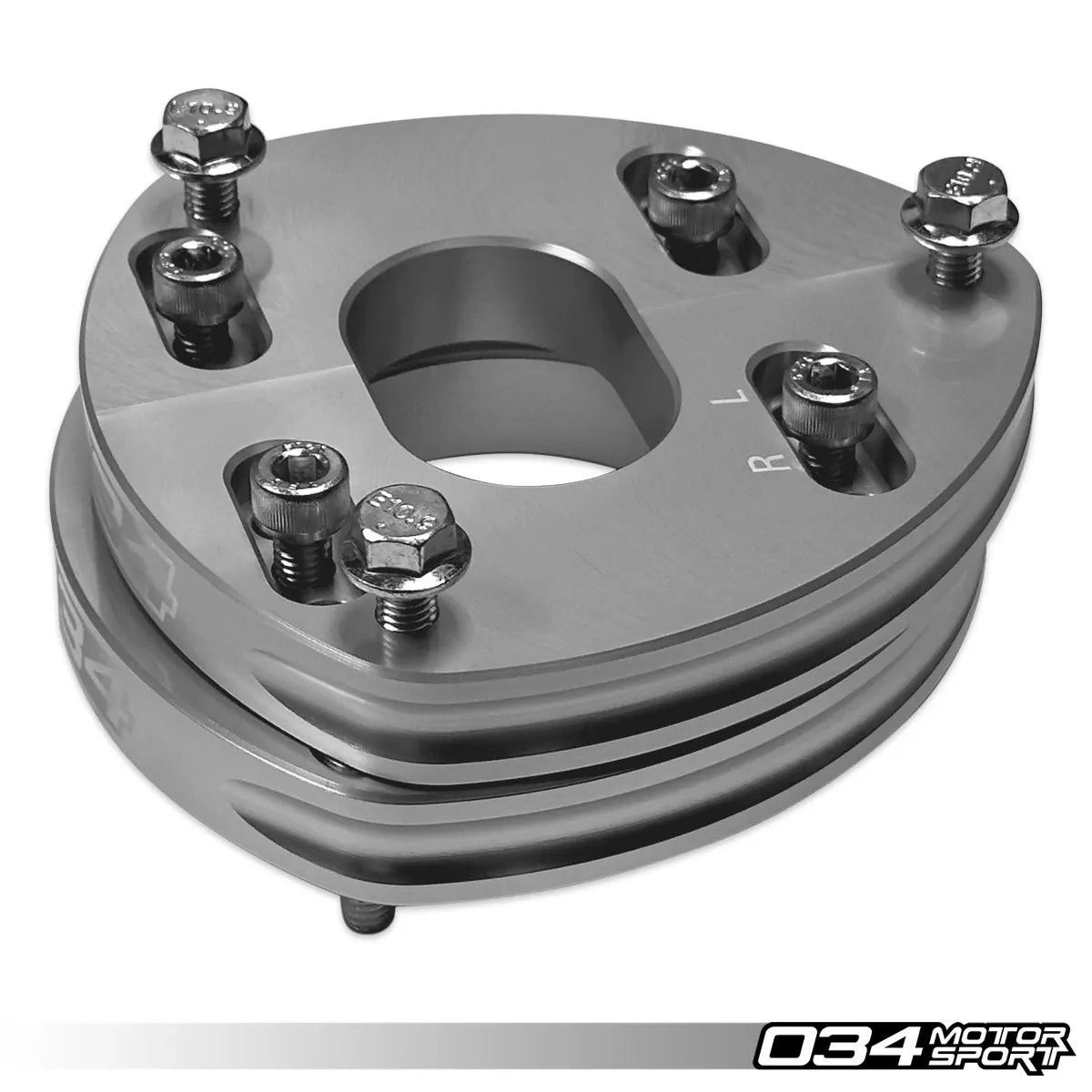

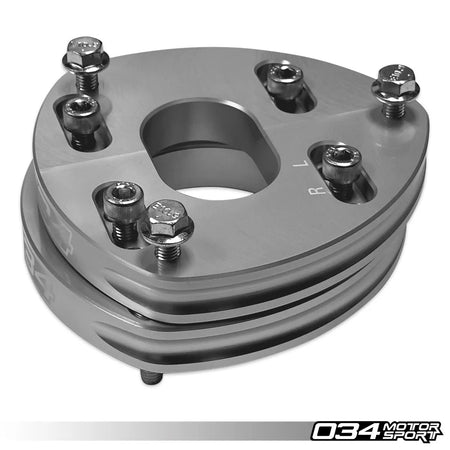

This lift kit raises the Audi F3 Q3 and the Mk2 Volkswagen Tiguan, adding 1.3" of ride height at the front and 1.18" at the rear for a level, no-rake stance with more ground and fender clearance. The lift components are CNC machined from 6061-T6 aluminium with precision-machined slots that let the car keep factory camber and caster alignment specs, plus a camber-only slot for large tyre setups that would otherwise rub the fender liner. The kit includes Density Line Adjustable Rear Toe Links, which 034Motorsport says are needed to set rear toe properly at the raised ride height. It is bolt-in and reversible, with spring centering cups on the rear and the stock rear spring isolator reused.
Features
- Front lift 34mm (1.3"), rear lift 1.18" for a level stance
- CNC machined 6061-T6 aluminium, clear anodised

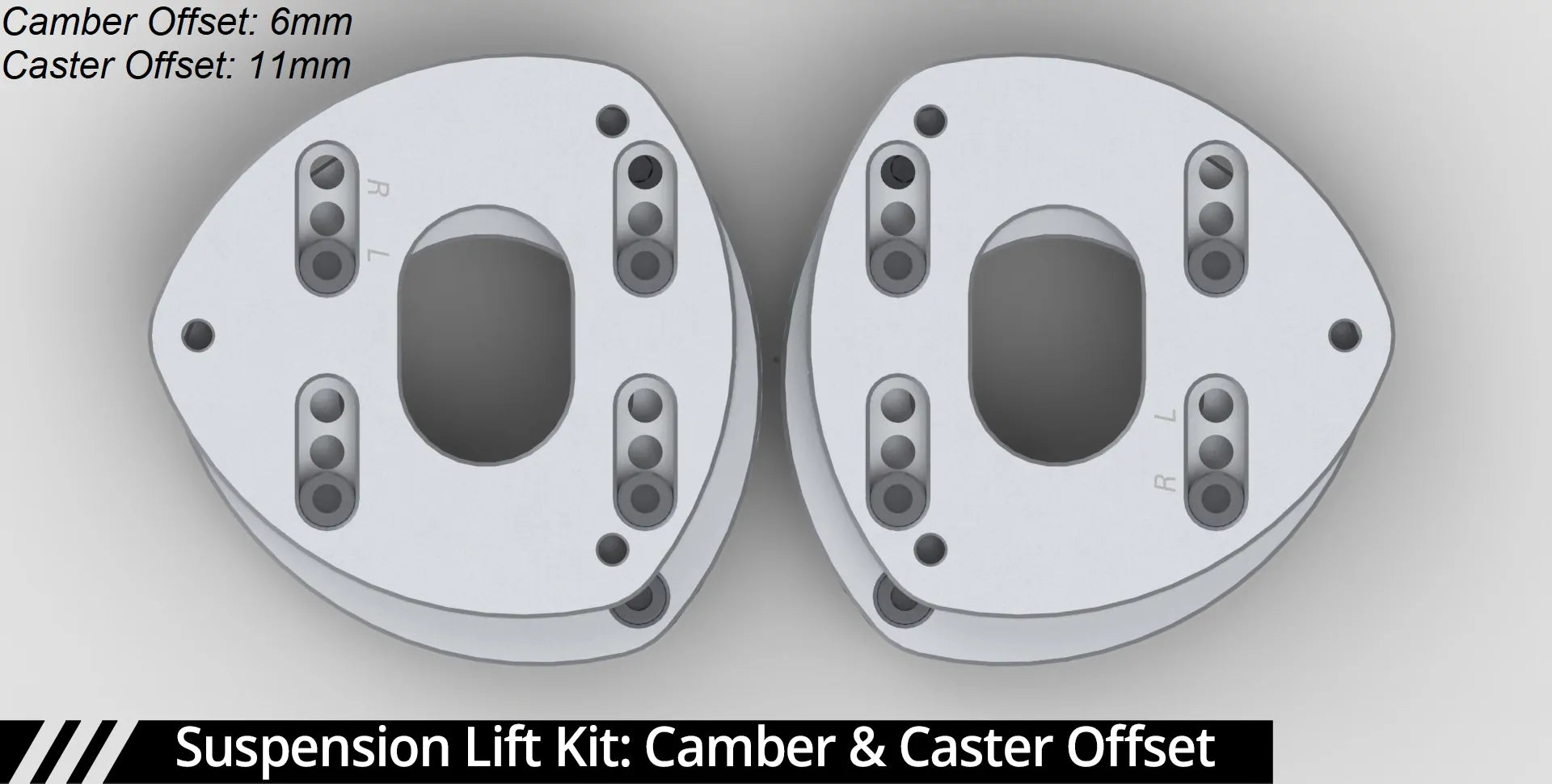

- Built-in camber and caster offset to keep factory alignment specs

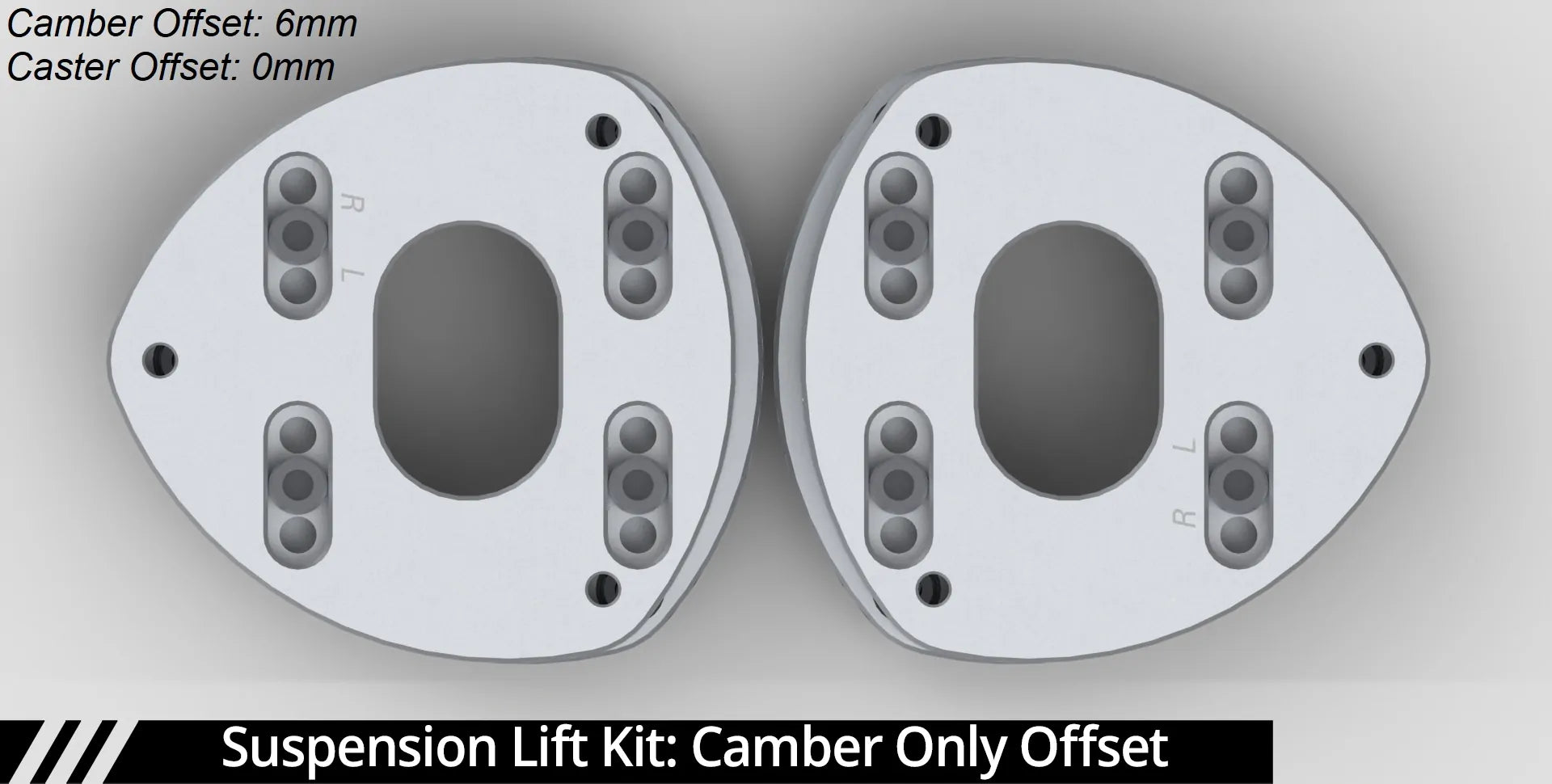

- Camber-only slot to avoid fender liner rubbing on large tyres
- Density Line adjustable rear toe links included
- Bolt-in and easily reversible, minimal NVH added

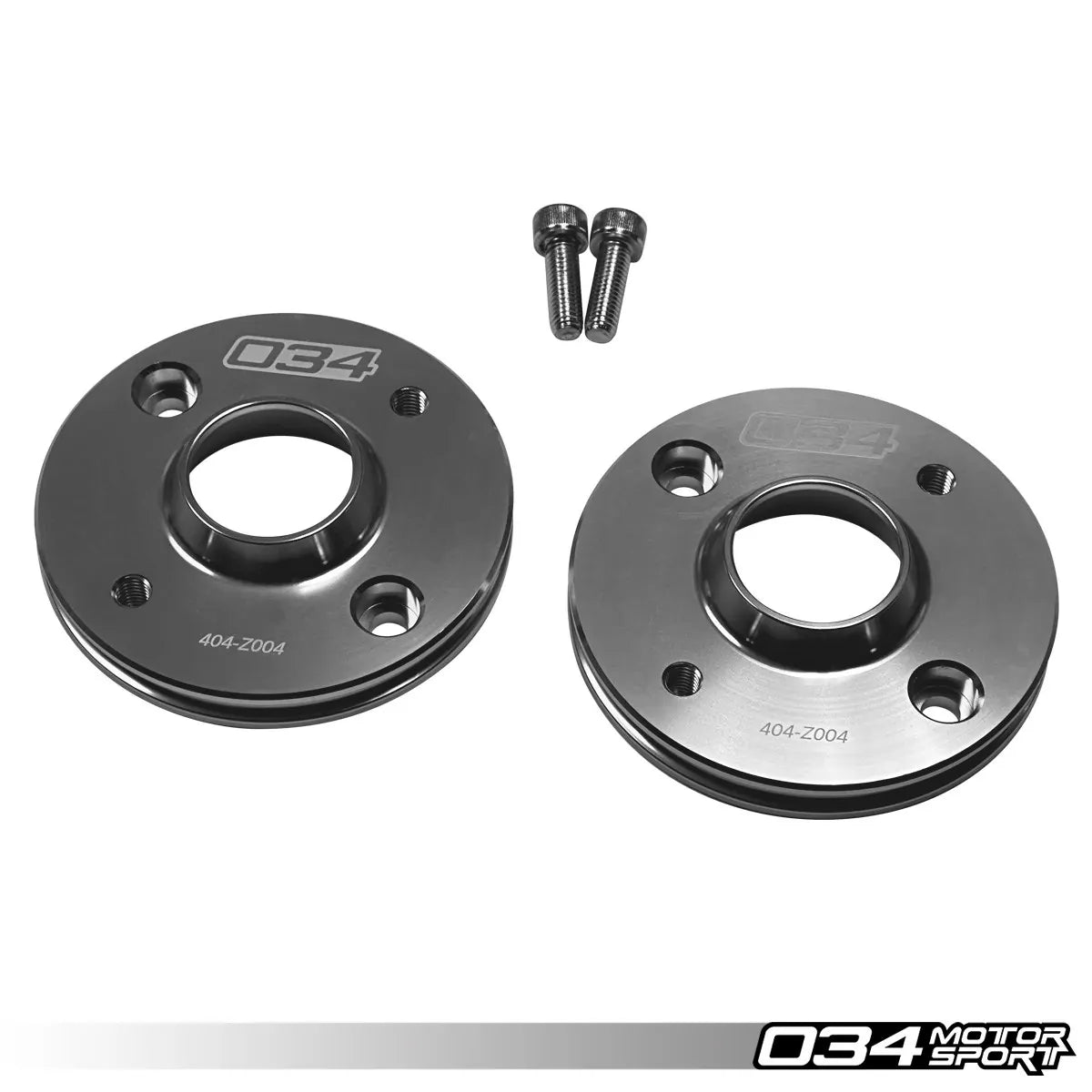

- Spring centering cups on the rear, stock isolator reused
Specifications
- Brand: 034Motorsport
- Product Type: Suspension Lift Kit
- Front Lift: 34mm (1.3")
- Rear Lift: 1.18"
- Material: CNC machined 6061-T6 aluminium, clear anodised
- Alignment: Camber and caster correction slot, or a camber-only slot for large tyres
- Rear Toe Links: Density Line adjustable, forged steel threaded rod ends with 90 durometer rubber bushings
- Installation: Bolt-in and easily reversible
- Part Number: 034-404-Z006
Vehicle Compatibility: 3 applications across 2 makes. Select a make to view.
Audi (1)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Q3 | F3 | 2.0 TFSI | 2018-on |
Volkswagen (2)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Tiguan | Mk2 (AD, MQB) | 2.0T Gen 3 | 2018-on |
| Tiguan R | Mk2 (AD, MQB) | 2.0T Gen 4 | 2021-on |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
