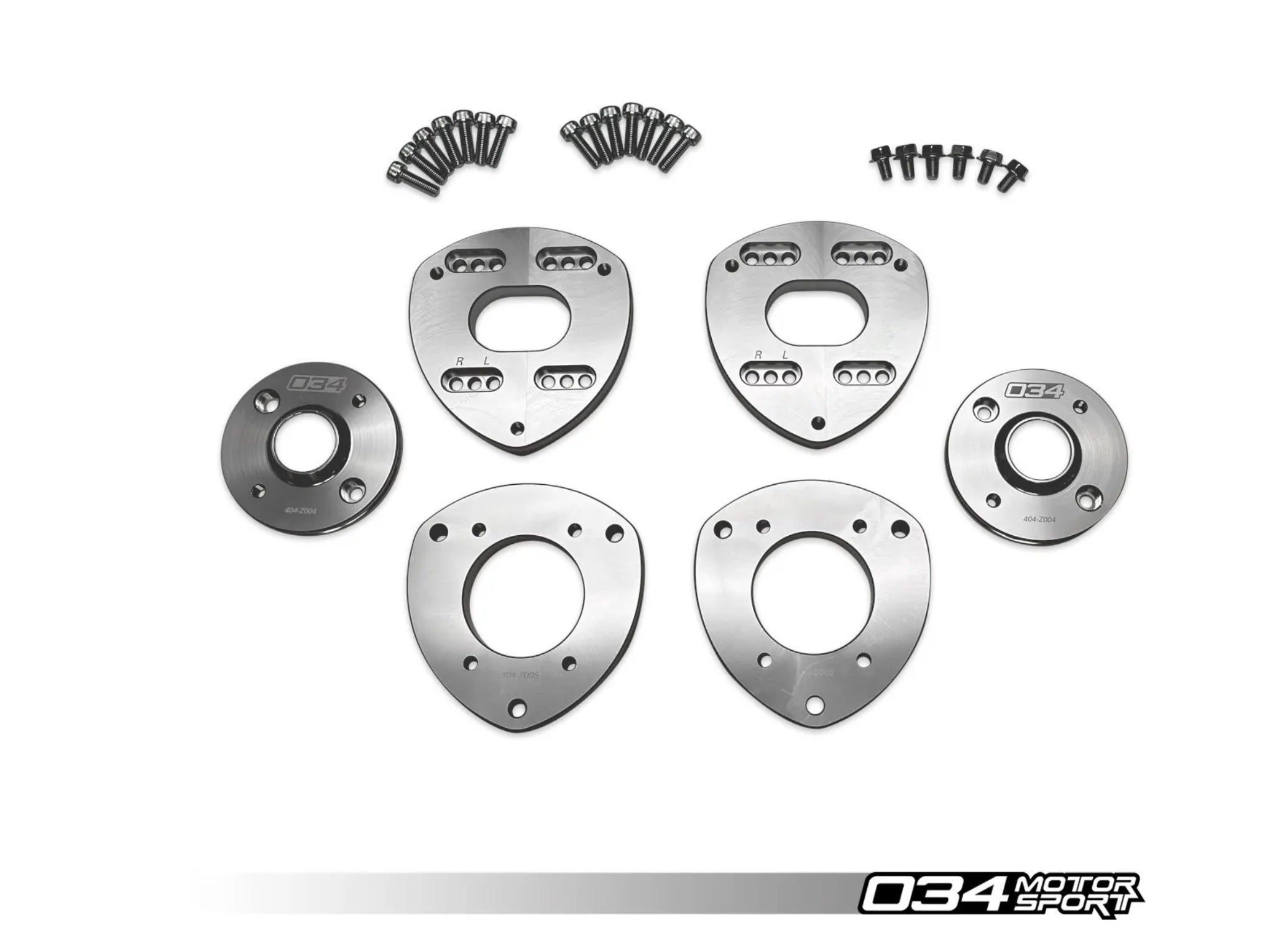

This suspension lift kit raises the Mk7 Volkswagen Golf Alltrack by 34mm (1.3") at the front and 13mm (0.6") at the rear for a level, no-rake stance with more ground and wheel arch clearance. The bolt-in 6061-T6 aluminium parts have precision-machined slots that restore factory camber and caster after lifting, plus a camber-only setting that helps larger tyres clear the wheel arch liners. 034Motorsport says the kit adds minimal NVH, will not pack out over time and is fully reversible, and that it also fits the 8V Audi A3, S3 and RS3, 8S TT models and Mk7 Golf, GTI, GLI, R and e-Golf, provided axle travel is checked after installation. Installation takes about 4-5 hours, and some 2018-on Alltrack and 4Motion SportWagen models may need the longer 5QM407271E driver-side axle to avoid noise.
Features
- 34mm (1.3") front and 13mm (0.6") rear lift
- Level, no-rake lifted stance
- Built-in camber and caster correction to factory specs
- Camber-only setting for larger tyres
- 6061-T6 aluminium will not pack out over time
- Rear spring centring cups; reuses the stock rear spring isolator
- Bolt-in, fully reversible, minimal added NVH
Specifications
- Brand: 034Motorsport
- Product Type: Suspension Lift Kit
- Front Lift: 34mm (1.3")
- Rear Lift: 13mm (0.6")
- Material: 6061-T6 aluminium
- Alignment: Camber and caster correction slots, or camber-only setting
- Tyre Note: Use the camber-only holes for tyres 26.5" diameter or larger
- Axle Bolt: Some models need replacement bolt WHT005437 (M16x1.5x70)
- Installation Time: Approximately 4-5 hours
- Part Number: 034-404-Z002
Vehicle Compatibility: 16 applications across 2 makes. Select a make to view.
Audi (8)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| A3 | 8V | 1.8 TFSI | 2015-2016 | Check axle travel after install |
| A3 | 8V | 2.0 TDI | 2015-2016 | Check axle travel after install |
| A3 | 8V/8V.5 | 2.0 TFSI | 2015-2020 | Check axle travel after install |
| S3 | 8V/8V.5 | 2.0 TFSI | 2015-2020 | Check axle travel after install |
| RS3 | 8V.5 | 2.5 TFSI EVO | 2017-2020 | Check axle travel after install |
| TT | 8S | 2.0T Gen 3 | 2016-2020 | Check axle travel after install |
| TTS | 8S | 2.0T Gen 3 | 2016-2020 | Check axle travel after install |
| TT RS | 8S | 2.5 TFSI EVO | 2018-2020 | Check axle travel after install |
Volkswagen (8)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Golf Alltrack | Mk7/Mk7.5 | 1.8T Gen 3 | 2015-2020 | Some 2018-on cars need longer driver-side axle 5QM407271E |
| Golf SportWagen | Mk7/Mk7.5 | 1.8T Gen 3 | 2015-2020 | Check axle travel; some 2018-on 4Motion cars need axle 5QM407271E |
| Golf | Mk7/Mk7.5 | 1.8T Gen 3 | 2015-2020 | Check axle travel after install |
| Golf | Mk7 | 2.0 TDI | 2015-2016 | Check axle travel after install |
| Golf | Mk7/Mk7.5 GTI | 2.0T Gen 3 | 2015-2021 | Check axle travel after install |
| Golf R | Mk7/Mk7.5 | 2.0 TSI Gen 3 | 2015-2019 | Check axle travel after install |
| e-Golf | Mk7 | 2015-2020 | Check axle travel after install | |
| Jetta | Mk7 GLI | 2.0 TSI Gen 3 | 2018-on | Check axle travel after install |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
