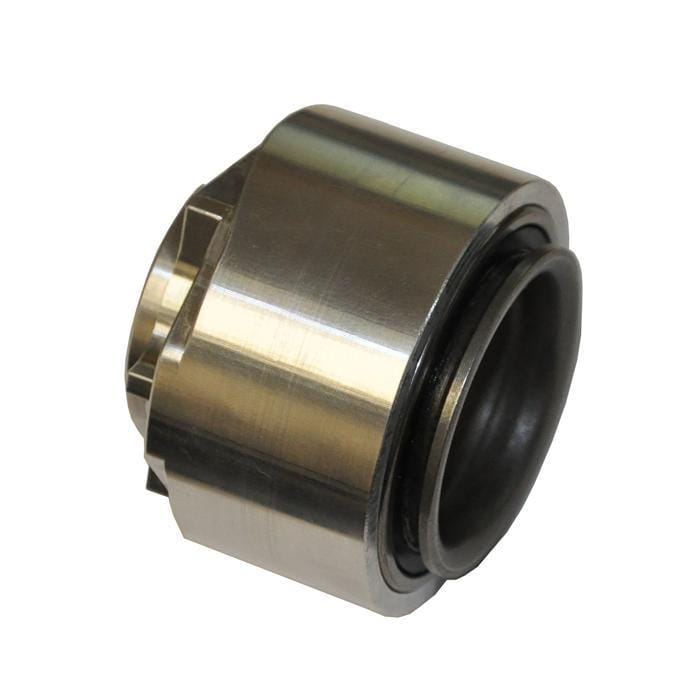

034Motorsport Throw Out Bearing, Tilton and Other Multiplate Racing Clutches - 034-502-4005
This racing throw out bearing is designed for the Tilton and other multi-plate clutch kits offered by 034Motorsport, which run high clamping loads and high heat stress. It pairs a Tilton bearing with 034Motorsport's own CNC-machined aluminium housing, which fits into the factory throw out bracket and is held from behind by two Allen screws. Because the factory bracket is an imprecise steel stamping, the bearing must be able to slide and pivot freely once installed. 034Motorsport advises clearancing the bracket to about 0.1mm of free play, as a tight fit can cause the bearing to seize and stop the clutch working.
Features
- Tilton bearing in a CNC-machined aluminium housing
- For Tilton and other multi-plate racing clutches
- Built for high clamping loads and heat
- Fits the factory throw out bracket
- Retained by two Allen screws
- Bracket may need clearancing to about 0.1mm
Specifications
- Brand: 034Motorsport
- Product Type: Throw Out Bearing
- Bearing: Tilton
- Housing: CNC-machined aluminium
- Suits: Tilton and other multi-plate racing clutch kits
- Mounting: Factory throw out bracket, retained by 2 Allen screws
- Installation Note: Must slide and pivot freely; clearance the bracket to approx. 0.1mm
- Part Number: 034-502-4005
Vehicle Compatibility: Suits the Tilton and other multi-plate racing clutch kits offered by 034Motorsport and mounts in the factory throw out bracket; the listing does not name vehicles. Contact us with your vehicle details and we will confirm fitment before you order.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
