034Motorsport Turbo Inlet Pipe, 1.8T & 2.0T MQB, Audi 8S-TT/TTS 8V-A3/S3, VW MkVII-Golf/GTI/R A7-Jetta/GLI MQB-Tiguan

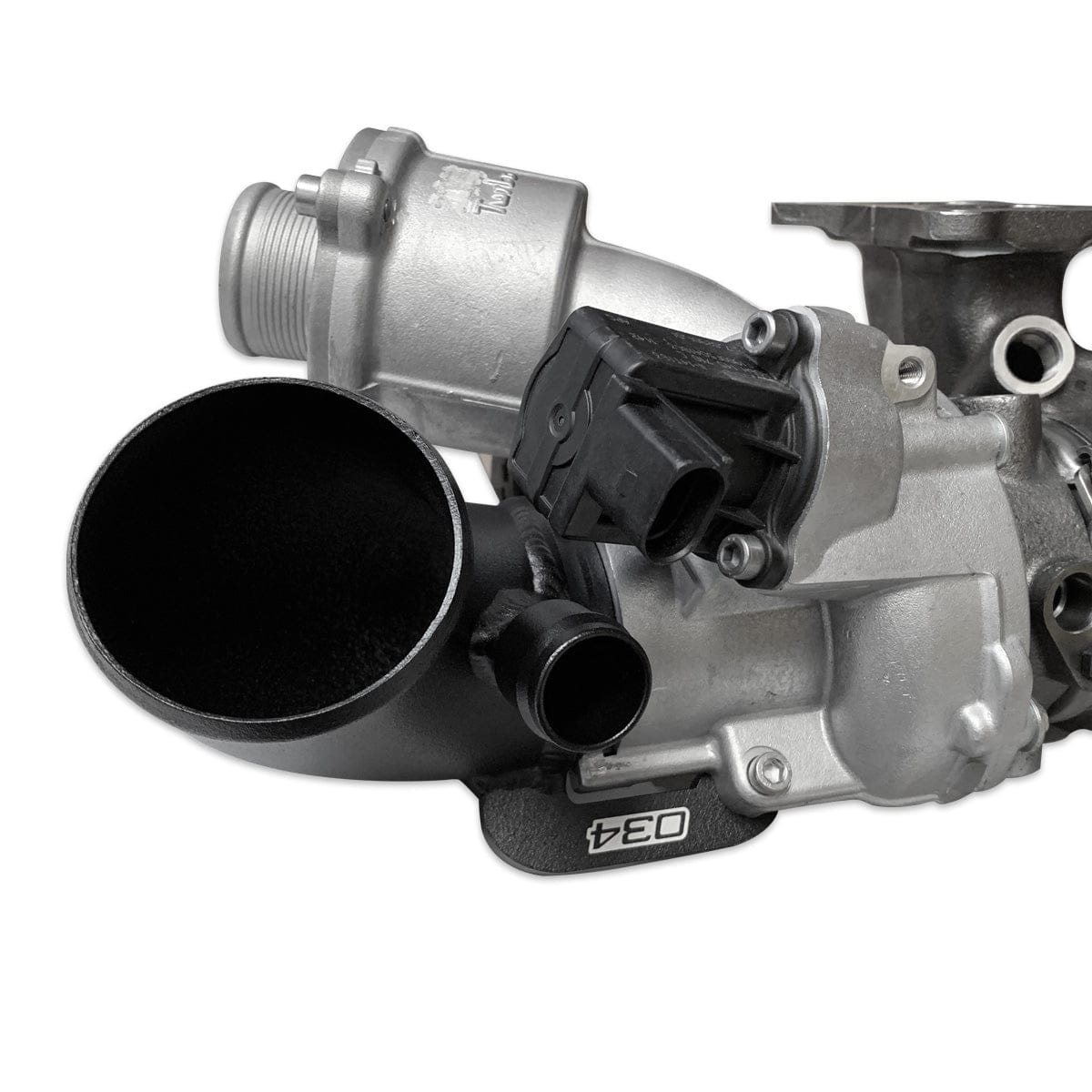

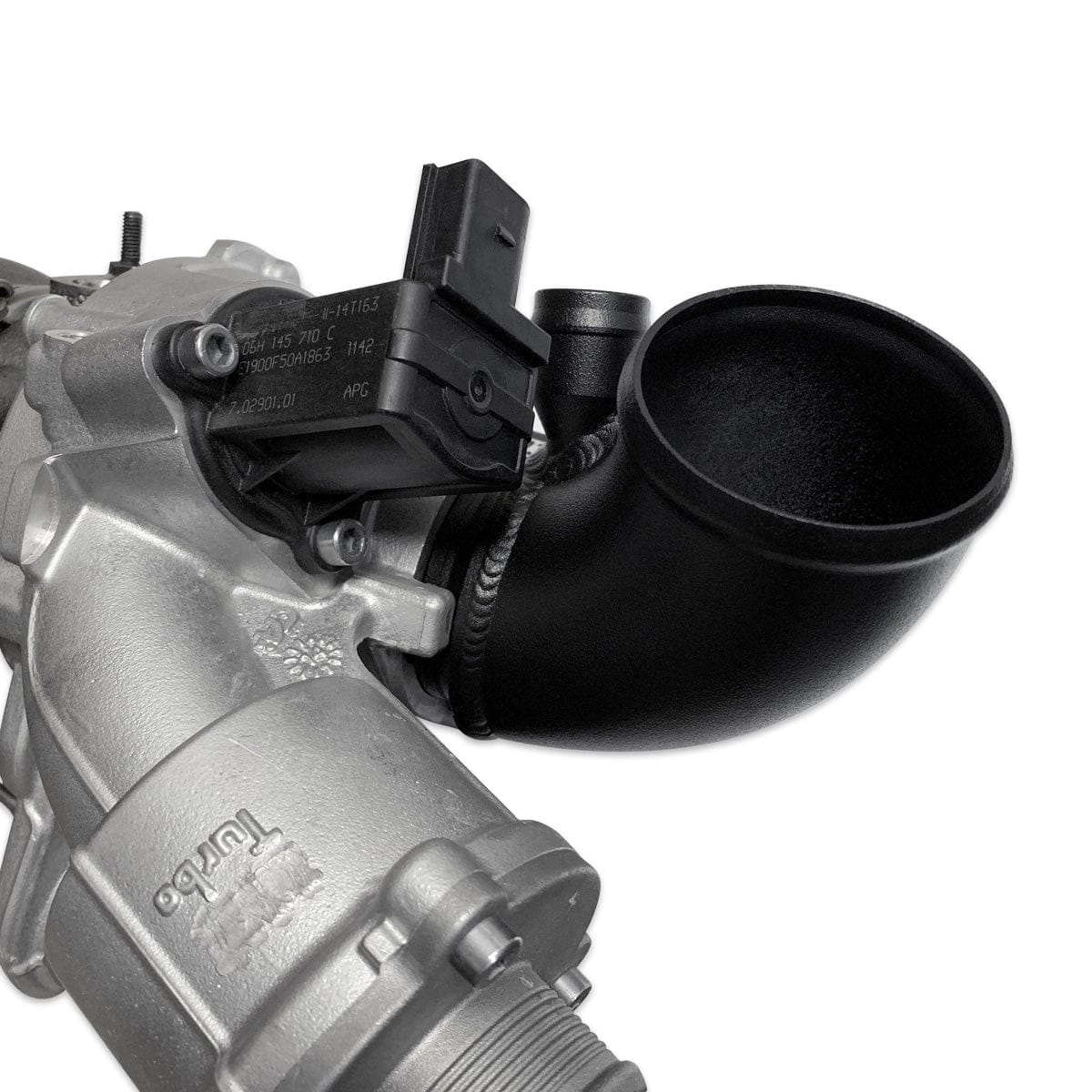

This turbo inlet elbow replaces the restrictive factory part on transverse MQB 1.8T and 2.0T EA888 Gen 3 engines with IS20 or IS38 turbos, including the Mk7 Volkswagen Golf GTI and R, the 8V Audi A3 and S3 and the 8S TT and TTS. It is fabricated from 70mm thin-wall 6061-T6 aluminium with a machined billet compressor inlet flange for smooth entry into the compressor housing, and 034Motorsport says flow bench testing showed substantially higher airflow than the factory elbow. Billet elements retain the factory PCV hose fitting and mounting point, and a bead-rolled edge holds the OEM-style turbo inlet hose securely. 034Motorsport recommends it for cars with an aftermarket intake or an ECU tune, and it is finished in durable black wrinkle coat with a laser-etched 034 logo.

Features

• 70mm thin-wall 6061-T6 aluminium elbow

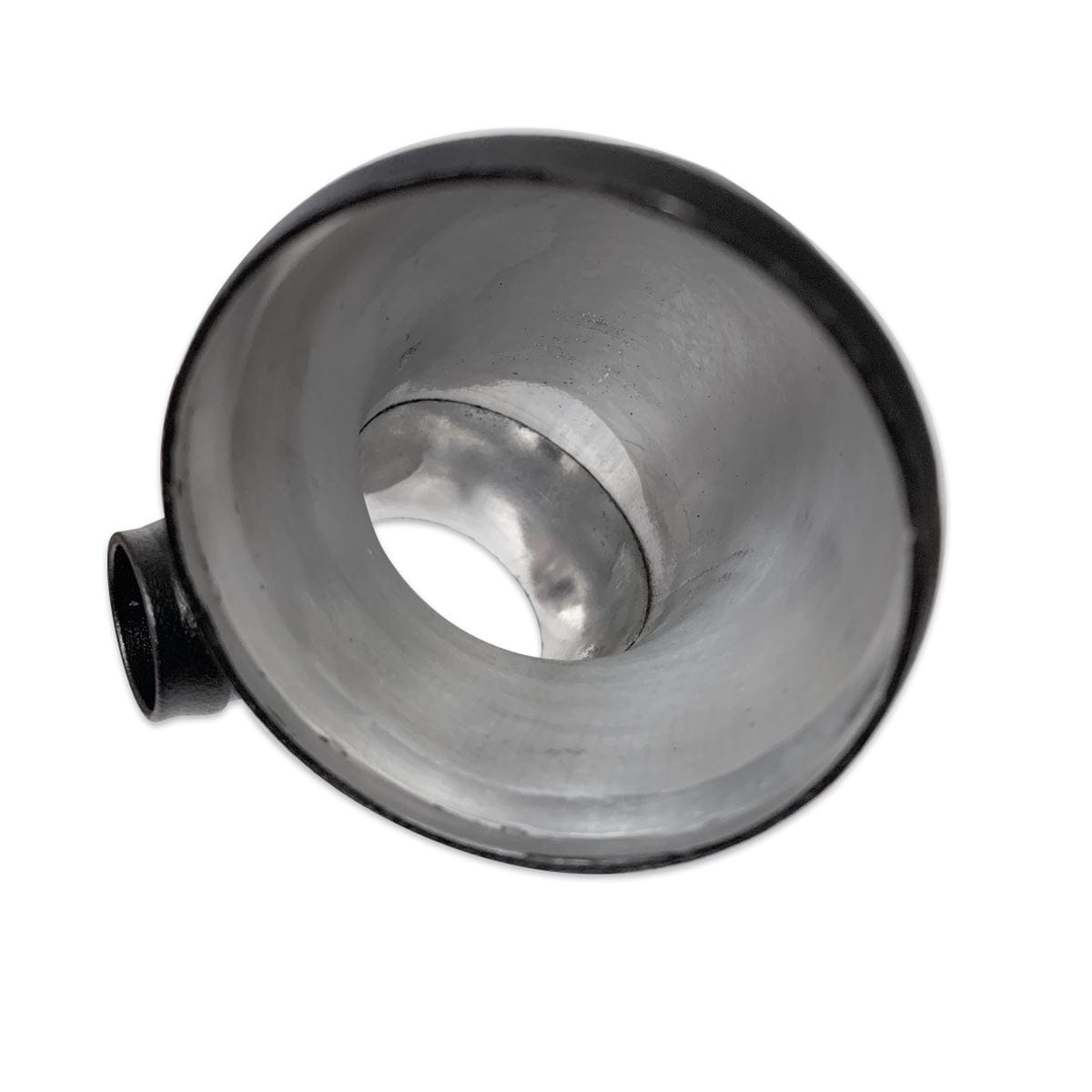

• Machined billet compressor inlet flange
• Retains the OE PCV hose and mounting point

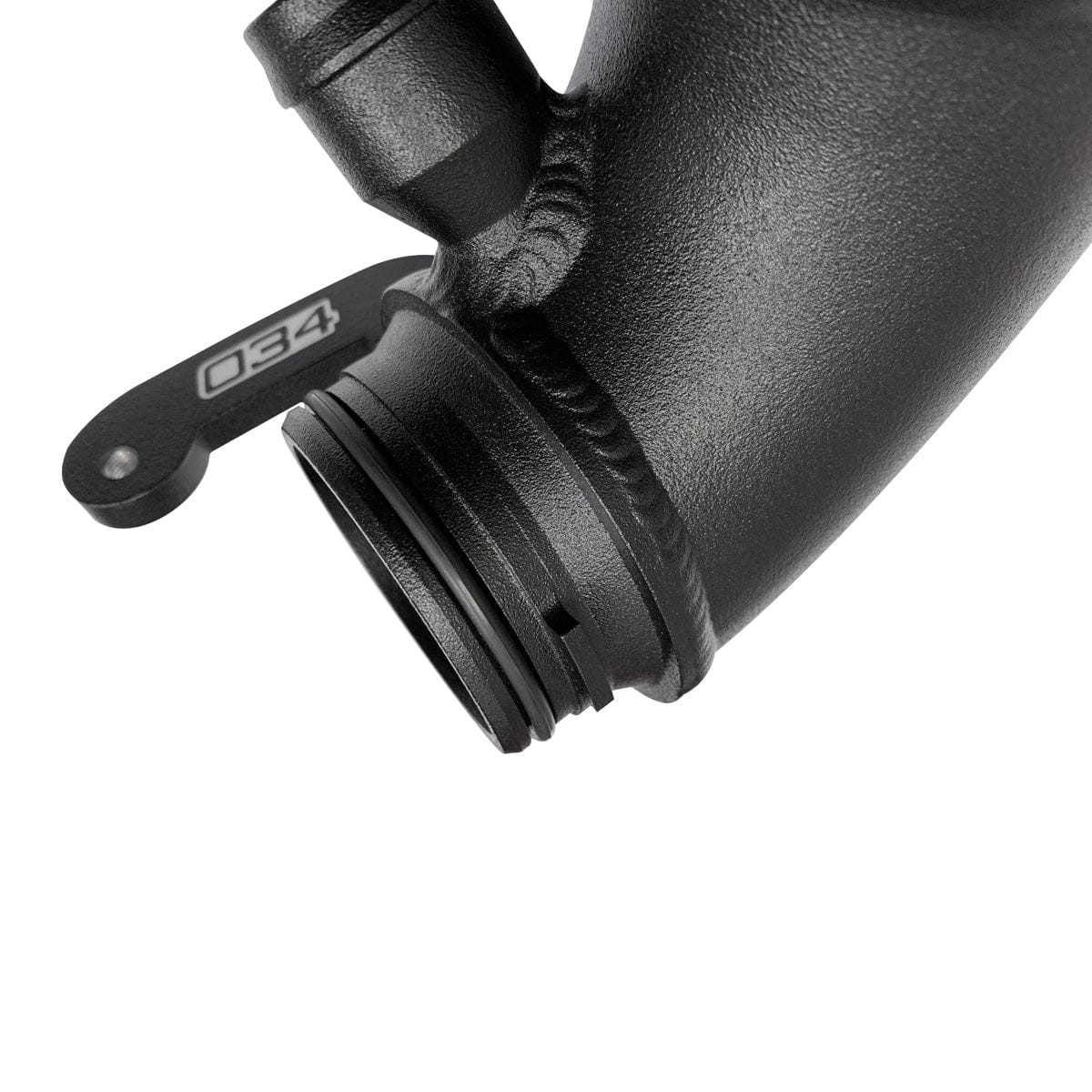

• Bead-rolled edge secures the OEM-style inlet hose

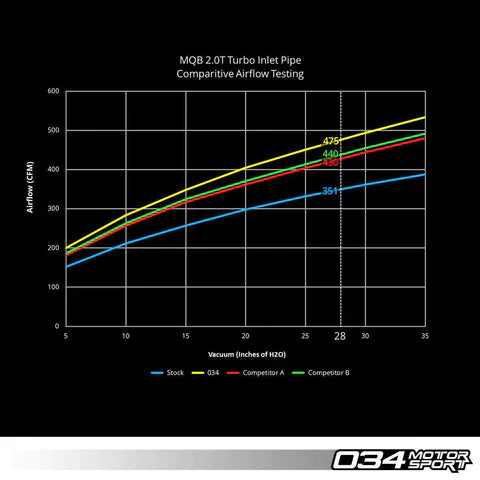

• Higher airflow than the factory elbow, per 034Motorsport bench testing
• Black wrinkle-coat finish with laser-etched logo
• Suits IS20 and IS38 MQB engines

Specifications

• Brand: 034Motorsport
• Product Type: Turbo Inlet Elbow
• Material: 70mm thin-wall 6061-T6 aluminium; billet 6061-T6 flange, PCV adapter and locating arm
• Finish: Black wrinkle coat
• Turbo Compatibility: IS20 and IS38 (transverse MQB)

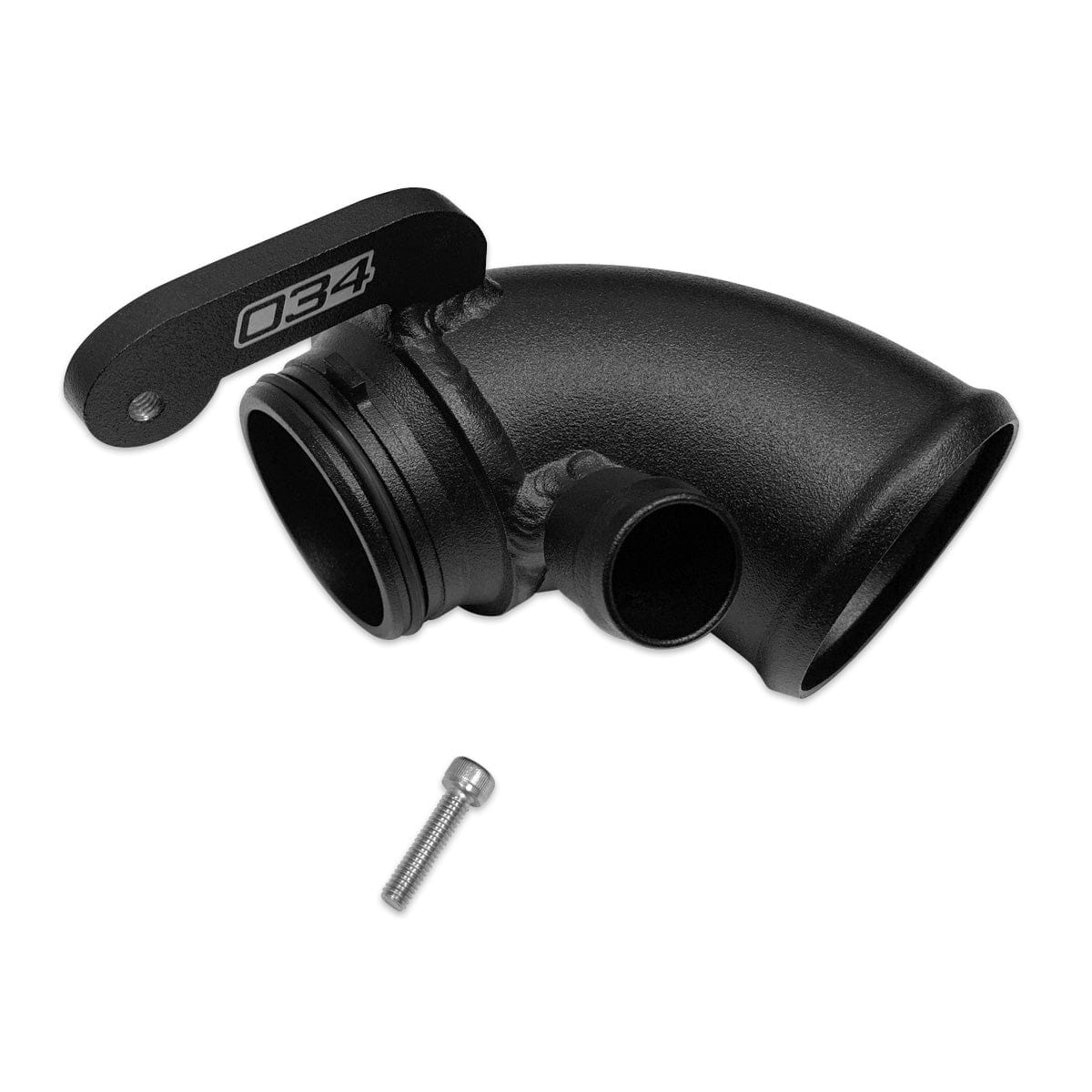

• Includes: Turbo inlet pipe, 55mm x 3mm Buna-N O-ring, M6x1 socket head cap screw
• Part Number: 034-108-5011

Vehicle Compatibility: 16 applications across 4 makes. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
