034Motorsport Turbocharger Heat Exchanger Upgrade Kit for Audi C7 S6 - 034-102-1001

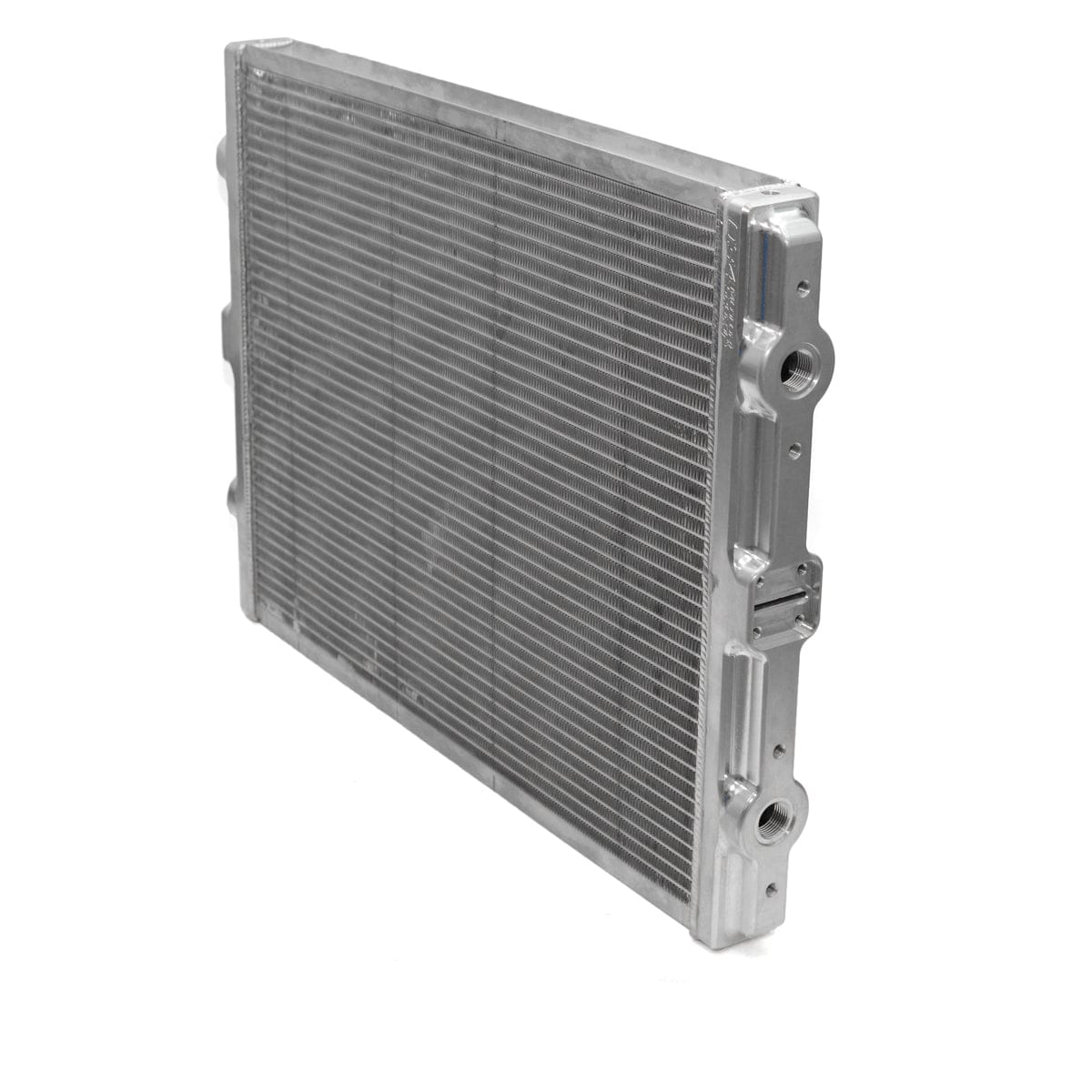

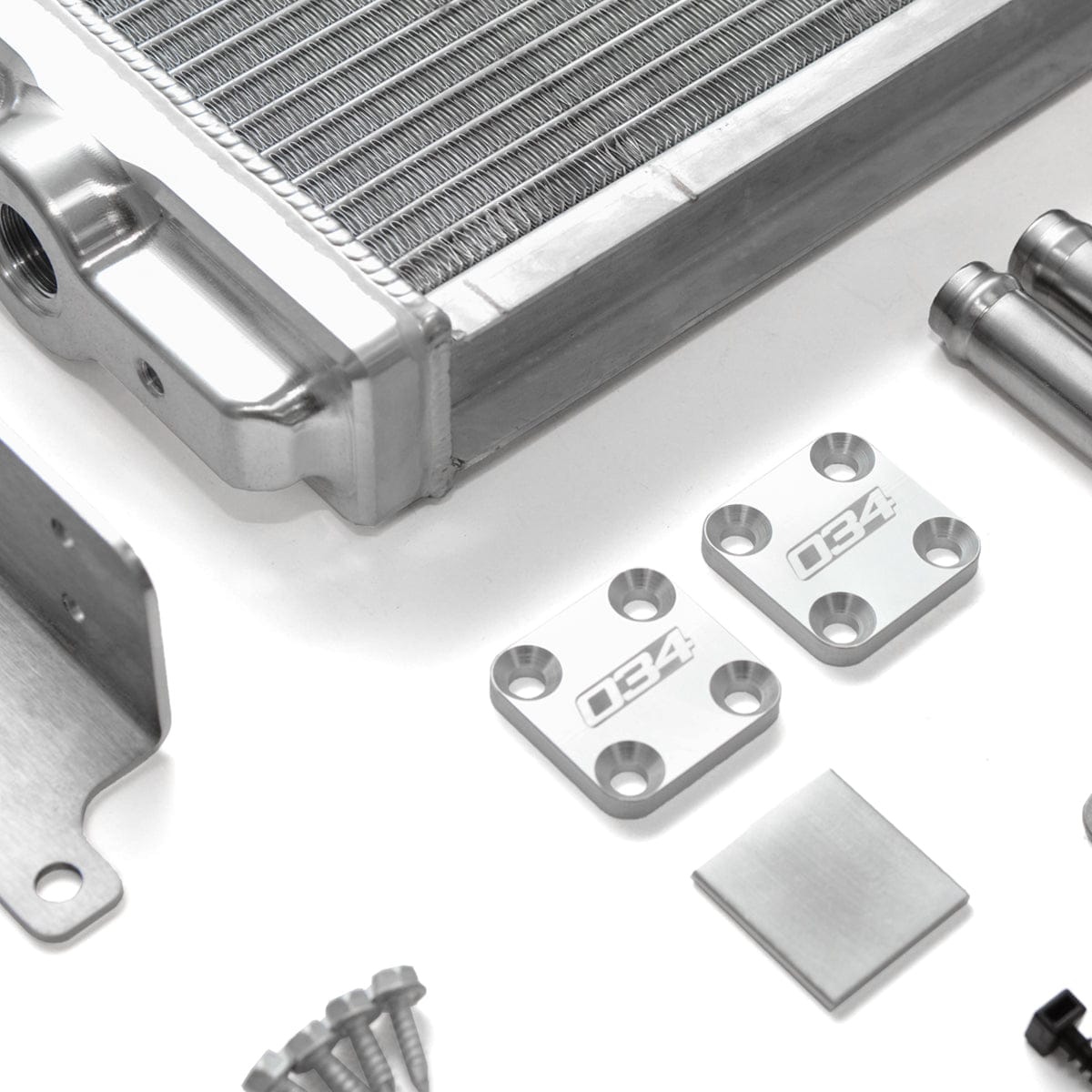

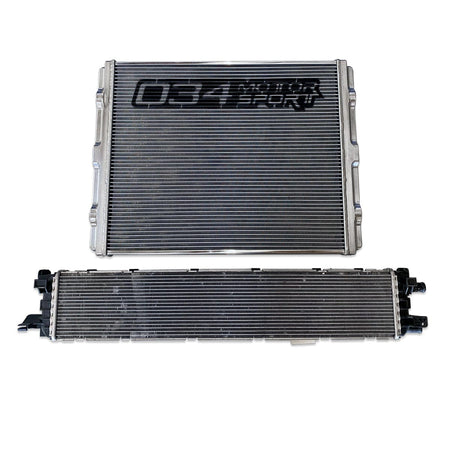

This upgrade replaces the factory turbocharger heat exchanger on the 2012-on Audi C7 S6 with a much larger unit that still sits in the stock location behind the crash bar. Its oversized core has 2.4 times the frontal area of the stock exchanger and 2.2 times the fluid volume, with CNC-machined 6061 billet aluminium end tanks set up for dual-pass flow. 034Motorsport says testing showed significantly lower intake air temperatures, recommending the kit for Stage 1 and Stage 2 tunes and treating it as required for higher power levels. Custom moulded multilayer silicone hoses, air duct sealing panels that stop air spilling around the radiator and bleeder plugs on both end tanks complete the 49-piece kit, which is reversible.
Features

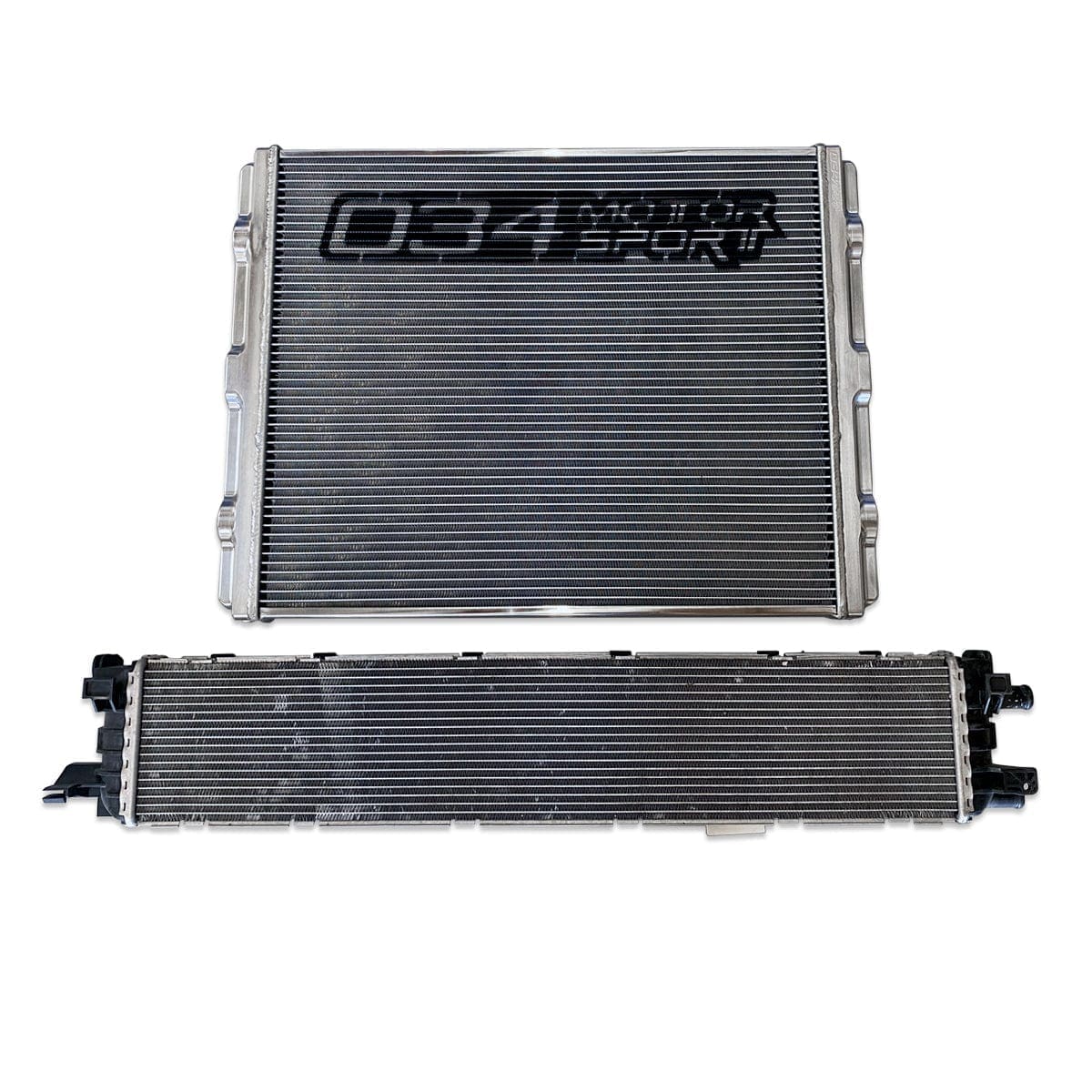

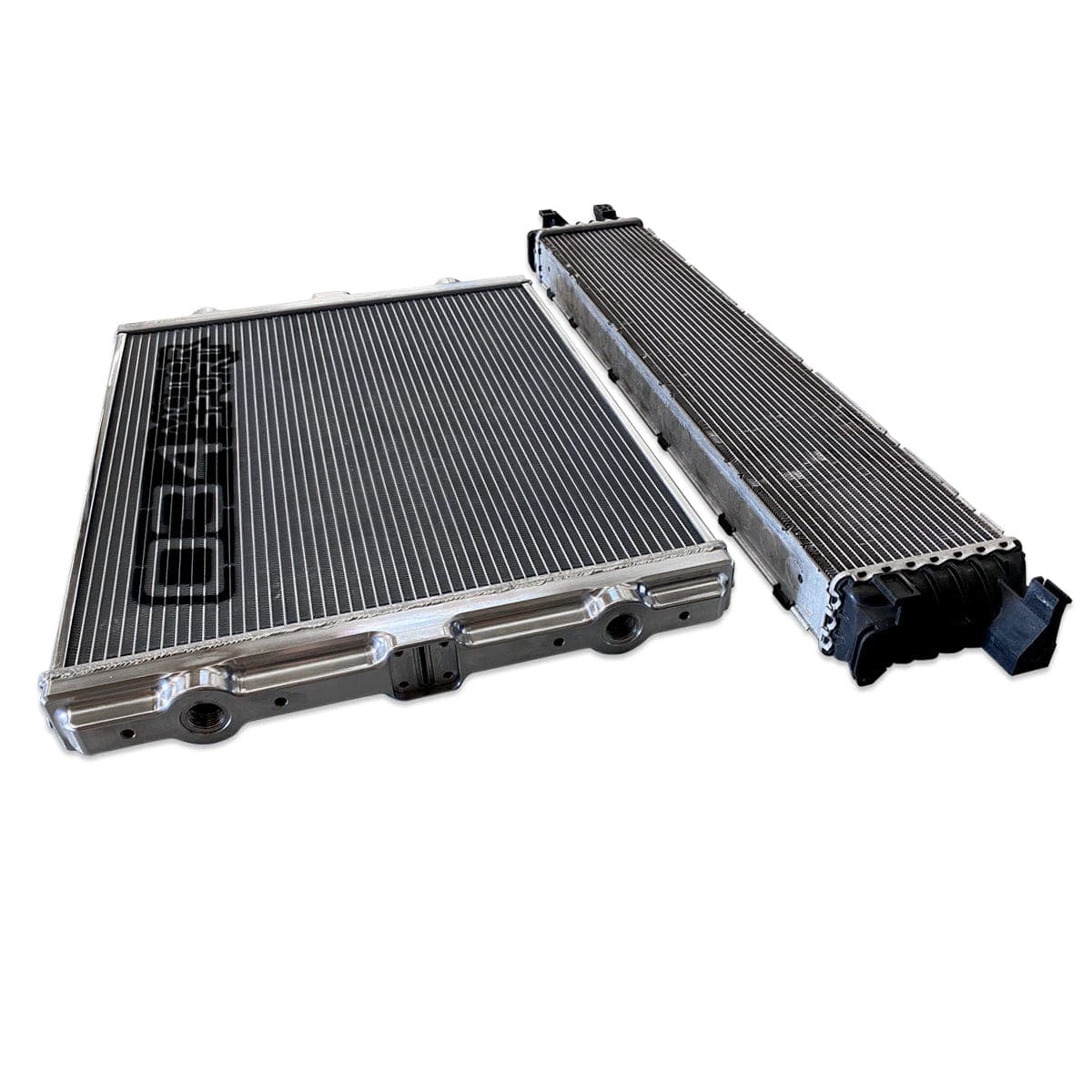

- 2.4x the frontal area of the stock exchanger
- 2.2x the fluid volume (2.4 qts vs 1.1 qts)

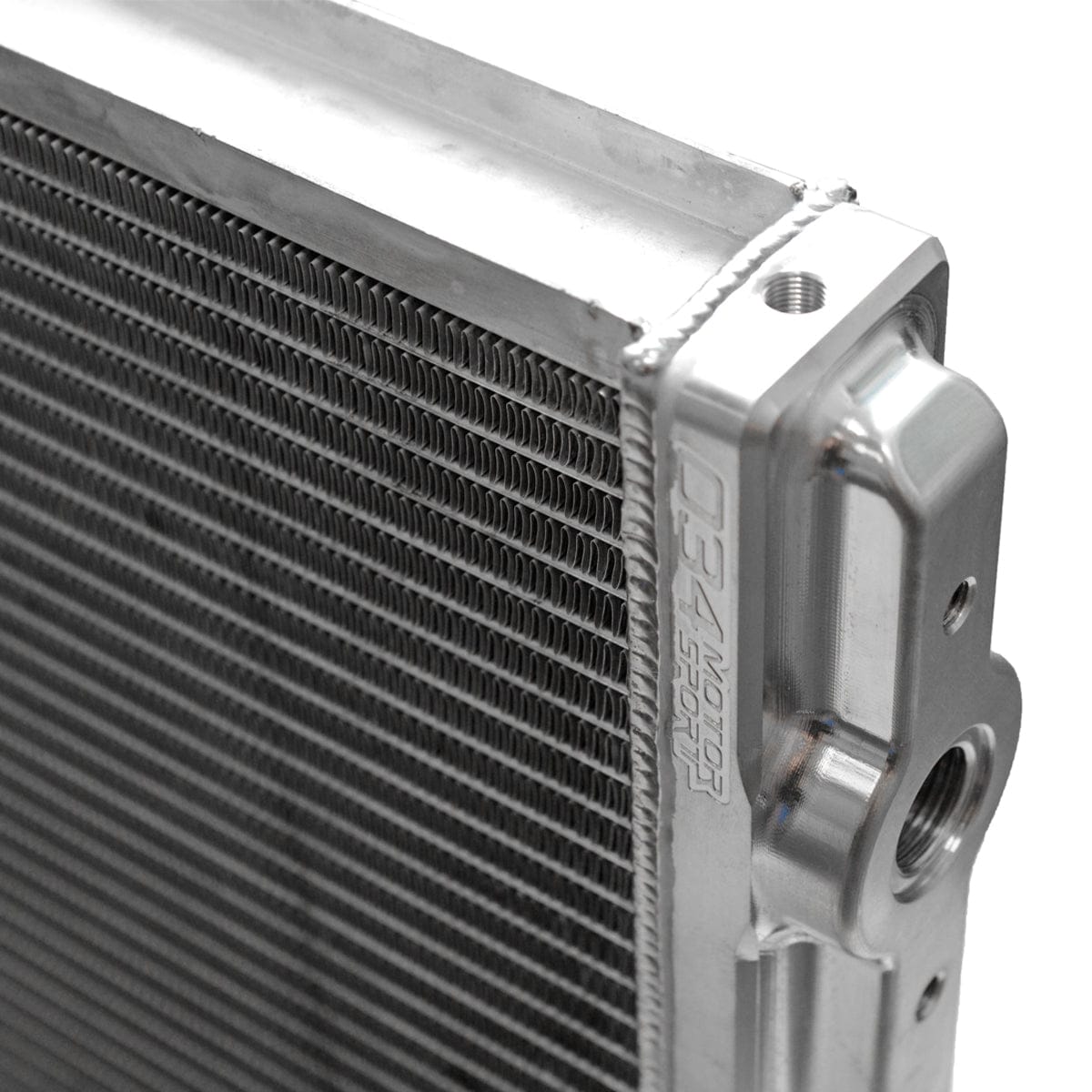

- CNC-machined 6061 billet aluminium dual-pass end tanks

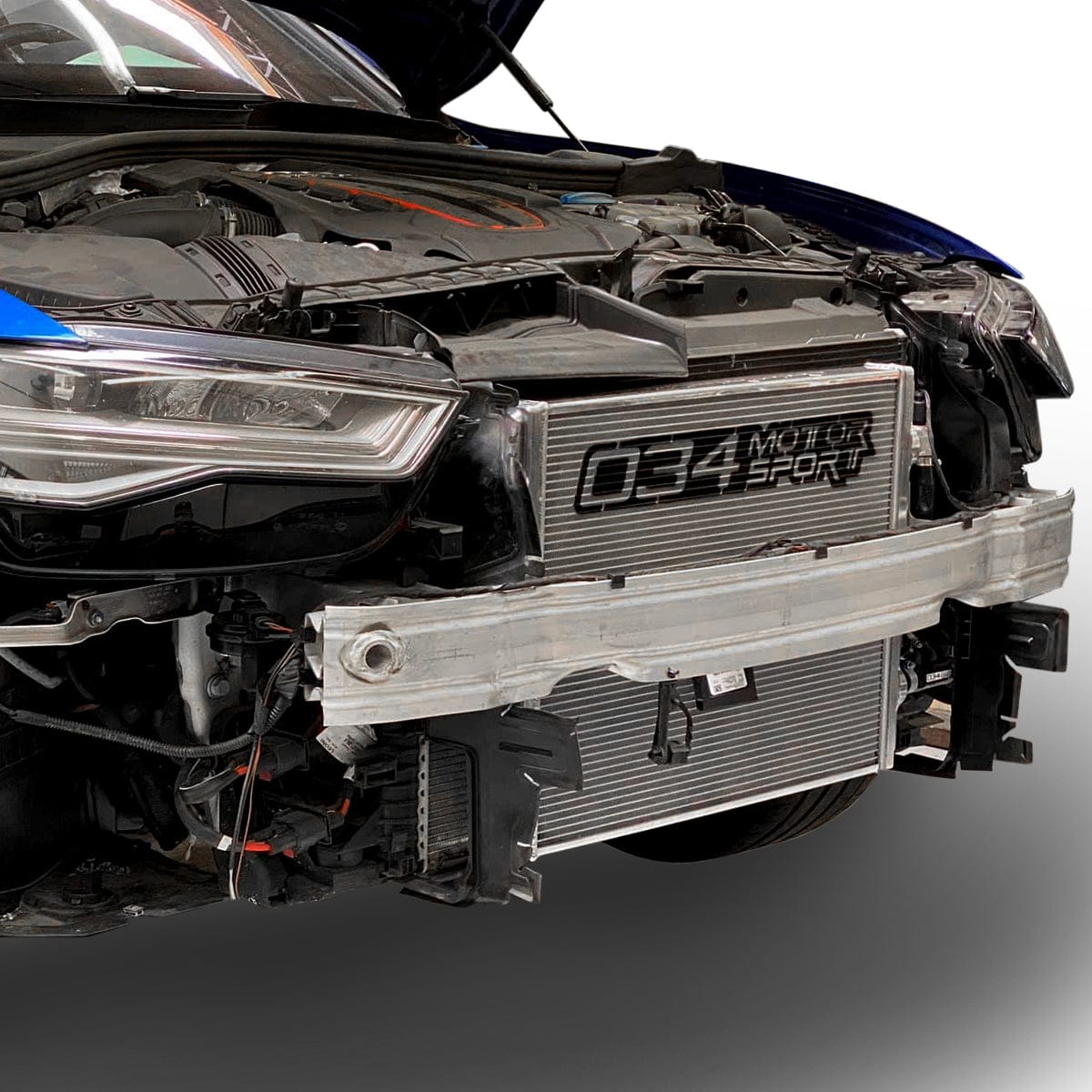

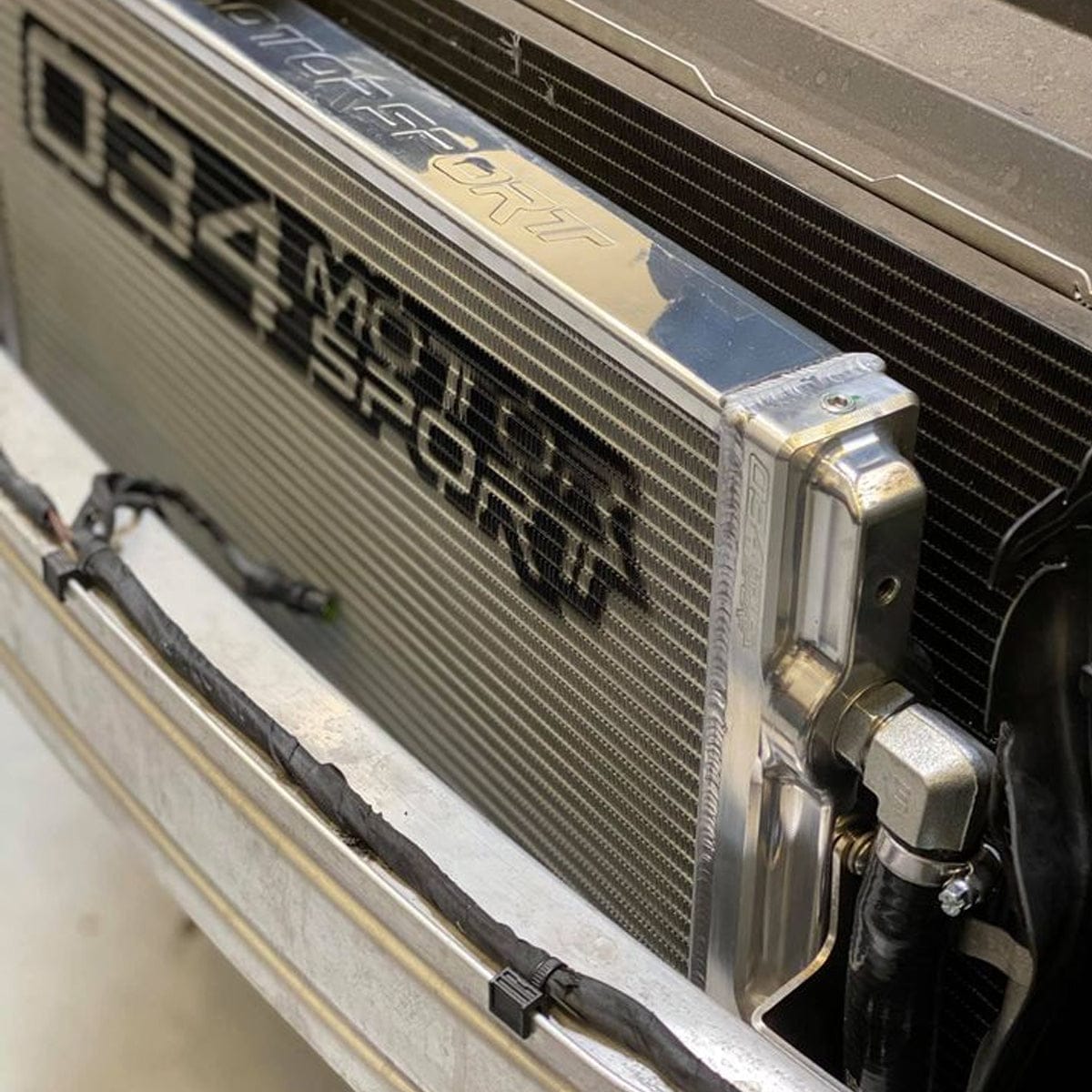

- Fits behind the stock crash bar

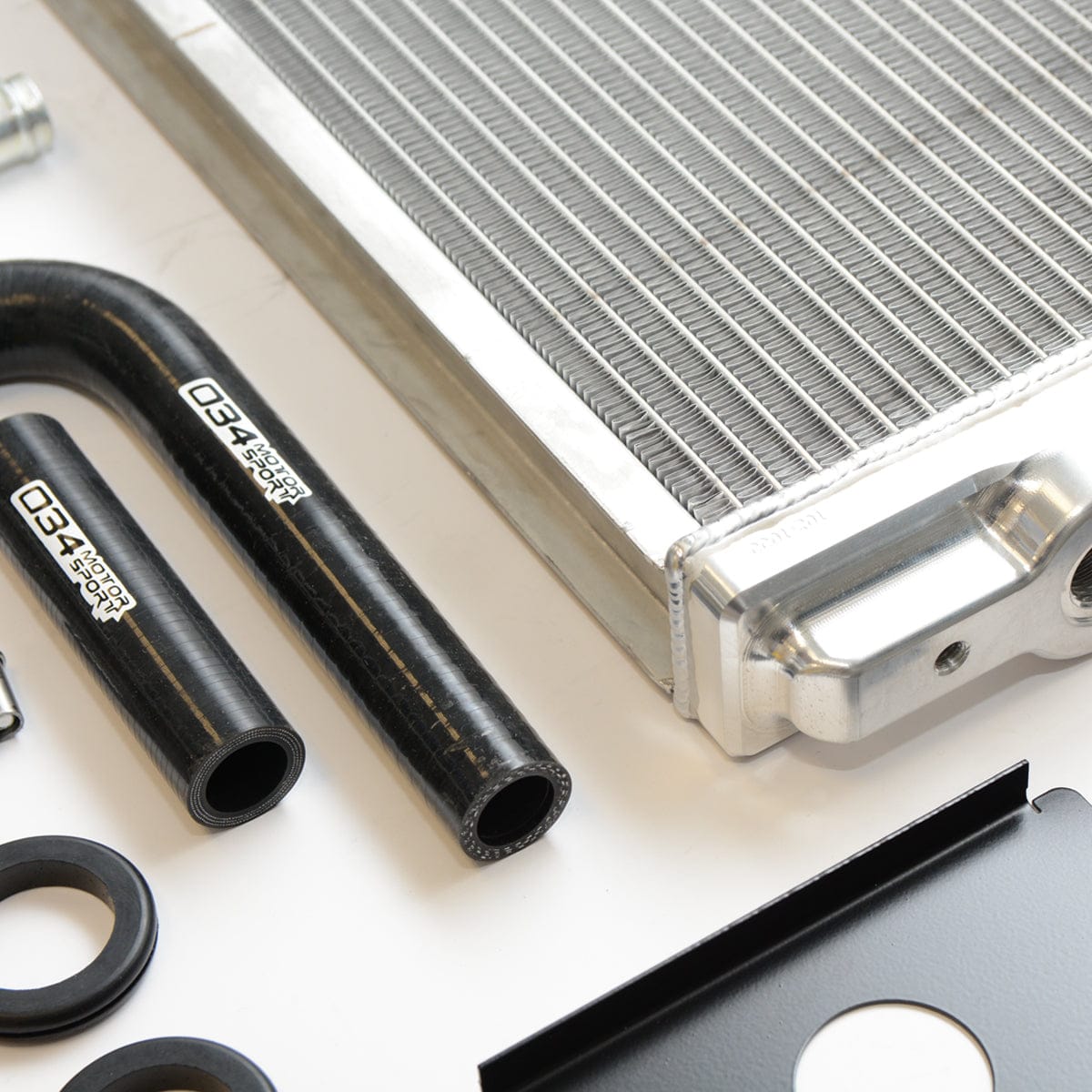

- Custom moulded multilayer silicone hoses
- Air duct sealing panels and end tank bleeder plugs
- 49-component kit; reversible installation
Specifications
- Brand: 034Motorsport
- Product Type: Heat Exchanger Upgrade Kit
- Core Frontal Area: 370 sq in (2387.1 sq cm); OE 156 sq in (1006.5 sq cm)
- Fluid Volume: 2.4 qts (OE 1.1 qts)
- Dimensions: 620 x 450 x 50mm (OE 810 x 140 x 60mm)
- End Tanks: CNC-machined 6061 billet aluminium, dual-pass

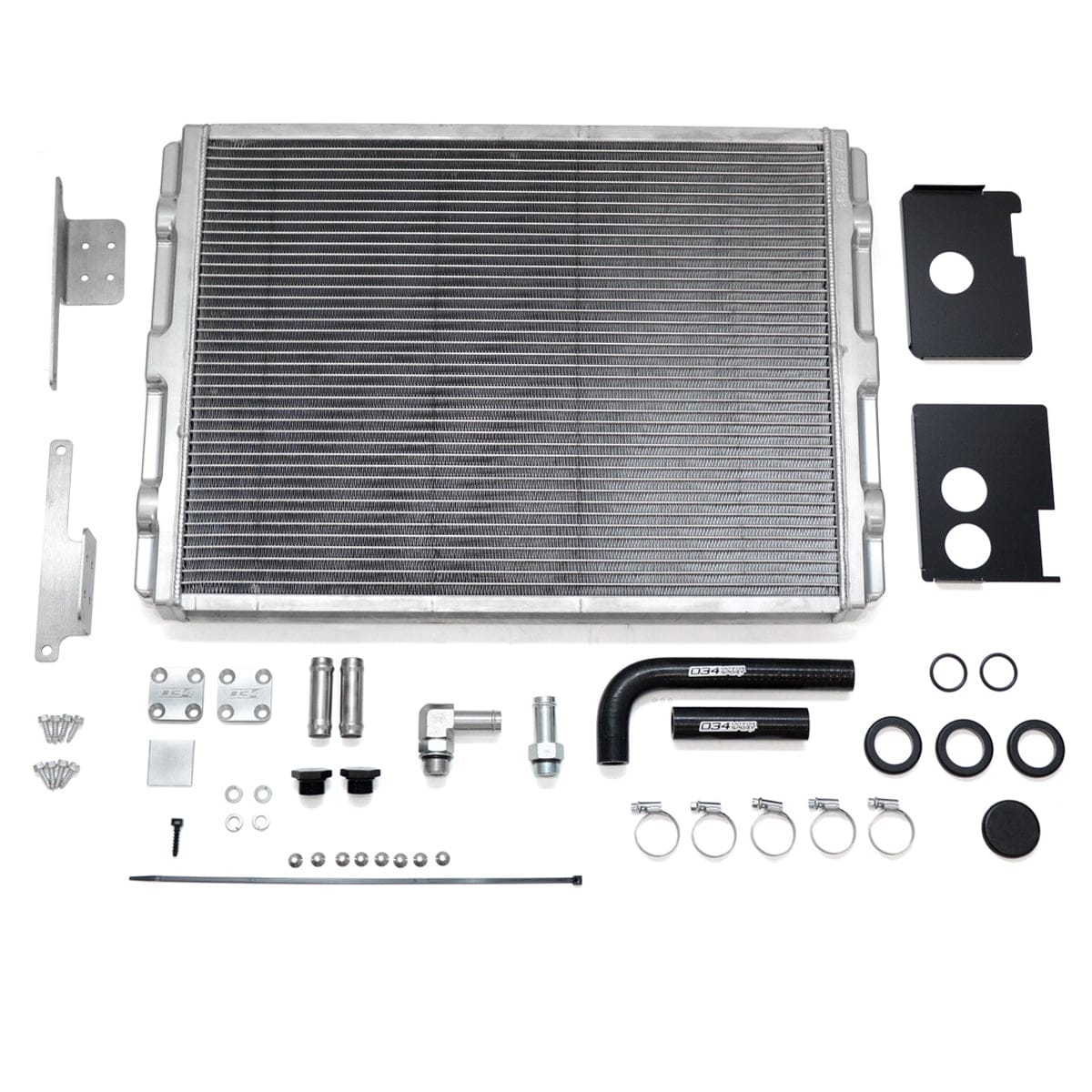

- Includes: Heat exchanger, custom silicone hoses, air duct sealing panels; 49 components in total
- Part Number: 034-102-1001
Vehicle Compatibility: 1 application across 1 make. Select a make to view.
Audi (1)
| Model | Variant | Engine | Years |
|---|---|---|---|
| S6 | C7 | 2012-on |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
