034Motorsport Turbocharger Installation Hardware/Gasket Kit - Audi B9 S4/S5/SQ5 3.0T - 034-145-1506
Regular price
$164.99
This kit gathers the gaskets, seals and fasteners needed to fit a new stock-type turbocharger to the single-turbo EA839 3.0T in the B9 and B9.5 Audi S4, S5 and SQ5. Every part is a genuine Volkswagen Group item listed by its OE number, from the V-band seal and exhaust gaskets to the turbo outlet gasket. Self-locking nuts and shouldered barrel nuts are included as well, so the turbo goes back on with fresh hardware throughout.
Features

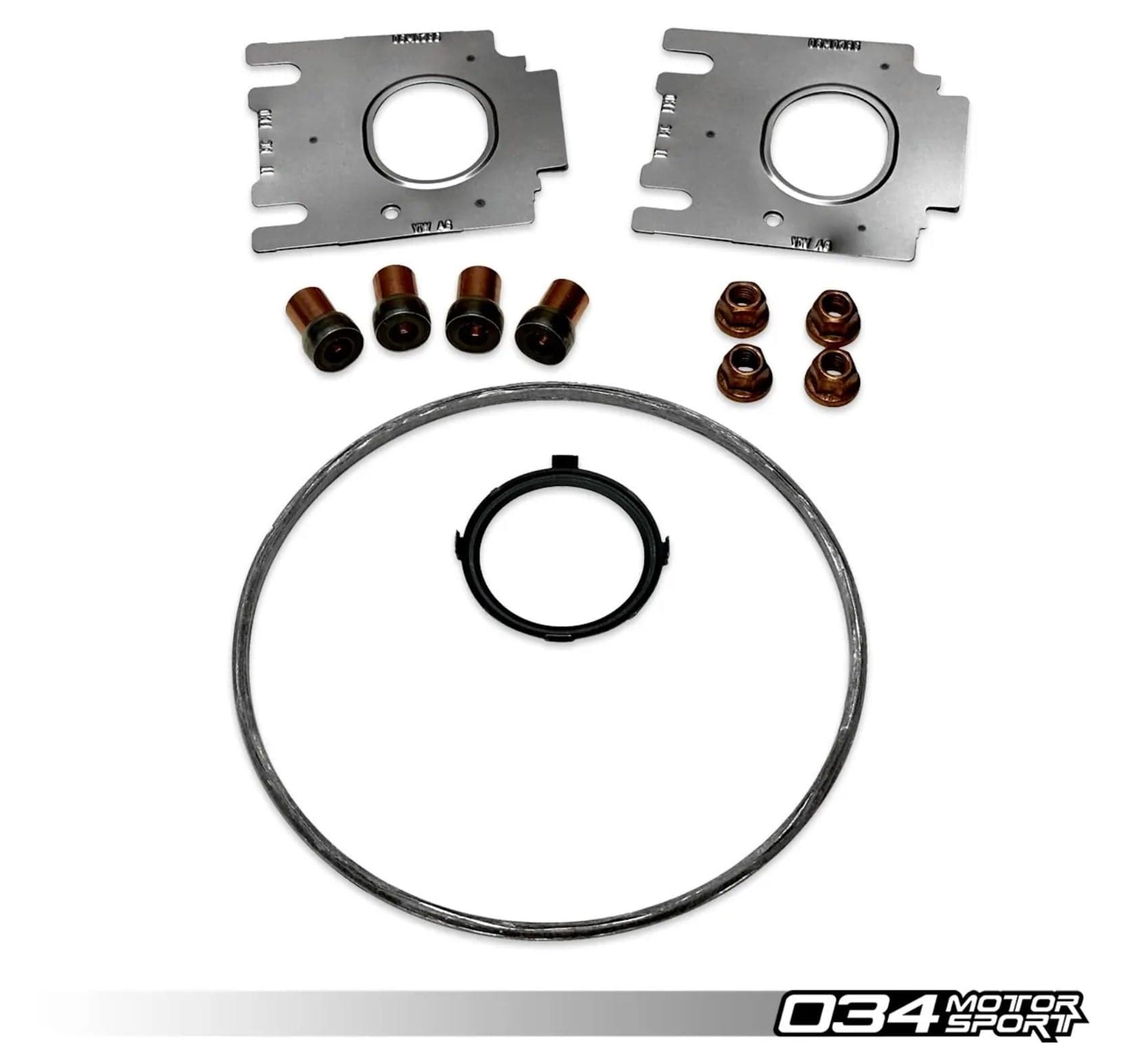

- Complete hardware and gasket set for a stock-fit turbo install
- Suits the single-turbo EA839 3.0T

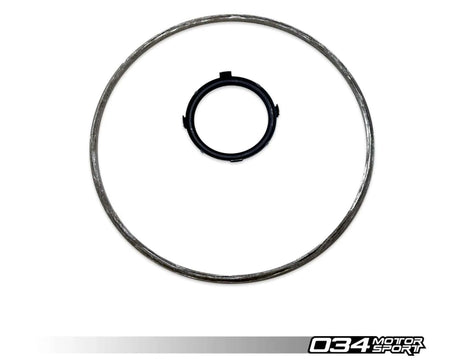

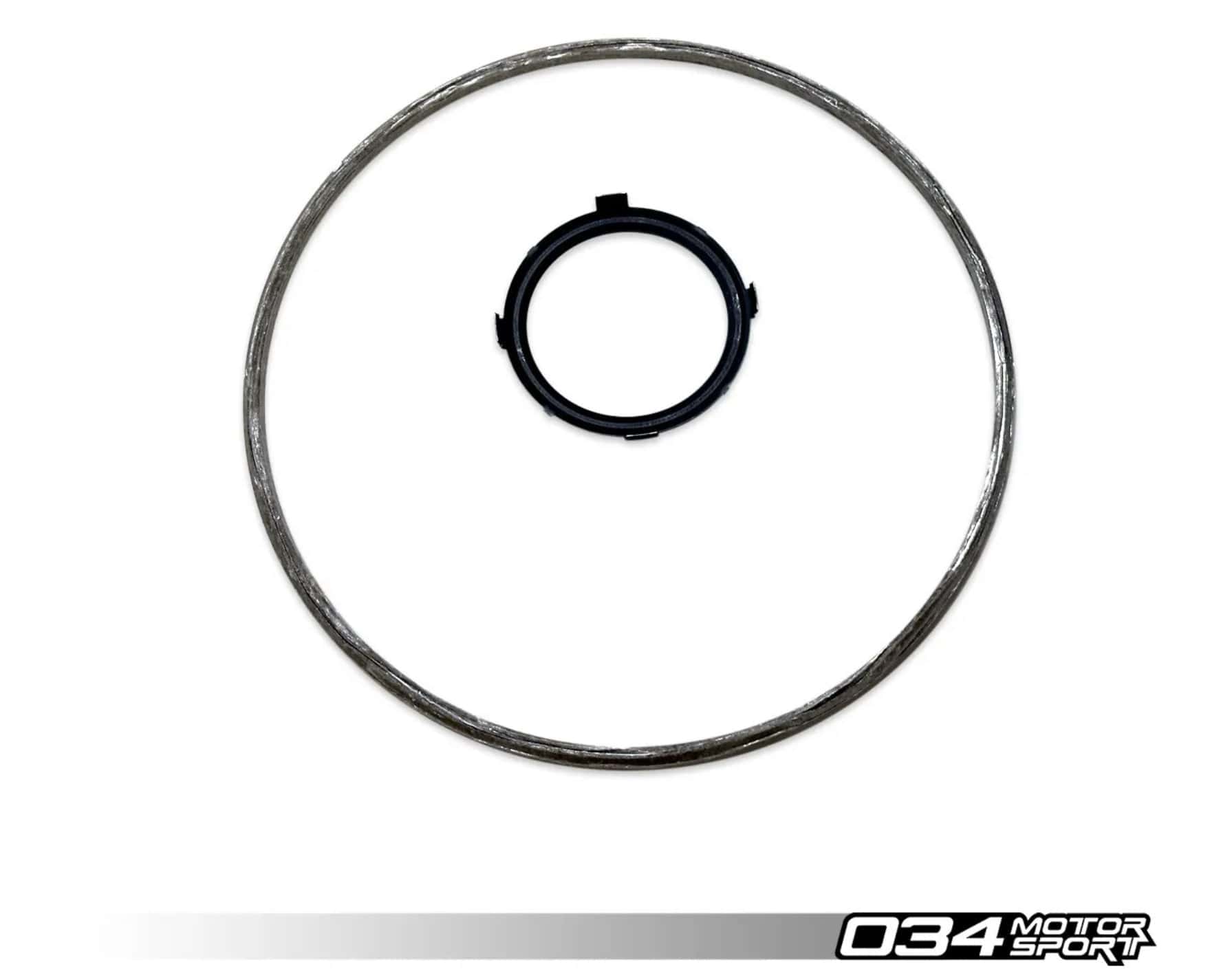

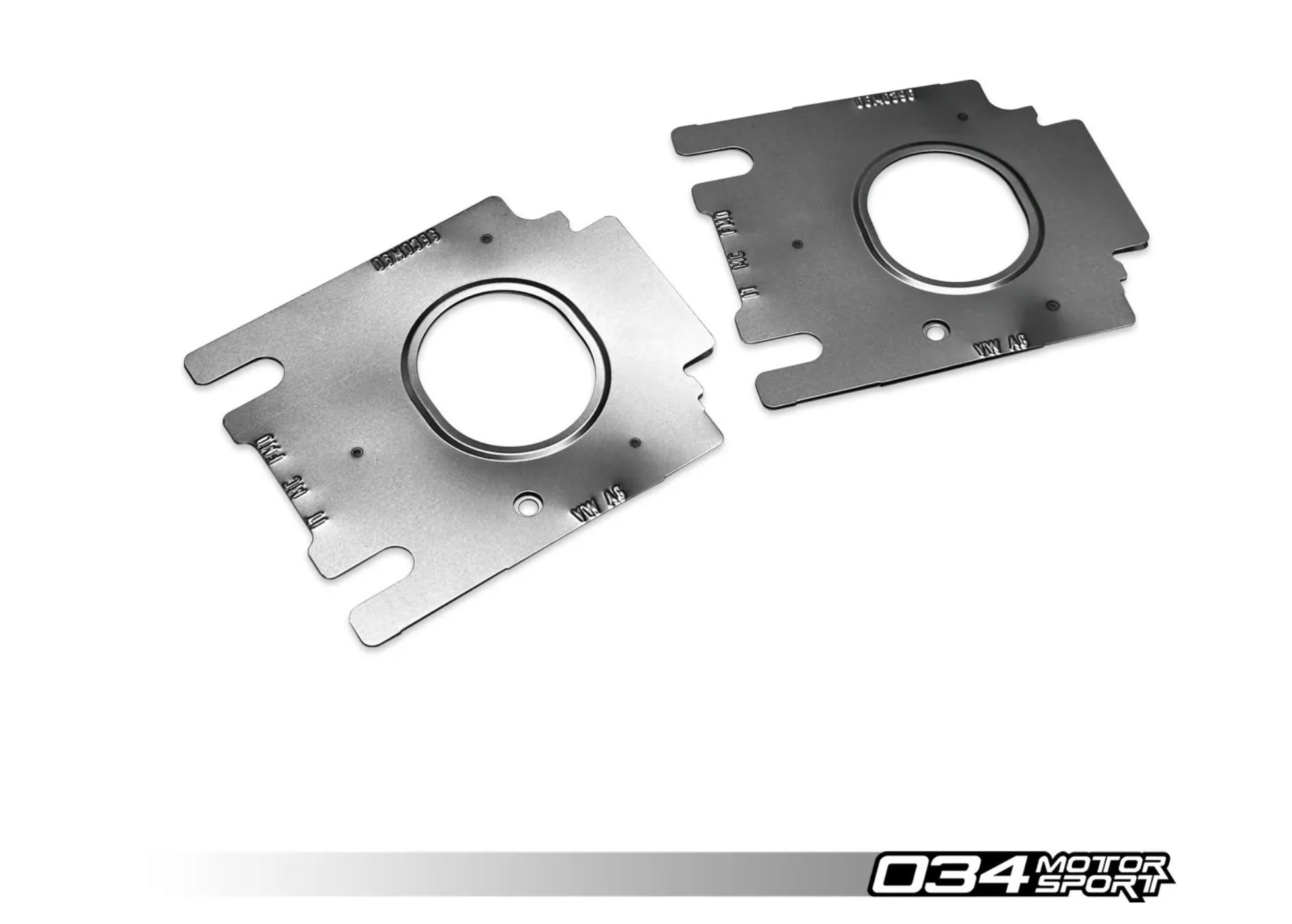

- V-band seal and two exhaust gaskets
- Turbo outlet gasket

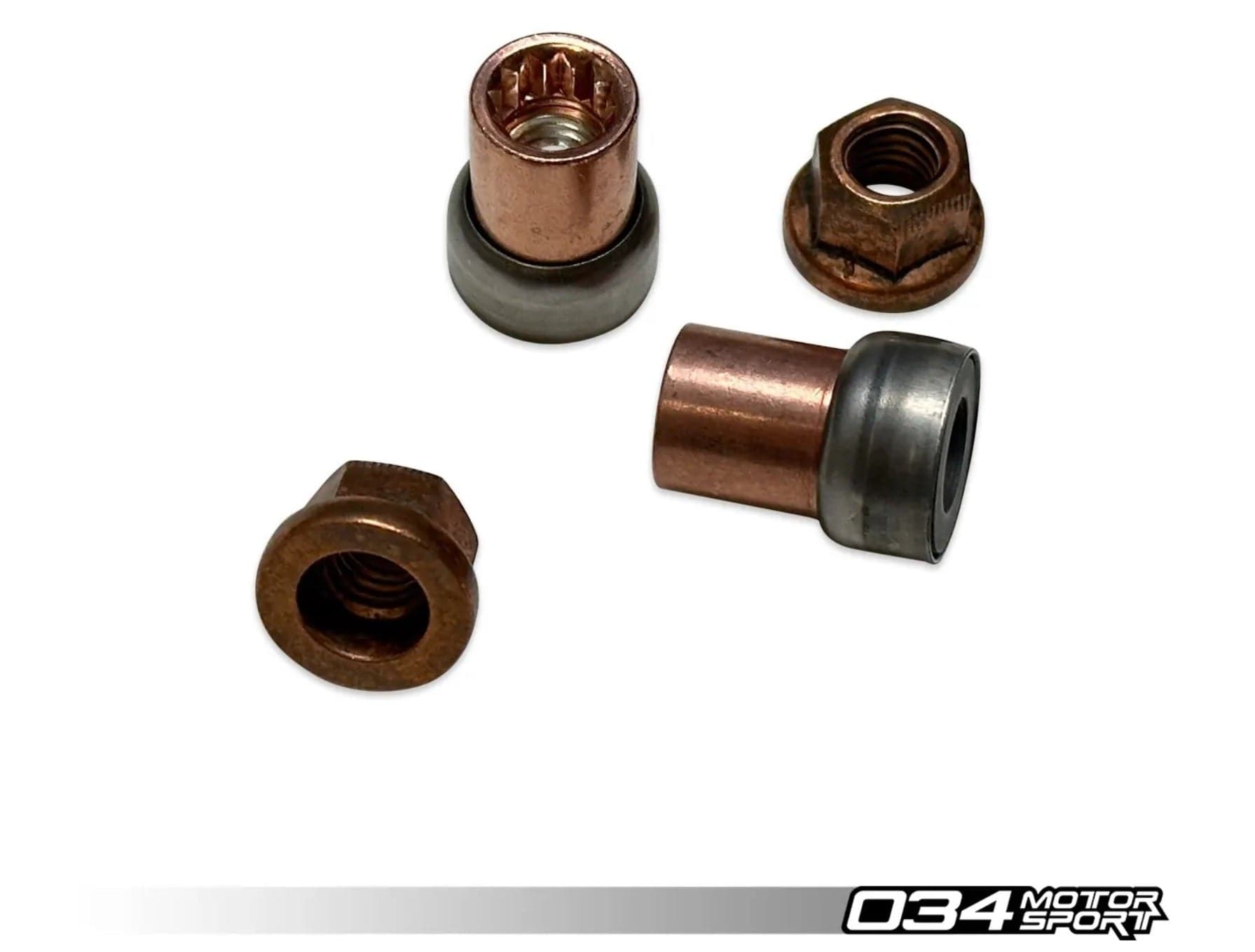

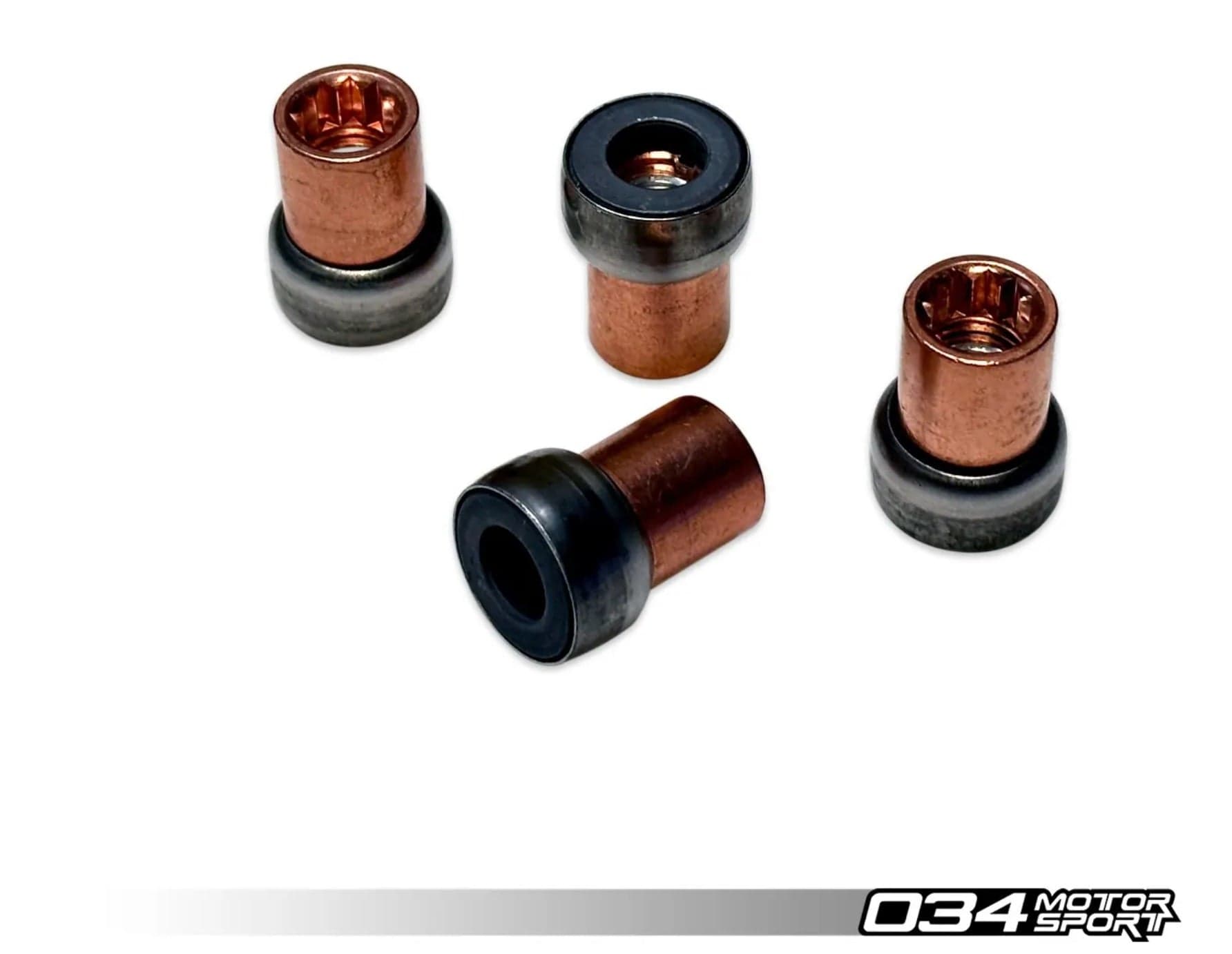

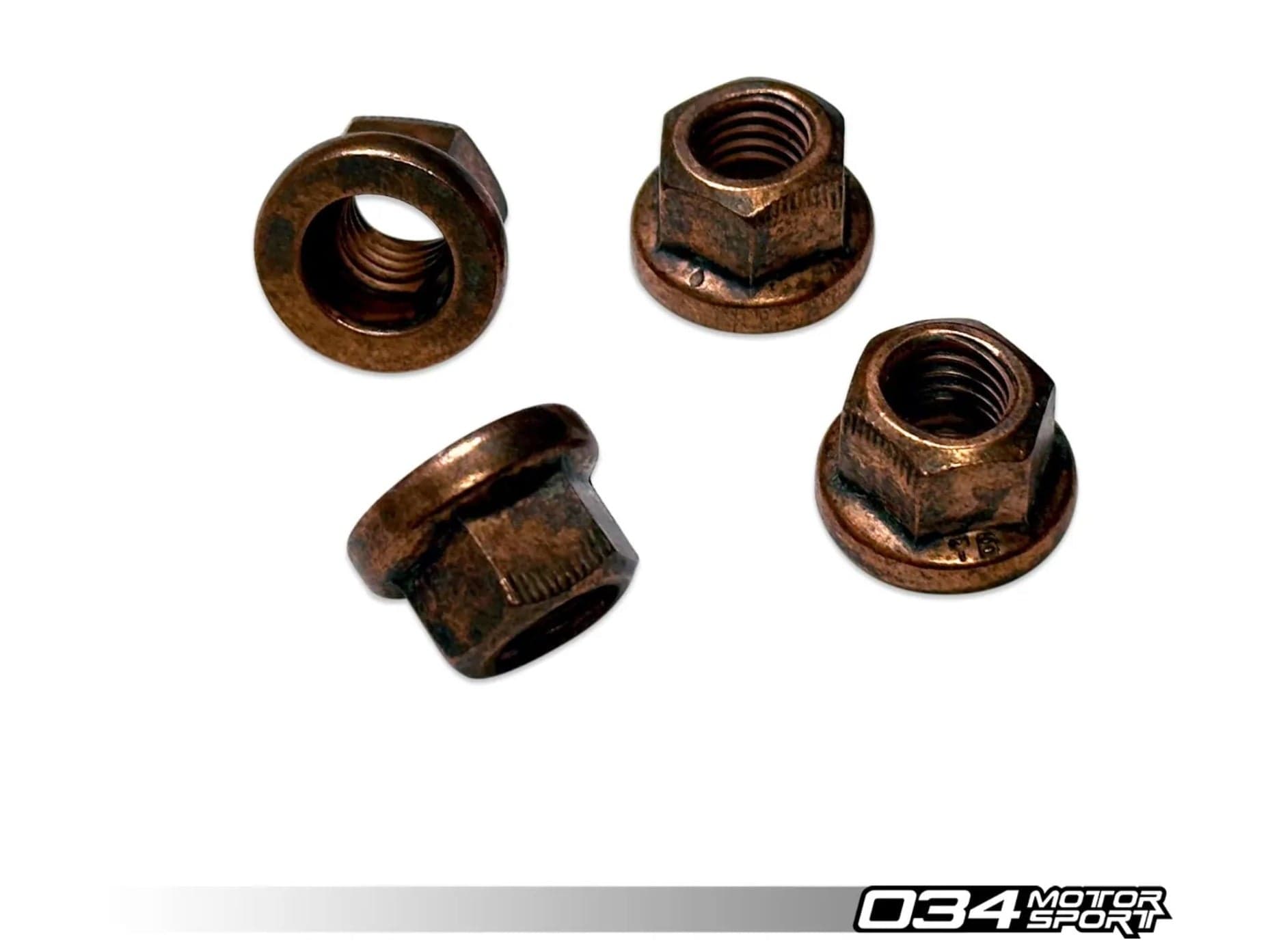

- Four self-locking nuts and four shouldered barrel nuts
- Genuine VAG OE part numbers
Specifications
- Brand: 034Motorsport
- Product Type: Turbocharger Installation Kit
- Engine: EA839 3.0 TFSI (single turbo)
- Includes: 1 V-band seal (059253232C), 2 exhaust gaskets (06M253039G), 4 self-locking nuts (N90894601), 4 shouldered barrel nuts (WHT004982), 1 turbo outlet gasket (8W0253115G)
- Part Number: 034-145-1506
Vehicle Compatibility: 3 applications across 1 make. Select a make to view.
Audi (3)
| Model | Variant | Engine | Years |
|---|---|---|---|
| S4 | B9/B9.5 | 3.0 TFSI (EA839) | 2018-on |
| S5 | B9/B9.5 | 3.0 TFSI (EA839) | 2018-on |
| SQ5 | B9/B9.5 | 3.0 TFSI (EA839) | 2018-on |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
