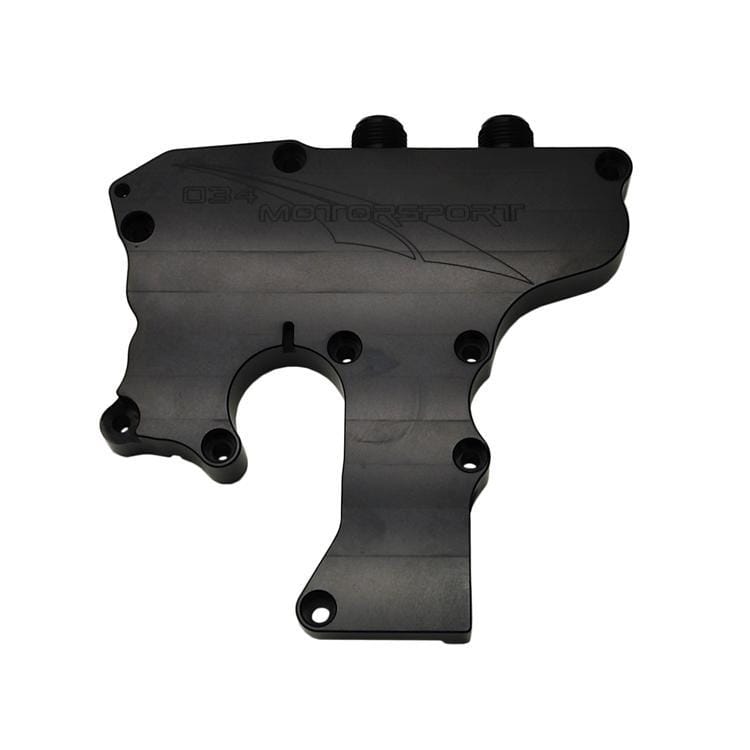

034Motorsport Valve Cover Breather Adapter, 2.0 TFSI & TSI, Catch Can Provision - 034-101-5000

This adapter replaces the failure-prone factory oil separator and PCV assembly (OEM 06H 103 495E) on Audi and Volkswagen 2.0 TFSI and TSI engines and provides -10 AN connections for the catch can of your choice. It is CNC-machined from 6061-T6 aluminium with internal channels, finished in black anodising, and connects directly to the factory breather tube that runs to the turbo inlet. Because the intake manifold breather provision is no longer used, 034Motorsport says a common boost leak source is removed and oil is kept out of the intake manifold, where it adds to carbon build-up. A catch can must be installed for proper crankcase ventilation, and the brand recommends pairing the adapter with its intake manifold plug and boost tap.

Features

• Replaces the factory oil separator and PCV assembly
• -10 AN male catch can inlet and outlet bungs
• CNC-machined 6061-T6 aluminium, black anodised
• Internally channelled, connects to the factory breather tube
• Ball clip stud and locknut for the engine cover mount
• Nine M6 x 25 Allen head screws included
• Requires a catch can

Specifications

• Brand: 034Motorsport
• Product Type: Valve Cover Breather Adapter
• Material: CNC-machined 6061-T6 aluminium
• Finish: Black anodised
• Connections: -10 AN male inlet and outlet bungs
• Includes: Breather adapter, 9 M6 x 25 Allen head screws
• Replaces OE Part: 06H 103 495E
• Requires: Catch can (not included)
• Part Number: 034-101-5000

Vehicle Compatibility: 20 applications across 2 makes. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
