APR K04-64 Turbo System Audi A3/A4/TT/TTS/VW Golf GTi/R/Passat 2.0T Transverse EA113

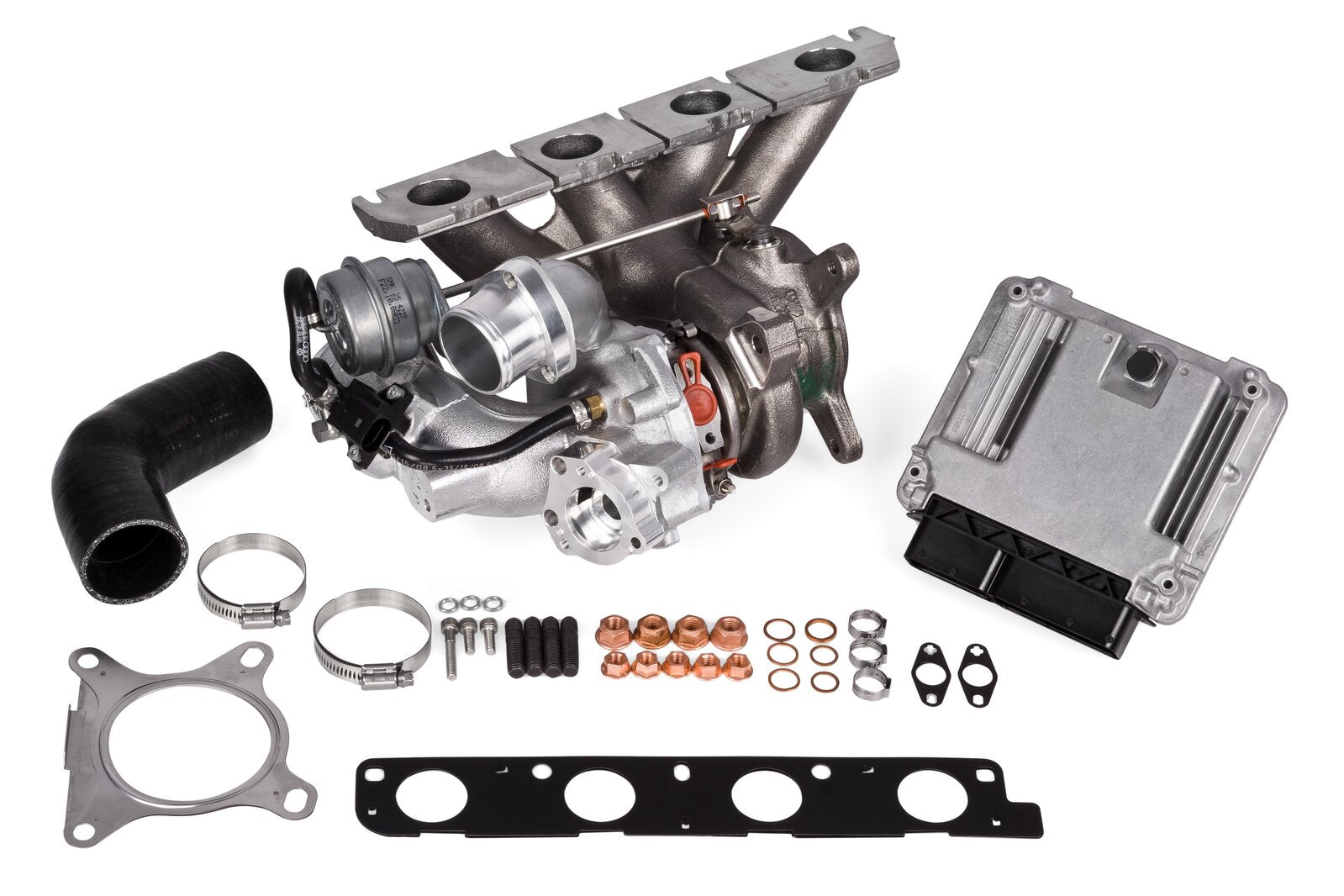

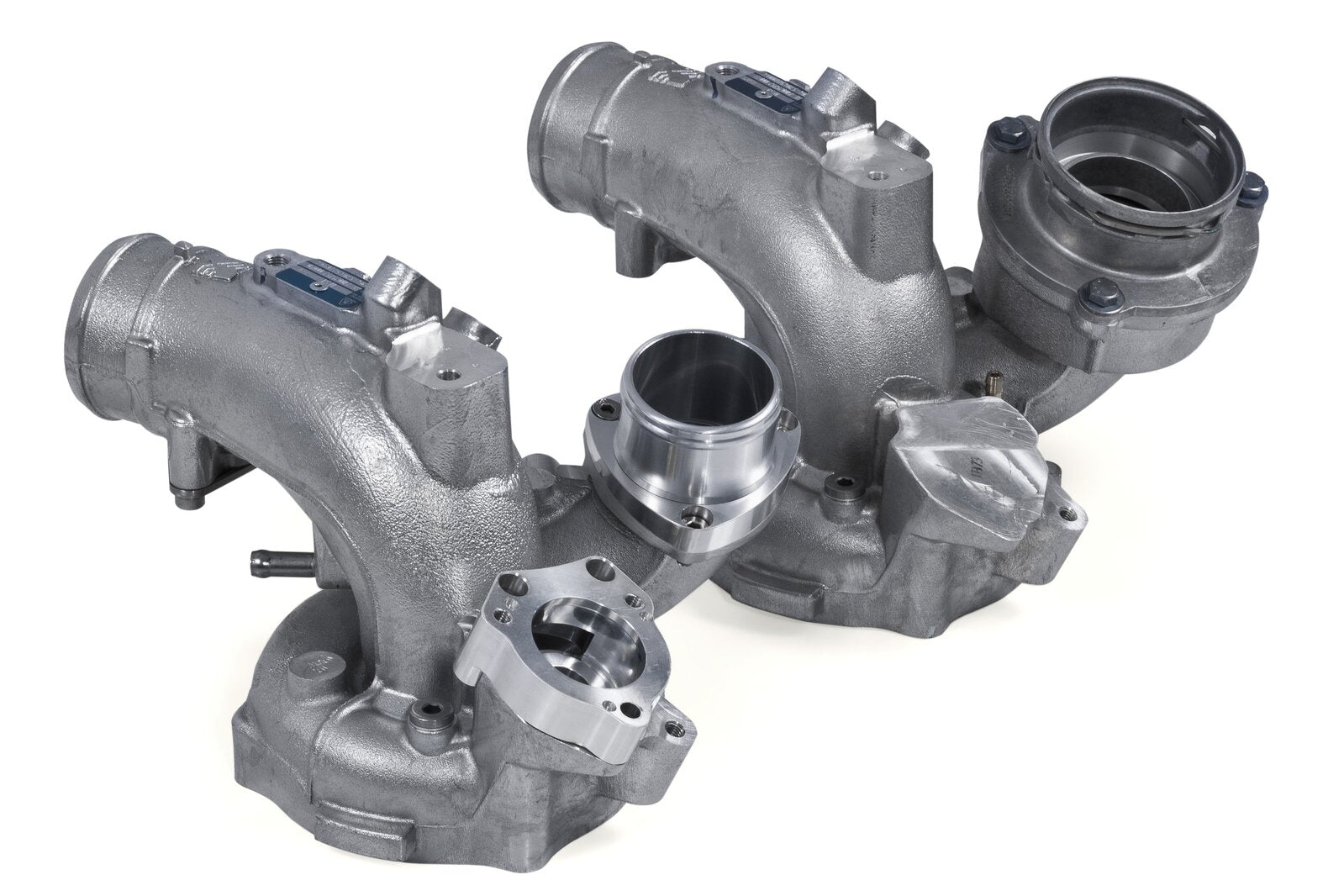

The APR K04-64 Turbo System upgrades a transverse 2.0T FSI EA113 engine using OEM K04 components from the European Audi S3 and Golf R, together with APR's direct compressor DV recirculation port, CNC turbo outlet and recalibrated engine management. APR says it takes a 200hp and 207lb-ft engine to 355 horsepower and 368lb-ft of torque on 100 octane fuel, with nearly flat torque delivery from 2500 rpm to 5000 rpm. The CNC-machined recirculation port on the OEM compressor cover removes the need for extra throttle body pipes, hoses, clamps and DV mounts, and APR says it also cuts charge piping volume for faster boost response. Specific software is included and is installed to the factory ECU by an authorised APR dealer, and the system needs other supporting hardware to work properly.
Features

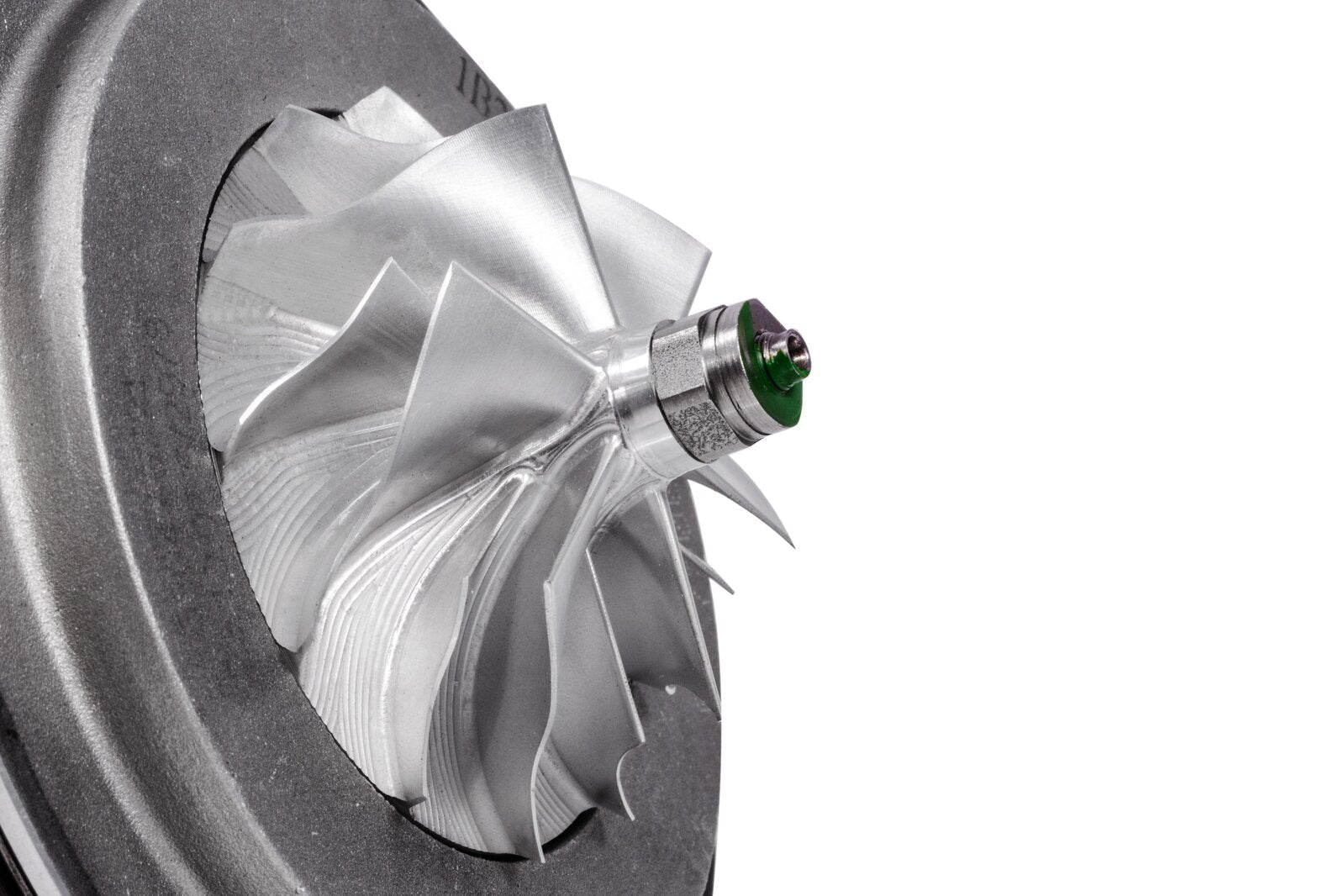

- OEM Borg Warner K04 turbo from the European S3 and Golf R

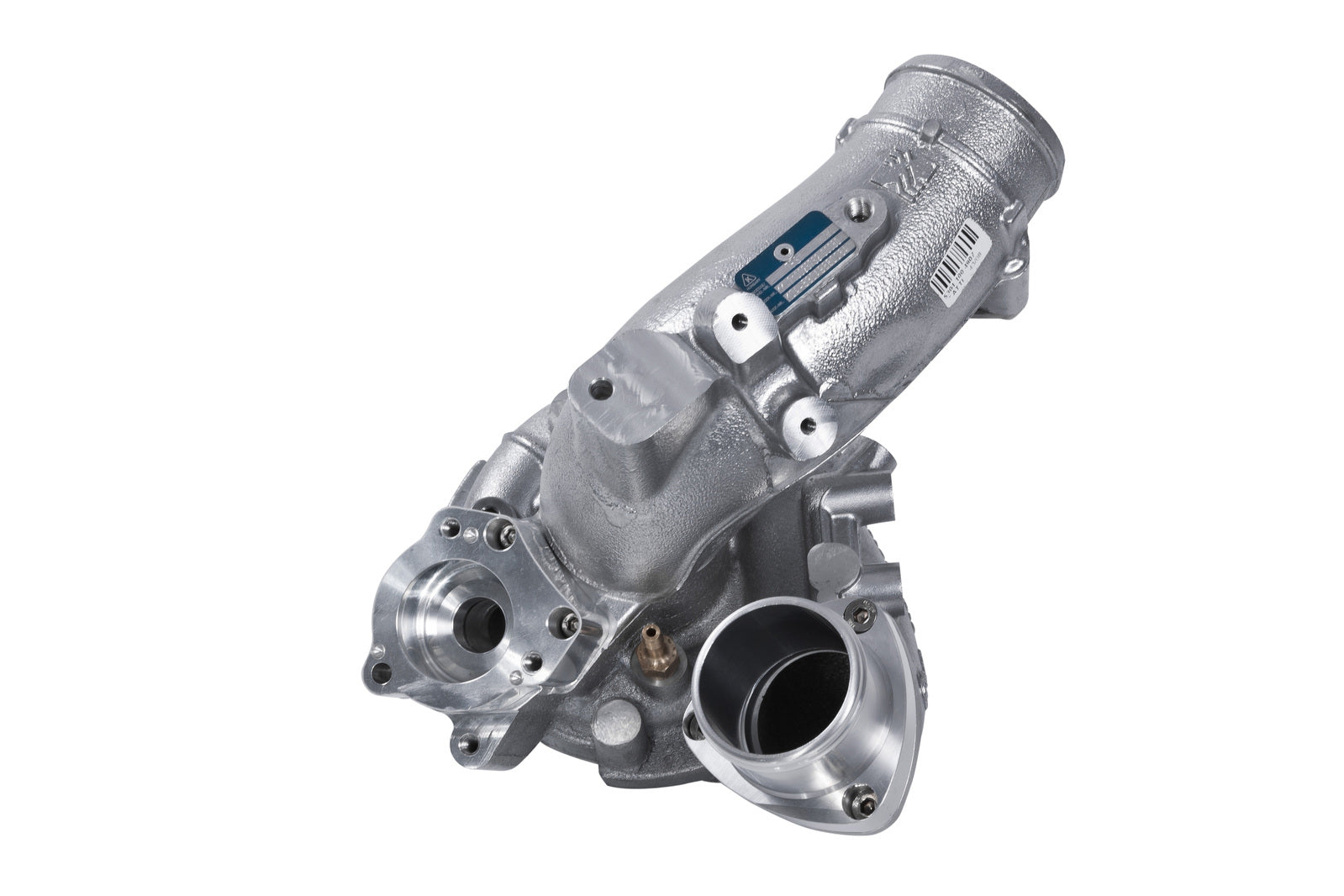

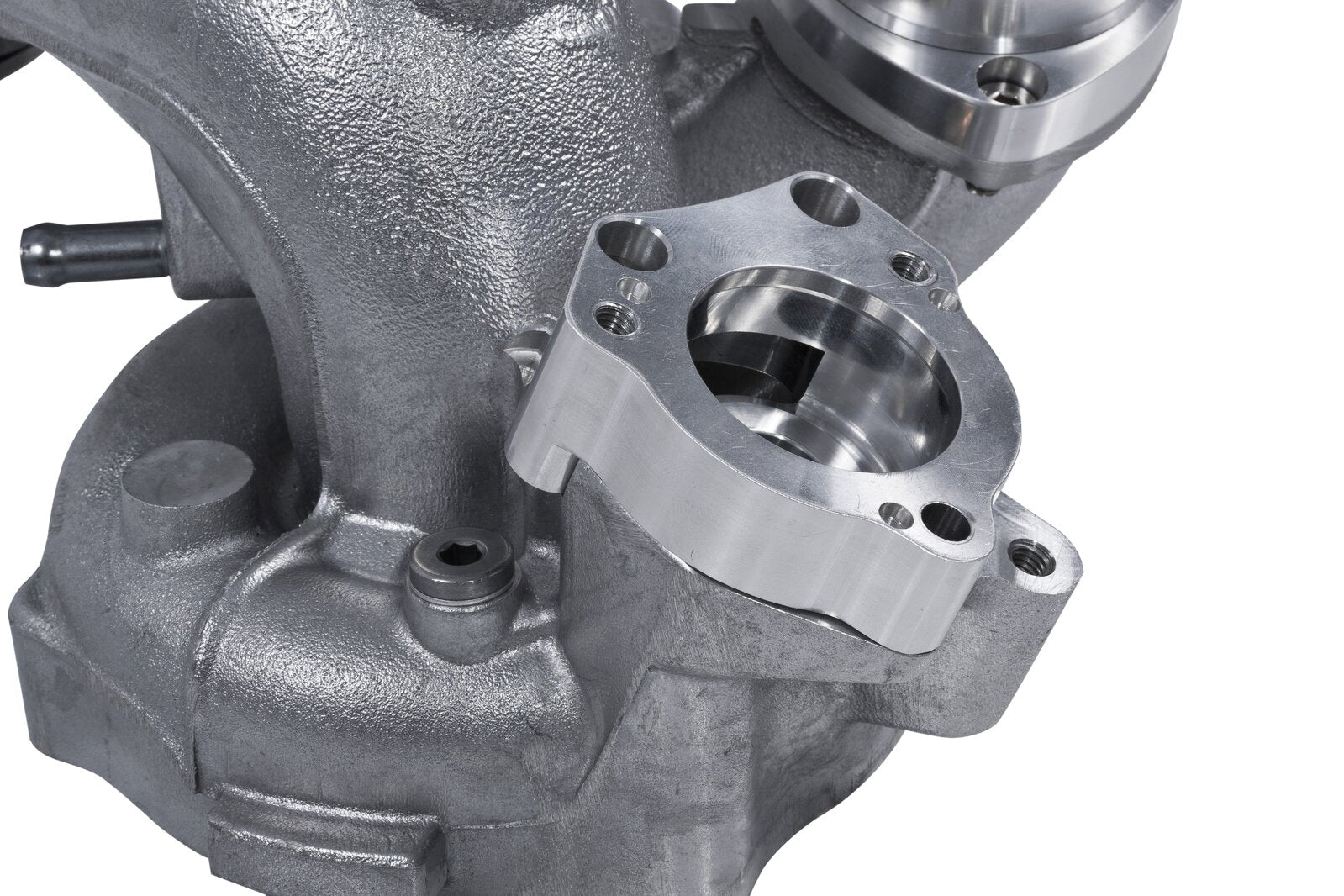

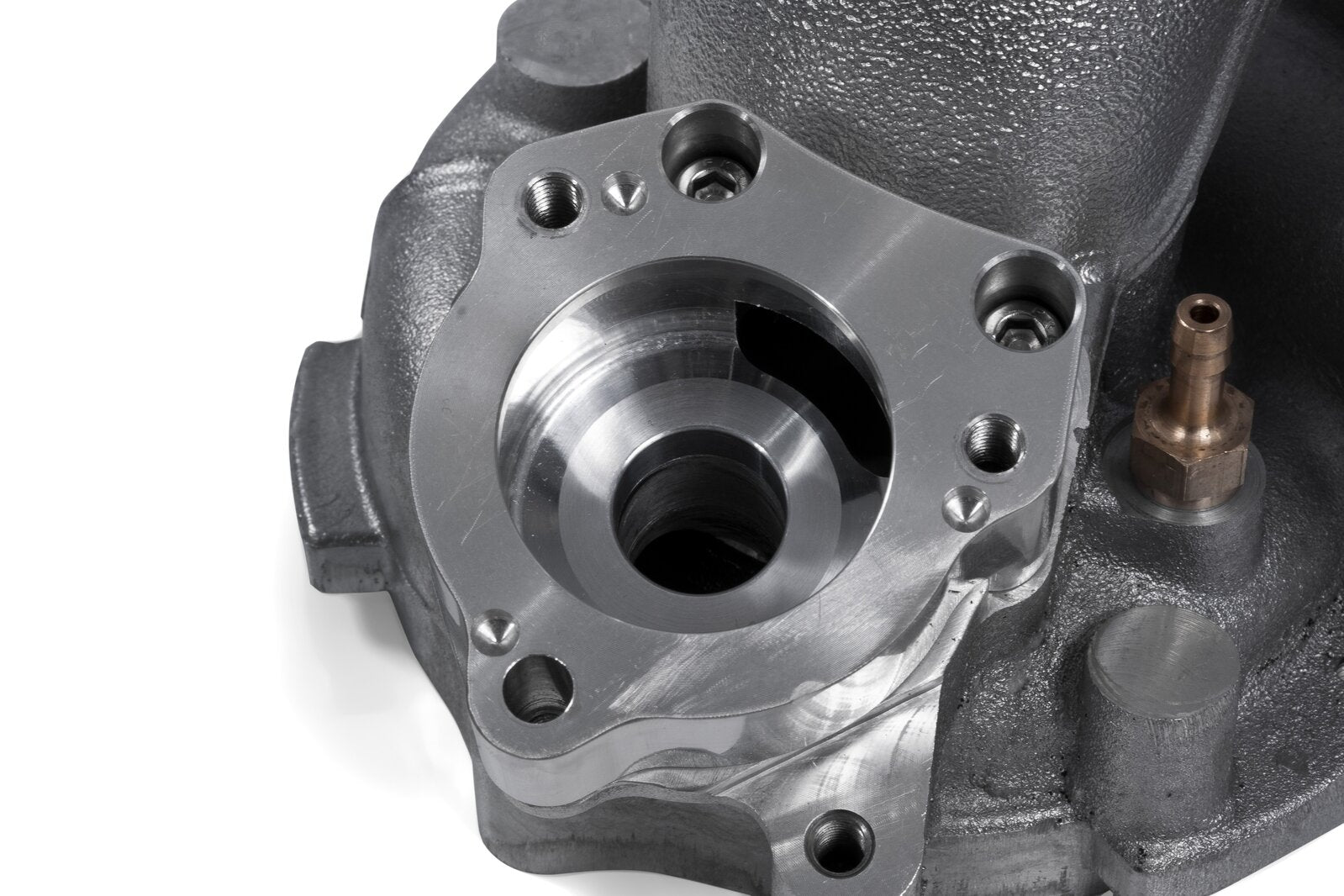

- CNC direct compressor DV recirculation port

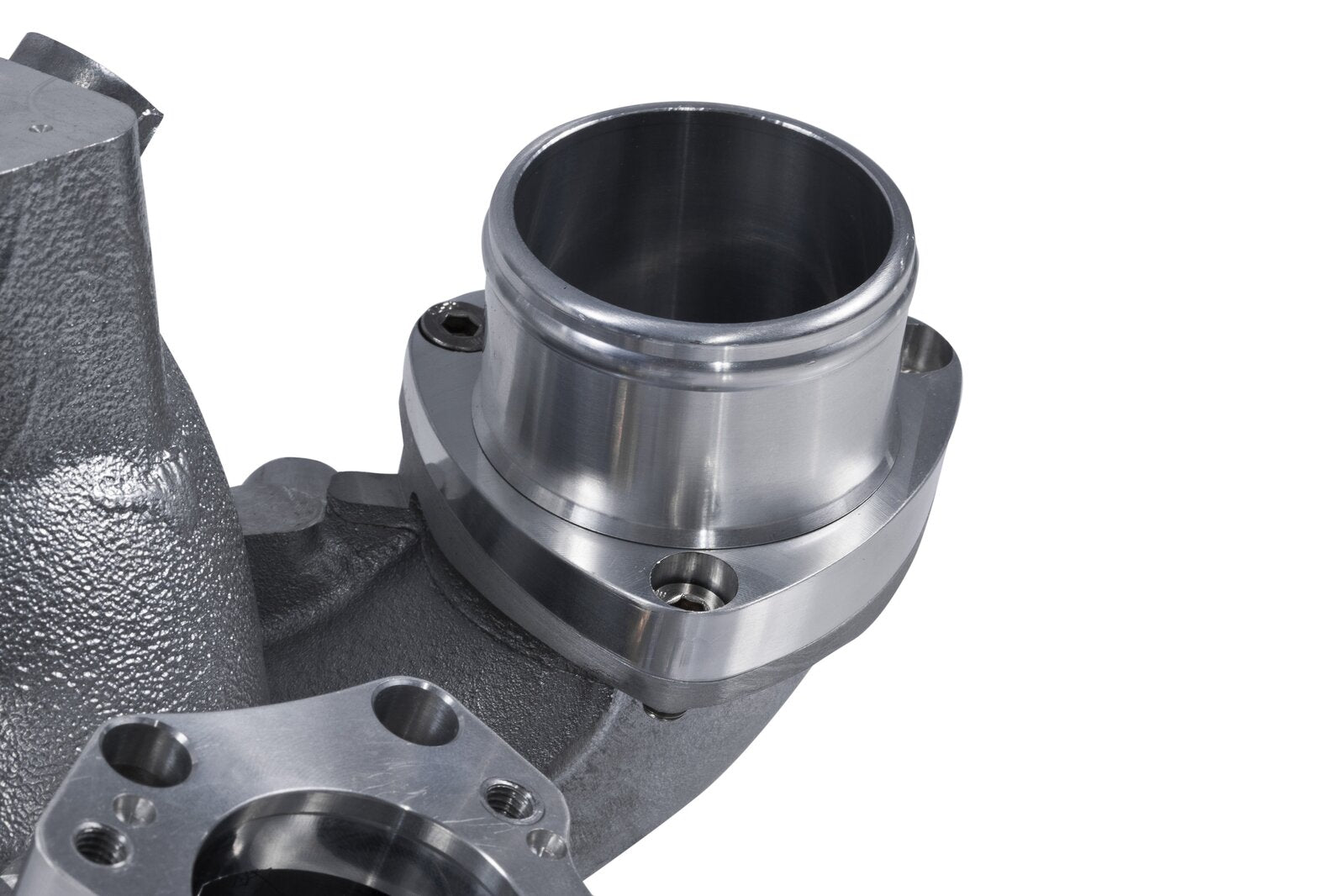

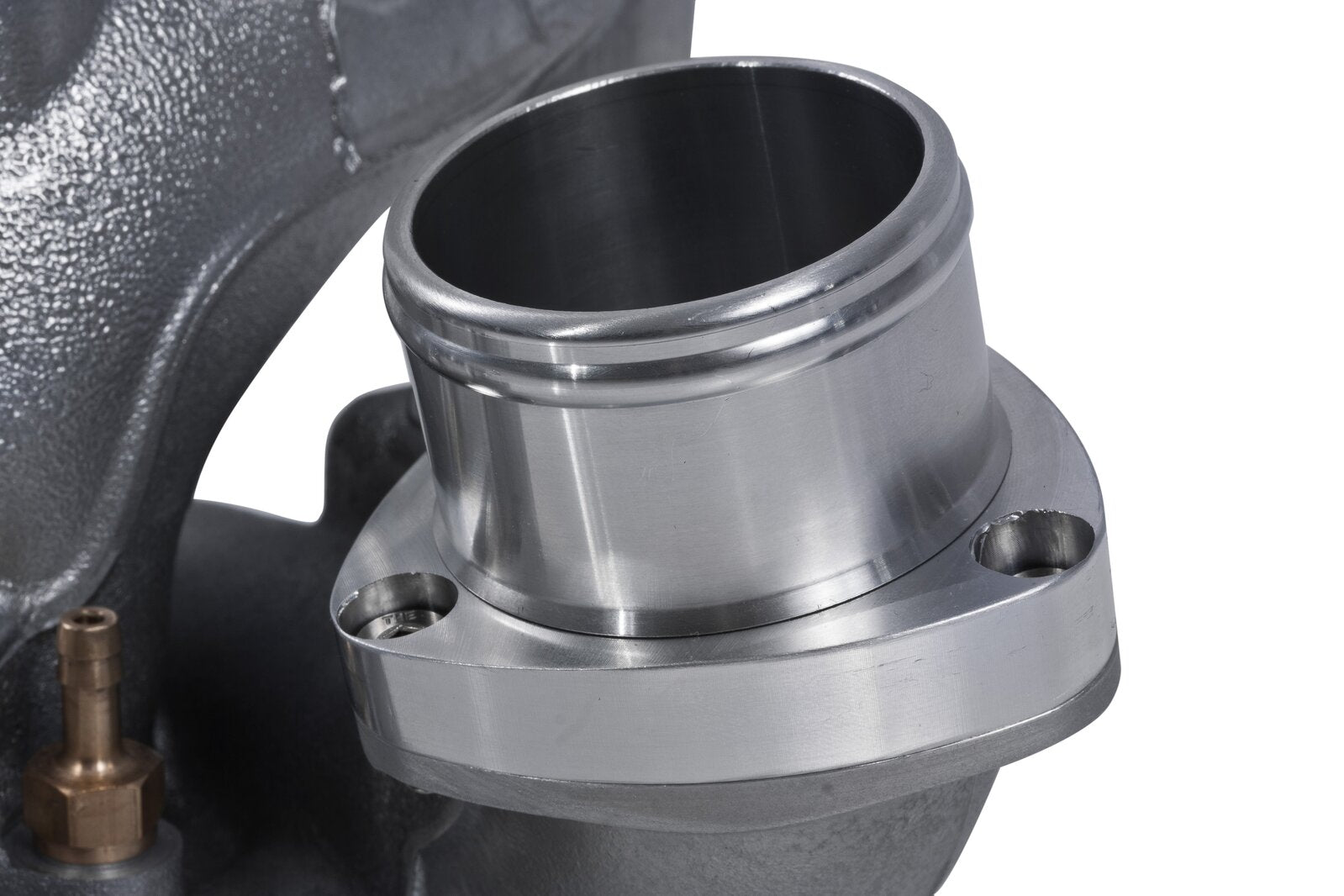

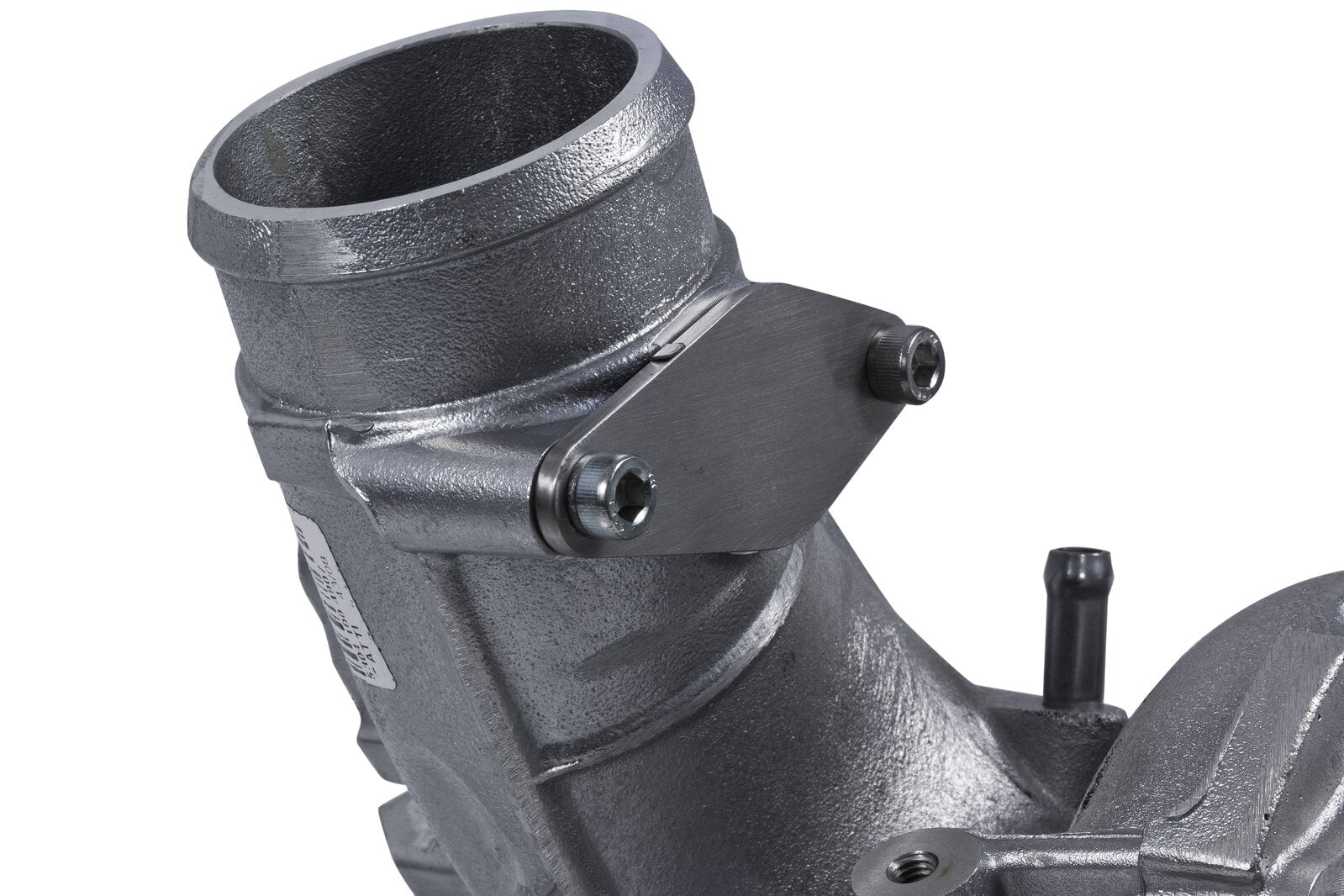

- CNC flange replaces the OEM turbo muffler
- 355 horsepower and 368lb-ft on 100 octane fuel, per APR
- Nearly flat torque from 2500 rpm to 5000 rpm, per APR
- ECU software included, installed by an authorised APR dealer
- Needs supporting hardware such as HPFP, injectors and intercooler
Specifications
- Brand: APR
- Product Type: Turbo System
- Turbocharger: Borg Warner K04, OEM components from the European Audi S3 and Golf R
- Engine: 2.0T FSI transverse (EA113)
- Claimed Output: 355 horsepower and 368lb-ft on 100 octane fuel, up from 200hp and 207lb-ft (per APR)
- Software: Included; installed to the factory ECU by an authorised APR dealer only; compatibility must be checked before purchase
- Required Hardware: HPFP, injectors (MS100041 or 06F 906 036 F), Race DP, intake, intercooler, transmission software and spark plugs
- Note: May require transmission and engine internal upgrades
- Part Number: T2100012
Vehicle Compatibility: 7 applications across 2 makes. Select a make to view.
Audi (4)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A3 | 2.0T FSI (EA113, transverse) | ||
| A4 | 2.0T FSI (EA113, transverse) | ||
| TT | 2.0T FSI (EA113, transverse) | ||
| TTS | 2.0T FSI (EA113, transverse) |
Volkswagen (3)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Golf | GTI | 2.0T FSI (EA113, transverse) | |
| Golf R | 2.0T FSI (EA113, transverse) | ||
| Passat | 2.0T FSI (EA113, transverse) |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
