The APR Low Pressure Fuel Pump upgrade is an inline pump system for the all-wheel-drive Volkswagen Golf R Mk6 with the 2.0T EA113 or EA888 Gen 1 engine. It is designed to make sure the low pressure fuel system can deliver the right volume of fuel from the tank to the high pressure system under high demand, using a 255 LPH inline pump that sits between the high pressure fuel pump (HPFP) and the factory low pressure fuel pump (LPFP). An included APR Auxiliary ECU connects to the factory CAN bus and controls the pump from factory ECU data, so the pump only runs when needed, which APR says lowers power use, fuel temperature and idle noise. The system bolts on without software and includes mounting brackets, but APR notes it is not compatible with vehicles that have an intank fuel filter and pressure regulator.
Features
- 255 LPH inline fuel pump between the HPFP and factory LPFP

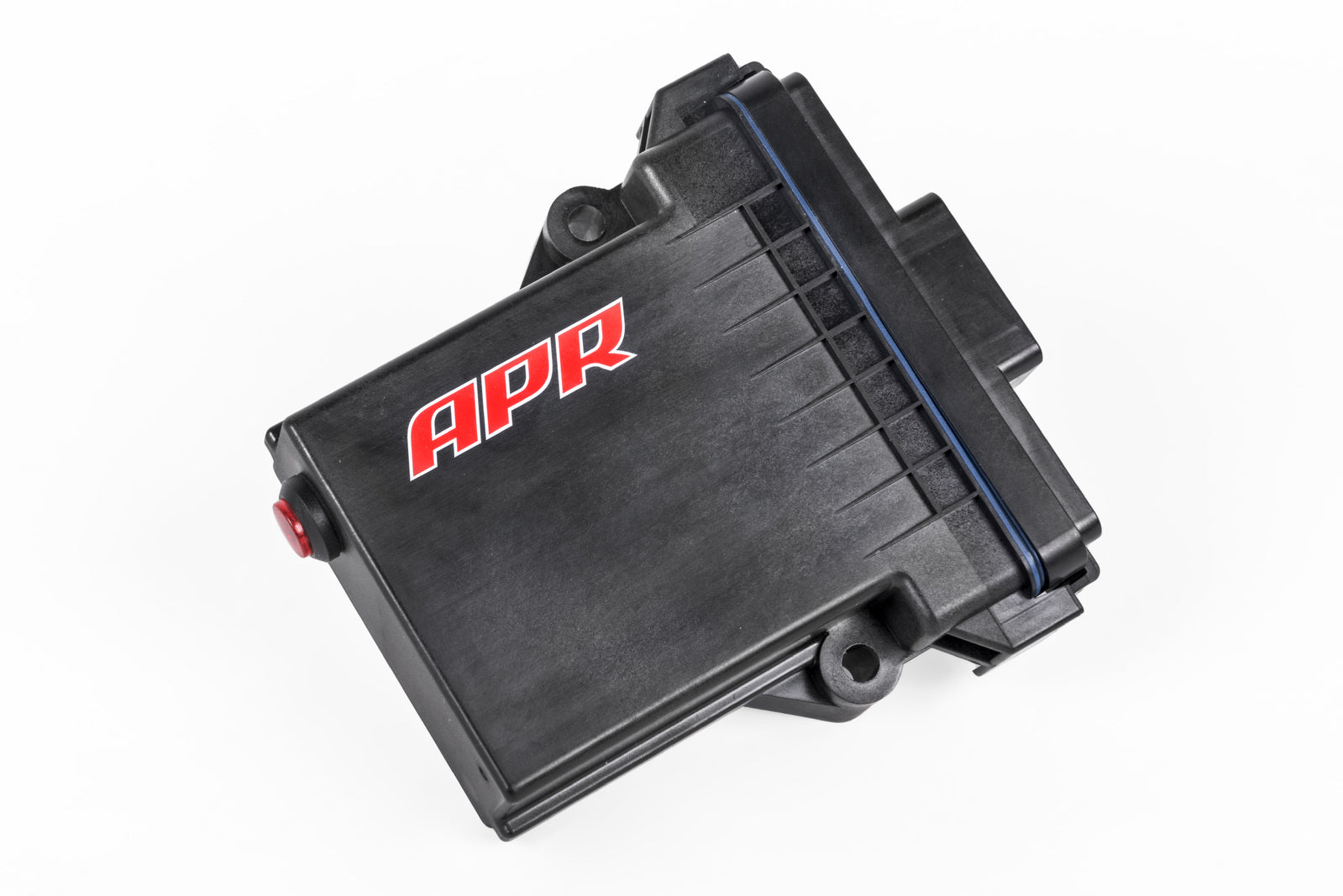

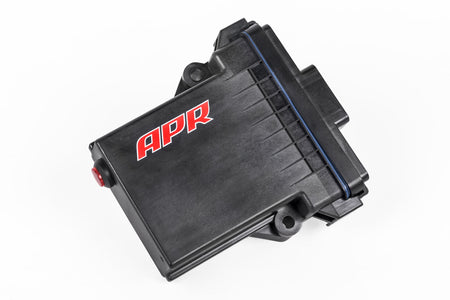

- APR Auxiliary ECU on the factory CAN bus controls the pump
- Direct bolt-on with no software required
- Clean mounting brackets included
- Pump runs only when needed, lowering power use and heat, per APR
- Auxiliary ECU can empty the tank with the fuel line disconnected
- Not compatible with intank fuel filter and pressure regulator
Specifications
- Brand: APR
- Product Type: Low Pressure Fuel Pump Upgrade
- Pump: 255 LPH inline fuel pump
- Controller: APR Auxiliary ECU on the factory CAN bus
- Installation: Direct bolt-on, no software required

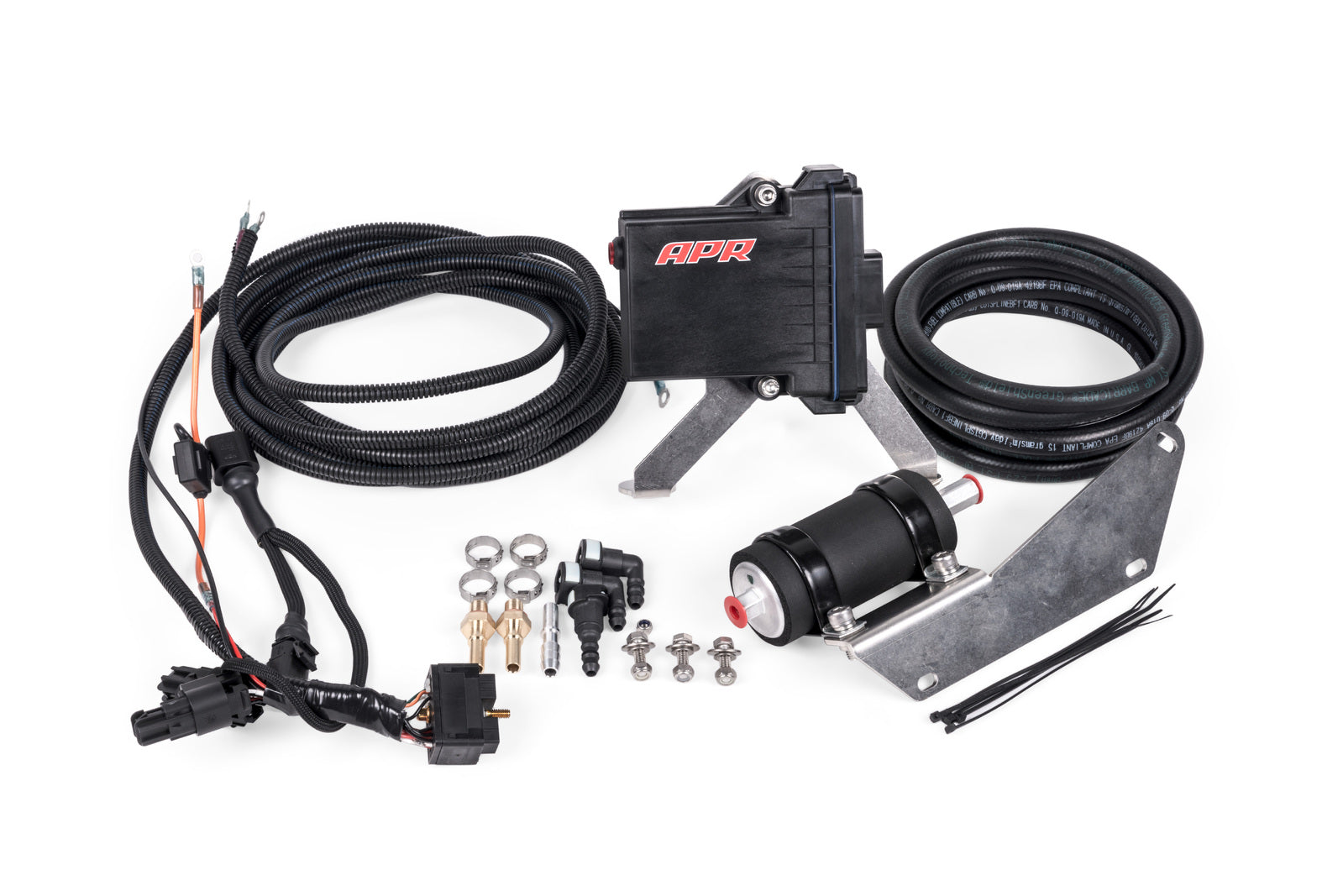

- Includes: Inline pump, APR Auxiliary ECU and mounting brackets
- Engine: 2.0T EA113/EA888 Gen 1
- Drivetrain: AWD
- Not Compatible With: Intank fuel filter and pressure regulator
- Part Number: MS100071
Vehicle Compatibility: 1 application across 1 make. Select a make to view.
Volkswagen (1)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Golf R | Mk6 | 2.0T (EA113/EA888 Gen 1) | AWD |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
