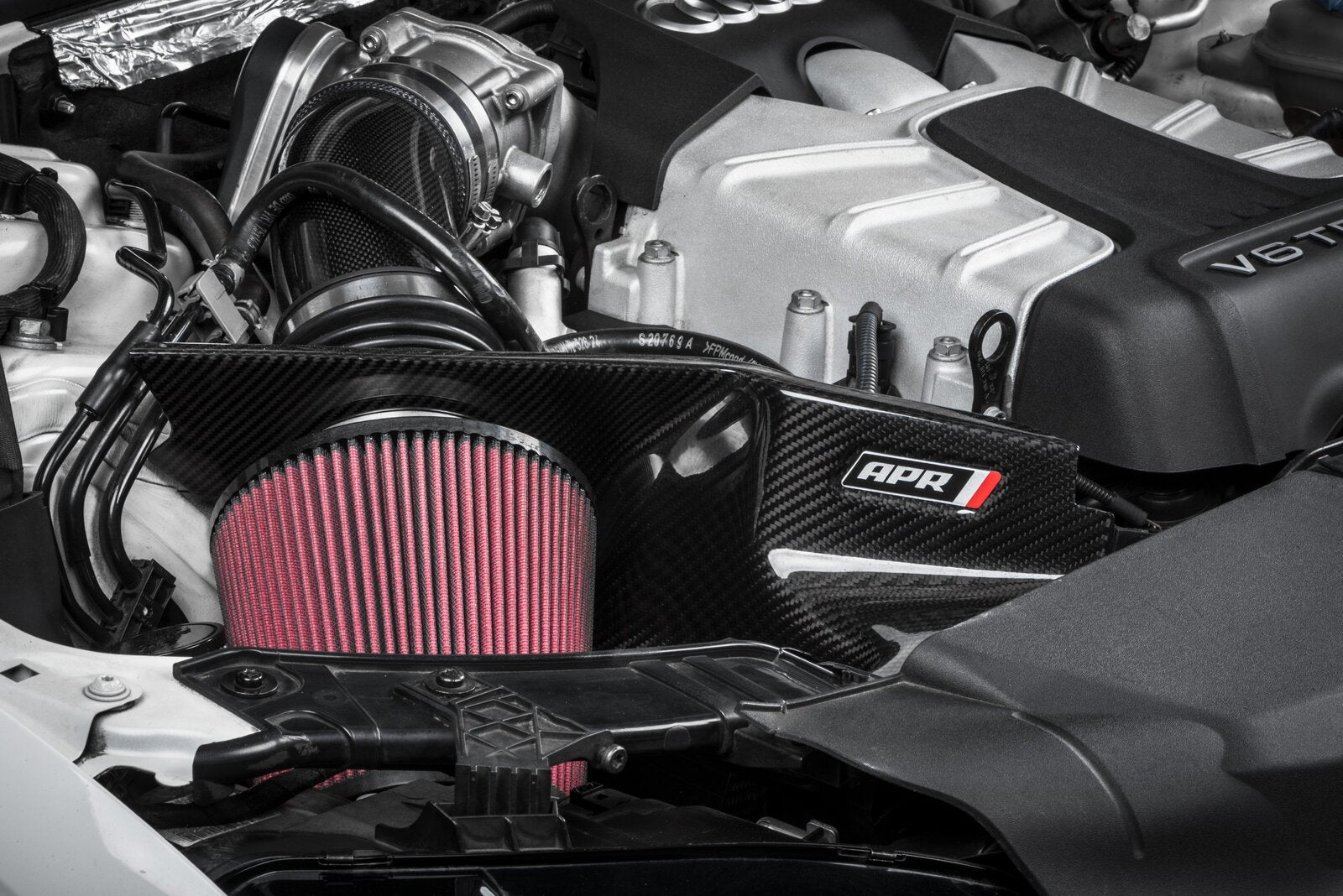

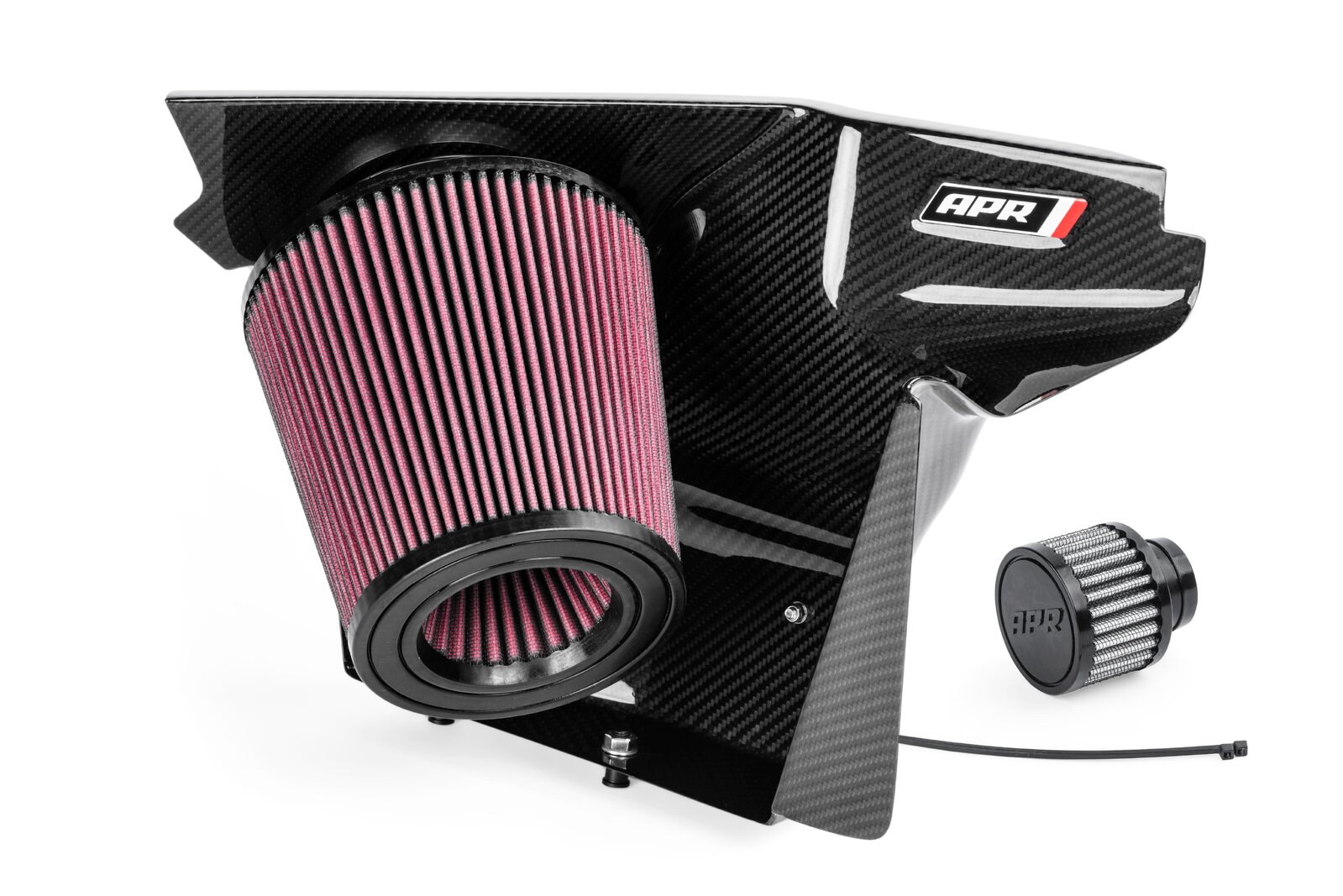

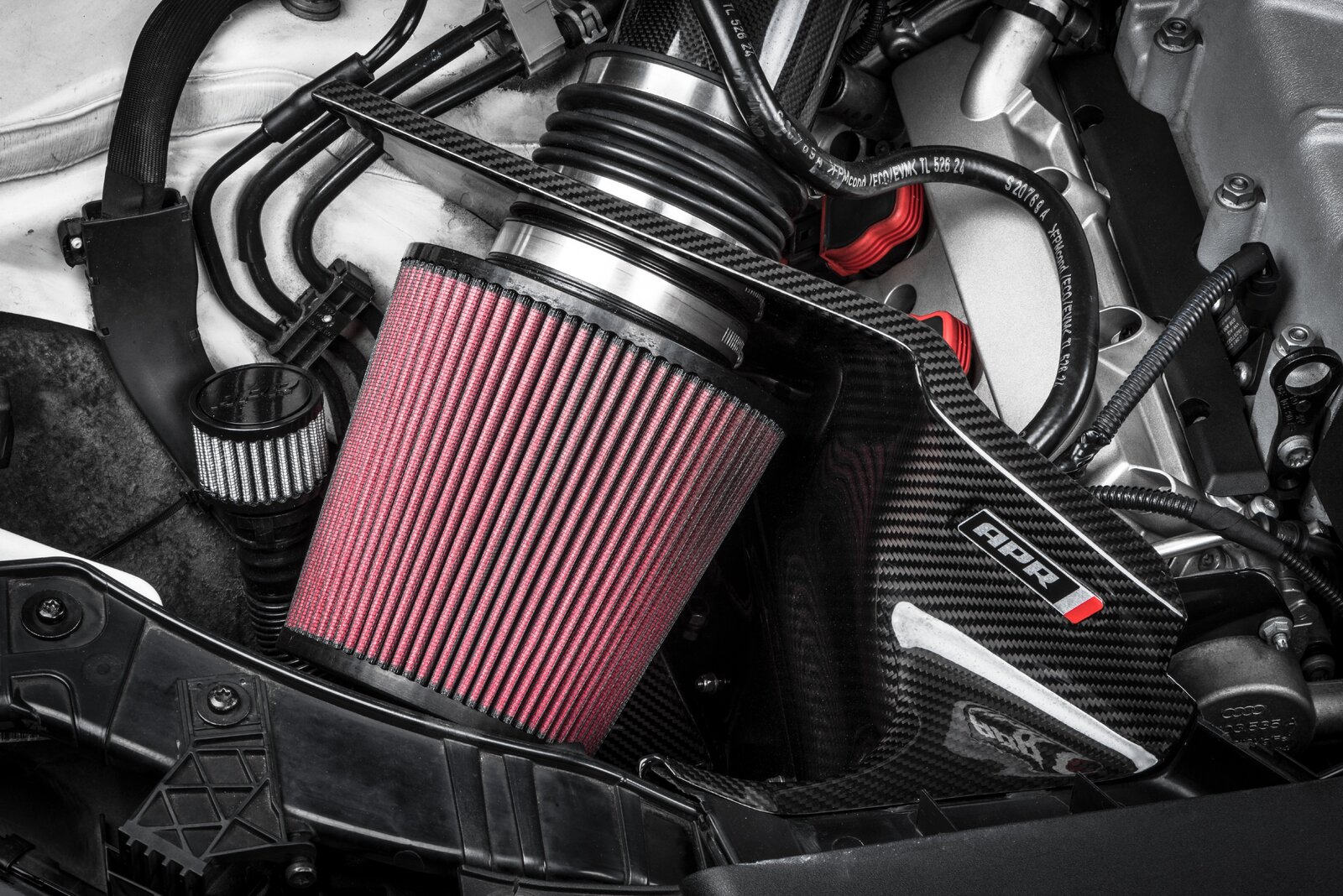

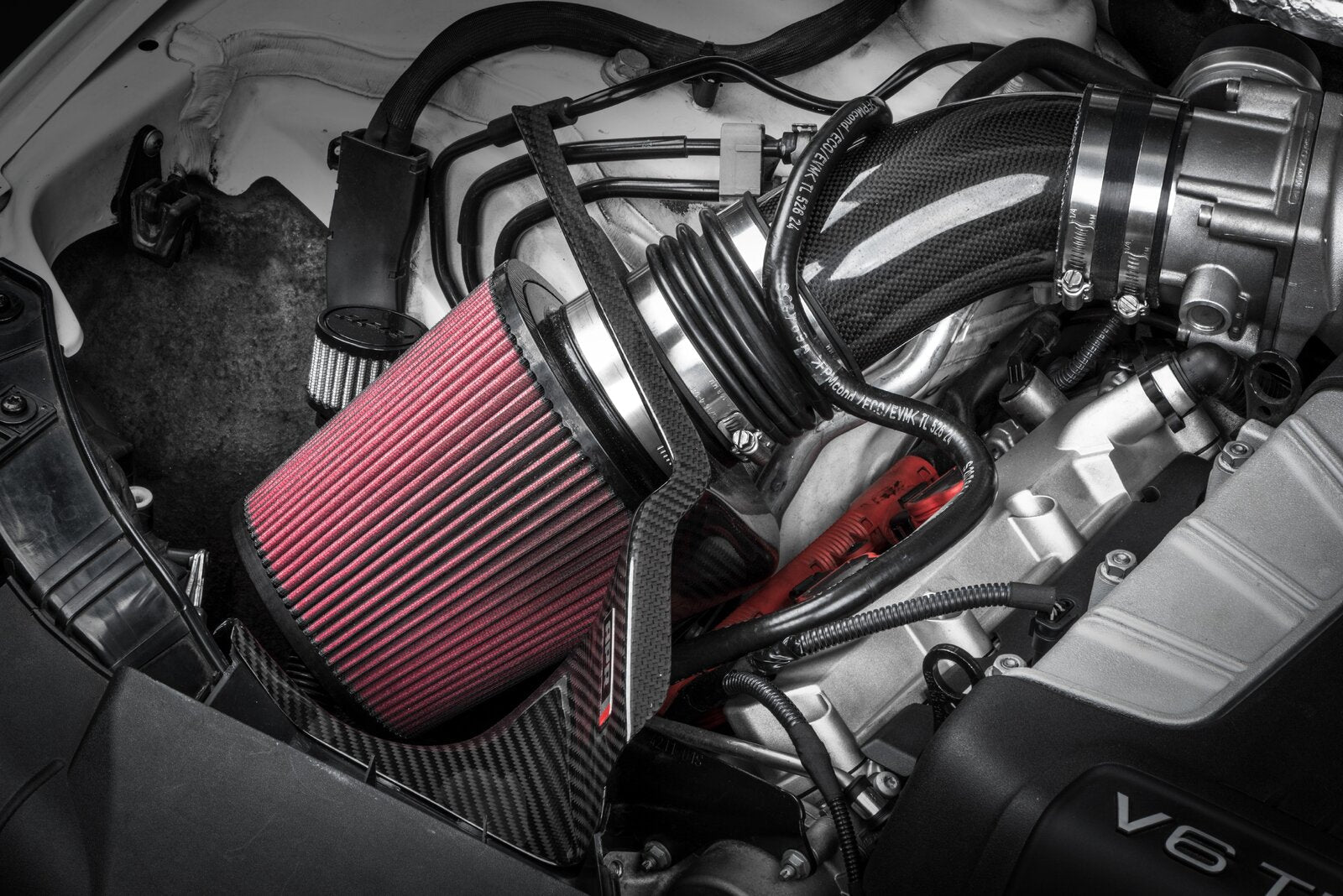

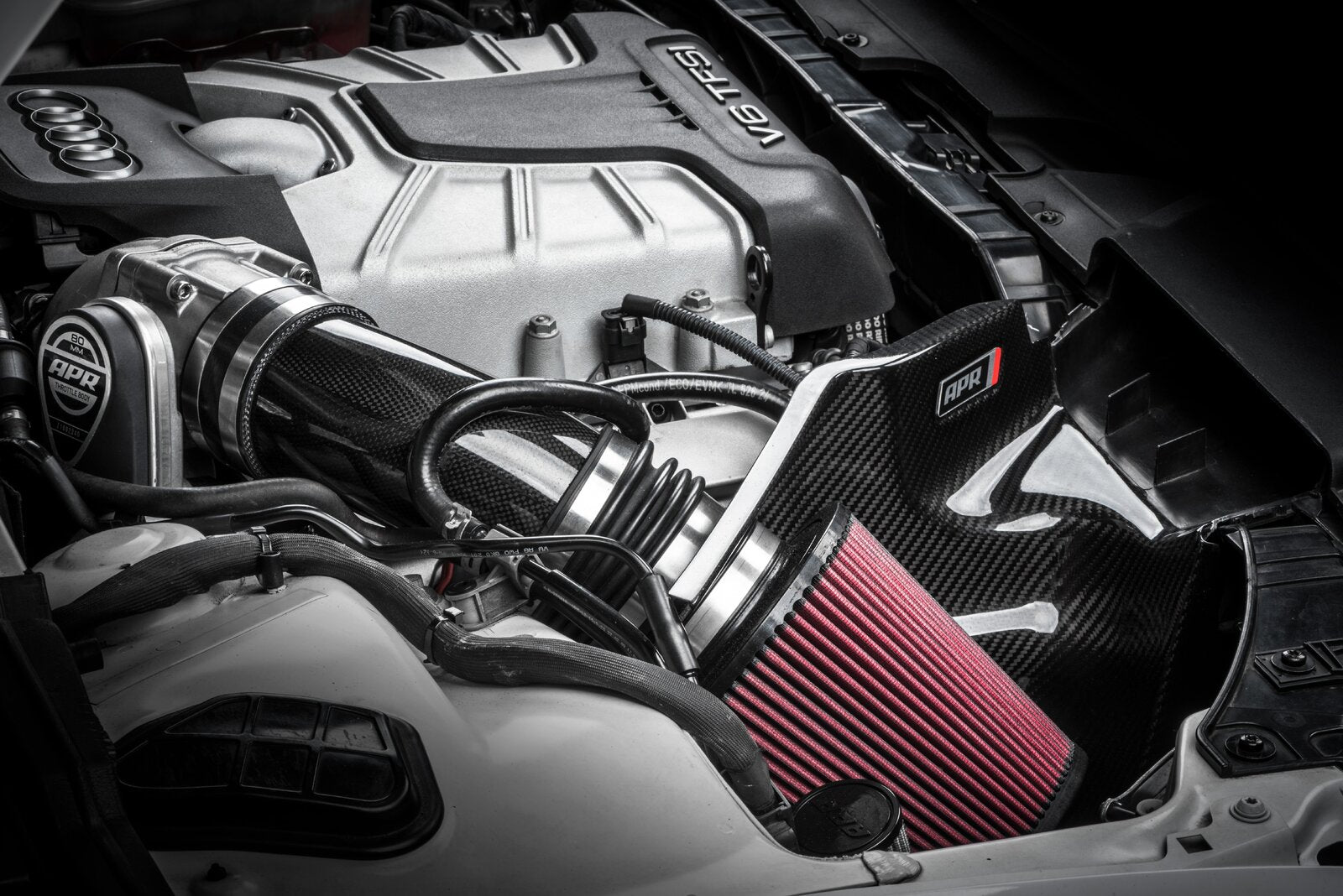

This open carbon fibre intake from APR is a drop-in system for the Audi S4, S5, Q5 and SQ5 (B8) that removes the airbox altogether. APR describes the factory system as dramatically undersized, with an inlet restriction that becomes obvious at higher power levels, and says its kit installs in minutes. A carbon fibre air dam feeds a large 7 inch filter with a frontal inlet, while a thick T304 stainless steel heat shield and an air buffer gap on the back of the shell reject engine bay heat. The 4 inch inlet works with the factory inlet or the APR Ultracharger System, and APR reports flow bench gains of up to 268 CFM at 28 inches of H2O and an average of 17 AWHP over the factory intake.
Features
- Open drop-in design with the airbox removed

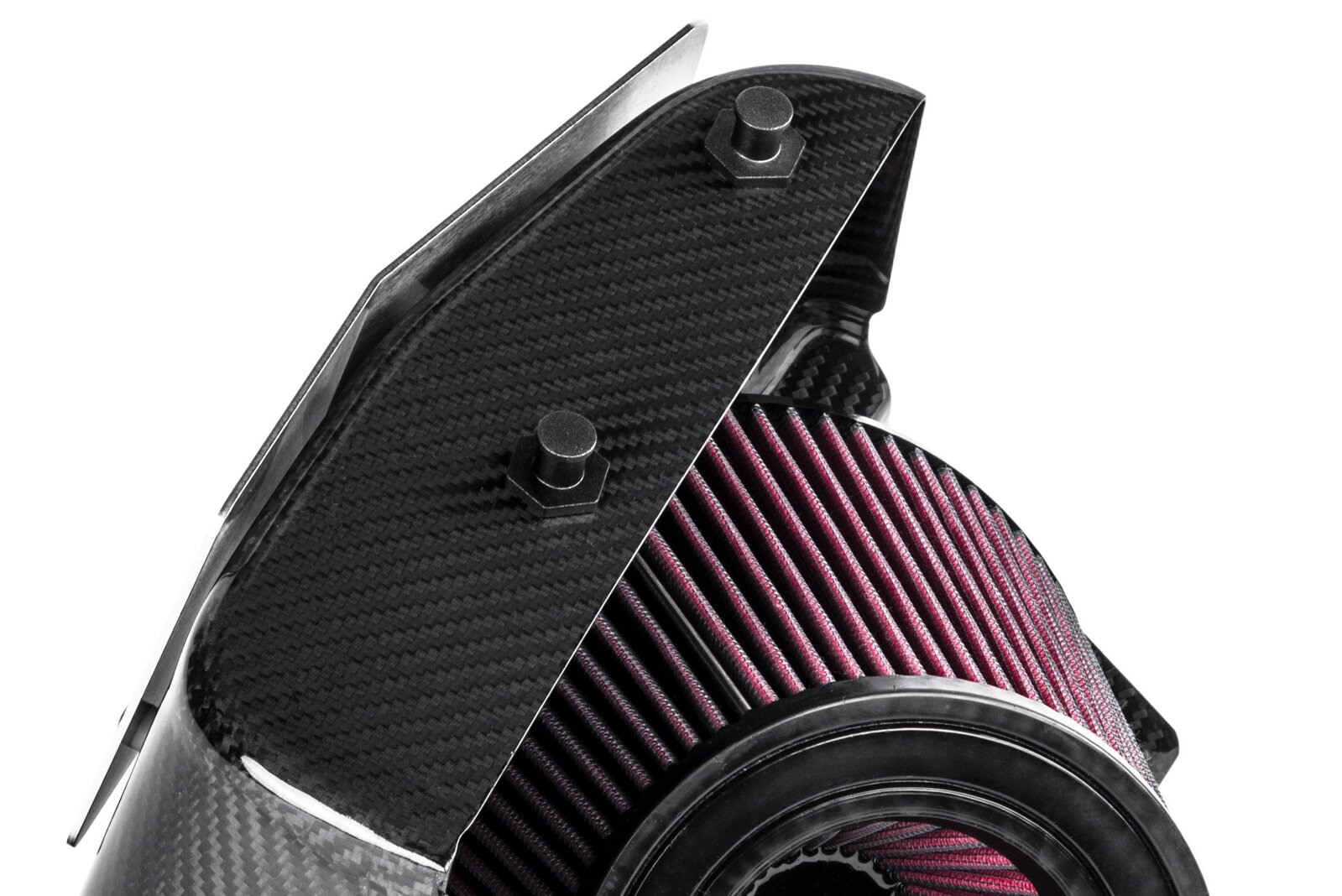

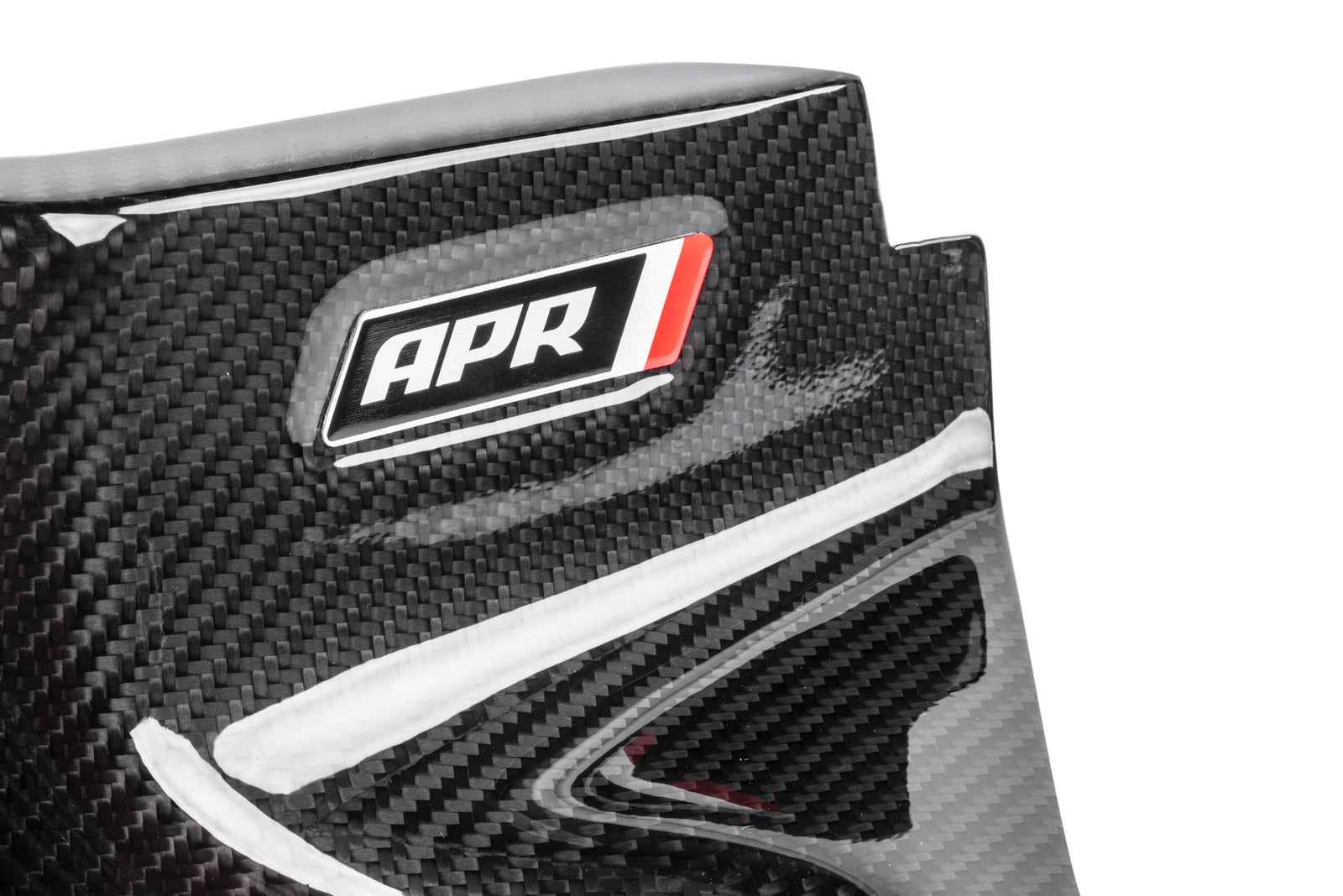

- Carbon fibre air dam

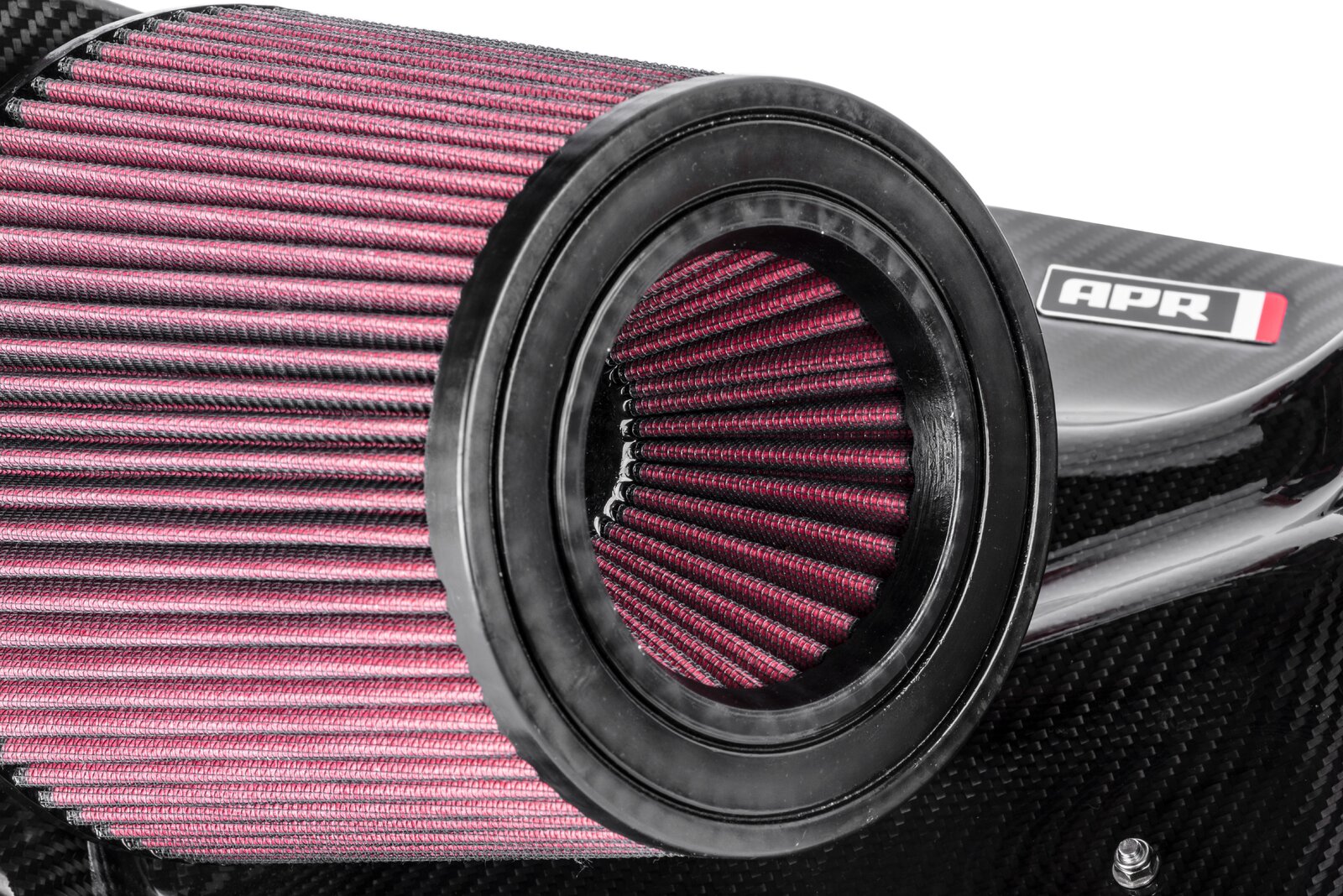

- Large 7 inch filter with frontal inlet

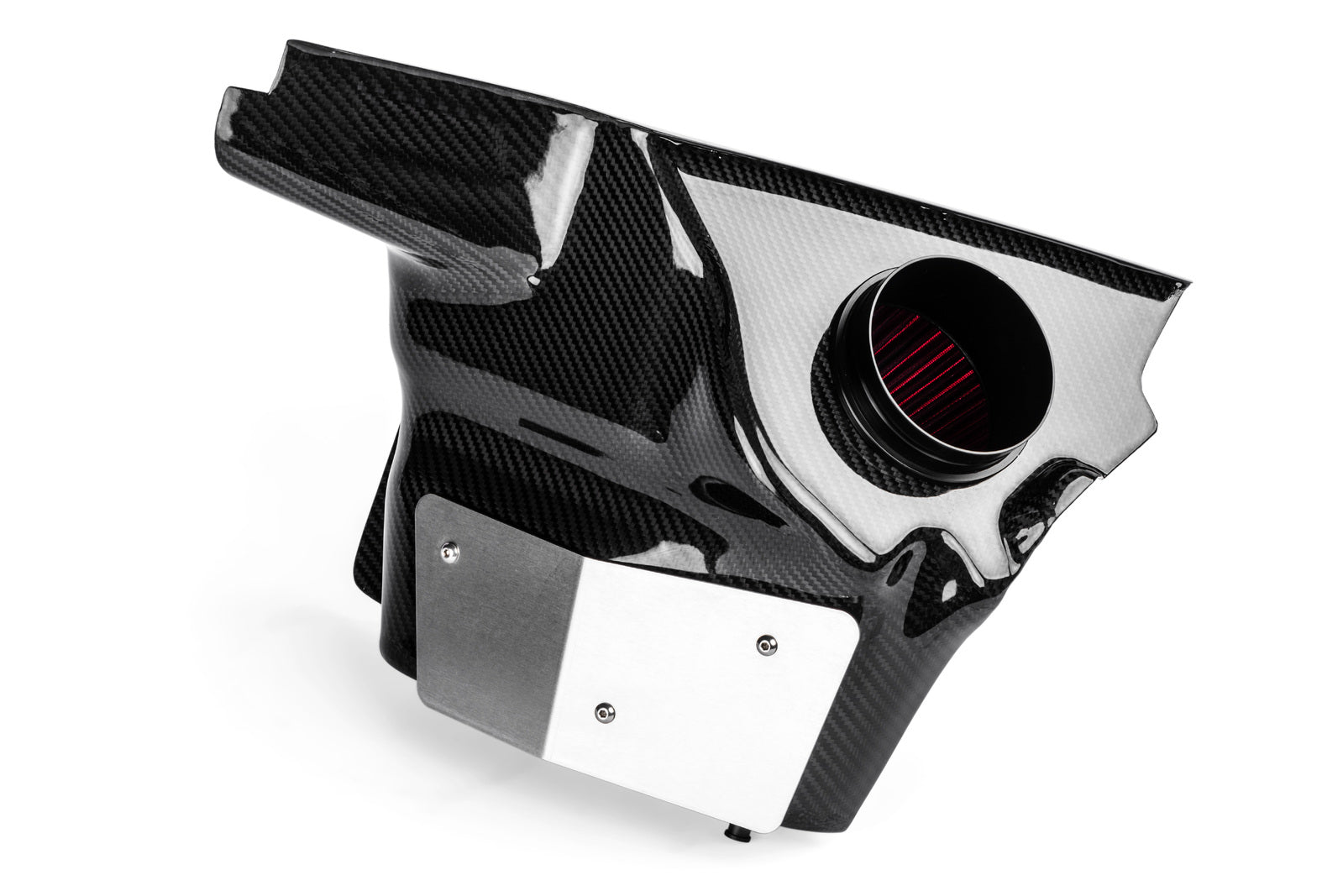

- T304 stainless steel heat shield with air buffer gap

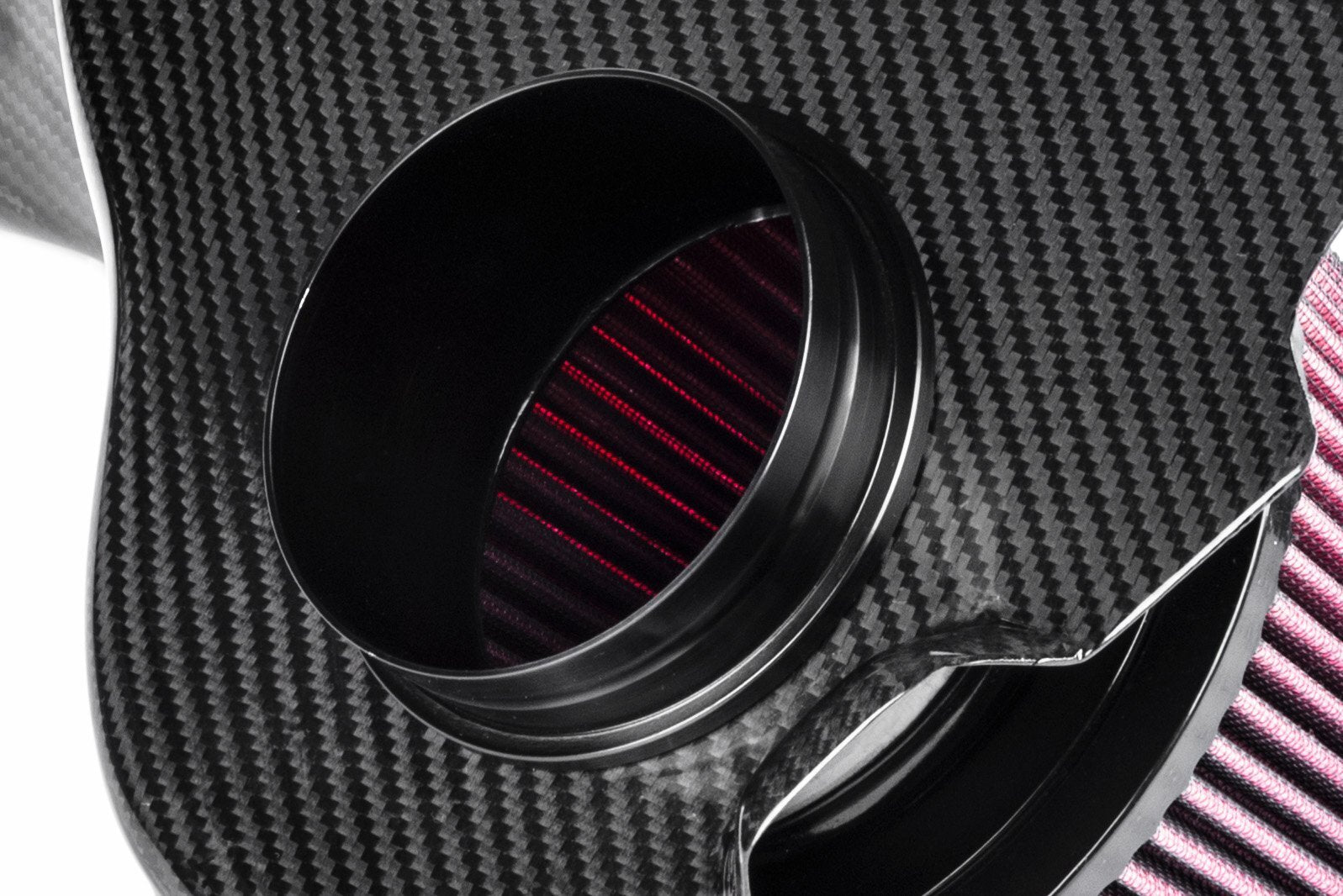

- 4 inch inlet suits factory inlet or APR Ultracharger System
- APR reports up to 268 CFM gain at 28 inches of H2O
- APR measured an average of 17 AWHP over stock
Specifications
- Brand: APR
- Product Type: Intake System
- Design: Open, airbox removed
- Air Dam and Shell: Carbon fibre
- Heat Shield: T304 stainless steel with air buffer gap
- Filter: 7 inch with frontal inlet
- Inlet: 4 inch
- Engine: 3.0 TFSI, per APR
- Part Number: CI100037
Vehicle Compatibility: 4 applications across 1 make. Select a make to view.
Audi (4)
| Model | Variant | Engine | Years |
|---|---|---|---|
| S4 | B8 | 6/8 cyl | |
| S5 | B8 | 6/8 cyl | |
| Q5 | B8 | 6/8 cyl | |
| SQ5 | B8 | 6/8 cyl |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
