APR Replacement PCV Top Plate for Catch Can System Audi A3 S3 8V/TT TTS 8S/VW Golf GTi R Mk7 Mk7.5

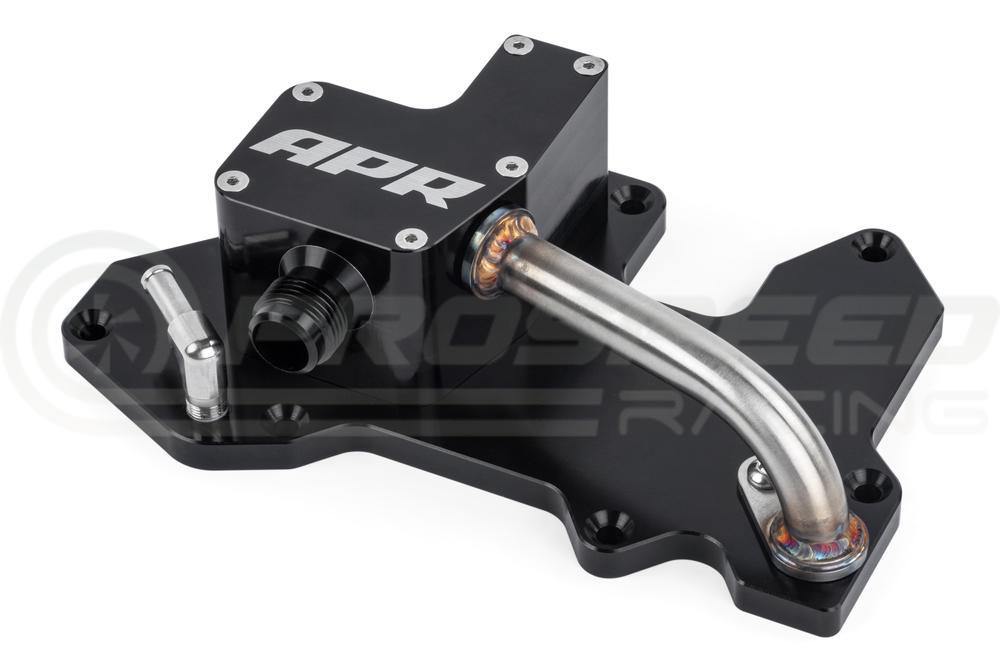

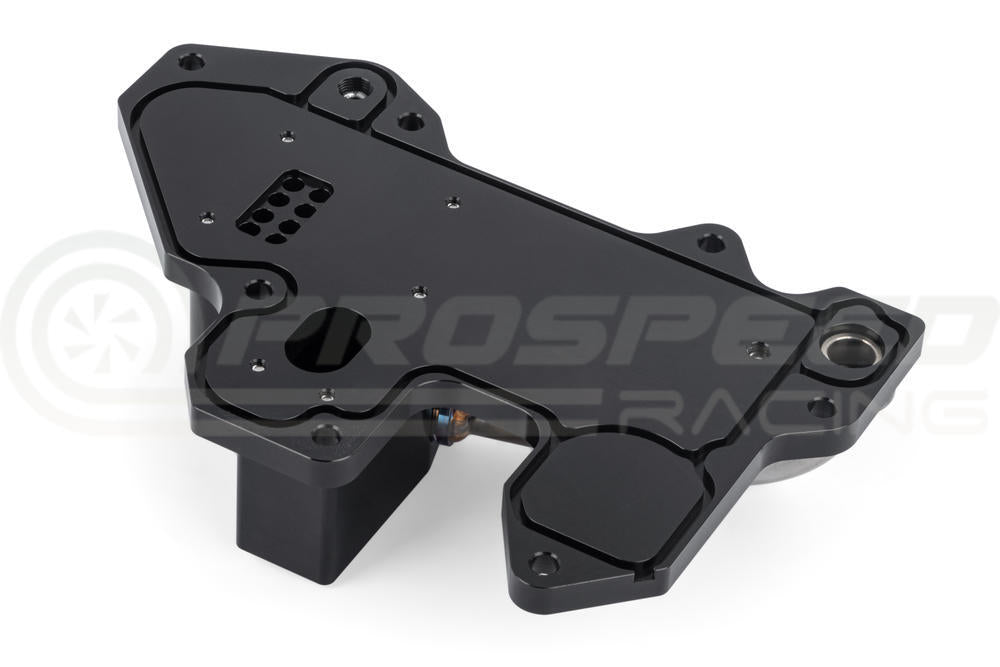

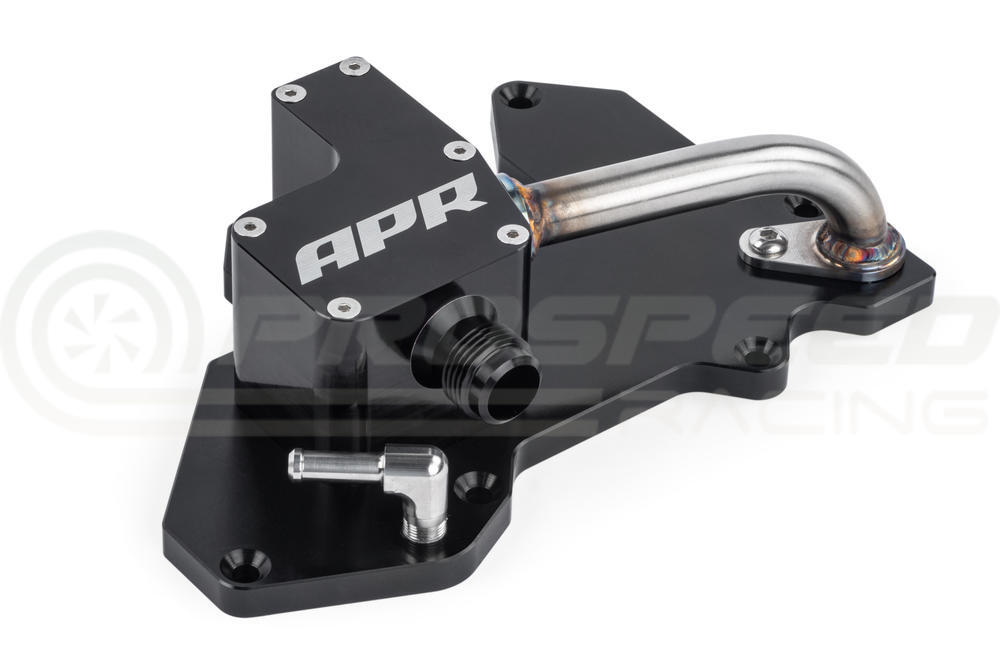

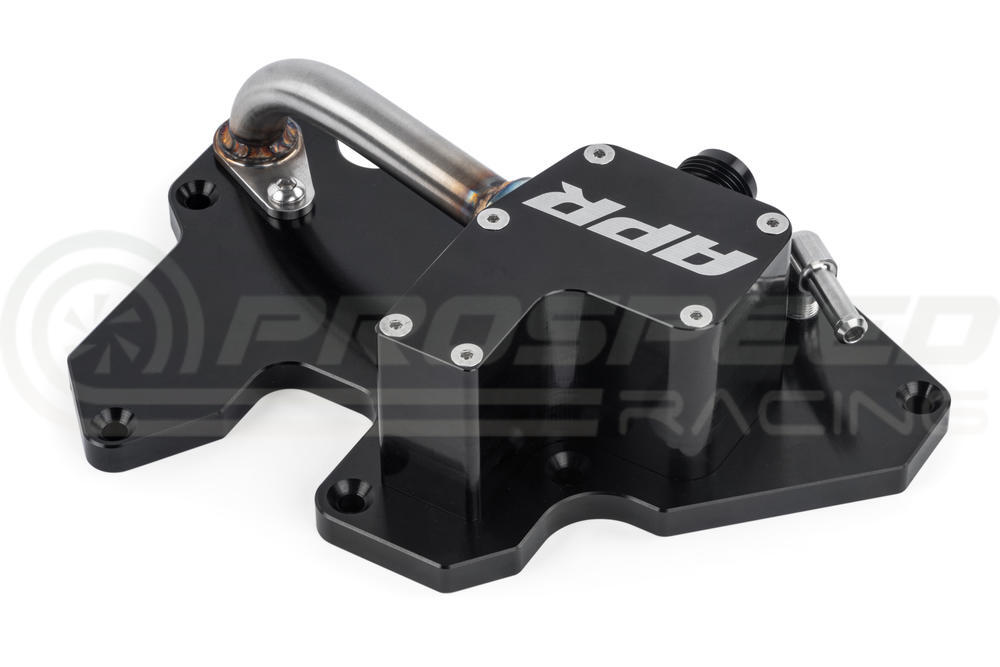

The APR Replacement PCV Top Plate is a service part for the APR Full Catch Can System (MS100199) on the Audi A3, S3, TT and TTS and the Volkswagen Golf GTI and Golf R Mk7 and Mk7.5. It is a new billet top plate that replaces the factory PCV with an upgraded unit built to address various failure points, using an internally baffled chamber to separate oil and a stainless steel oil drain back port. APR includes new mounting pegs to lift larger full length engine covers out of the way for larger hoses, plus a one way check valve that stops pressure acting directly on the N80 valve. It is not a complete system or a standalone product, and APR says it does not work on PCV systems with the integrated blowby sensor, such as those on engine code DETA.

Features

• Replacement billet top plate for the MS100199 catch can system
• Internally baffled chamber separates oil
• Stainless steel oil drain back port
• New mounting pegs lift larger full length engine covers
• One way check valve keeps pressure off the N80 valve
• All fittings are -10 AN

Specifications

• Brand: APR
• Product Type: PCV Top Plate (Catch Can System Service Part)
• Material: Billet
• Oil Separation: Internally baffled chamber with stainless steel oil drain back port
• Check Valve: One way, keeps pressure off the N80 valve
• Fittings: -10 AN
• Includes: New mounting pegs
• Use: Universal Service Part for kit MS100199, not a standalone product
• Not Compatible: PCV systems with the integrated blowby sensor, such as engine code DETA
• Part Number: MS100217

Vehicle Compatibility: 6 applications across 2 makes. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
