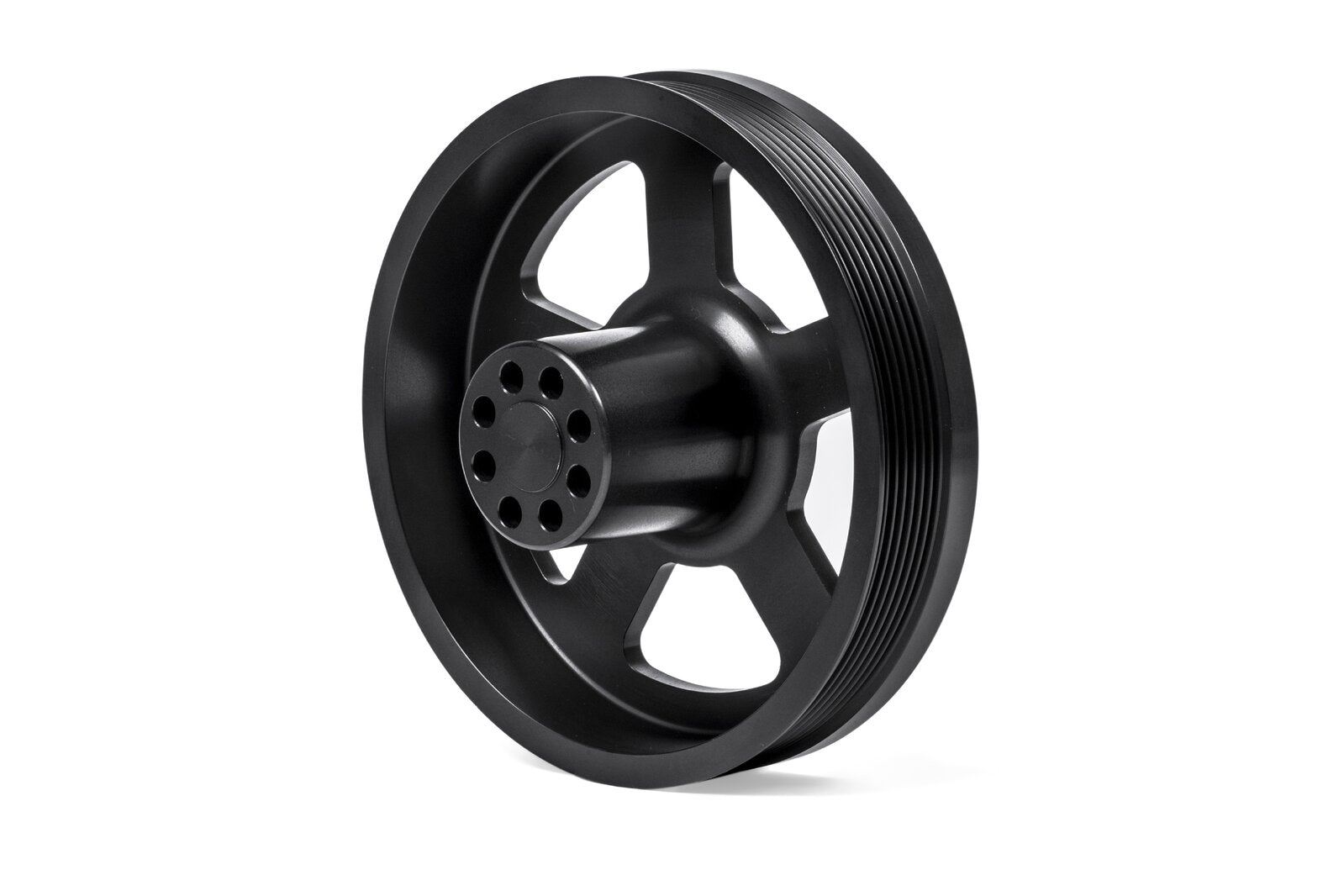

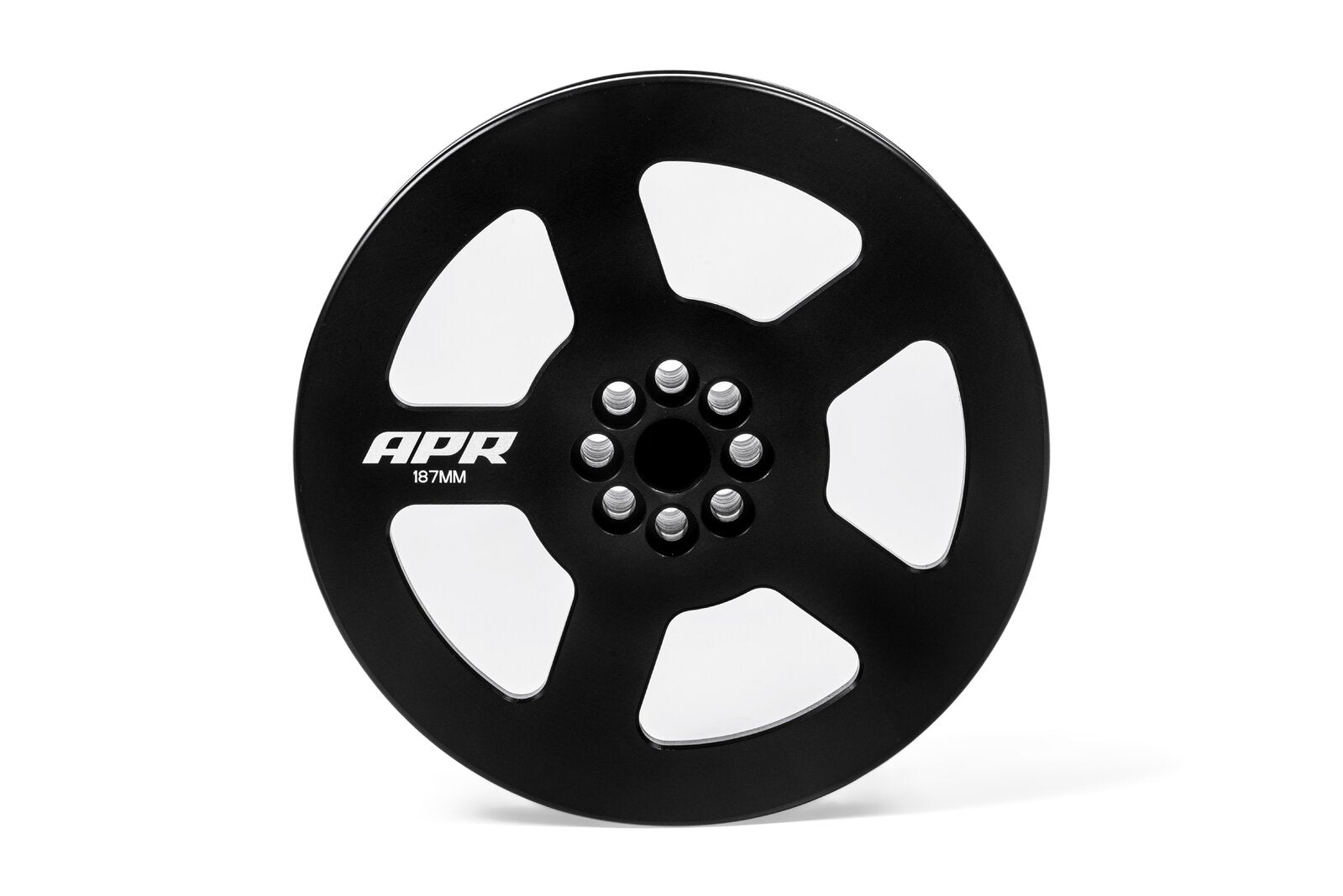

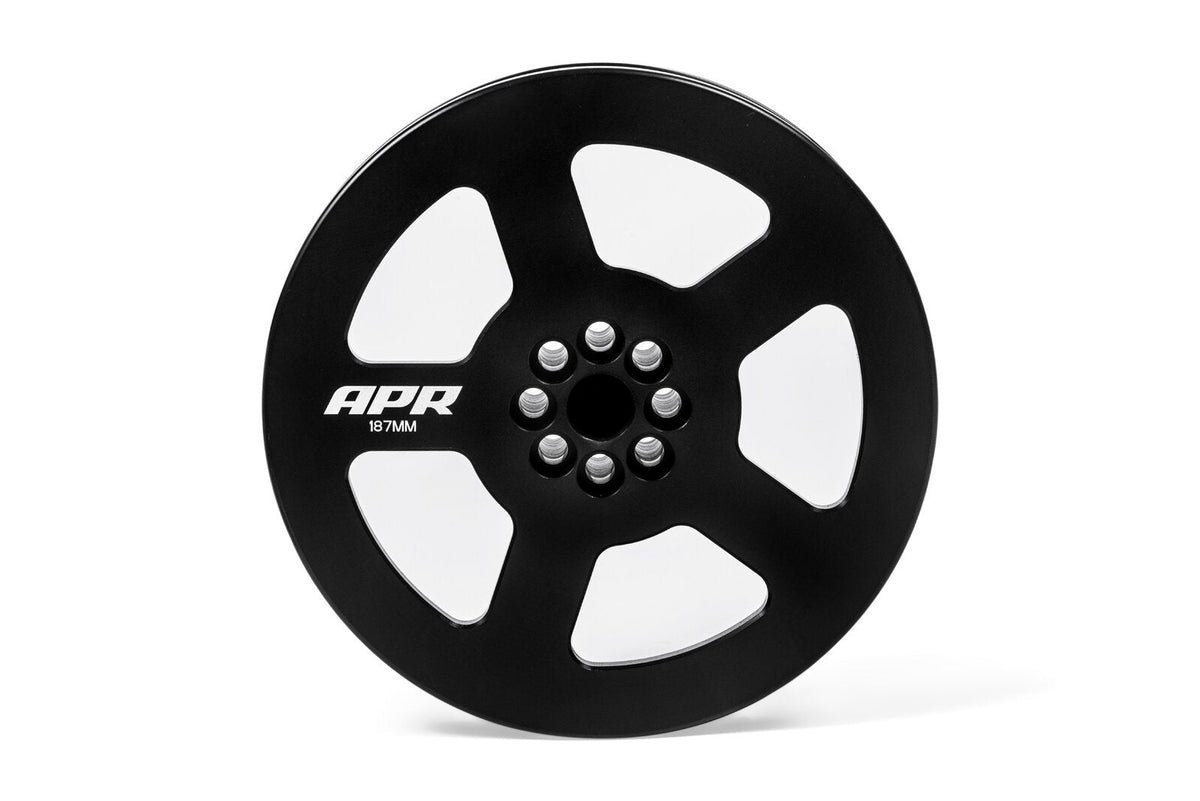

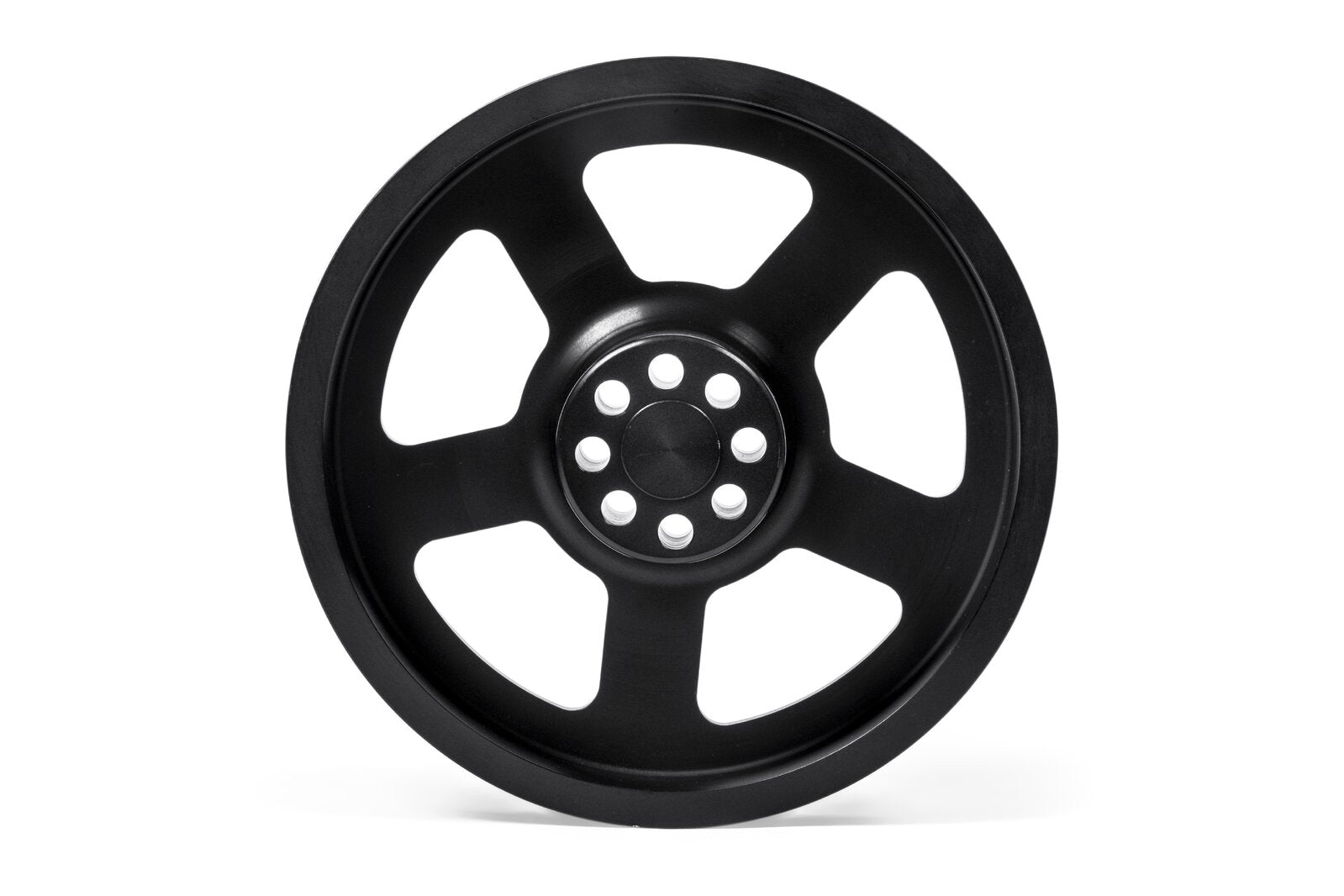

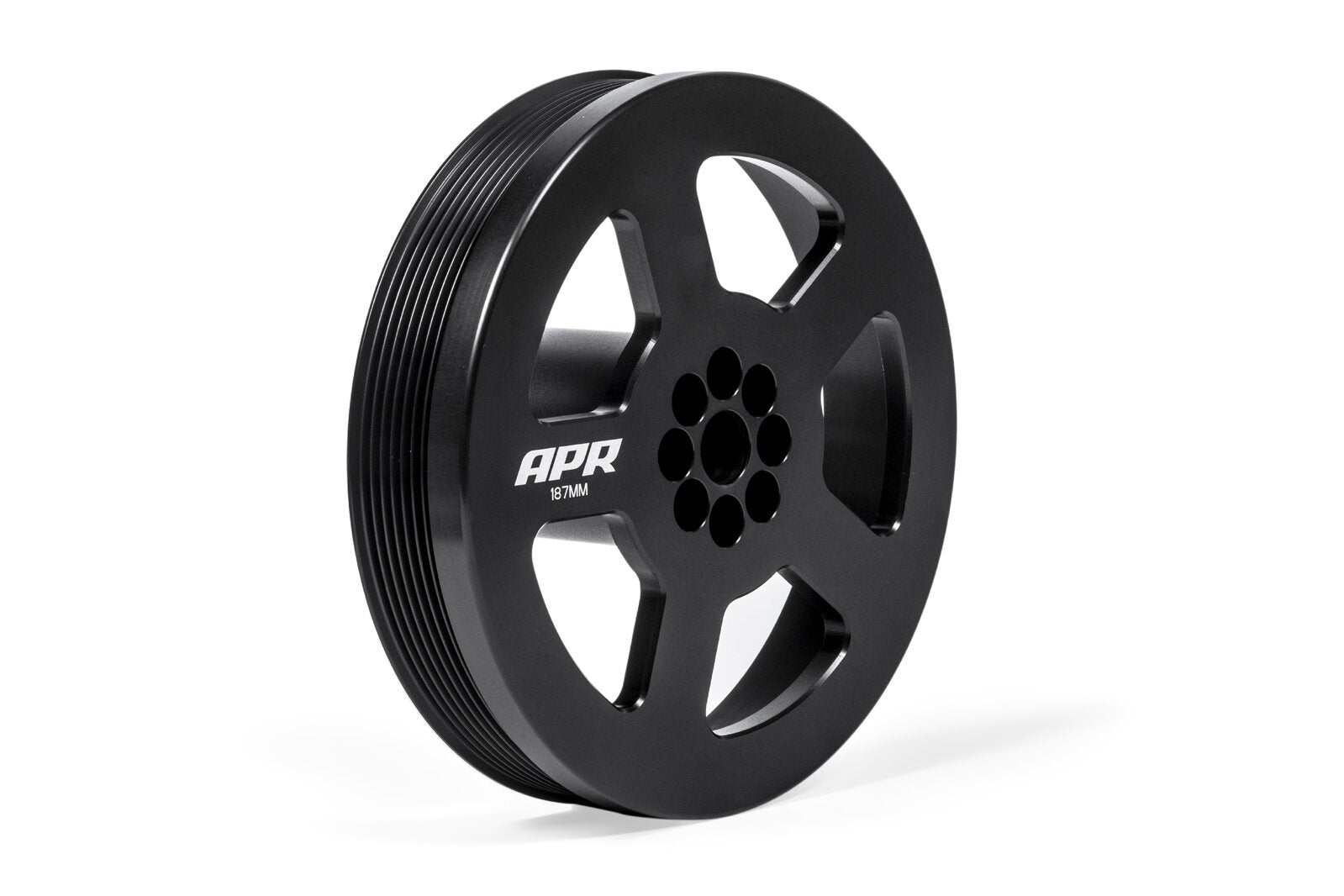

The APR Supercharger Crank Pulley Upgrade increases the factory crank pulley diameter from about 162mm to 187mm, which APR says spins the supercharger about 15.4% faster for a larger gain in horsepower and torque across the rev range. It is listed for supercharged 3.0 TFSI Audi A6, A7, A8, Q5, Q7, S4, S5 and SQ5 models. The pulley is CNC machined from lightweight billet aluminium with weight saving pockets and an anodised black finish, bolts over the top of the factory harmonically balanced crank pulley and comes with new crank pulley bolts. APR notes that specific software is required to maximise output and that a new belt is needed, RS100003 with a factory drive pulley or RS100002 with an APR drive pulley.
Features
- Crank pulley diameter up from about 162mm to 187mm

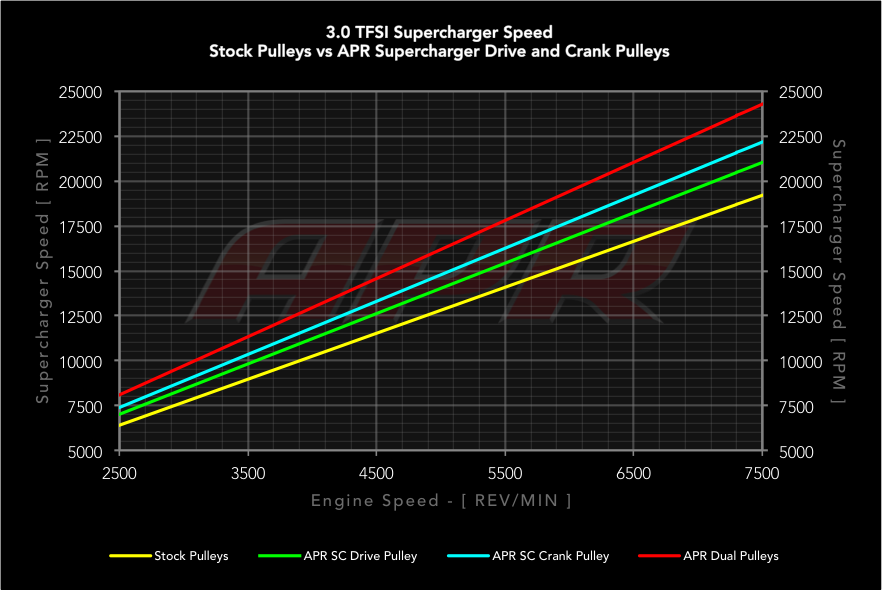

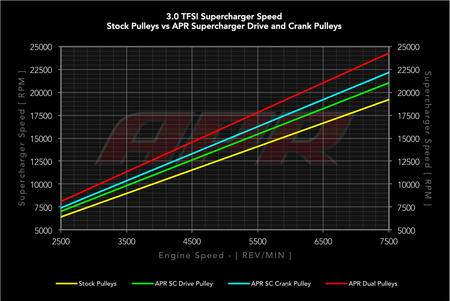

- Spins the supercharger about 15.4% faster, per APR
- CNC machined lightweight billet aluminium
- Weight saving pockets, black anodised finish
- Bolts on top of the factory balanced crank pulley

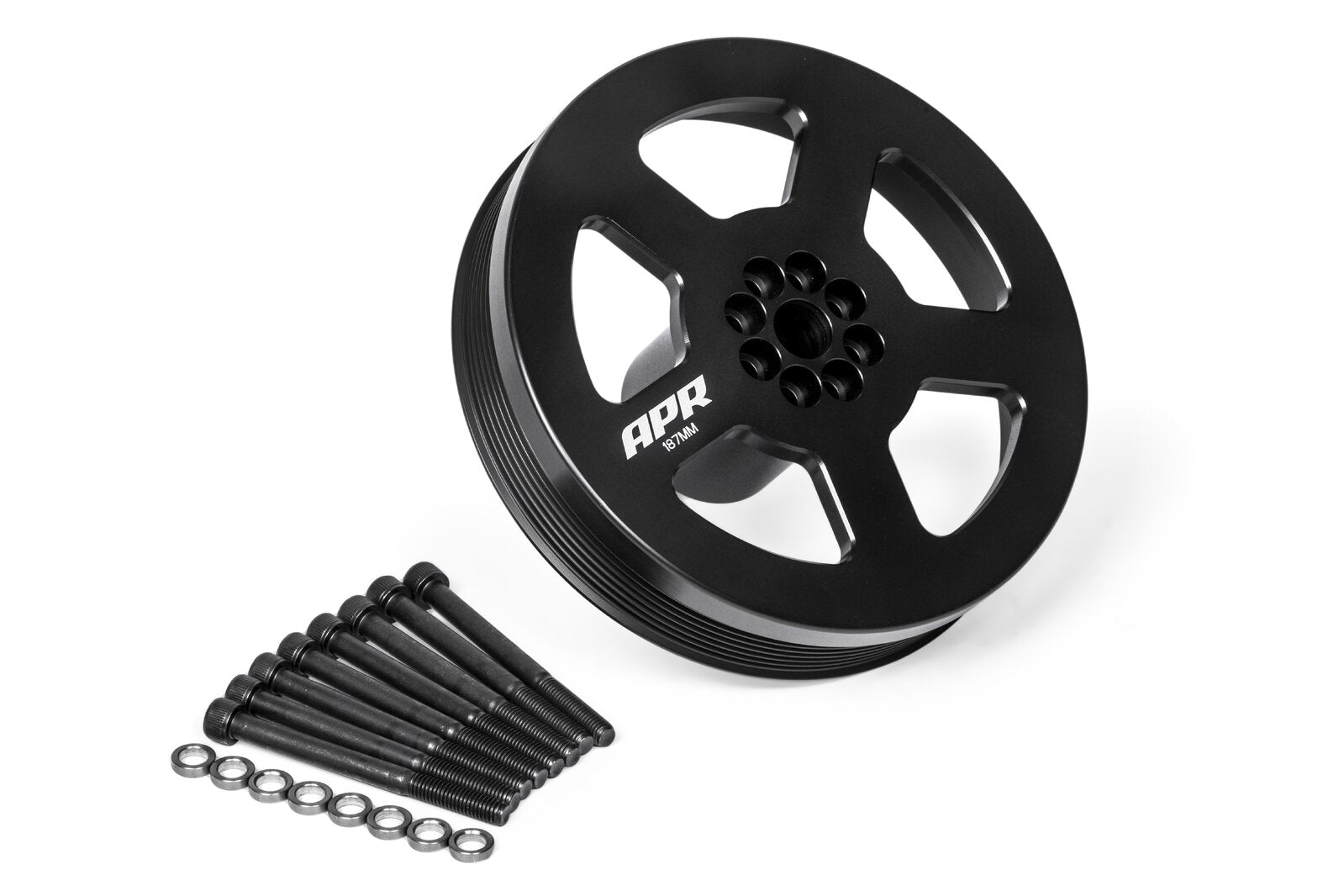

- Includes new crank pulley bolts
- Specific software and a new belt required
Specifications
- Brand: APR
- Product Type: Supercharger Crank Pulley
- Material: CNC machined billet aluminium with weight saving pockets
- Finish: Black anodised
- Diameter: Increased from about 162mm to 187mm
- Supercharger Speed Increase: About 15.4%
- Included: New crank pulley bolts
- Belt: New belt required: RS100003 with a factory drive pulley, RS100002 with an APR drive pulley
- Software: Specific software required to maximise output
- Part Number: MS100133
Vehicle Compatibility: 8 applications across 1 make. Select a make to view.
Audi (8)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A6 | 3.0 TFSI | ||
| A7 | 3.0 TFSI | ||
| A8 | 3.0 TFSI | ||
| Q5 | 3.0 TFSI | ||
| Q7 | 3.0 TFSI | ||
| S4 | 3.0 TFSI | ||
| S5 | 3.0 TFSI | ||
| SQ5 | 3.0 TFSI |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
