APR Supercharger Drive and Crank Pulley with Belt Bolt on Audi A6/A7/A8/Q5/Q7/S4/S5/SQ5 3.0TFSI
The APR Supercharger Drive and Crank Pulley set is a bolt-on supercharger speed upgrade for 3.0 TFSI Audi models, including the A6, A7, A8, Q5, Q7, S4, S5 and SQ5. The drive pulley shrinks from about 63.25mm to 57.75mm to spin the supercharger roughly 9.5% faster, the crank pulley grows from about 162mm to about 187mm for roughly 15.4% more speed, and APR says the pair spin the factory supercharger about 26.4% faster than stock. The drive pulley is CNC machined from billet stainless steel with a black e-coat, while the crank pulley is CNC machined from lightweight billet aluminium with weight saving pockets, an anodised black finish and new crank pulley bolts. APR says maximum power with both pulleys is held back by the factory throttle body and recommends its Ultracharger Throttle Body Upgrade, and the belt is included but the software needed to maximise output is sold separately.
Features
- Drive pulley reduced from ~63.25mm to 57.75mm, about 9.5% faster
- Crank pulley increased from ~162mm to ~187mm, about 15.4% faster
- Both together spin the supercharger about 26.4% faster, per APR

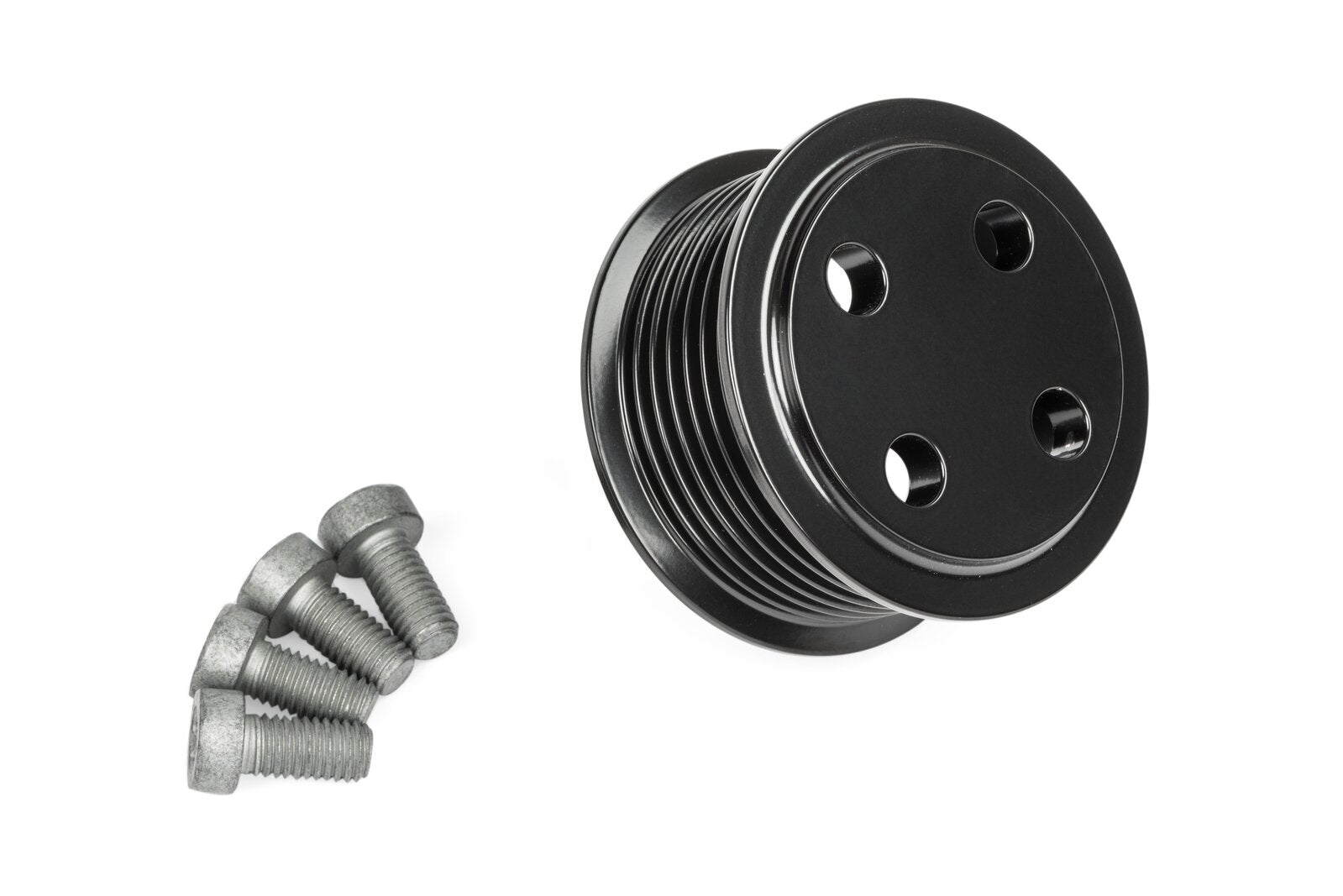

- Drive pulley CNC machined from billet stainless steel, e-coated black

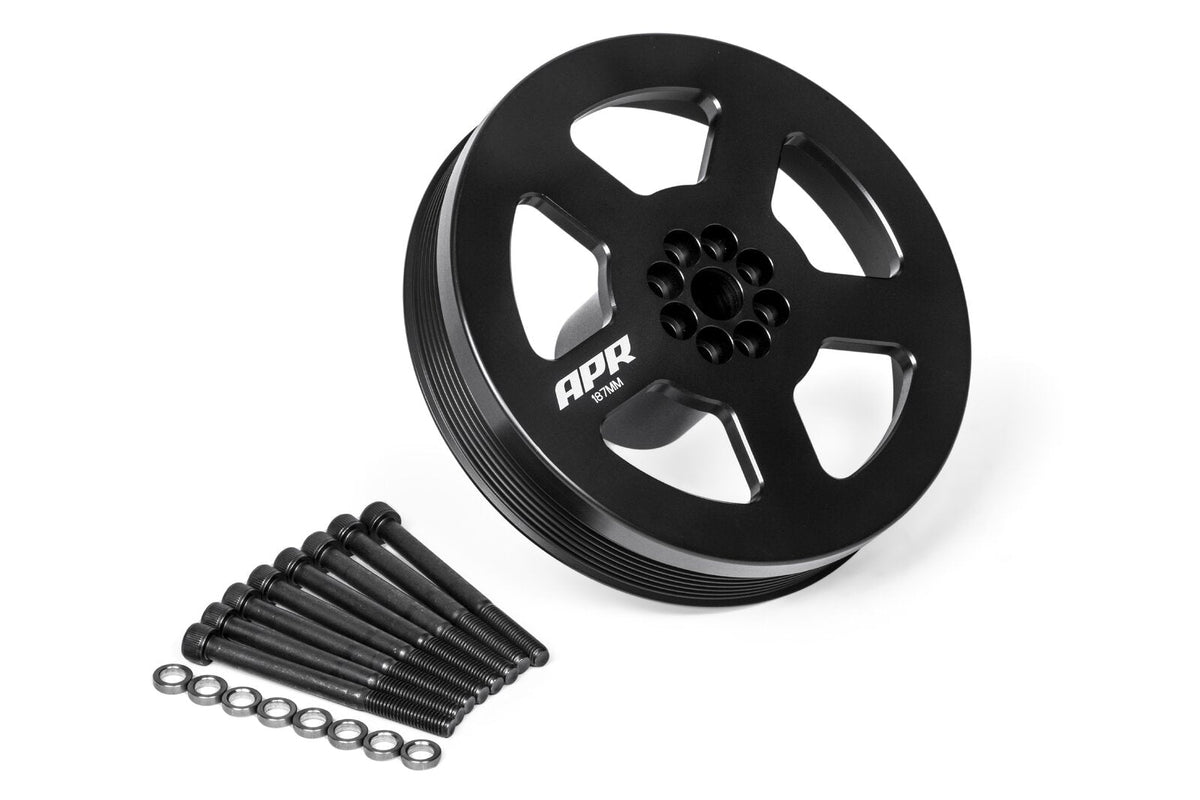

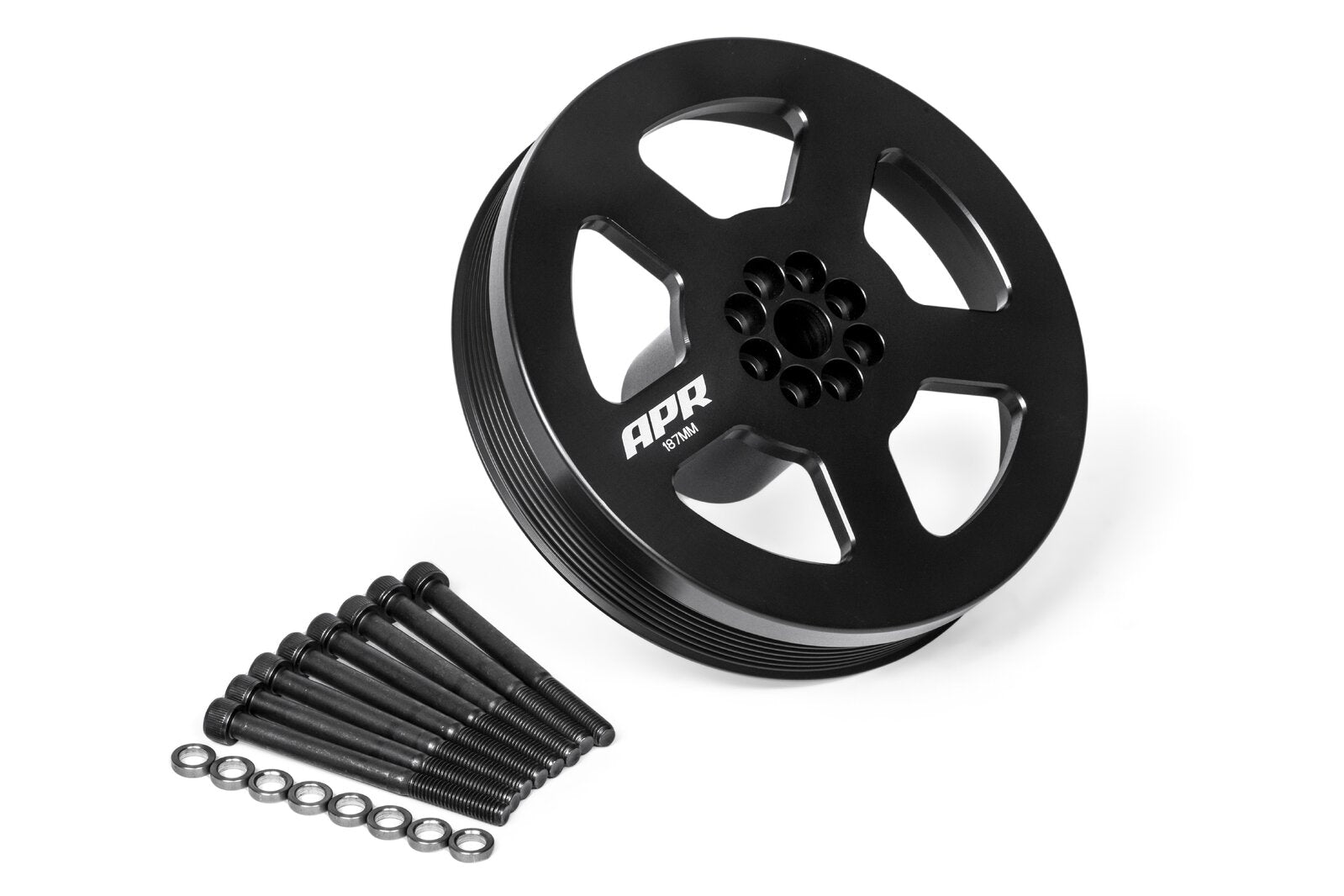

- Crank pulley CNC machined from billet aluminium, anodised black
- Bolts on top of the factory harmonically balanced crank pulley

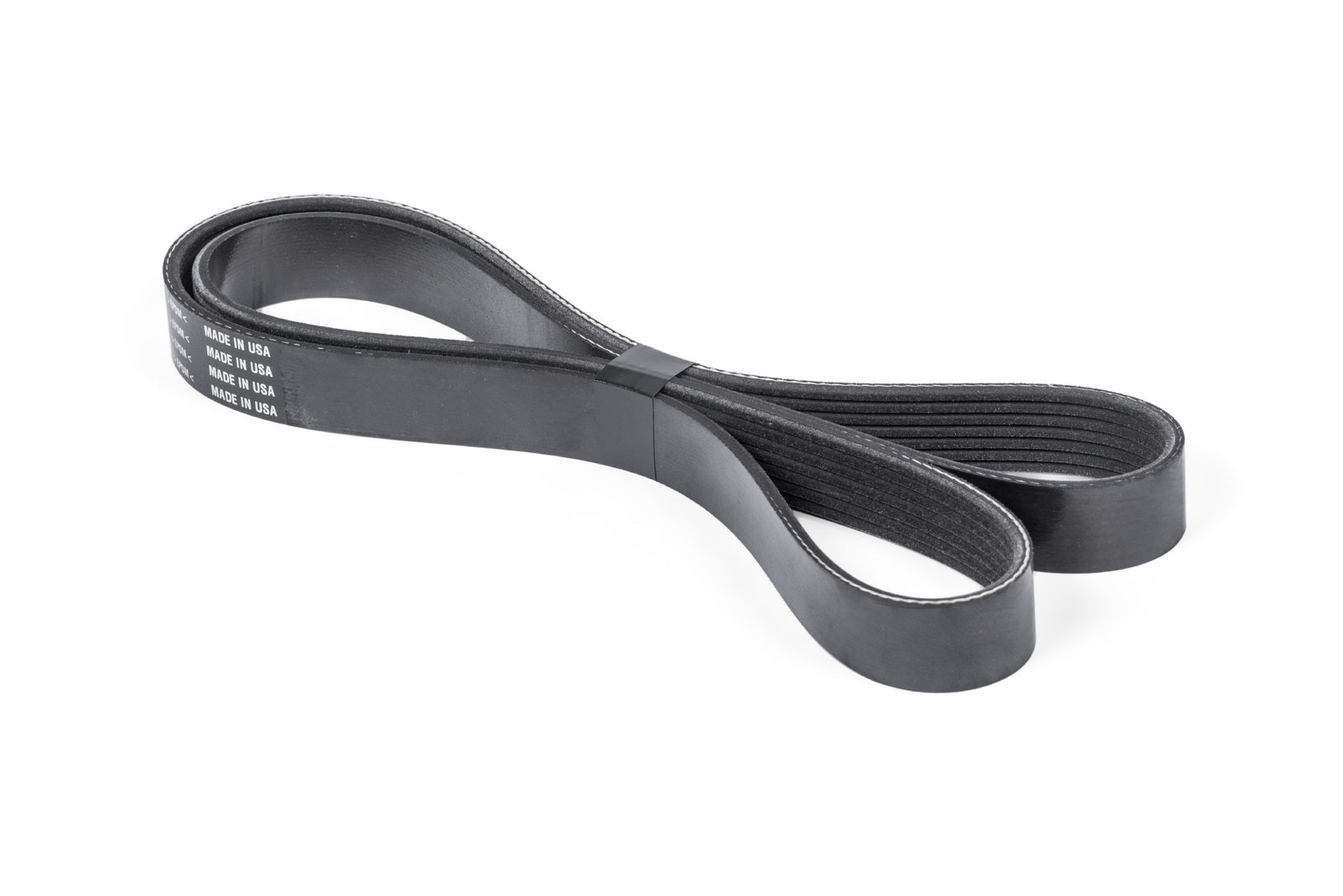

- Belt and new crank pulley bolts included; software sold separately
Specifications
- Brand: APR
- Product Type: Supercharger Drive and Crank Pulley Set
- Engine: 3.0 TFSI
- Drive Pulley: Billet stainless steel, CNC machined, e-coated black; diameter reduced from ~63.25mm to 57.75mm
- Crank Pulley: Billet aluminium, CNC machined with weight saving pockets, anodised black; diameter increased from ~162mm to ~187mm
- Supercharger Speed: ~9.5% faster (drive pulley), ~15.4% faster (crank pulley), ~26.4% faster than stock with both (per APR)

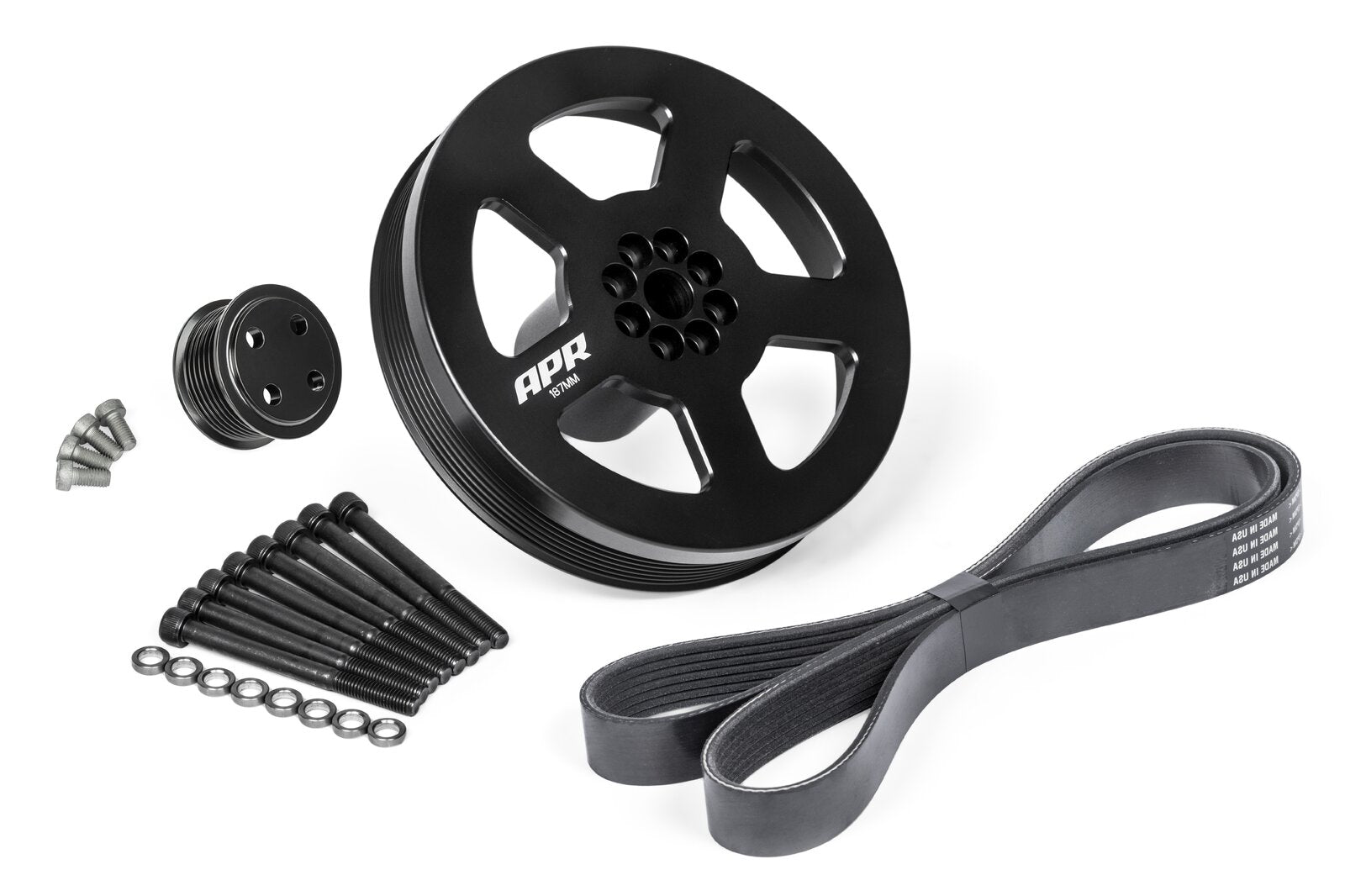

- Included: Both pulleys, belt, new crank pulley bolts
- Software: Sold separately; required to maximise output
- Part Number: MS100185
Vehicle Compatibility: 8 applications across 1 make. Select a make to view.
Audi (8)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A6 | 3.0 TFSI | ||
| A7 | 3.0 TFSI | ||
| A8 | 3.0 TFSI | ||
| Q5 | 3.0 TFSI | ||
| Q7 | 3.0 TFSI | ||
| S4 | 3.0 TFSI | ||
| S5 | 3.0 TFSI | ||
| SQ5 | 3.0 TFSI |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
