APR Supercharger Drive and Crank Pulley with Belt Press on Audi A6/A7/A8/Q5/Q7/S4/S5/SQ5 3.0TFSI

This APR kit pairs a smaller supercharger drive pulley with a larger crank pulley and a belt to spin the factory supercharger faster on 3.0 TFSI Audi A6, A7, A8, Q5, Q7, S4, S5 and SQ5 models. The drive pulley shrinks from about 63.25mm to 57.75mm for roughly 9.5% more supercharger speed, and the crank pulley grows from about 162mm to 187mm for roughly 15.4%, which together APR says spin the supercharger about 26.4% faster than stock. The drive pulley, machined from billet stainless steel by CNC, has a black e-coat and press fits to the supercharger, while the lightweight billet aluminium crank pulley is anodised black, bolts on top of the factory harmonically balanced unit and comes with new bolts. APR notes that specific software is required to maximise output and that its Ultracharger Throttle Body Upgrade is needed to get the full benefit of a dual pulley setup.

Features

• Drive pulley reduced from about 63.25mm to 57.75mm
• Crank pulley increased from about 162mm to 187mm
• About 26.4% faster supercharger with both pulleys, per APR
• Billet stainless steel drive pulley, black e-coat
• Lightweight billet aluminium crank pulley, black anodised
• Keeps the factory harmonically balanced crank pulley
• Belt and new crank pulley bolts included

Specifications

• Brand: APR
• Product Type: Supercharger Drive and Crank Pulley Kit

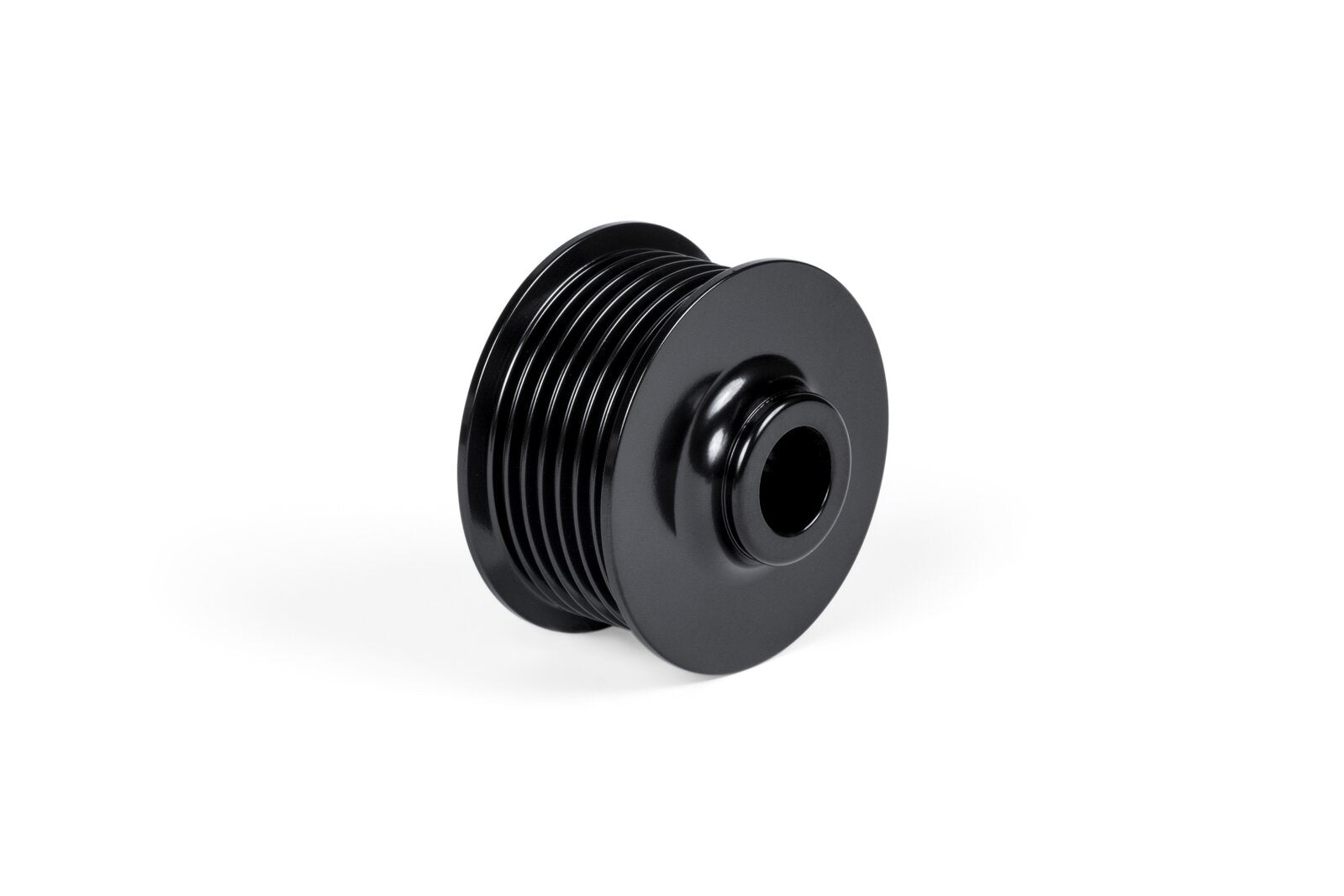

• Drive Pulley: CNC machined billet stainless steel, black e-coat, press fit, about 63.25mm reduced to 57.75mm

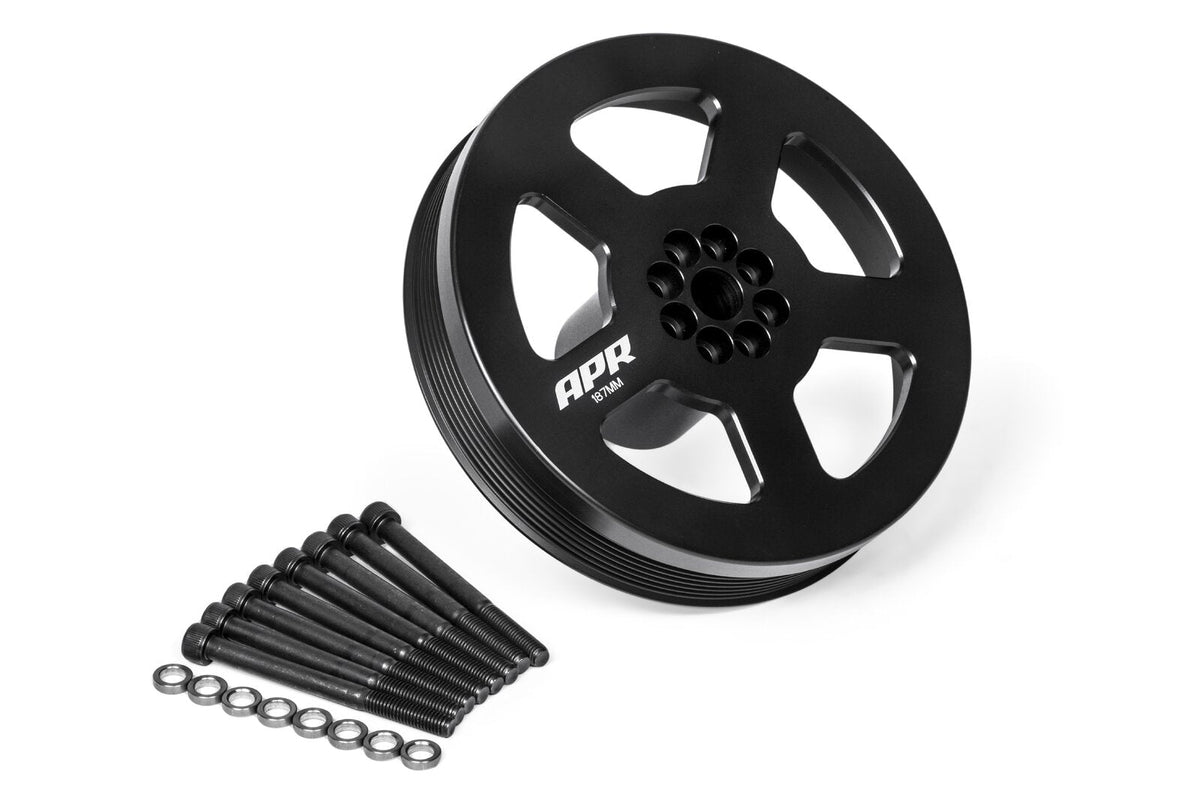

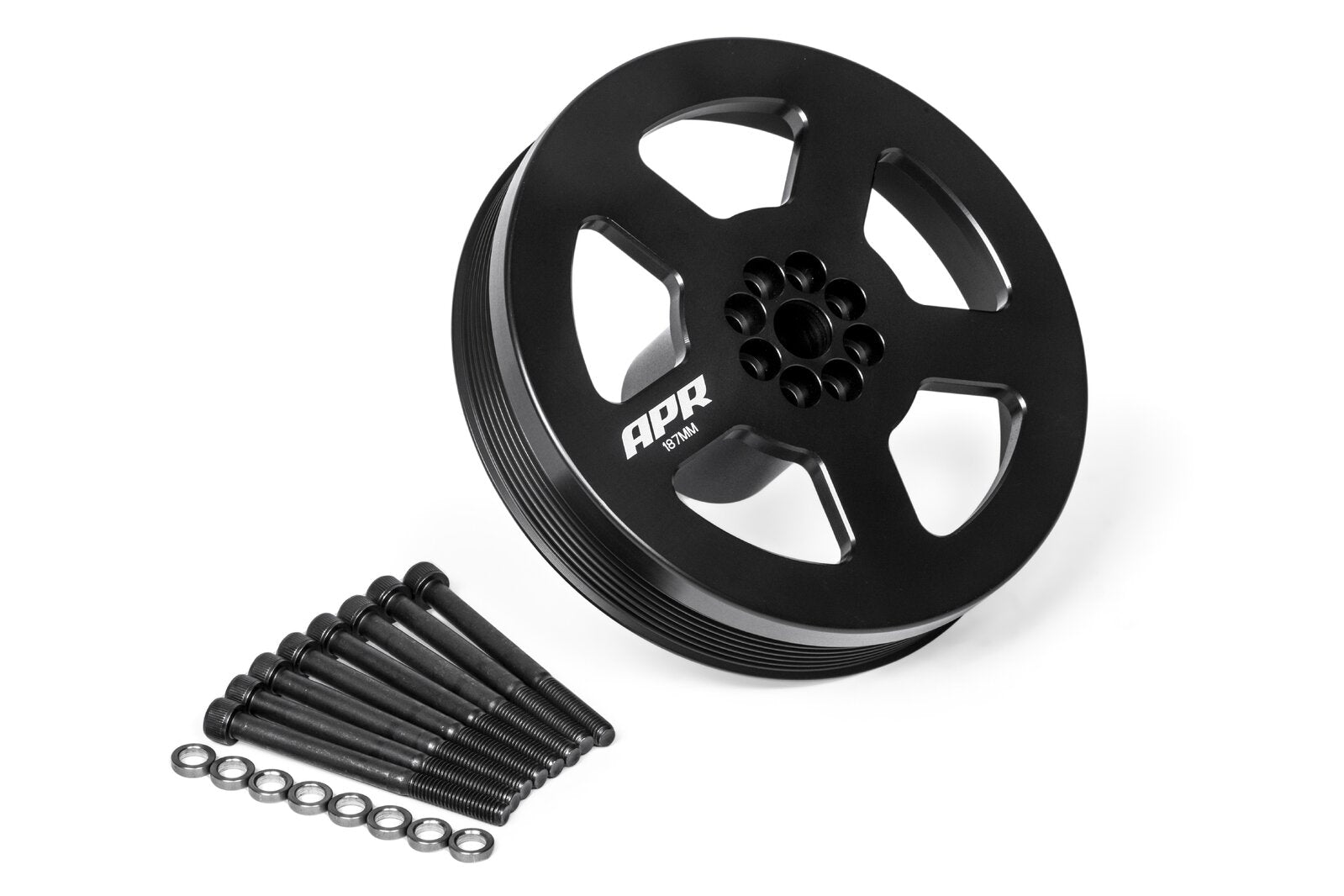

• Crank Pulley: CNC machined billet aluminium with weight saving pockets, black anodised, about 162mm increased to 187mm, bolts over the factory pulley

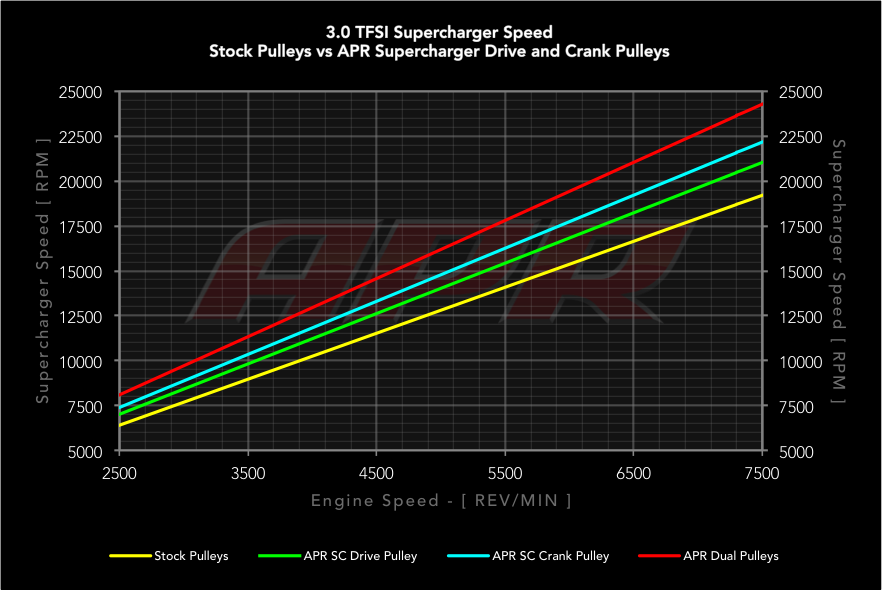

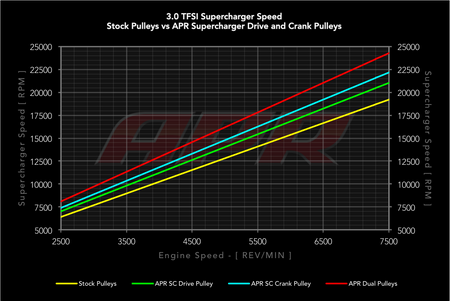

• Supercharger Speed Increase: About 9.5% (drive pulley), 15.4% (crank pulley), 26.4% (both)

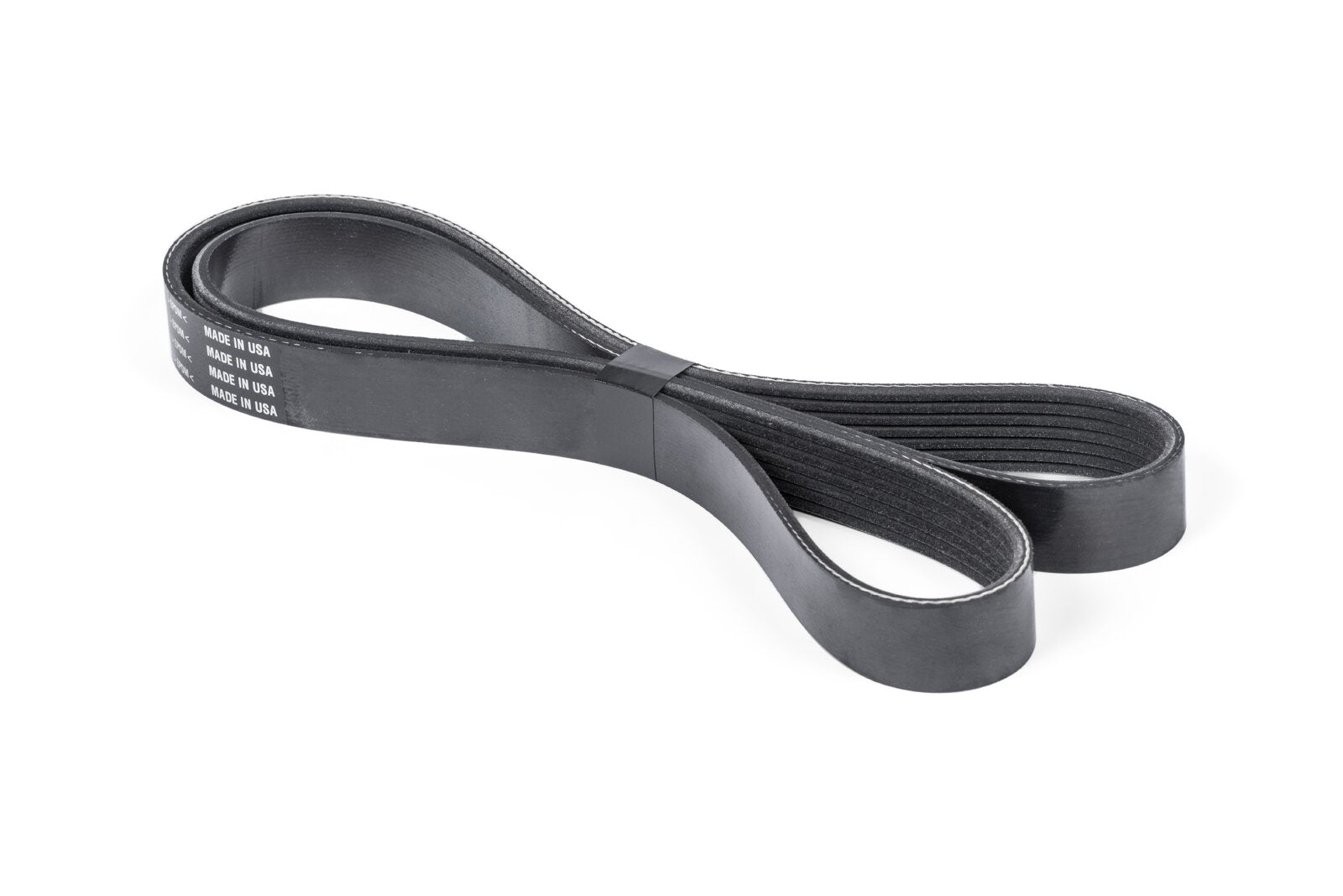

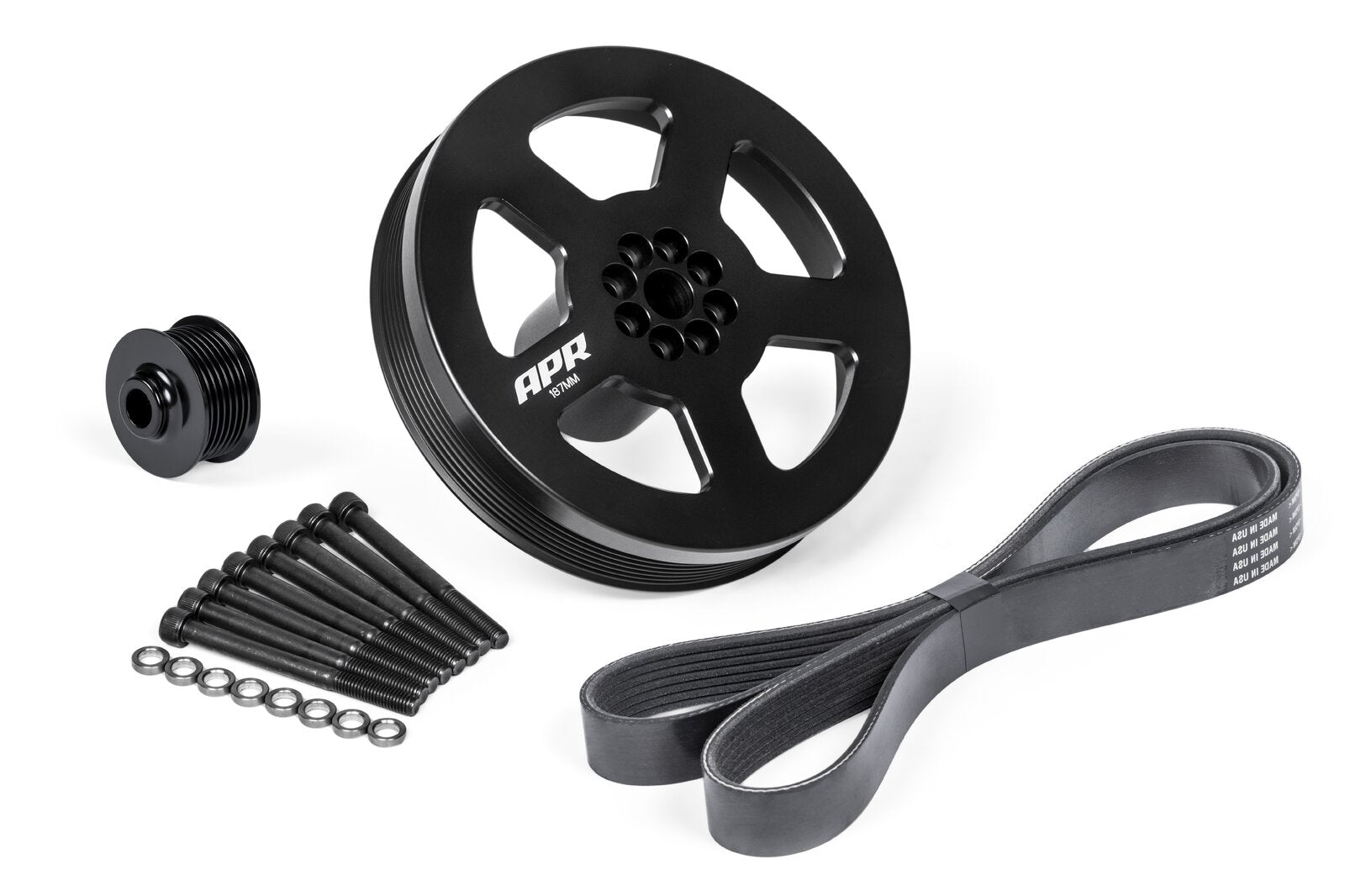

• Included: Drive pulley, crank pulley, belt, new crank pulley bolts
• Related Parts: MS100025 installation kit removes the factory drive pulley; APR Ultracharger Throttle Body Upgrade needed to take full advantage of the dual pulley setup
• Software: Specific software required to maximise output (sold separately)
• Part Number: MS100184

Vehicle Compatibility: 8 applications across 1 make. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
