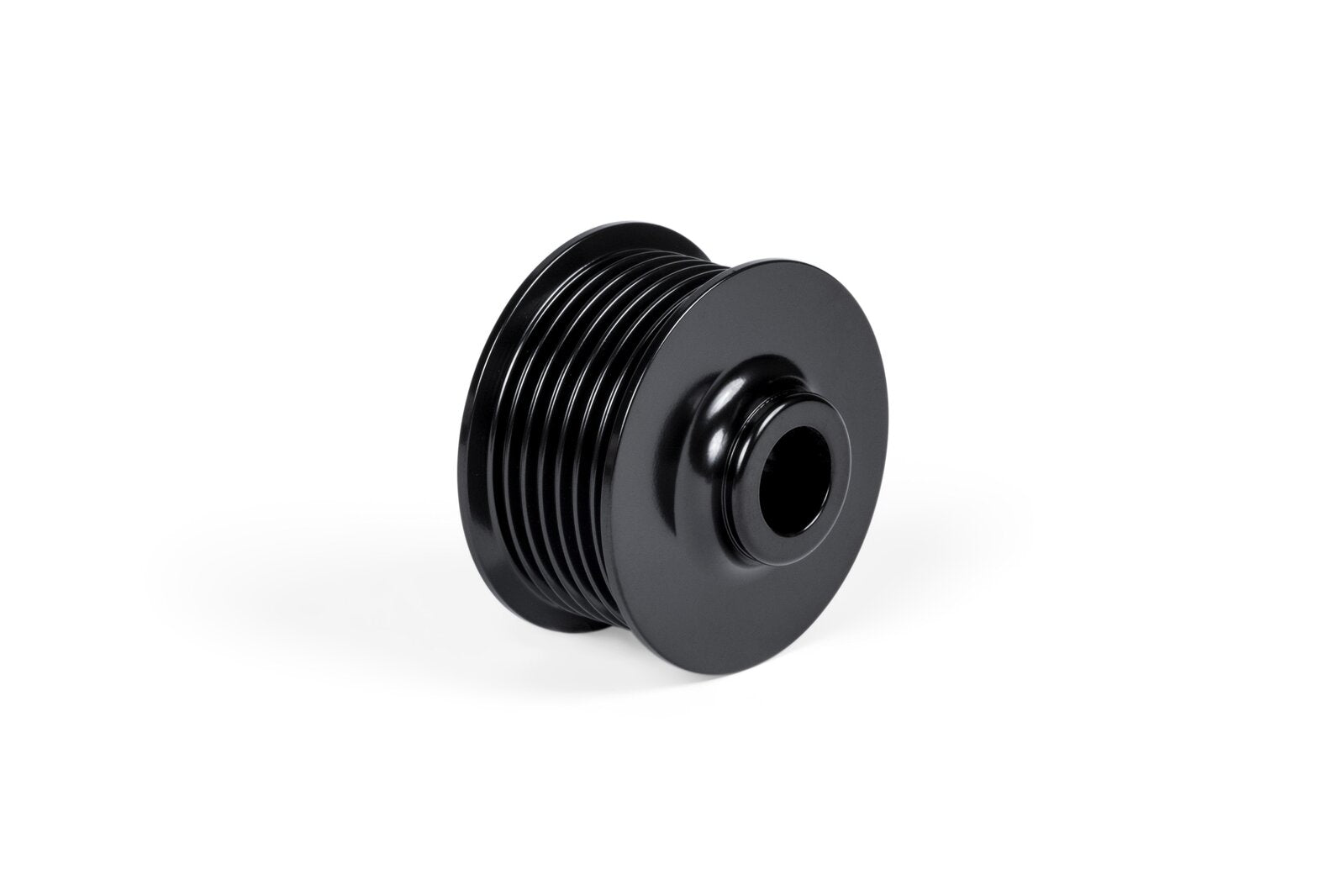

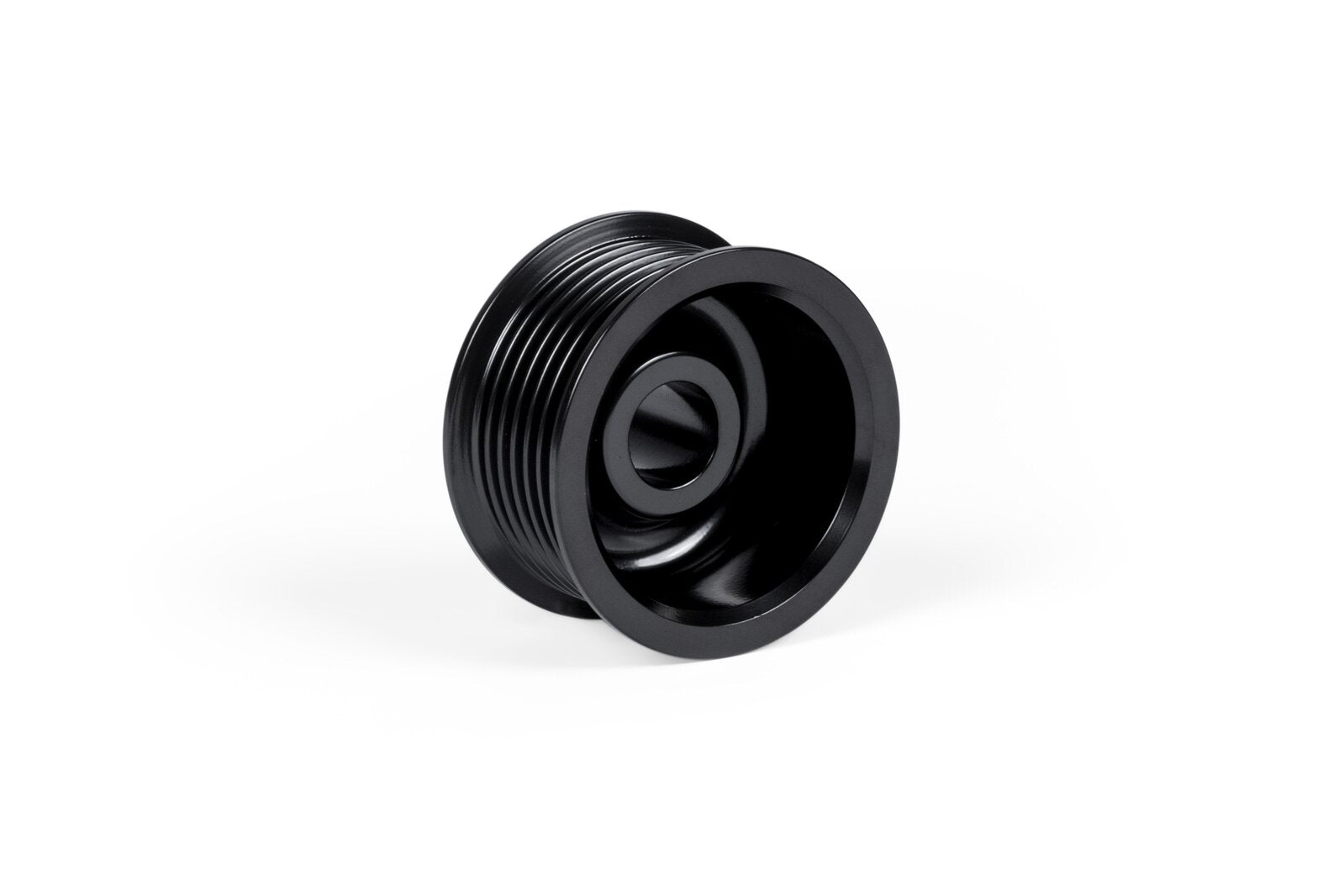

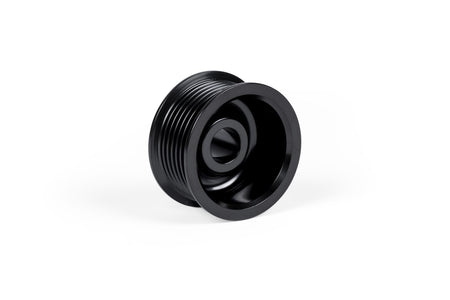

The APR Supercharger Drive Pulley is a smaller-diameter drive pulley for the factory supercharger on the 3.0 TFSI in the Audi A6, A7, A8, Q5, Q7, S4, S5 and SQ5. It reduces the factory pulley diameter from about 63.25mm to 57.75mm, which APR says spins the supercharger about 9.5% faster for a noticeable gain in horsepower and torque across the rev range. It is CNC machined from billet stainless steel, finished in black e-coat to look OEM, and press fitted onto the factory supercharger. APR notes that specific software is required to maximise output, that it suits pressed-on pulleys only, and that a new belt is required.
Features
- Drive pulley diameter reduced from ~63.25mm to 57.75mm

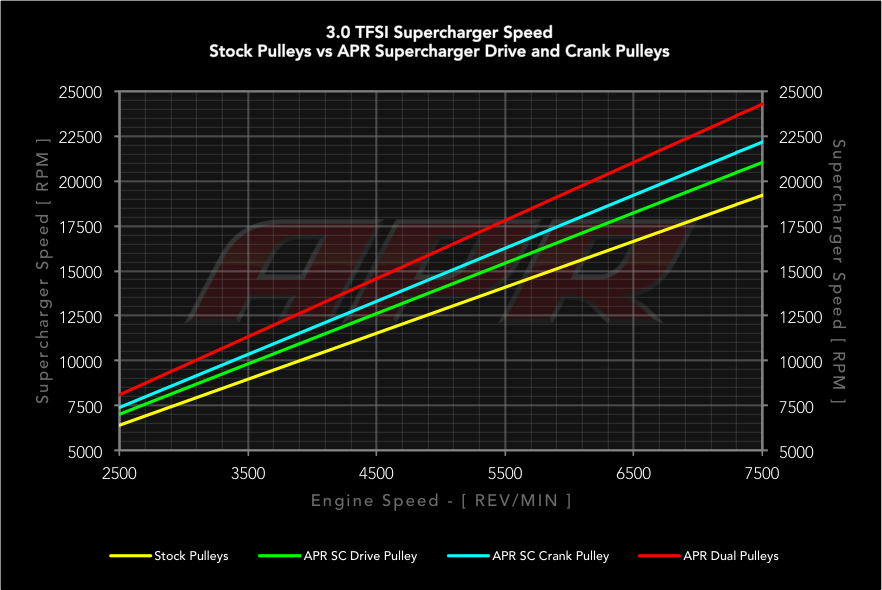

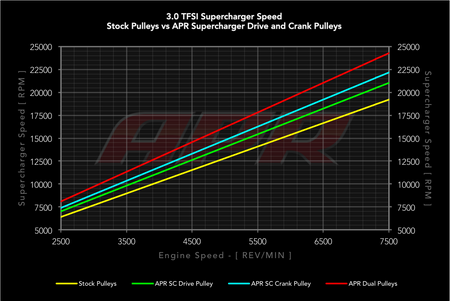

- Spins the supercharger ~9.5% faster, per APR
- CNC machined billet stainless steel
- E-coated black for an OEM appearance
- Press fitted to the factory supercharger
- Pressed-on pulleys only; bolted-on pulleys use MS100139
- New belt required; software needed to maximise output
Specifications
- Brand: APR
- Product Type: Supercharger Drive Pulley
- Pulley Diameter: 57.75mm, down from ~63.25mm (supercharger ~9.5% faster, per APR)
- Material: CNC machined billet stainless steel
- Finish: E-coated black
- Fit: Press fitted to the factory supercharger
- Related Parts: MS100139 (bolted-on pulleys), MS100025 (factory pulley removal)
- Belt (Required): RS100001 with factory crank pulley, RS100002 with APR crank pulley
- Engine: 3.0 TFSI
- Part Number: MS100135
Vehicle Compatibility: 8 applications across 1 make. Select a make to view.
Audi (8)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| A6 | 3.0 TFSI | Pressed-on pulleys only | ||
| A7 | 3.0 TFSI | Pressed-on pulleys only | ||
| A8 | 3.0 TFSI | Pressed-on pulleys only | ||
| Q5 | 3.0 TFSI | Pressed-on pulleys only | ||
| Q7 | 3.0 TFSI | Pressed-on pulleys only | ||
| S4 | 3.0 TFSI | Pressed-on pulleys only | ||
| S5 | 3.0 TFSI | Pressed-on pulleys only | ||
| SQ5 | 3.0 TFSI | Pressed-on pulleys only |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
